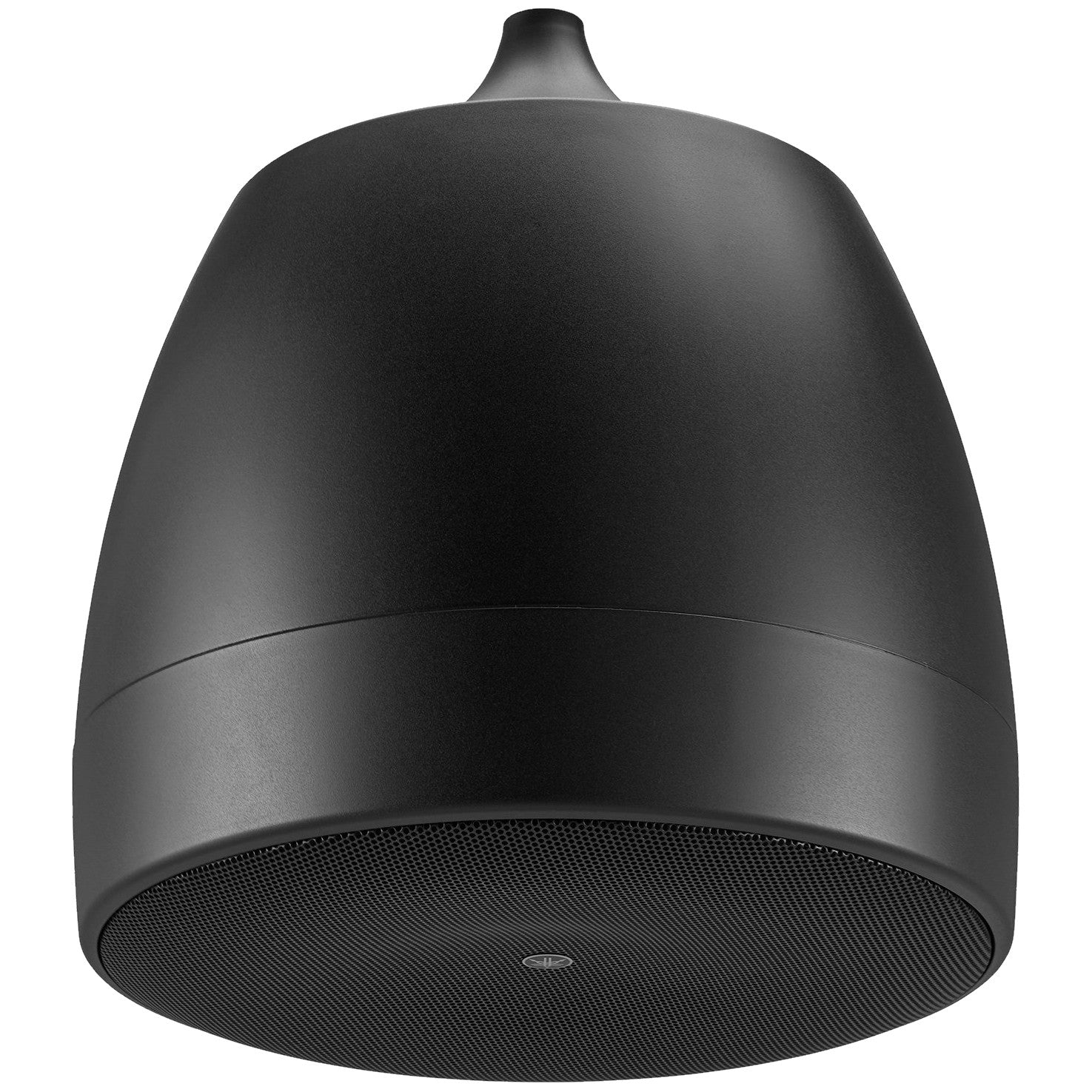

• Yamaha VXH6 6.5 Pendant Speaker black

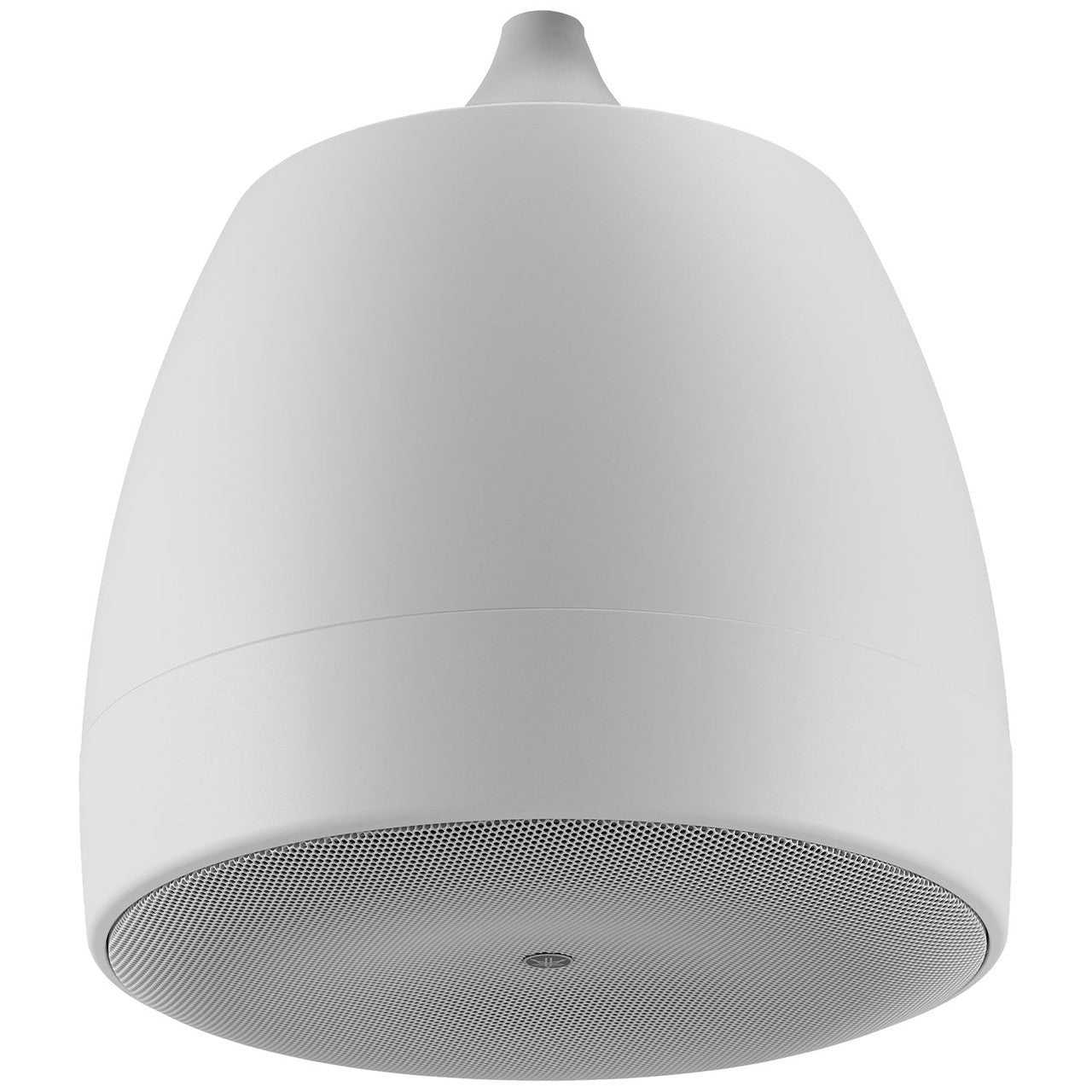

  • Yamaha VXH6 6.5 Pendant Speaker white

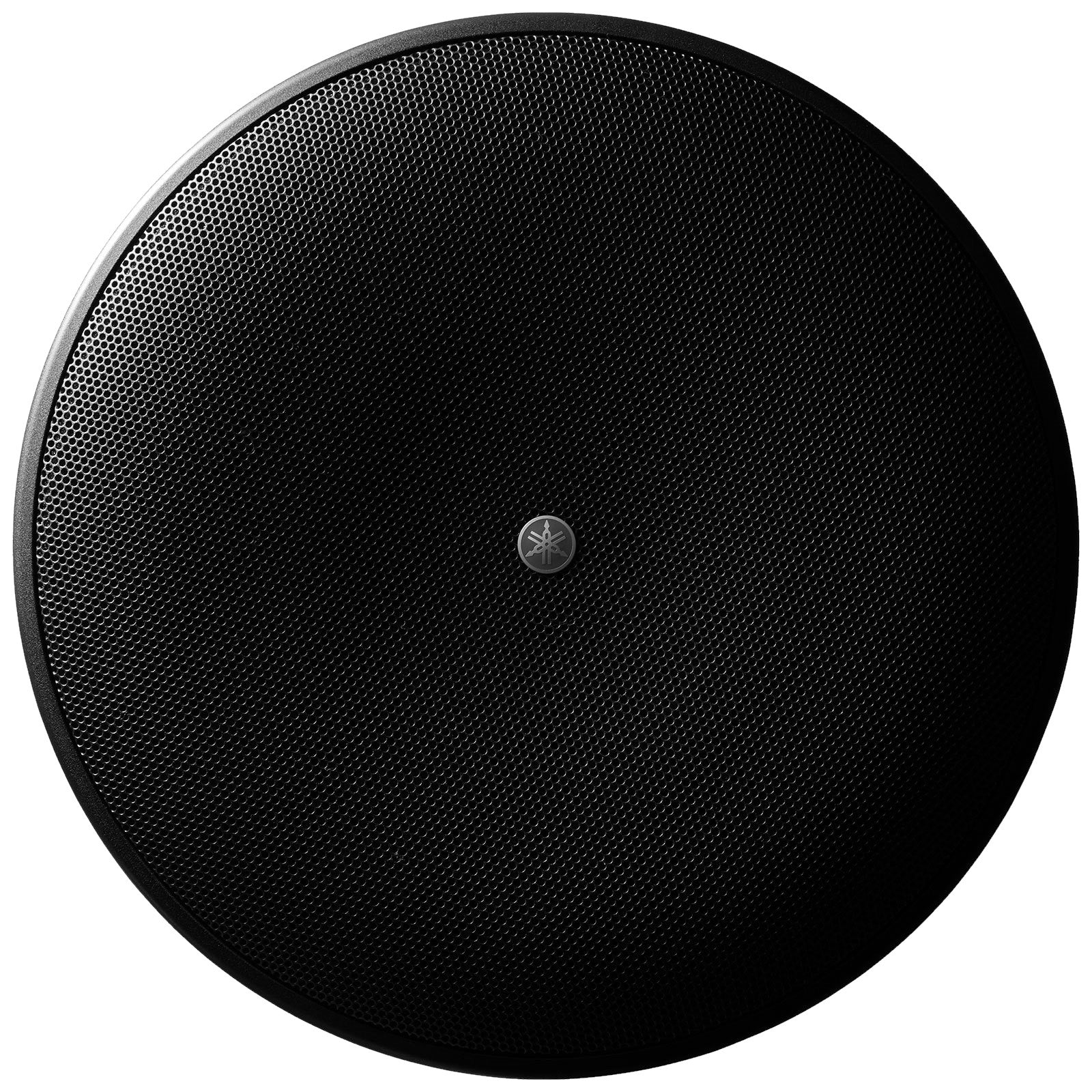

  • Yamaha VXH6 6.5 Pendant Speaker front

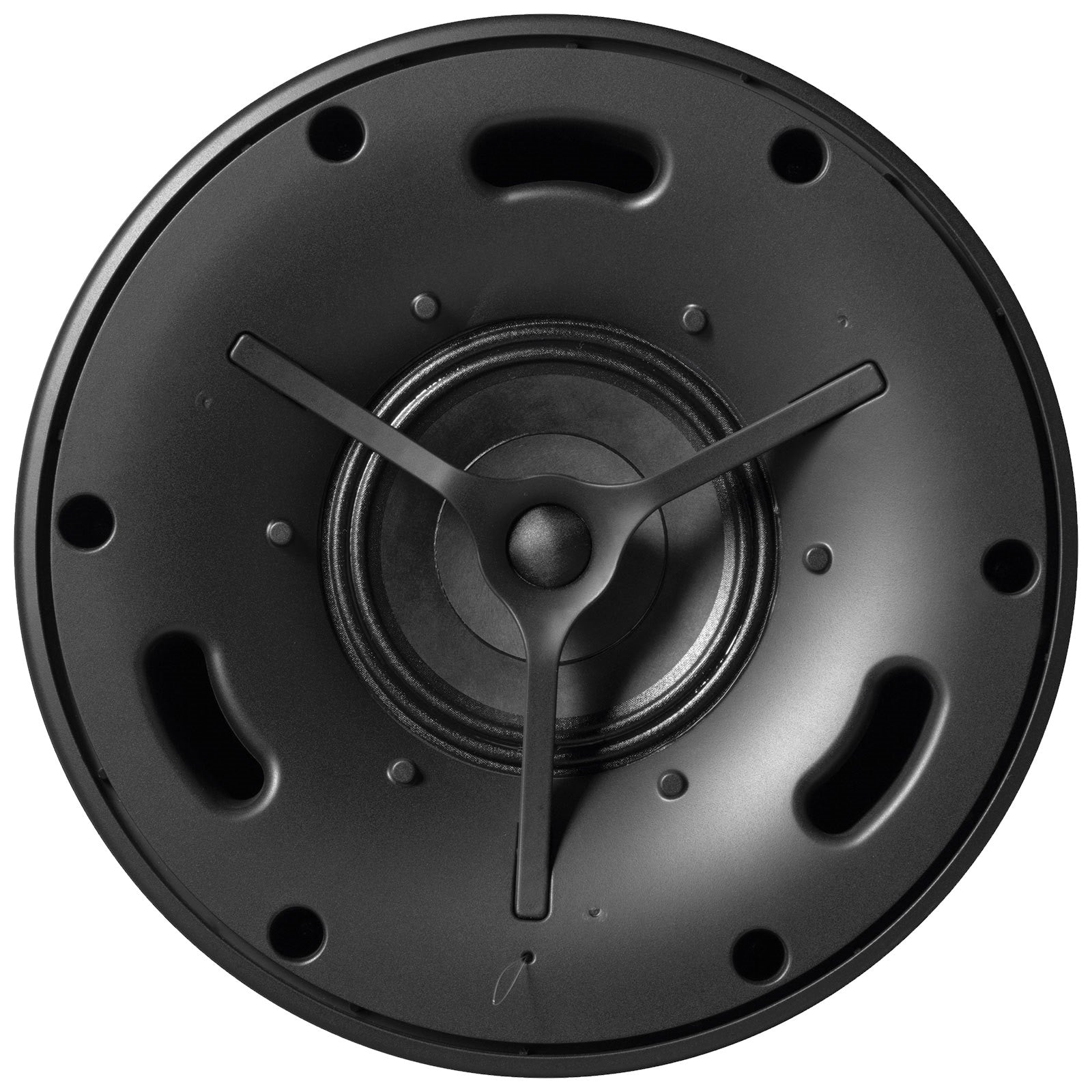

  • Yamaha VXH6 6.5 Pendant Speaker uncovered

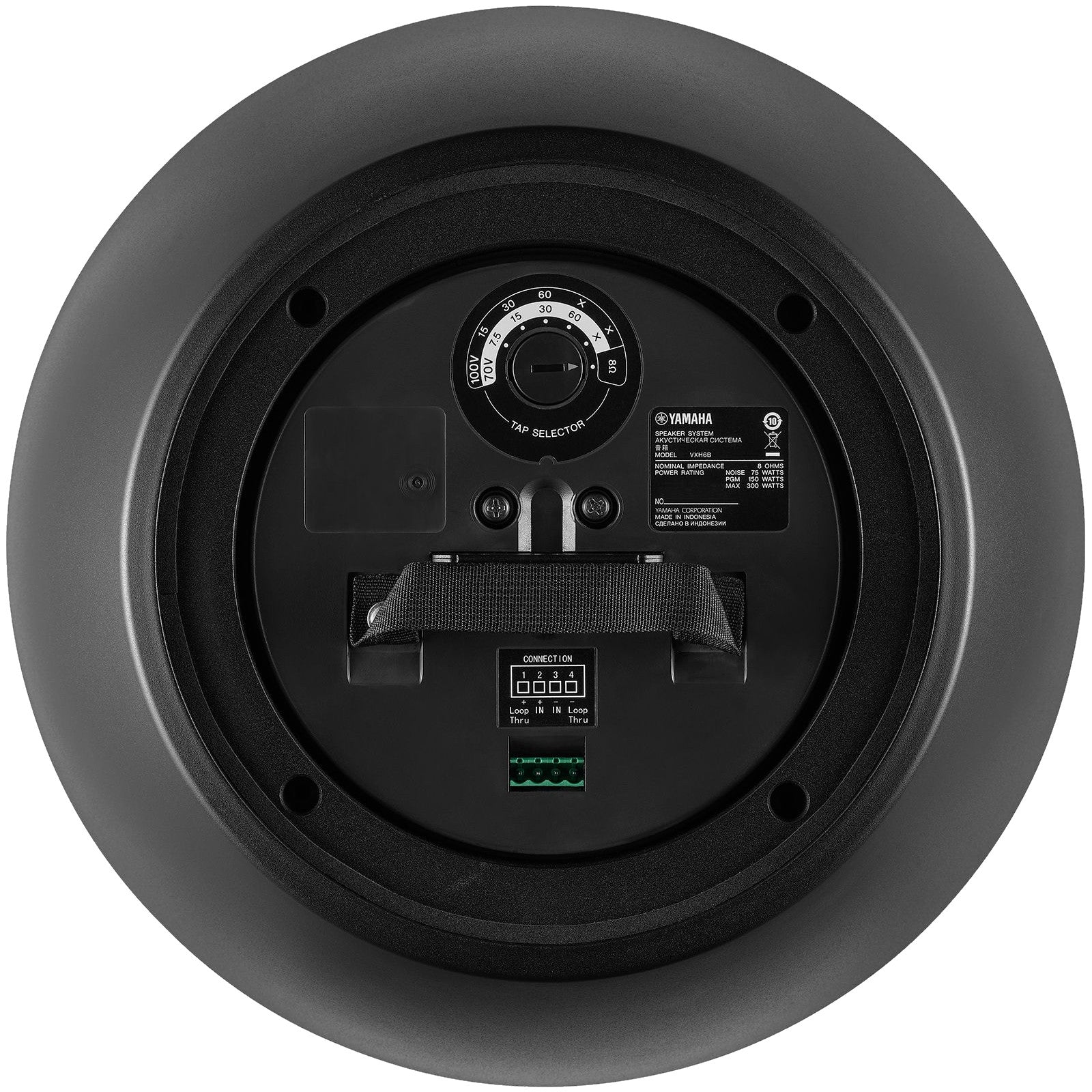

  • Yamaha VXH6 6.5 Pendant Speaker back
1 5

Yamaha VXH6 6.5-Inch Pendant Speaker | Color: Black

Yamaha VXH6 6.5-Inch Pendant Speaker | Color: Black

SoundPro Item: 133037 | Part Number: VXH6B

$389.99
$408.00 $389.99
Your Price Sold out
MSRP: $408.00 | MAP: $389.99

Usually ships in 5-7 business days

  • Wide dispersion (120°) and 300W power handling
  • Engineered for optimum BGM and voice reproduction
  • Pendant speaker suitable for high, open structure or sloped ceilings
  • Direct support for low-impedance or high-impedance connections
  • Paintable grilles with magnetic catches
  • 2x6m steel wire cables by Gripple
  • Black and white versions available
  • 5.7 kg (12.6 lbs), Ø340 x D368 mm (Ø13-3/8” D14-1/2”)
  • Single unit package
Log in or register for YOUR best price

The VXH6 from Yamaha is a 6.5” pendant speaker offering wide dispersion for environments with a relatively low suspension height.

View full details

Specifications

Certifications
Certification
UL1480A, NFPA70, CE, RoHS
Dimensions
Diameter
Ø341 mm (13 - 3/8")
Weight
Net Weight
5.7 kg
Audio
Speaker Type
Coaxial 2 way, Bass reflex type
Sensitivity (1W; 1m on axis)
93 dB (Full-space:4π)
Connectivity
I/O Connectors
Euroblock (4 pin) × 1 (input: +/-, loop-thru: +/-): Min. wire size AWG 24 (0.2 sq), Max. wire size AWG 12 (3.5 sq)
Construction
Finish
VXH6B Black powder coating (approximate value: Munsell N3), VXH6W White powder coating (approximate value: Munsell N9.3)
General
Frequency Range (-10dB)
57 Hz – 20 kHz (Full-space:4π)
Nominal Coverage
120° conical (Full-space:4π)
Crossover Frequencies
3kHz
LF
6.5” (16 cm) Cone
HF
1” (2.5) Soft Dome
NOISE
75W
PGM
150W
PEAK
300W
Nominal Impedance
8Ω
100V
60W, 30W, 15W
70V
60W, 30W, 15W, 7.5W
Peak (Calculated)
118 dB (Calculated, 1 m)
Protection Circuit (Load Protection)
Full-range power limiting to protect network and transducers
D
379 mm (14 - 1/2")
Dust and Water Resistant
IP45 (when waterproofing the cover hole)
