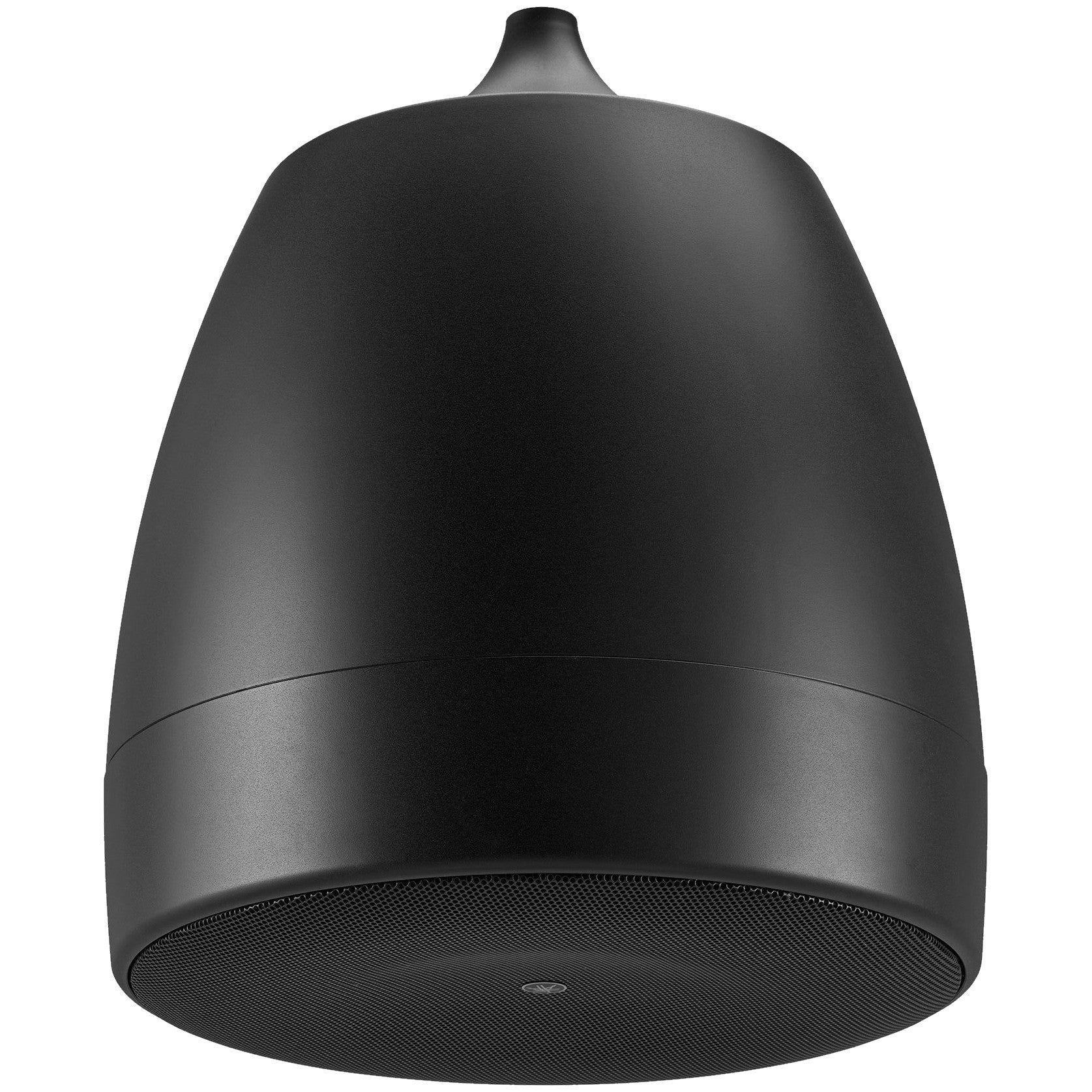

Yamaha VXH8 8-Inch Pendant Speaker | Color: Black
Yamaha VXH8 8-Inch Pendant Speaker | Color: Black
SoundPro Item: 133039 | Part Number: VXH8B
Usually ships in 5-7 business days
- Narrow dispersion (75°) with "permeable" waveguide and 360W power handling
- Engineered for optimum BGM and voice reproduction
- Pendant speaker suitable for high, open structure or sloped ceilings
- Direct support for low-impedance or high-impedance connections

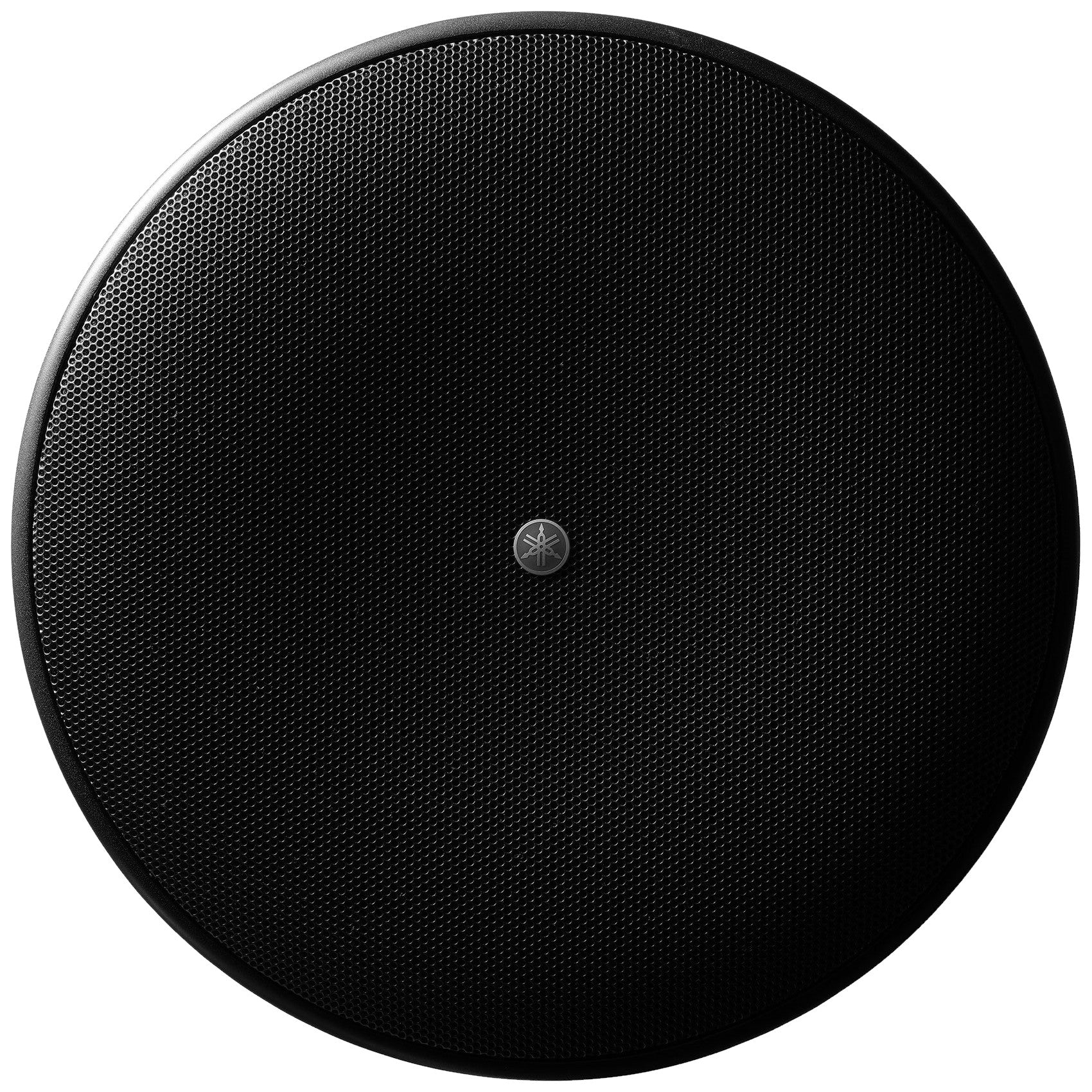

- Paintable grilles with magnetic catches
- 2x6 m steel wire cables by Gripple
- Black and white versions available
- 7.2 kg (15.9 lbs), Ø356 x D434 mm (Ø14-1/64” D17-3/32”)
- Single unit package

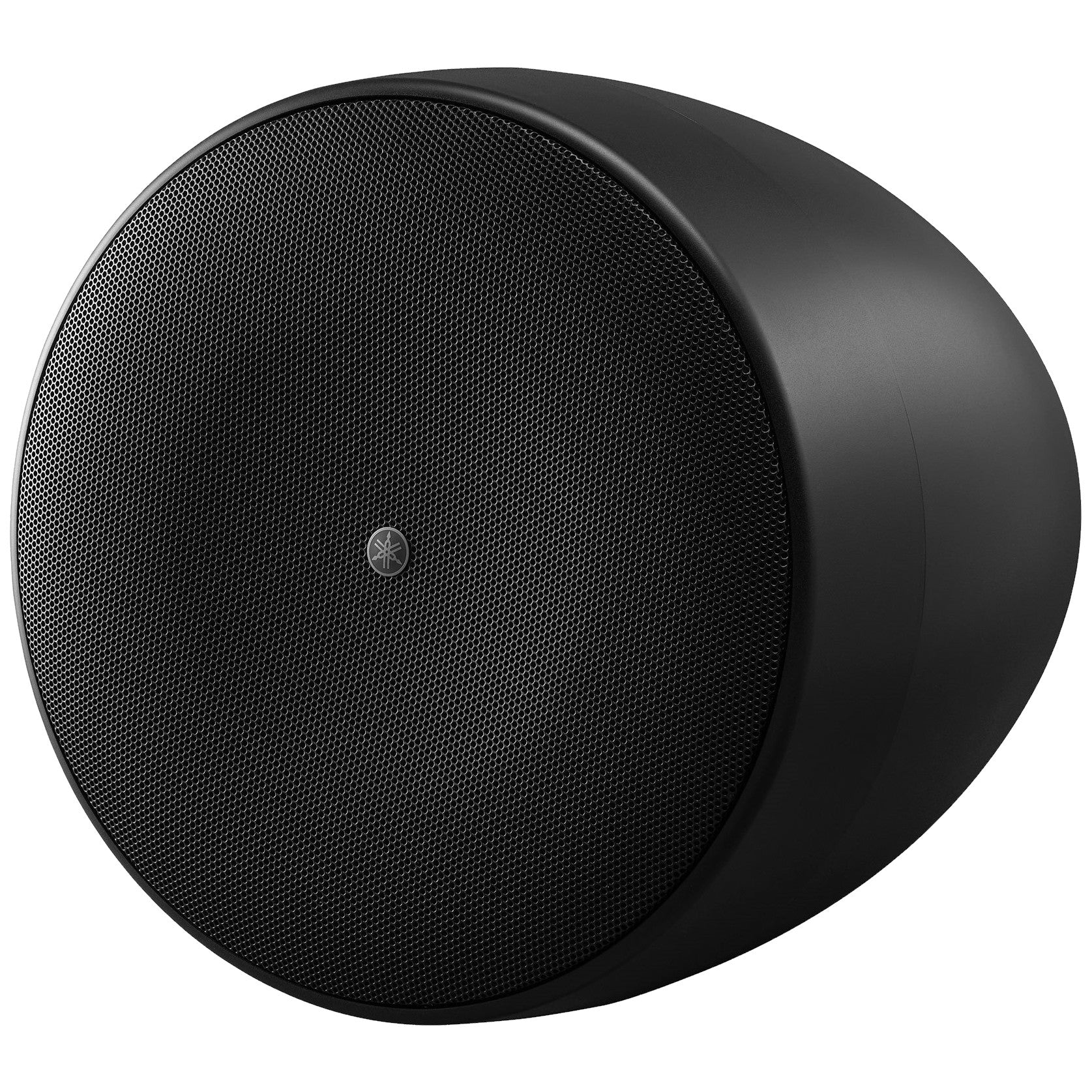

The VXH8 from Yamaha is a high-powered, 8” pendant speaker offering a narrowed dispersion ideal for suspension from higher ceilings.
- Speaker TypeCoaxial 2 way, Bass reflex type
- Frequency Range (-10dB) 57 Hz – 20 kHz (Full-space:4π)
- Nominal Coverage75° conical (Full-space:4π)
- Crossover Frequencies3kHz

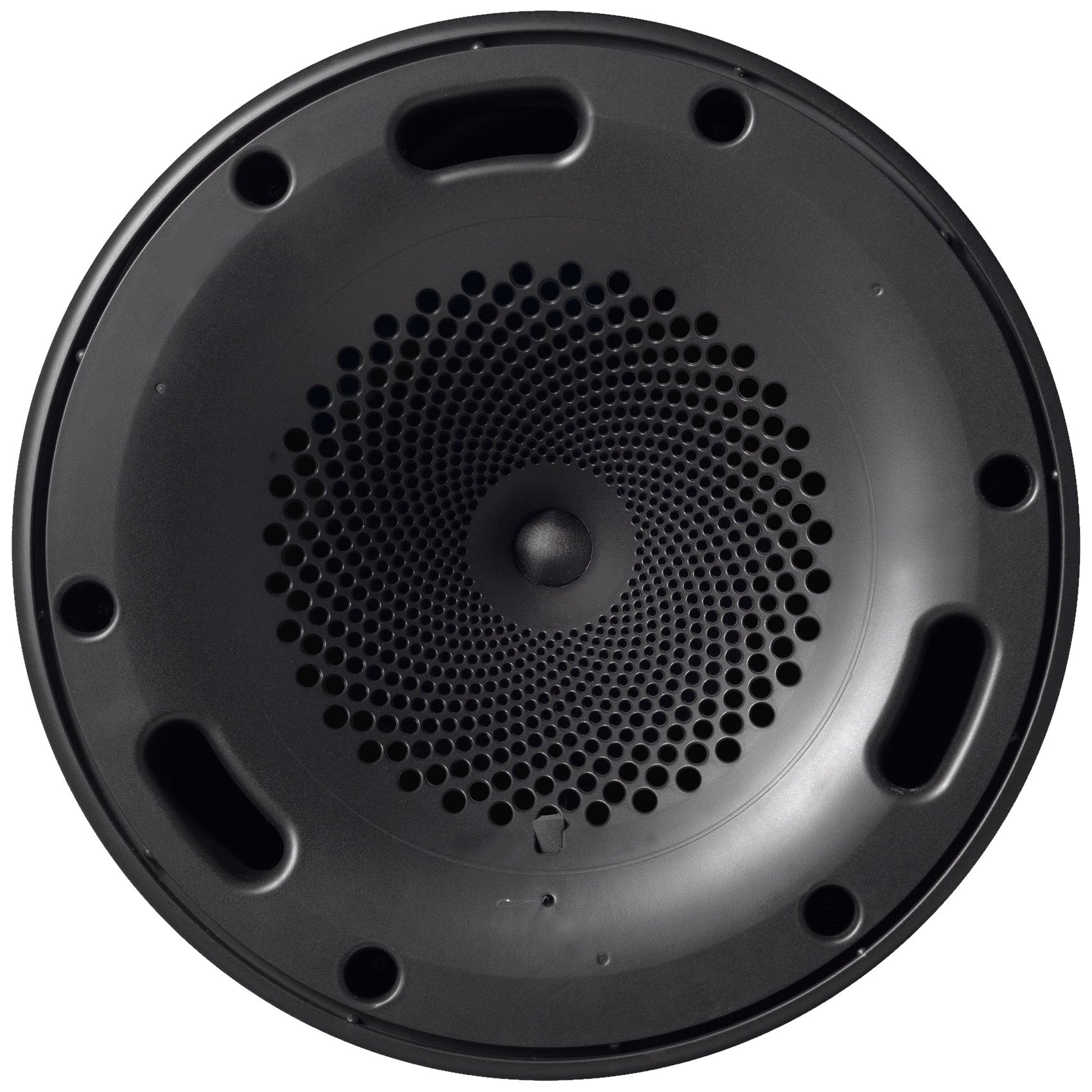

- Components
- LF: 8” (20 cm) Cone
- HF: 1” (2.5) Soft Dome
- Power Rating
- NOISE: 90W
- PGM: 180W
- PEAK: 360W
- Nominal Impedance8Ω

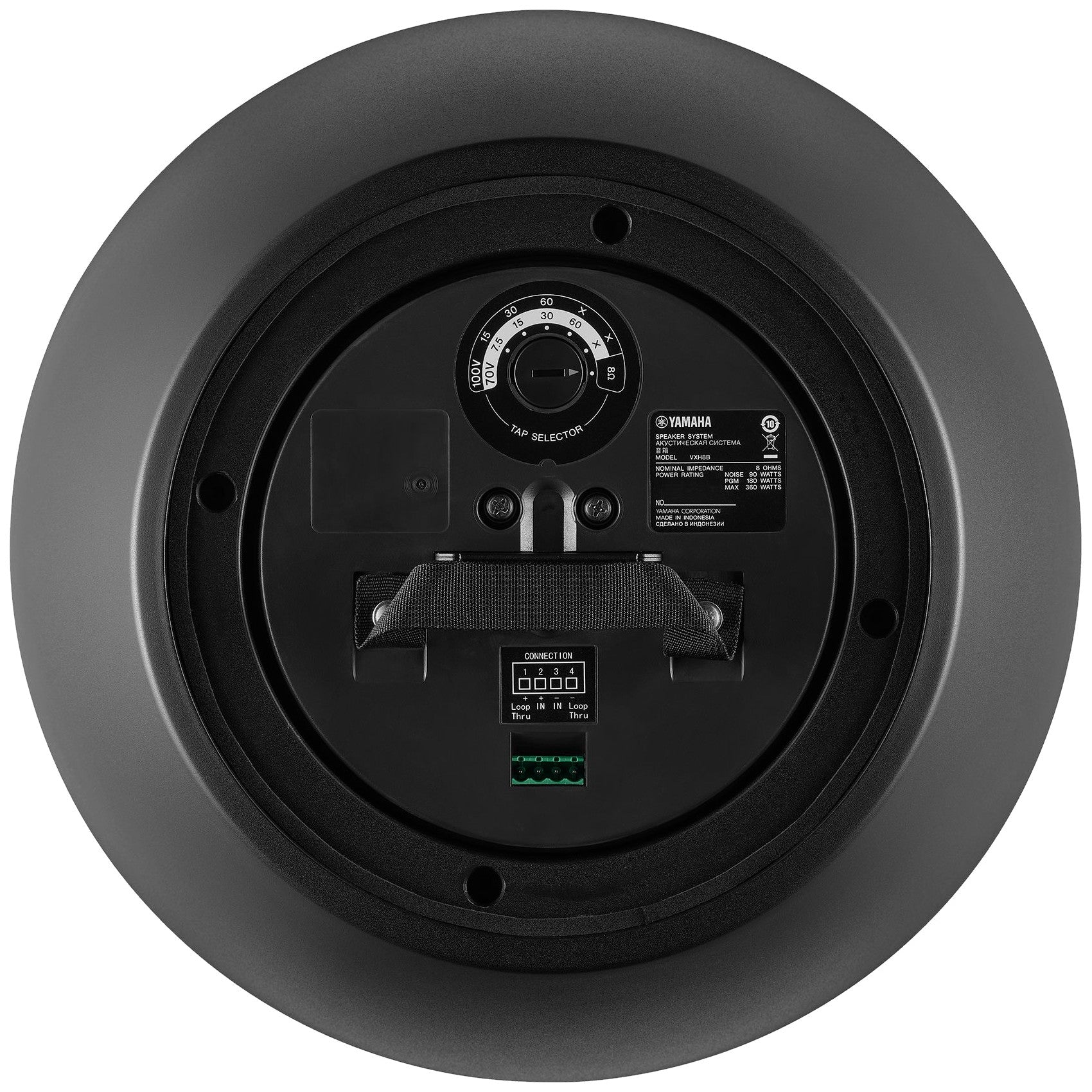

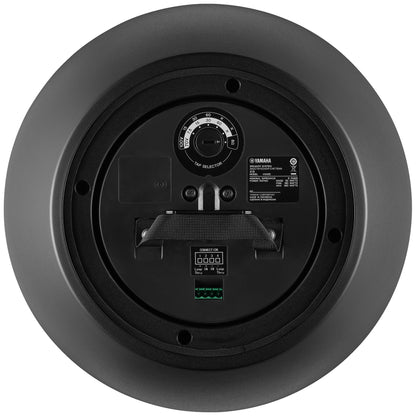

- Transformer Taps
- 100V: 60W, 30W, 15W
- 70V: 60W, 30W, 15W, 7.5W
- SPL
- Sensitivity (1W; 1m on axis): 94 dB (Full-space:4π)
- Peak (Calculated): 120 dB (Calculated, 1 m)
- I/O ConnectorsEuroblock (4 pin) × 1 (input: +/-, loop-thru: +/-): Min. wire size AWG 24 (0.2 sq), Max. wire size AWG 12 (3.5 sq)
- Protection Circuit (Load Protection)Full-range power limiting to protect network and transducers
- FinishVXH8B Black powder coating (approximate value: Munsell N3), VXH8W White powder coating (approximate value: Munsell N9.3)
- Dimensions
- Diameter: Ø356 mm (14")
- D: 434 mm (17 - 3/32")
- Net Weight7.2 kg
- Dust and Water ResistantIP45 (when waterproofing the cover hole)
- CertificationUL1480A, NFPA70, CE, RoHS
