Yamaha VXH8 8-Inch Pendant Speaker | Color: White

Yamaha VXH8 8-Inch Pendant Speaker | Color: White

SoundPro Item: 133040 | Part Number: VXH8W

$479.99
$501.00 $479.99
Your Price Sold out
MSRP: $501.00 | MAP: $479.99

Usually ships in 5-7 business days

  • Narrow dispersion (75°) with "permeable" waveguide and 360W power handling
  • Engineered for optimum BGM and voice reproduction
  • Pendant speaker suitable for high, open structure or sloped ceilings
  • Direct support for low-impedance or high-impedance connections

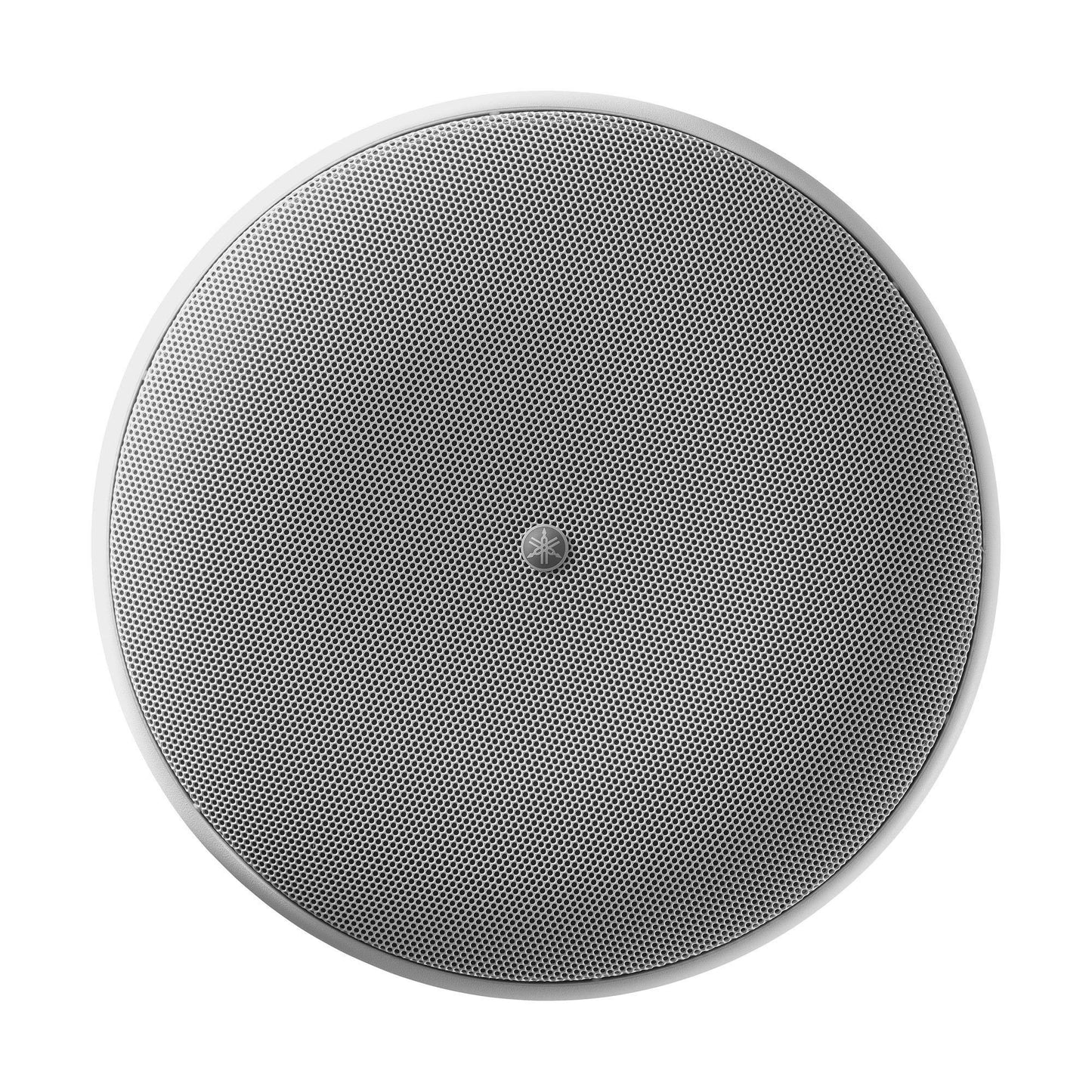

  • Paintable grilles with magnetic catches
  • 2x6 m steel wire cables by Gripple
  • Black and white versions available
  • 7.2 kg (15.9 lbs), Ø356 x D434 mm (Ø14-1/64” D17-3/32”)
  • Single unit package
Log in or register for YOUR best price

The VXH8 from Yamaha is a high-powered, 8” pendant speaker offering a narrowed dispersion ideal for suspension from higher ceilings.

View full details

Specifications

Certifications
Certification
UL1480A, NFPA70, CE, RoHS
Dimensions
Diameter
Ø356 mm (14")
Weight
Net Weight
7.2 kg
Audio
Speaker Type
Coaxial 2 way, Bass reflex type
Sensitivity (1W; 1m on axis)
94 dB (Full-space:4π)
Connectivity
I/O Connectors

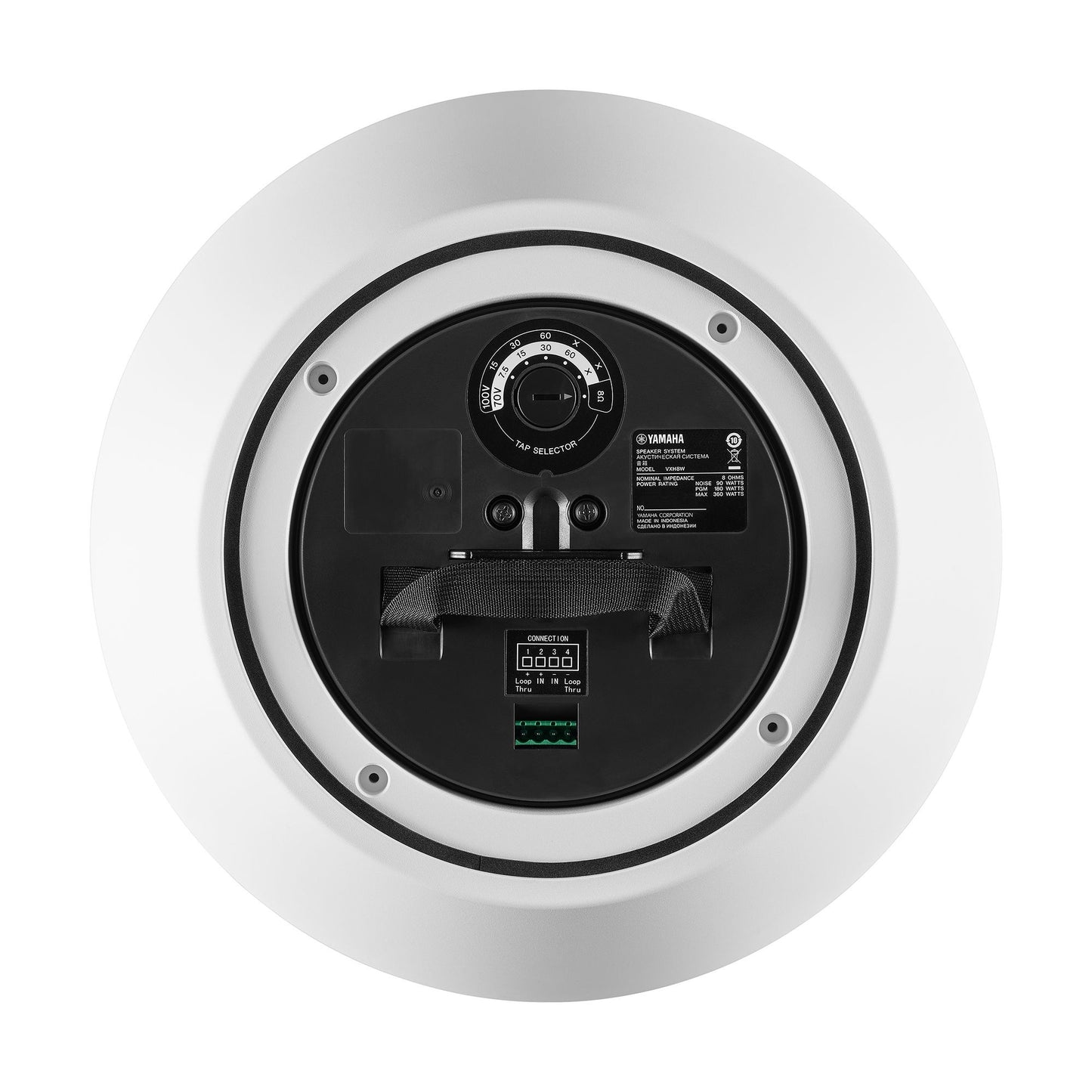

Euroblock (4 pin) × 1 (input: +/-, loop-thru: +/-): Min. wire size AWG 24 (0.2 sq), Max. wire size AWG 12 (3.5 sq)
Construction
Finish
VXH8B Black powder coating (approximate value: Munsell N3), VXH8W White powder coating (approximate value: Munsell N9.3)
General
Frequency Range (-10dB)
57 Hz – 20 kHz (Full-space:4π)
Nominal Coverage
75° conical (Full-space:4π)
Crossover Frequencies
3kHz
LF
8” (20 cm) Cone
HF
1” (2.5) Soft Dome
NOISE
90W
PGM
180W
PEAK
360W
Nominal Impedance
8Ω
100V
60W, 30W, 15W
70V
60W, 30W, 15W, 7.5W
Peak (Calculated)
120 dB (Calculated, 1 m)
Protection Circuit (Load Protection)
Full-range power limiting to protect network and transducers
D
434 mm (17 - 3/32")
Dust and Water Resistant
IP45 (when waterproofing the cover hole)
