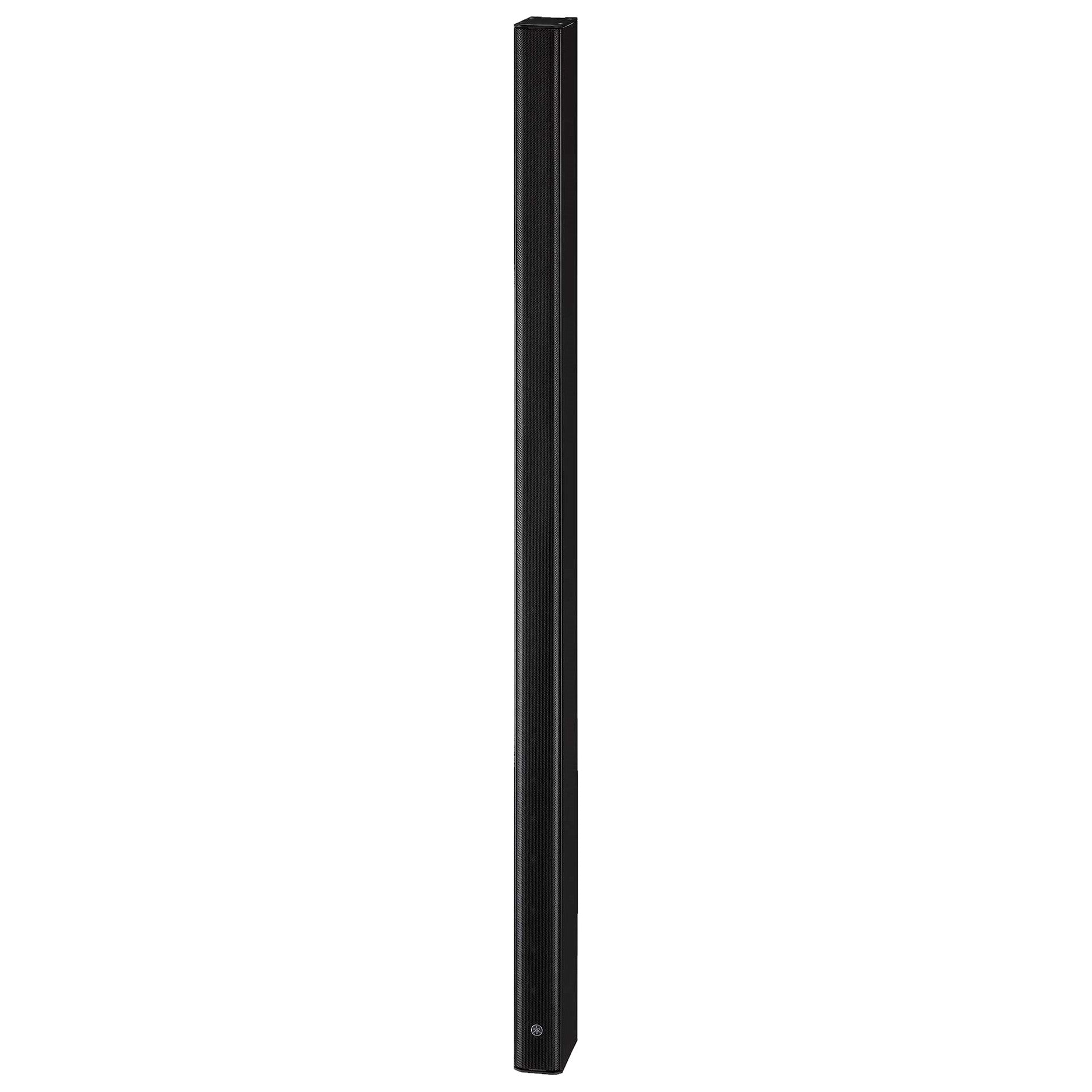

• Yamaha VXL1-24 24-Driver Column Line Array Speaker

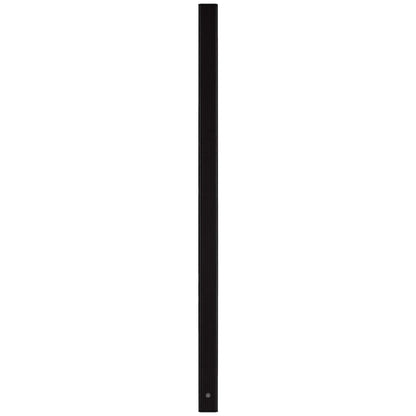

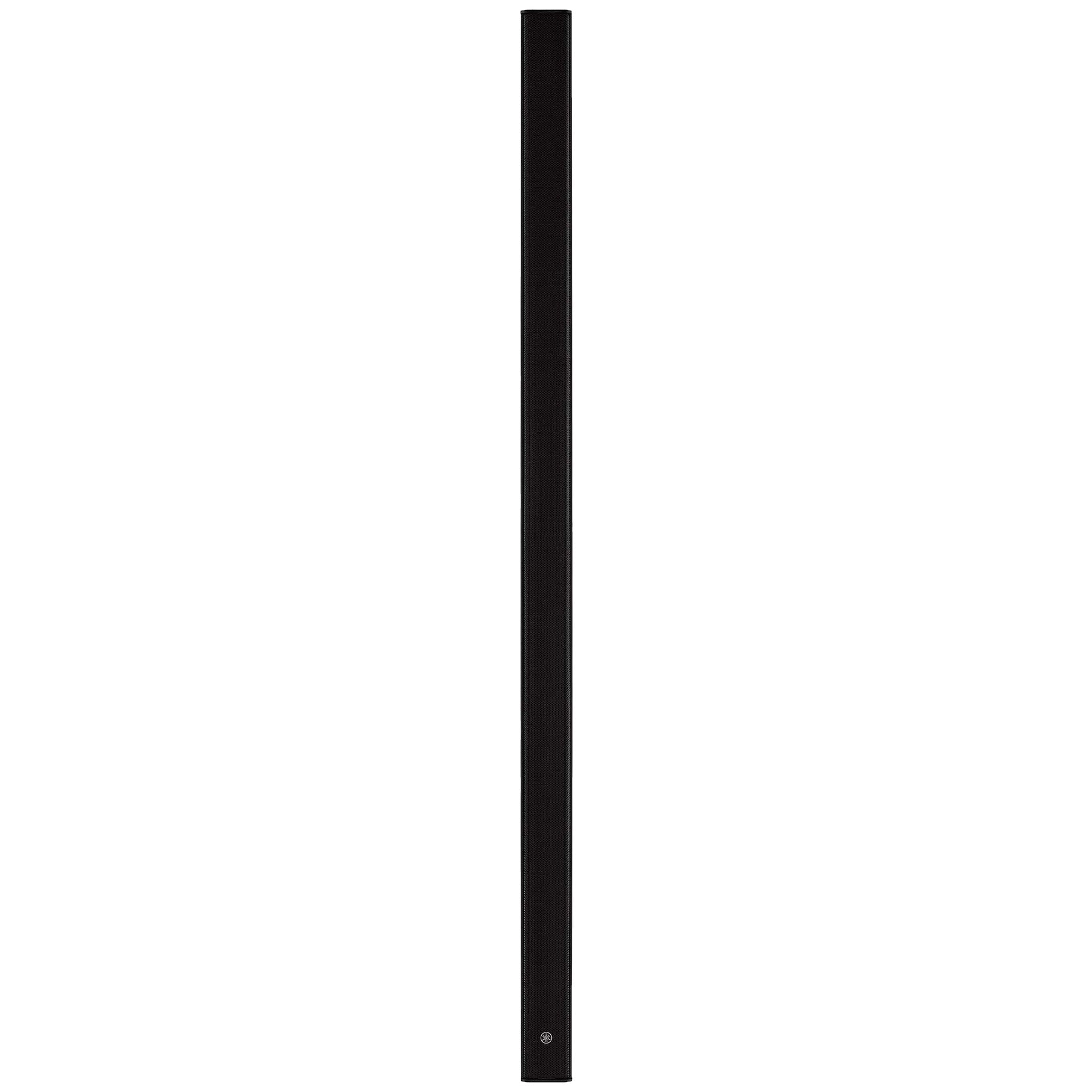

  • Yamaha VXL1-24 24-Driver Column Line Array Speaker front

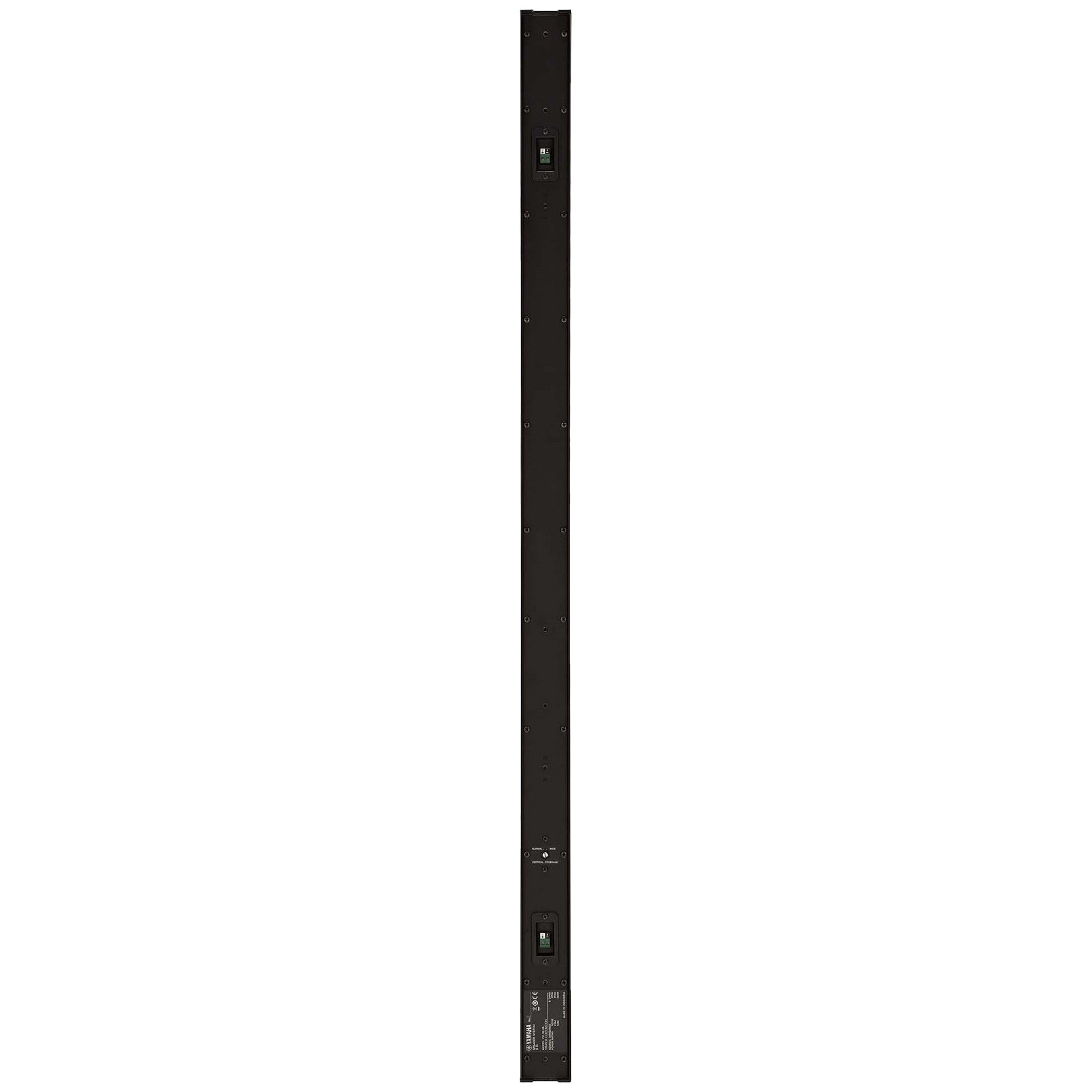

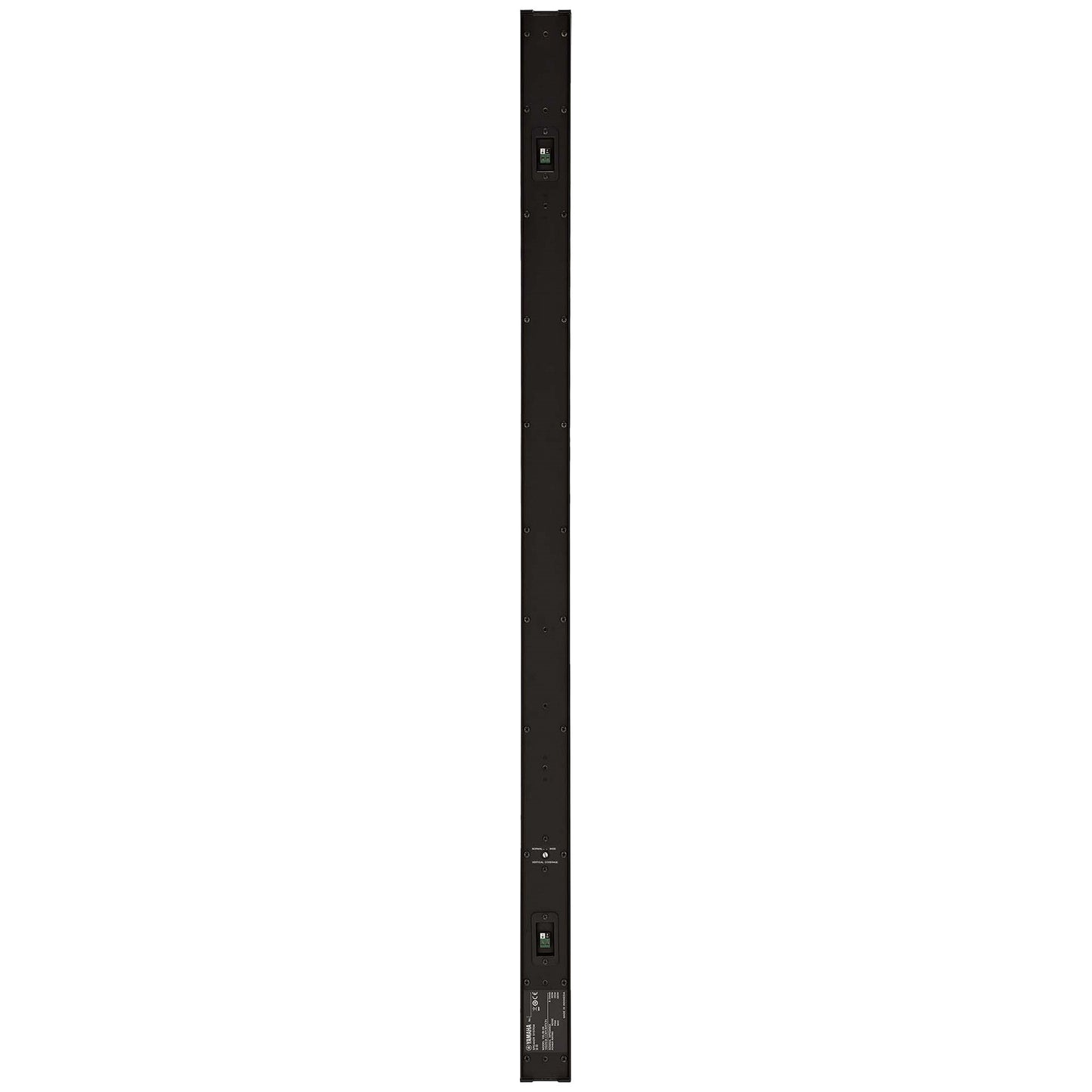

  • Yamaha VXL1-24 24-Driver Column Line Array Speaker back

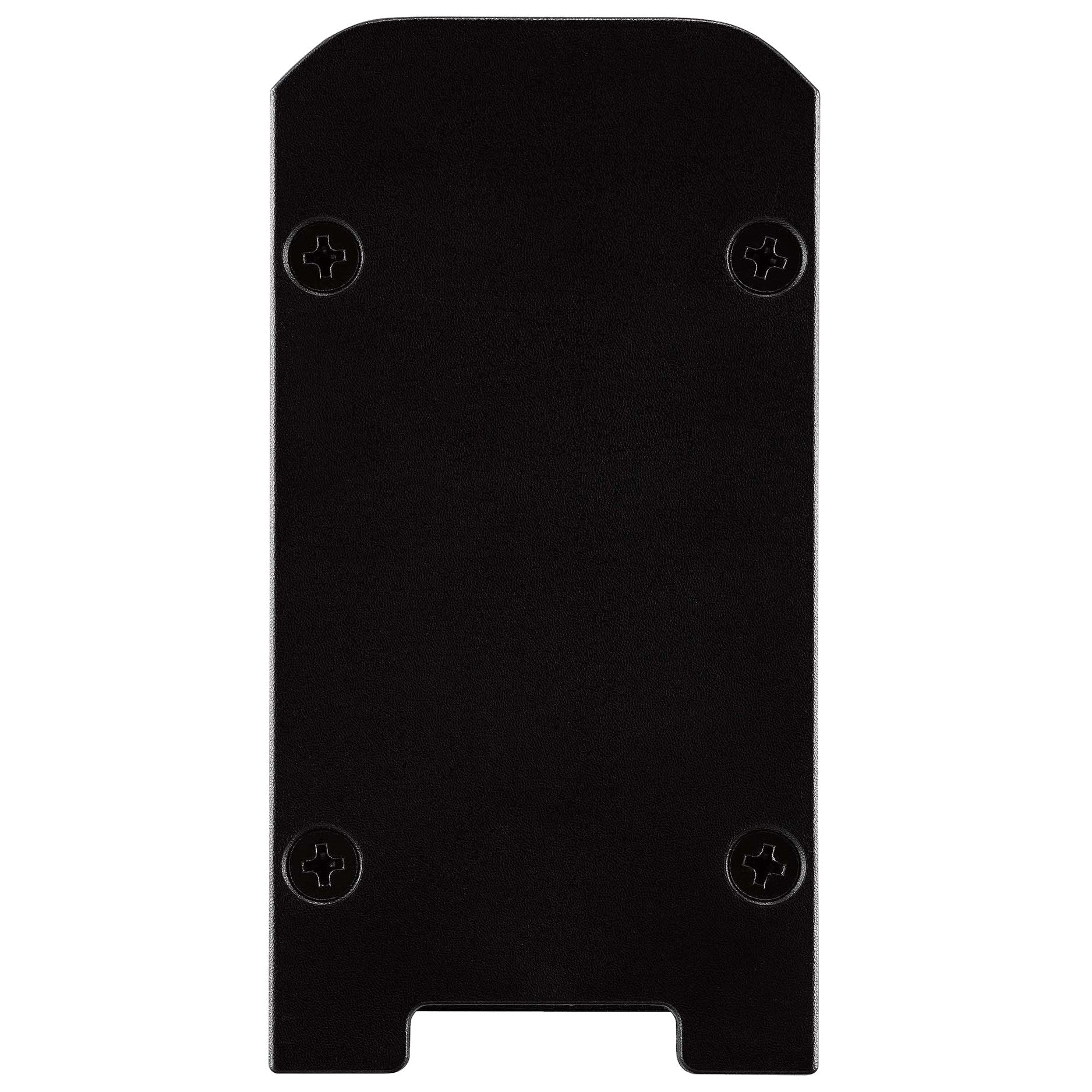

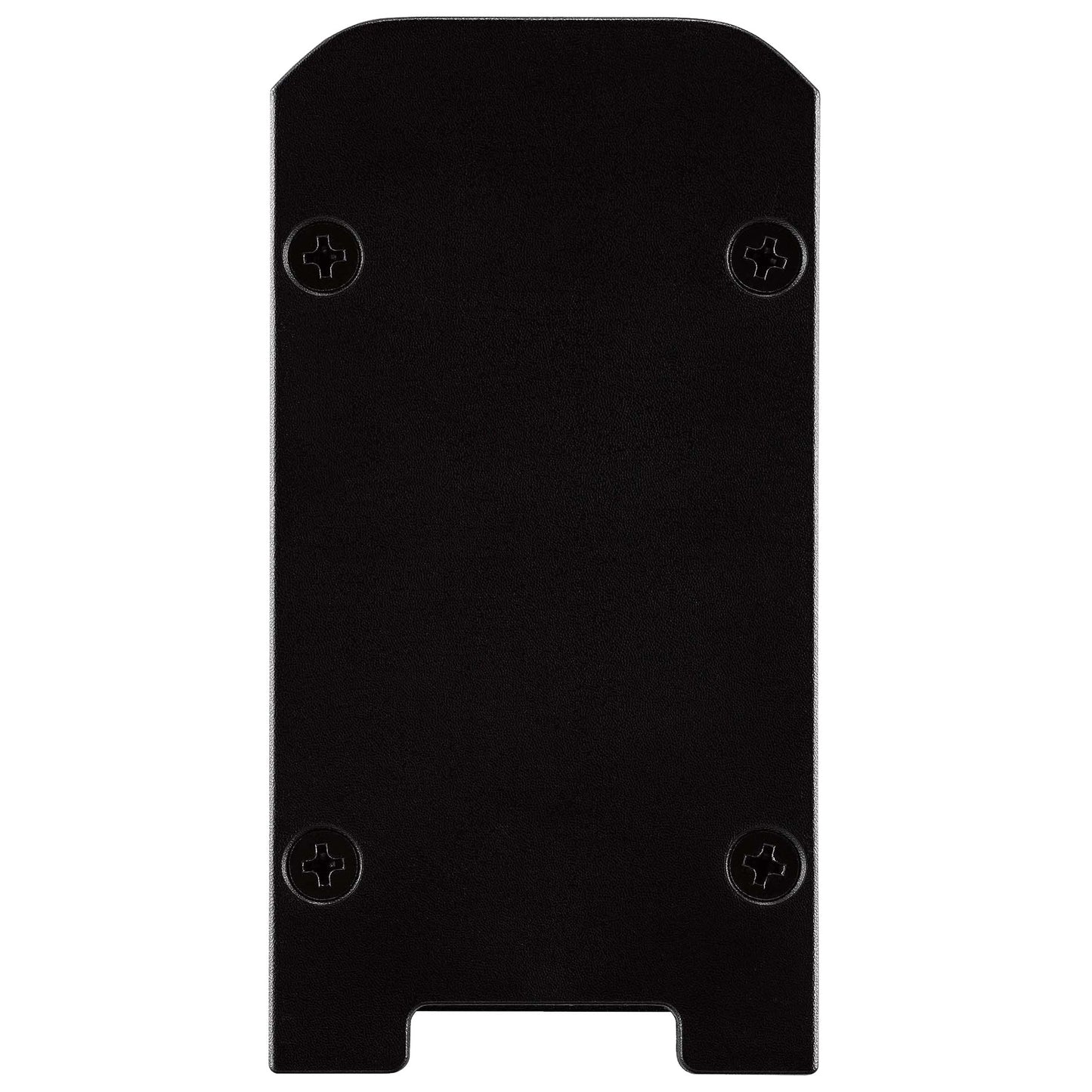

  • Yamaha VXL1-24 24-Driver Column Line Array Speaker bottom

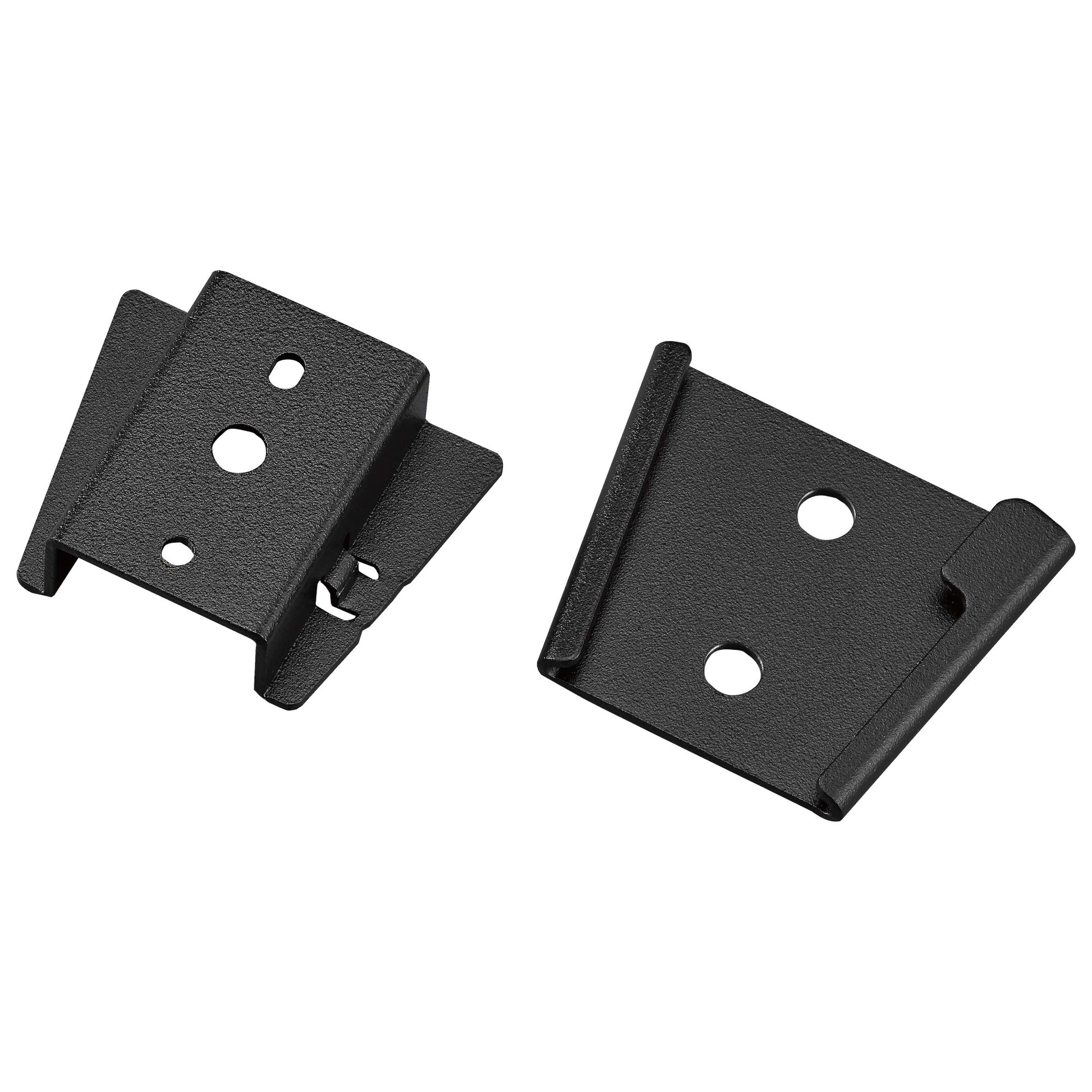

  • Yamaha VXL1-24 24-Driver Column Line Array Speaker mounting bracket
1 5

Yamaha VXL1-24 24-Driver Column Line Array Speaker | Color: Black

Yamaha VXL1-24 24-Driver Column Line Array Speaker | Color: Black

SoundPro Item: 110834 | Part Number: VXL1B-24

$1,245.99
$1,462.00 $1,245.99
Your Price Sold out
MSRP: $1,462.00 | MAP: $1,245.99

Usually ships in 5-7 business days

  • 1.5 inch (3.75 cm) full-range loudspeaker units with neodymium magnets
  • 170° horizontal dispersion for uniform SPL over a wide listening area
  • Vertical coverage can be selected as 20°(Standard) or 40°(Wide)
  • Slim design complements any interior décor
  • Available in black or white
  • Enclosures can be painted to match surroundings
  • Wall mount bracket supplied
  • Optional hardware for a wide range of installation needs
Log in or register for YOUR best price

The Yamaha VXL1-24 is a slim line array loudspeaker with 24 x 1.5” drivers.

View full details

Specifications

Dimensions
Dimensions (WxHxD)
2.1x47.7x4.1” (54x1212x104mm) - Speaker Only, 2.1x47.7x4.4” (54x1212x111.5mm) - with Included Bracket
Weight
Weight (Speaker only)
12.1 lbs (5.5 kg)
Audio
Speaker Type
Full-range, Bass reflex
Sensitivity (1W; 1m on axis)
91 dB SPL (1 m/1 W) *1 *2
Connectivity
I/O Connectors
Euroblock (2 pin) × 2 (input: +/-) Max. wire size AWG 12 (3.3 mm²)
Construction
Finish
VXL1B-24: Black painting (approximate value: Munsell N3.0), VXL1W-24: White painting (approximate value: Munsell N9.0)
Environmental
IP-Rating
Dust and water resistant : IP35
Identifiers
Packaging
Packaged in 1 pc
General
Frequency Range (-10dB)
77 Hz – 20 kHz *1
Components (LF-HF)
1.5” (3.75 cm) Cone × 24
NOISE
110W
PGM
220W
PEAK
440W
Nominal Impedance
8Ω
Peak (Calculated)
117 dB SPL (1 m) *3
Protection Circuit (Load protection)
Full-range power limiting to protecting network and transducers
IR
Coverage Area
Horizontal: 170°, Vertical:20°( +10° – -10°) (NORMAL), 40°(+10° – -30°) (WIDE)
