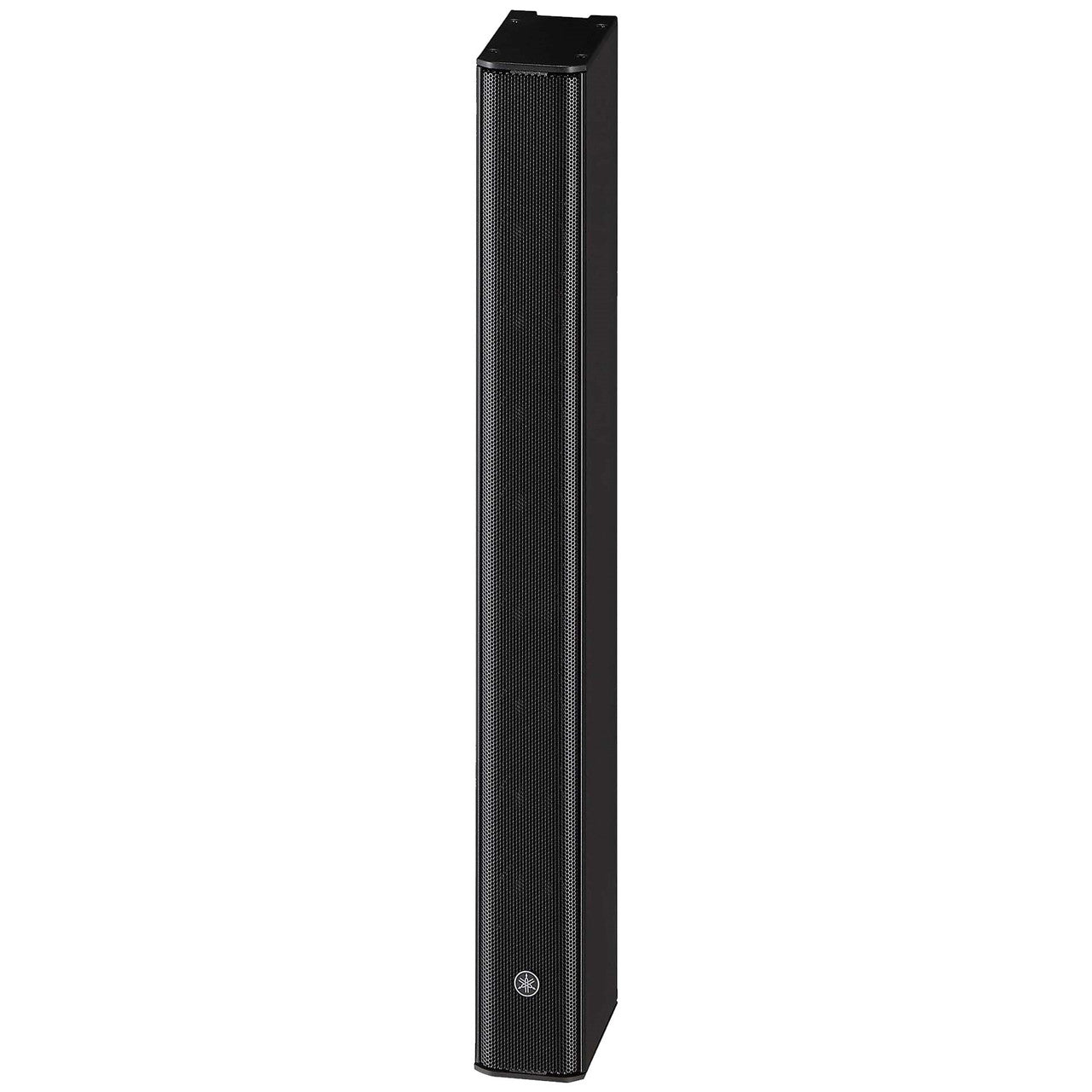

• Yamaha VXL1-8 8-Driver Column Line Array Speaker

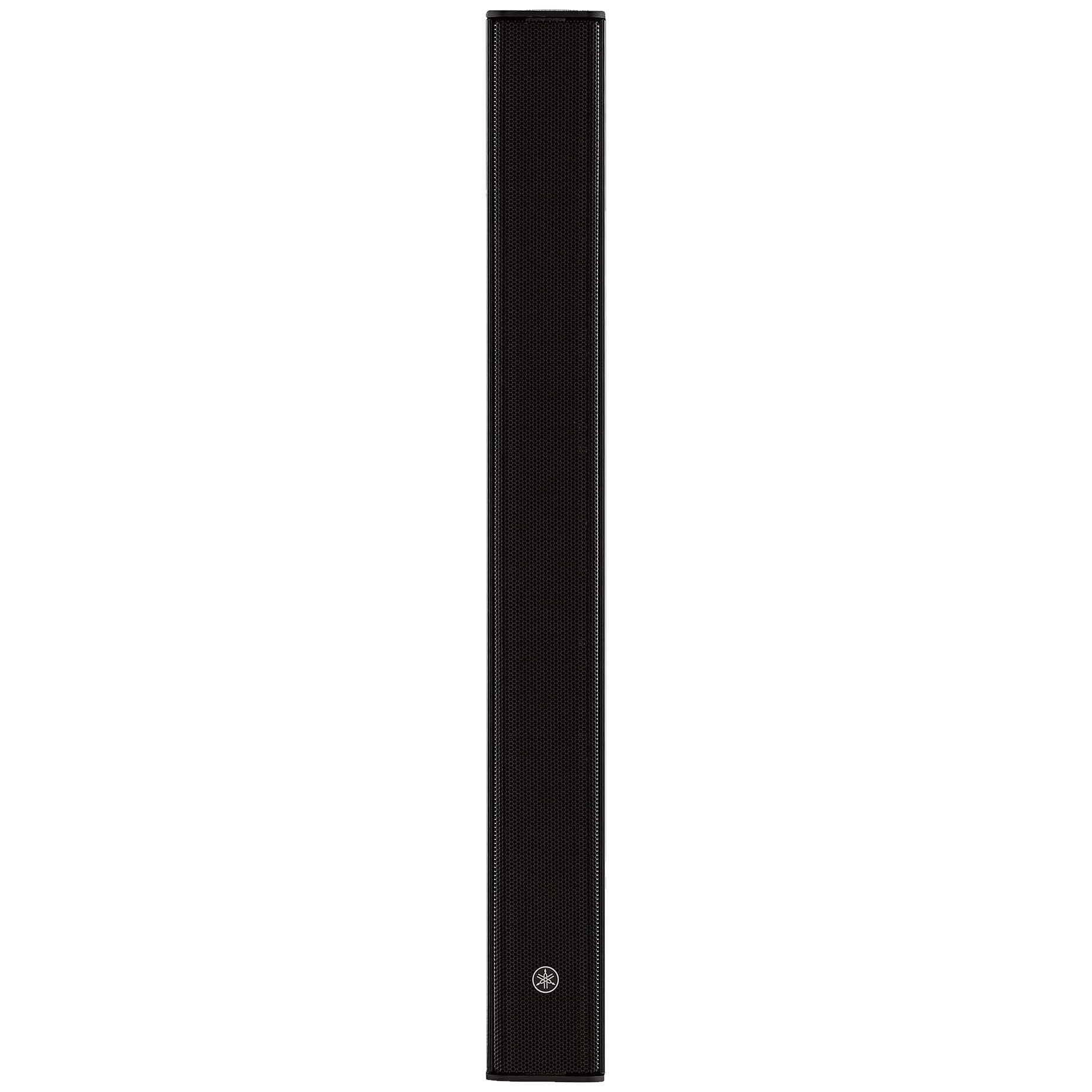

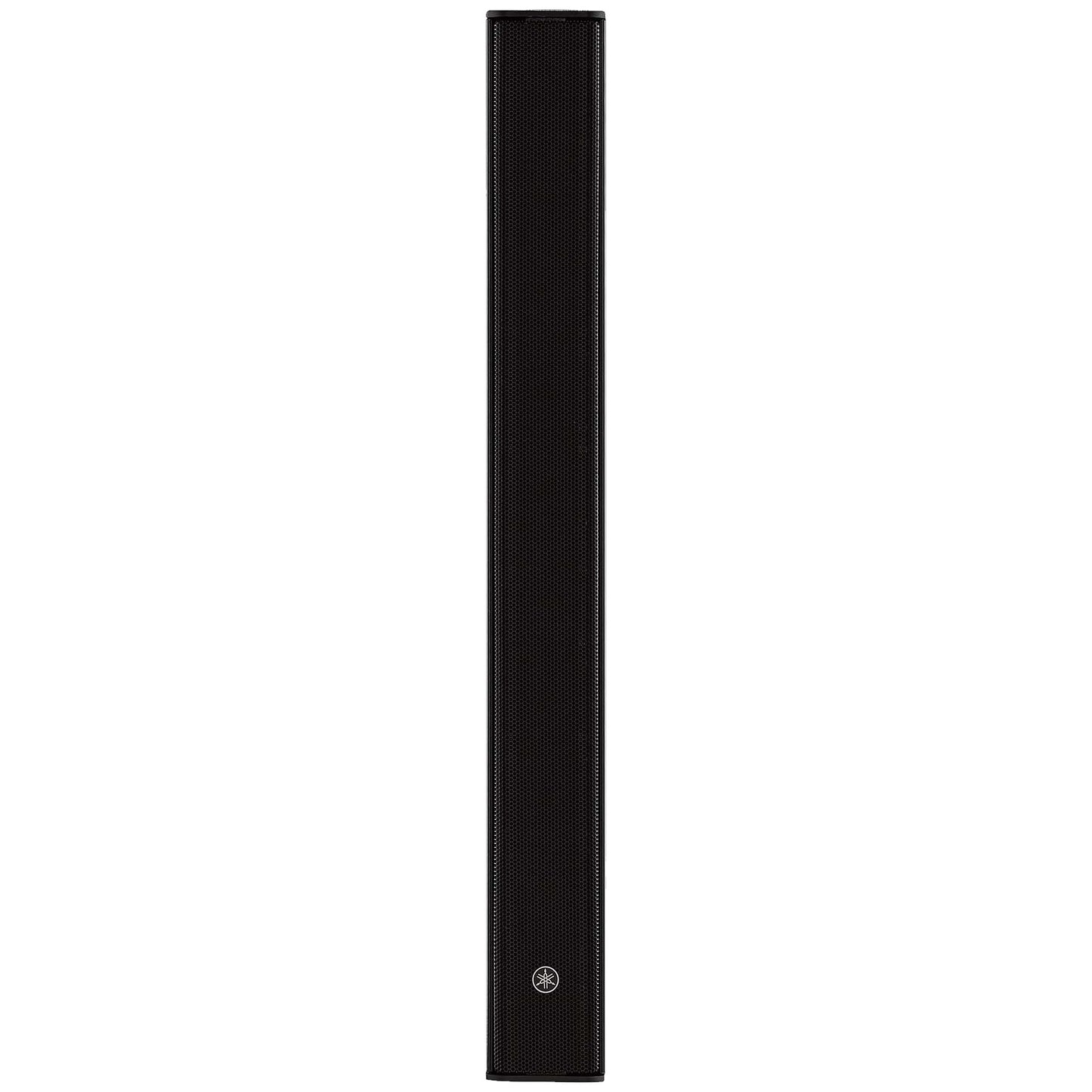

  • Yamaha VXL1-8 8-Driver Column Line Array Speaker front

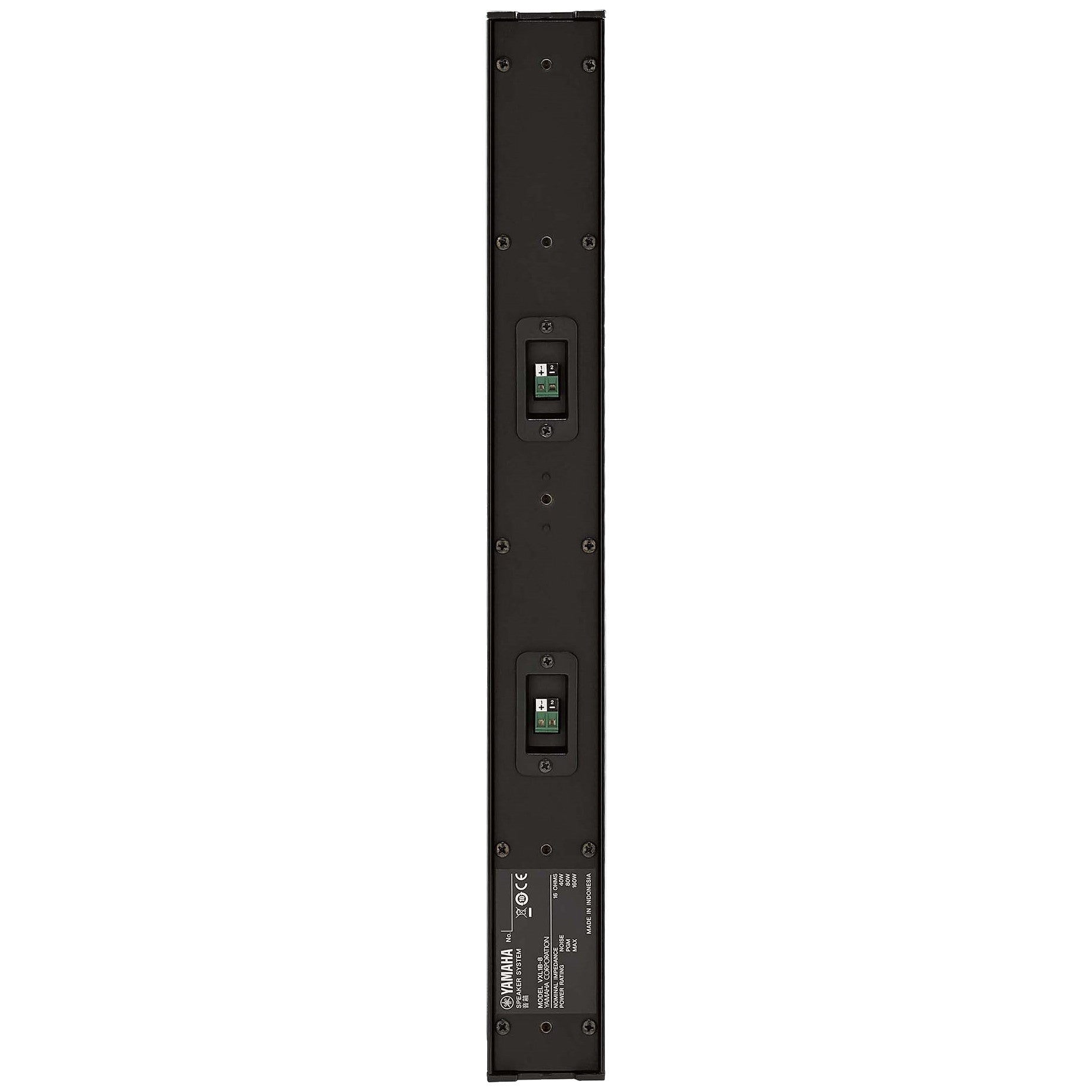

  • Yamaha VXL1-8 8-Driver Column Line Array Speaker back

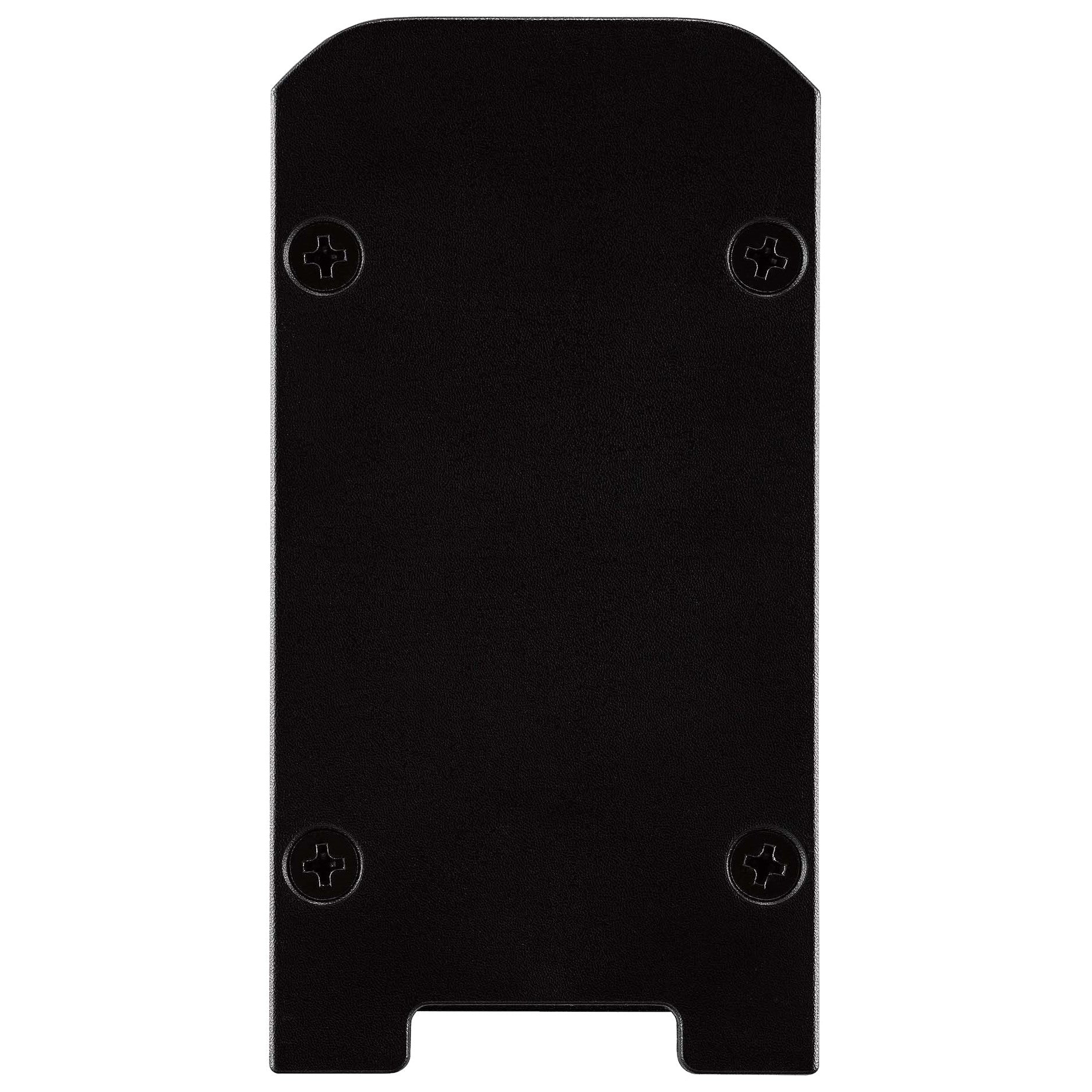

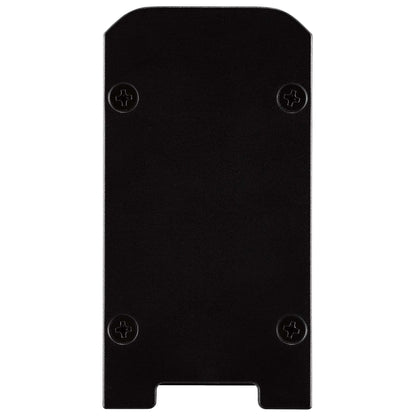

  • Yamaha VXL1-8 8-Driver Column Line Array Speaker bottom

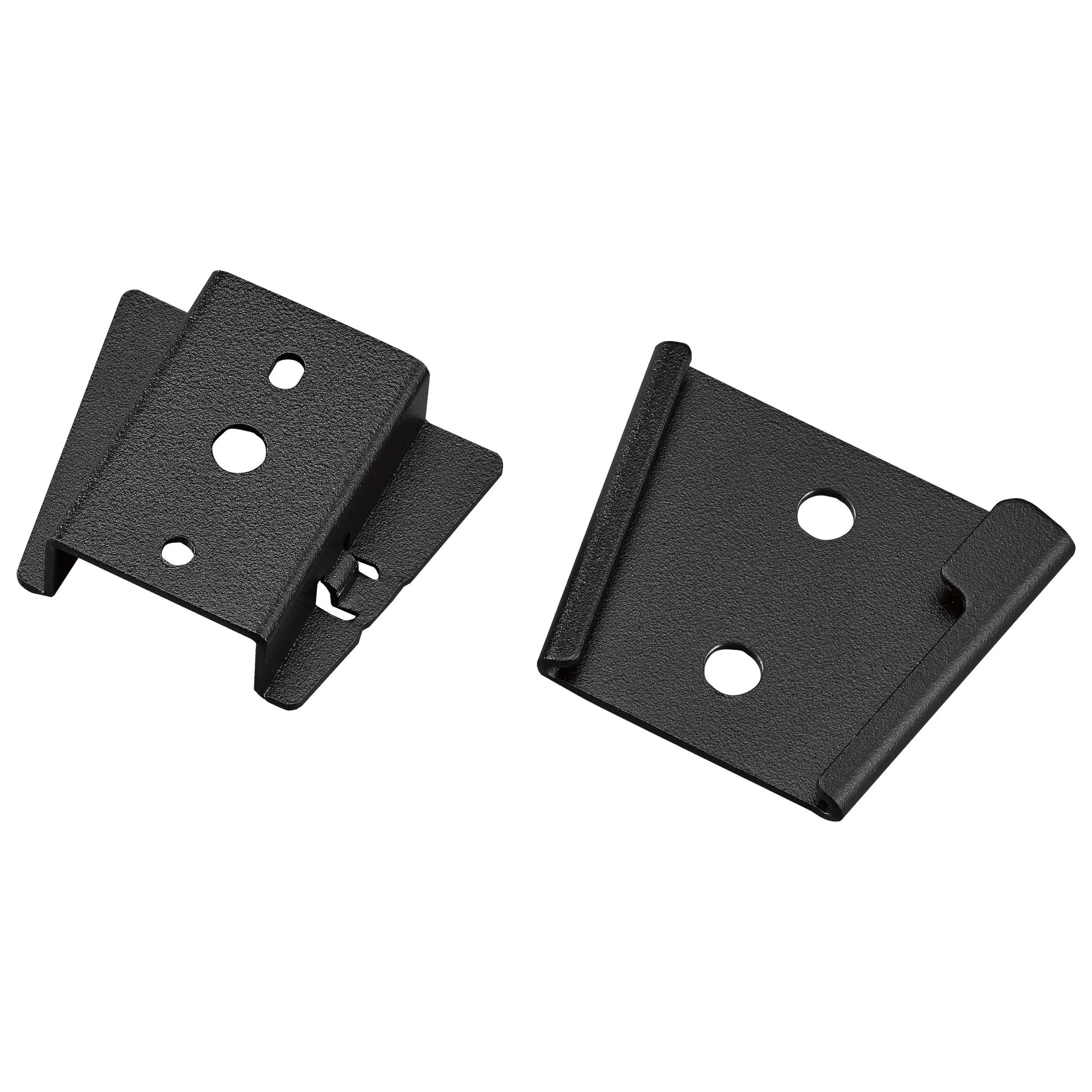

  • Yamaha VXL1-8 8-Driver Column Line Array Speaker mounting bracket
1 5

Yamaha VXL1-8 8-Driver Column Line Array Speaker | Color: Black

Yamaha VXL1-8 8-Driver Column Line Array Speaker | Color: Black

SoundPro Item: 114868 | Part Number: VXL1B-8

$435.99
$512.00 $435.99
Your Price Sold out
MSRP: $512.00 | MAP: $435.99

Usually ships in 5-7 business days

  • 1.5 inch (3.75 cm) full-range loudspeaker units with neodymium magnets
  • 170° horizontal and 40° vertical dispersion for uniform SPL over a wide area
  • Slim design complements any interior décor
  • Available in black or white
  • Enclosures can be painted to match surroundings
  • Wall mount bracket supplied
  • Optional hardware for a wide range of installation needs
Log in or register for YOUR best price

The Yamaha VXL1-8 is a slim line array loudspeaker with 8 x 1.5” drivers.

View full details

Specifications

Dimensions
Dimensions (WxHxD)
2.1 x 18.9 x 4.1 in. (54 x 480 x 104 mm) - Speaker Only, 2.1 x 18.9 x 4.4 in. (54 x 1212 x 111.5 mm) - with Included Bracket
Weight
Weight (Speaker only)
4.6 lbs (2.1 kg)
Audio
Speaker Type
Full-range, Bass reflex
Sensitivity (1W; 1m on axis)
89 dB SPL (1 m/1 W) *1 *2
Connectivity
I/O Connectors
Euroblock (2 pin) × 2 (input: +/-) Max. wire size AWG 12 (3.3 mm²)
Construction
Finish
VXL1B-8: Black painting (approximate value: Munsell N3.0), VXL1W-8: White painting (approximate value: Munsell N9.0)
Environmental
IP-Rating
Dust and water resistant : IP35
Identifiers
Packaging
Packaged in 1 pc
General
Frequency Range (-10dB)
70 Hz – 20 kHz *1 110 Hz - 20kHz 1 (w/ port cover)
Components (LF-HF)
1.5” (3.75 cm) Cone × 8
NOISE
40W
PGM
80W
PEAK
160W
Nominal Impedance
16Ω
Peak (Calculated)
111 dB SPL (1 m) *3
Protection Circuit (Load protection)
Full-range power limiting to protecting network and transducers
IR
Coverage Area
Horizontal: 170°, Vertical:40°(+20° – -20°)
