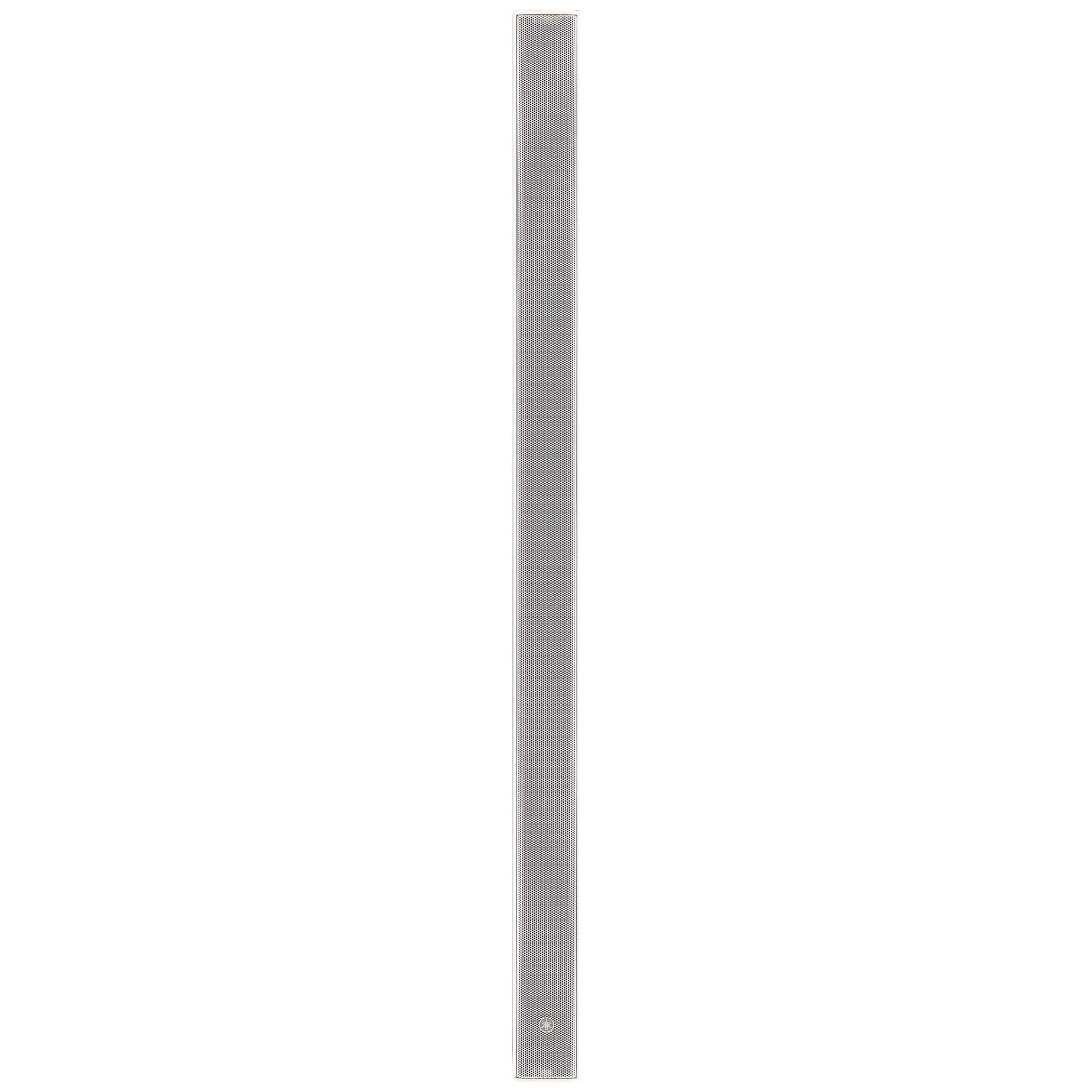

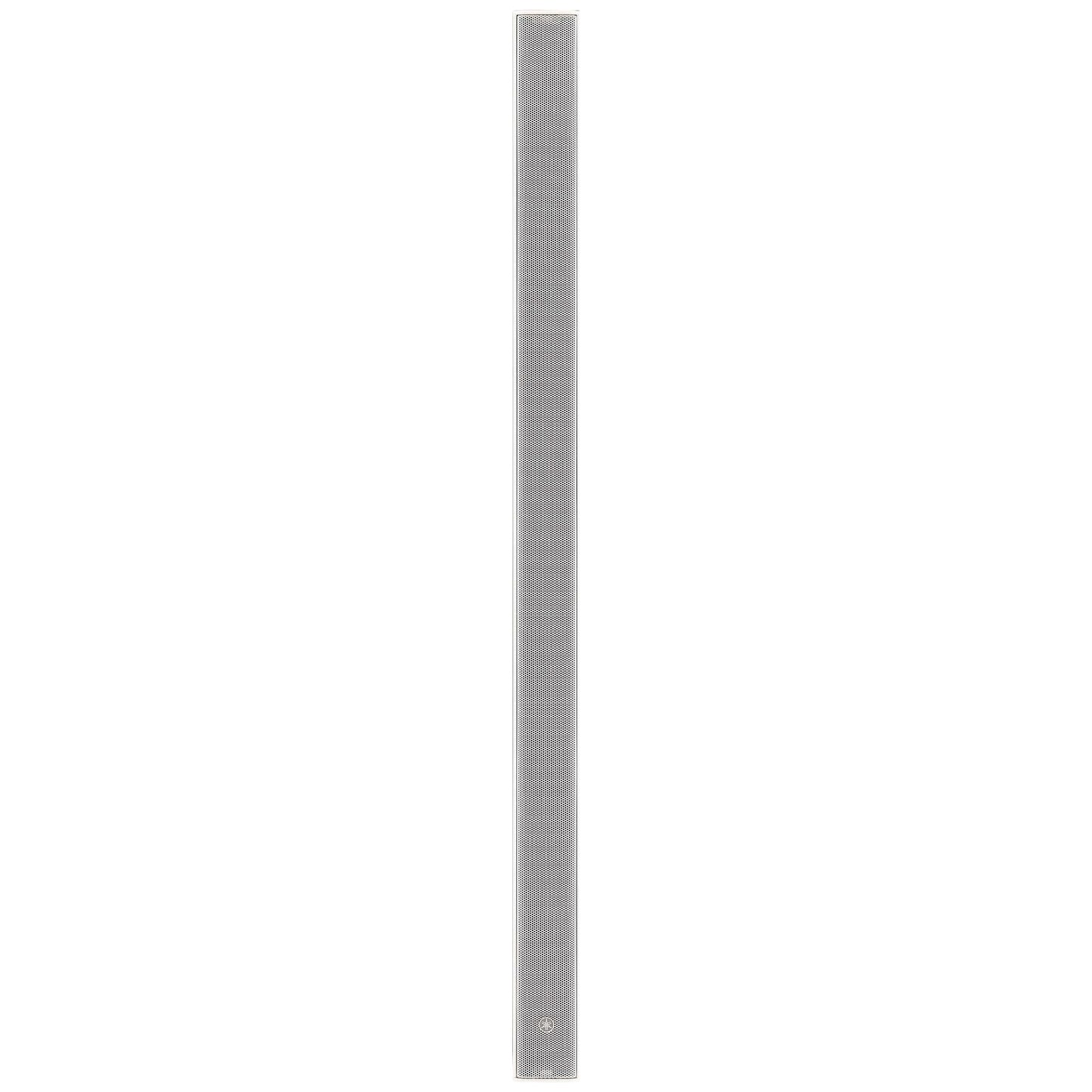

Yamaha VXL1-16 16-Driver Column Line Array Speaker | Color: White
Yamaha VXL1-16 16-Driver Column Line Array Speaker | Color: White
SoundPro Item: 114869 | Part Number: VXL1W-16
Usually ships in 5-7 business days
- 1.5 inch (3.75 cm) full-range loudspeaker units with neodymium magnets
- 170° horizontal dispersion for uniform SPL over a wide listening area
- Vertical coverage can be selected as 20°(Standard) or 40°(Wide)
- Slim design complements any interior décor
- Available in black or white
- Enclosures can be painted to match surroundings

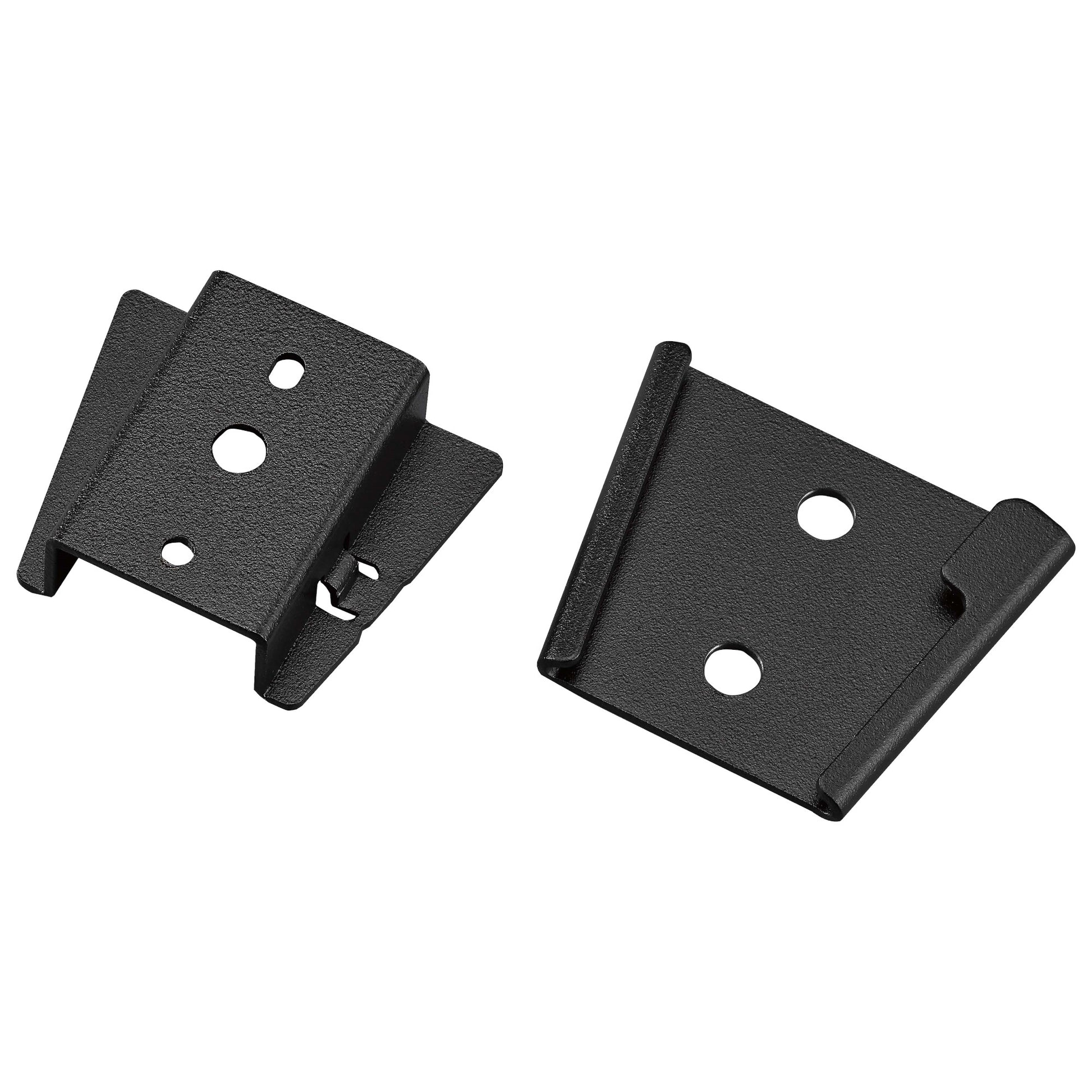

- Wall mount bracket supplied
- Optional hardware for a wide range of installation needs
This slim line array loudspeaker from Yamaha comes with 16 x 1.5” drivers.
- Speaker typeFull-range, Bass reflex
- Frequency range (-10dB) 81 Hz – 20 kHz *1 108 Hz - 20kHz 1 (w/ port cover)
- Coverage areaHorizontal: 170°, Vertical:20°( +10° – -10°) (NORMAL), 40°(+10° – -30°) (WIDE)
- Components (LF-HF) 1.5” (3.75 cm) Cone × 16
- Power rating
- NOISE: 80W
- PGM: 160W
- PEAK: 320W
- Nominal impedance12Ω
- SPL
- Sensitivity (1W; 1m on axis): 91 dB SPL (1 m/1 W) *1 *2
- Peak (Calculated): 116 dB SPL (1 m) *3
- I/O connectorsEuroblock (2 pin) × 2 (input: +/-) Max. wire size AWG 12 (3.3 mm²)
- Protection circuit (Load protection) Full-range power limiting to protecting network and transducers
- FinishFull-range power limiting to protecting network and transducers
- IP-RatingDust and water resistant : IP35
- PackagingPackaged in 1 pc
- Dimensions (WxHxD)2.1x33.3x4.1” (54x846x104mm) - Speaker Only, 2.1x33.3x4.4” (54x846x111.5mm) - with Included Bracket
- Weight (Speaker only)8.6 lbs (3.9 kg)
