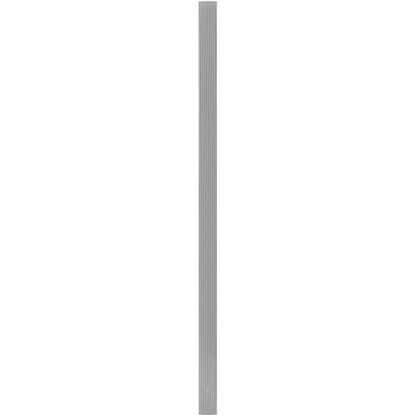

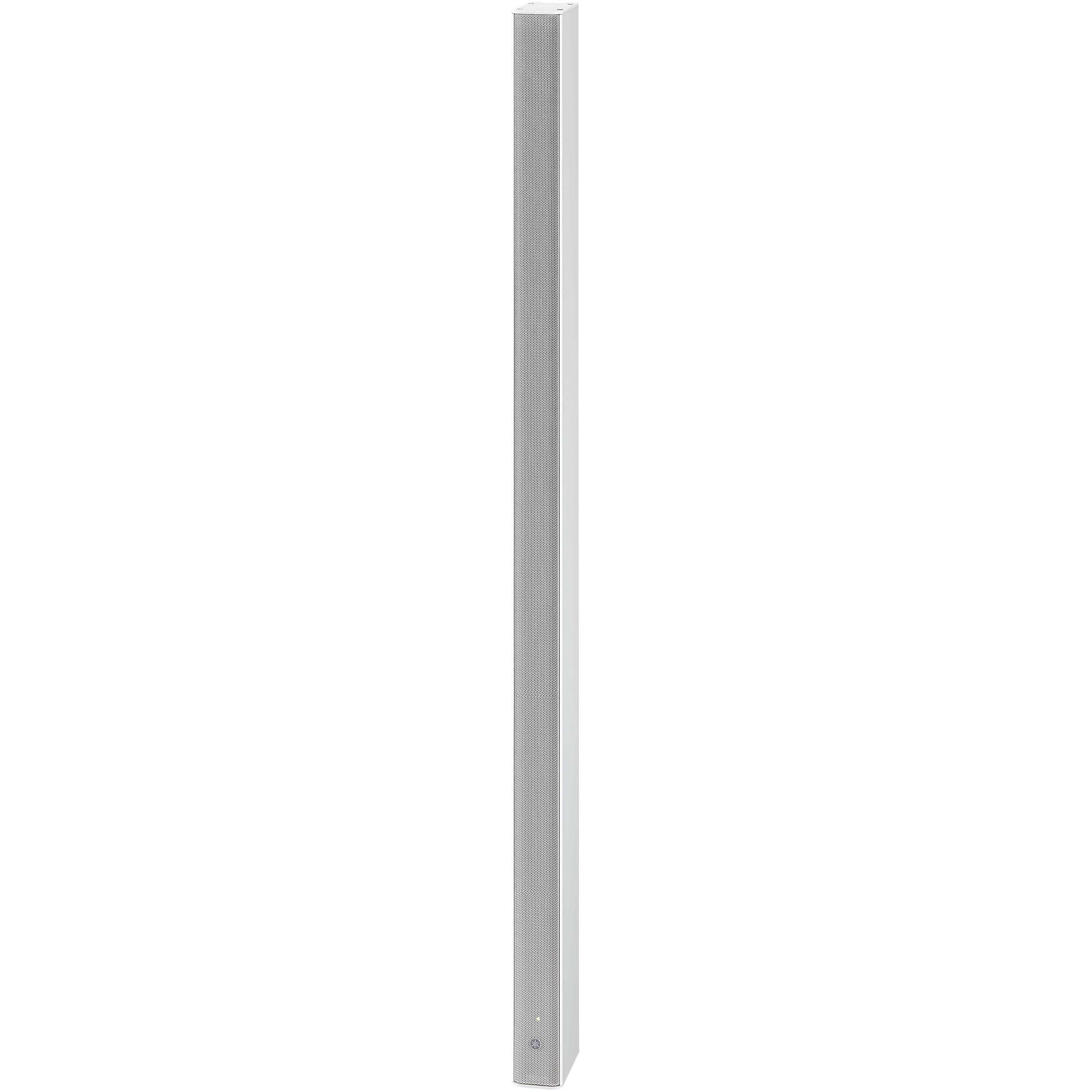

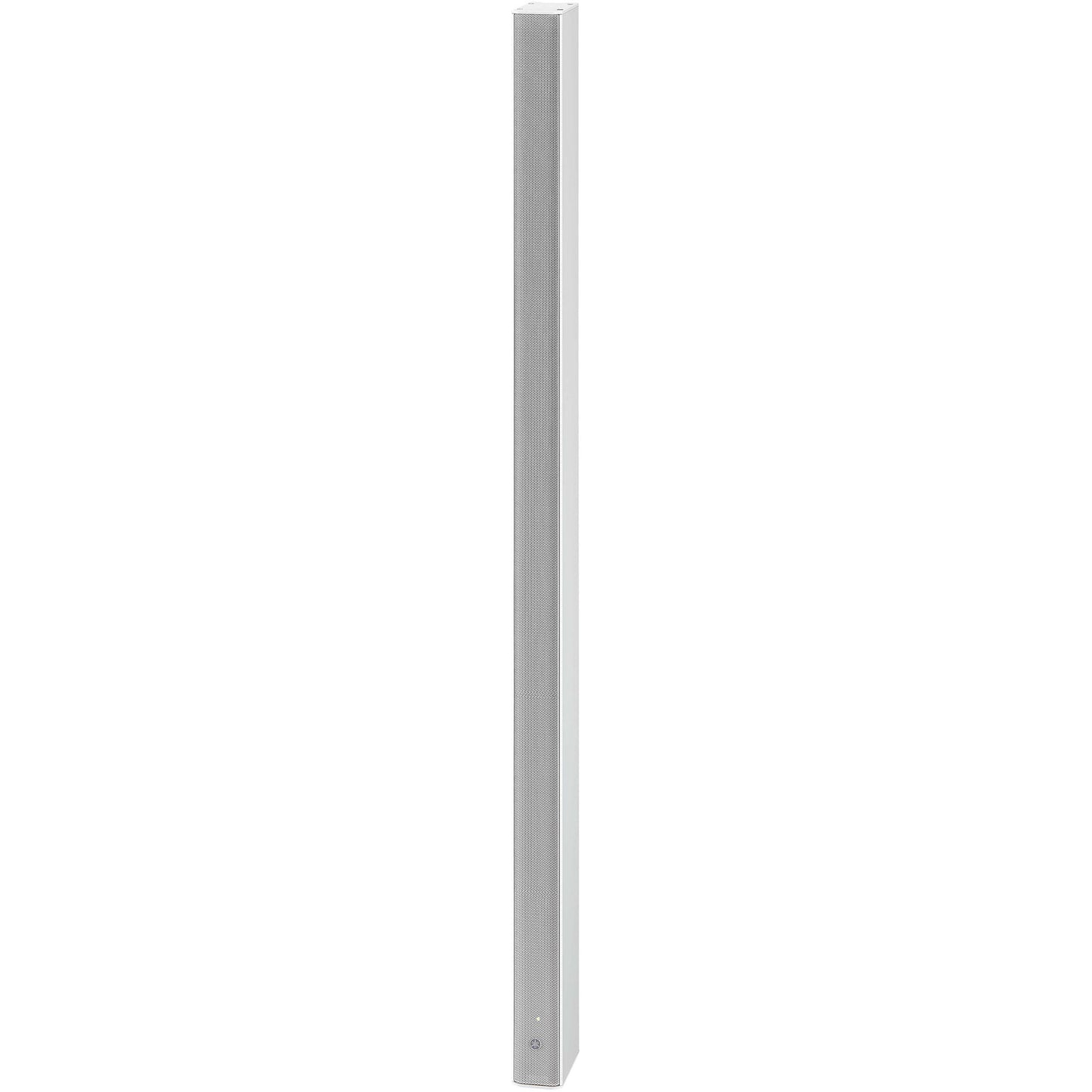

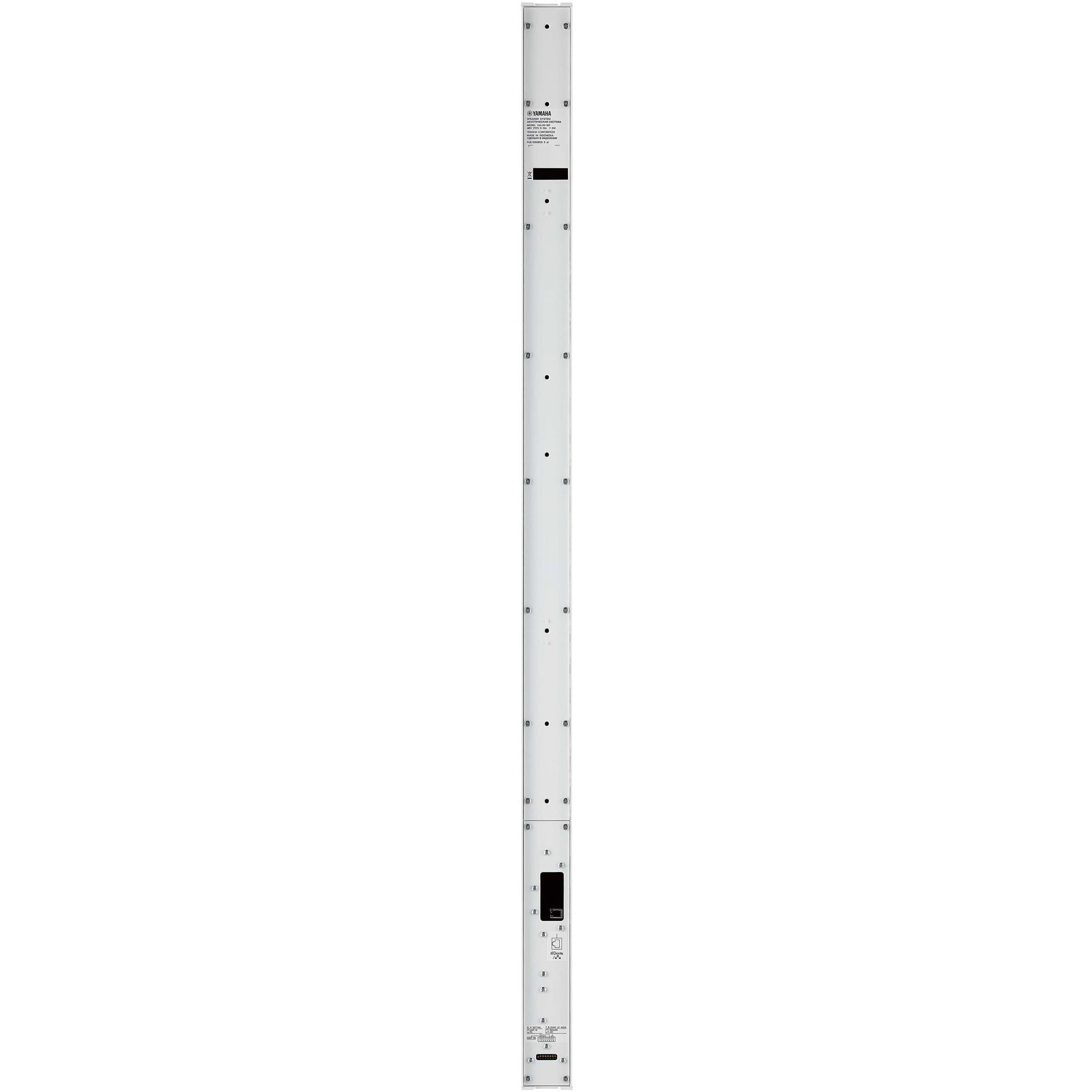

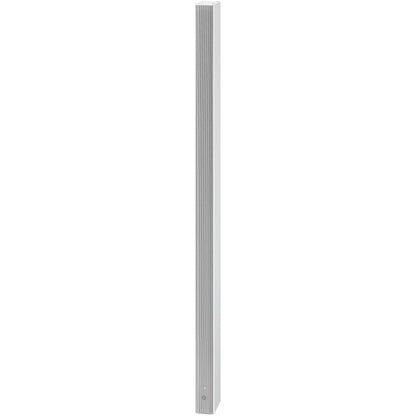

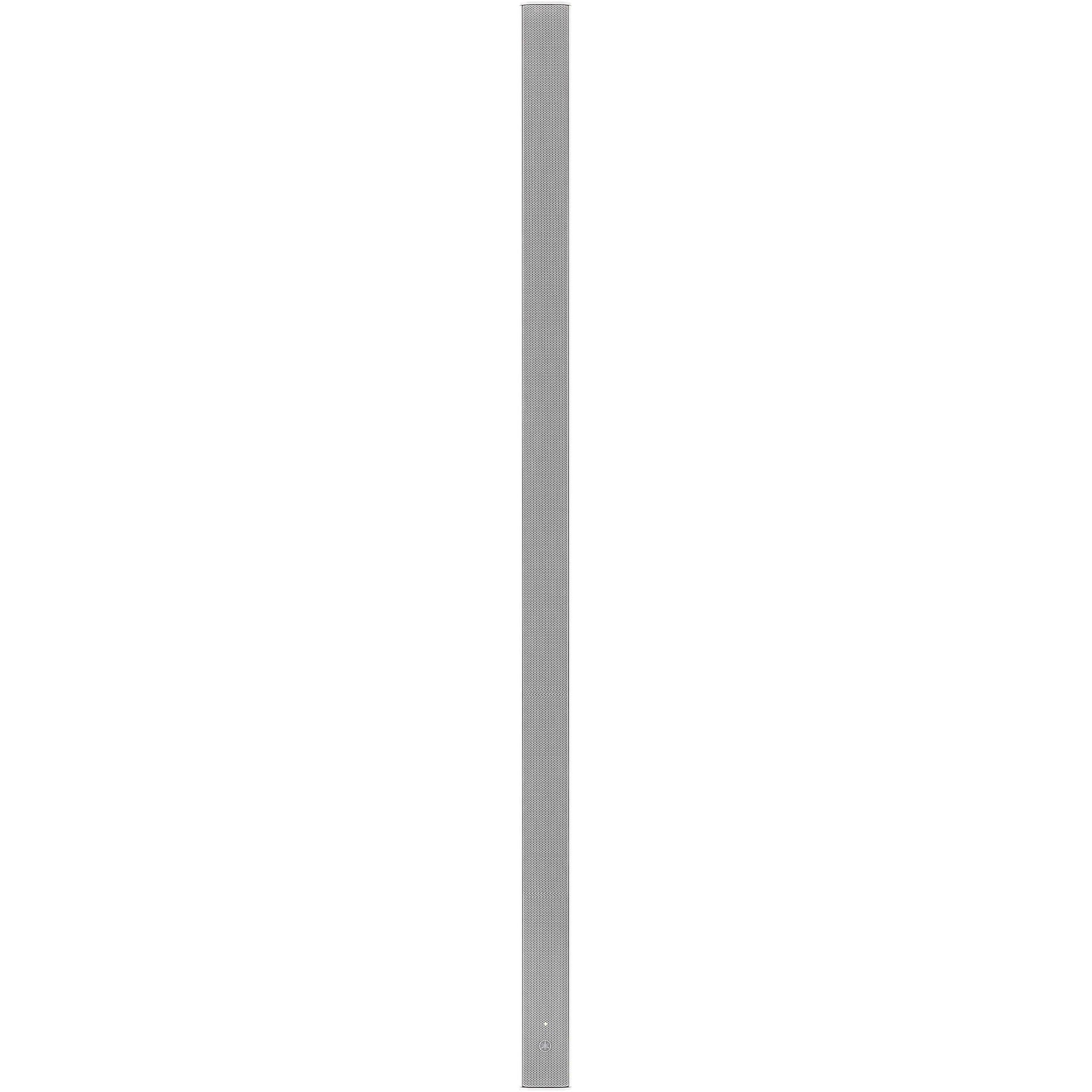

Yamaha VXL1-16P 16-Driver PoE Column Line Array Speaker | Color: White

Yamaha VXL1-16P 16-Driver PoE Column Line Array Speaker | Color: White

SoundPro Item: 114870 | Part Number: VXL1W-16P

$1,339.99
$1,574.00 $1,339.99
Your Price Sold out
MSRP: $1,574.00 | MAP: $1,339.99

Usually ships in 5-7 business days

  • 1.5 inch (3.75 cm) full-range speaker units with neodymium magnets
  • Slim design complements any interior décor
  • Available in black or white
  • Enclosures can be painted to match surroundings

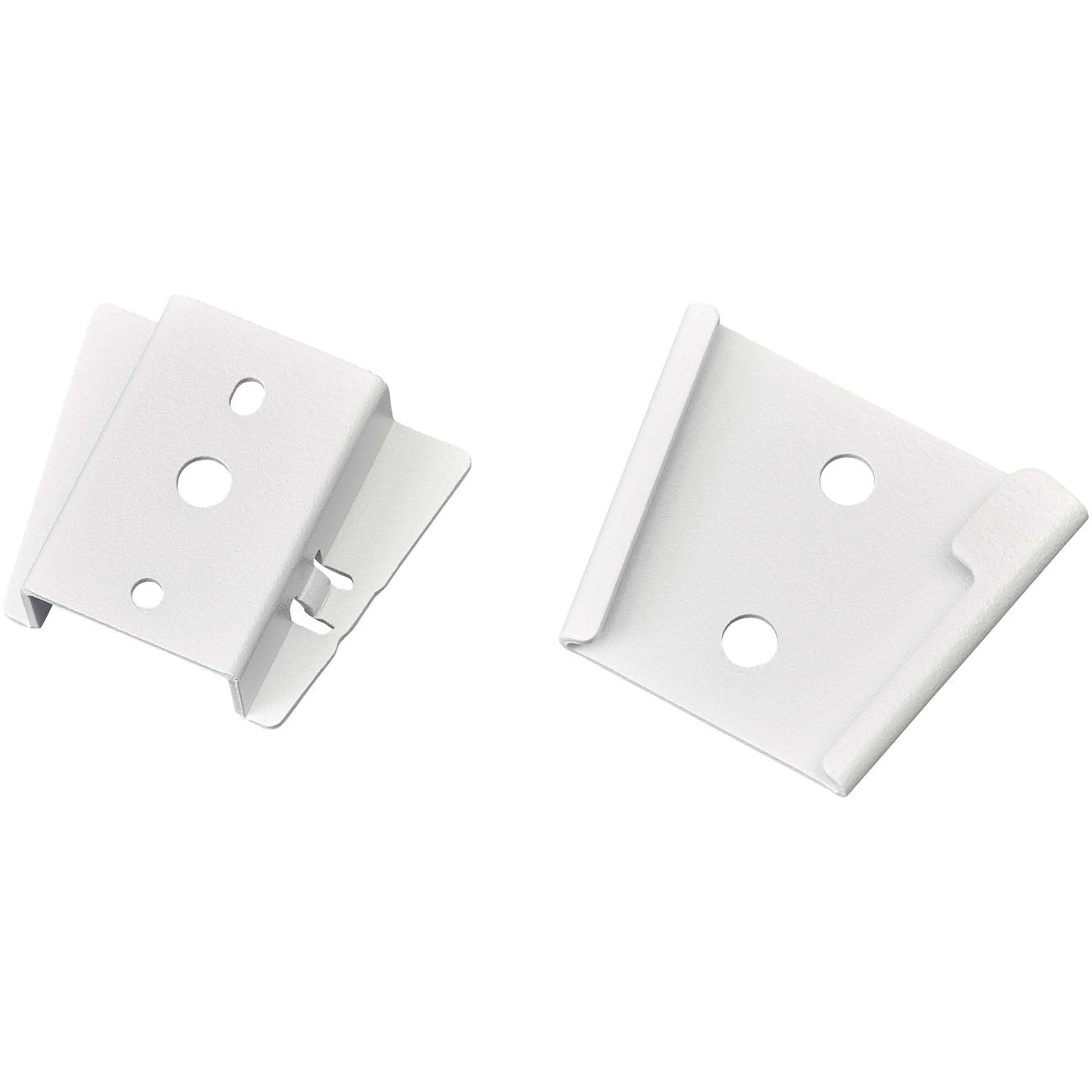

  • Wall mount bracket supplied
  • Optional hardware for a wide range of installation needs
Log in or register for YOUR best price

The VXL1-16P from Yamaha is a Dante PoE powered speaker with 16 x 1.5" drivers.

The VXL1B-16P and VXL1W-16P support the "Dante" audio network, and use a slim line-array configuration, making them an easy fit perfectly for conference rooms (in the size range of 12m × 10m) that demand vocal clarity while imposing numerous constraints on space, and require both functionality and a sense of design. With audio distributed via a Dante network and PoE power* supplied from a PoE compliant L2 switch, the speaker system can be constructed as a network, allowing existing IT infrastructure to be effectively utilized. Simple wiring via LAN cables, easy installation, and no need for a power amp contribute to the flexibility of installation, allowing you to construct an elegant sound system that will not interfere with the design of the conference room. * When using an IEEE802.3at compliant PoE power supply device, the maximum speaker output is 15W; when using an IEEE802.3af compliant PoE power supply device, the maximum speaker output is 6W.

View full details

Specifications

Speaker type
Full-range, powered speaker, bass reflex
Frequency range (-10dB)
80Hz - 20kHz *1
Nominal coverage
H
170°
V
25° (+12.5° - -12.5°)
Effective coverage (-10dB)
H
180°
V
30° (+15° - -15°)
Components
LF-HF
1.5"(3.75cm) Cone x 16
Maximum output level (1m; on axis)
102 dB SPL (when using PoE+(IEEE 802.3at)) *2
Power rating
Dynamic
15W (PoE+ (IEEE 802.3 at)), 6W (PoE (IEEE 802.3 af))
Continuous
15W (PoE+ (IEEE 802.3 at)), 6W (PoE (IEEE 802.3 af))
I/O connectors
RJ-45 (Dante) x1
Protection circuit
Speaker processing
Clip limiting, Integral power protection
Amplifier protection
Over current protection, Over temperature protection, Under voltage lock out, DC detection, Clock detection
Power supply protection
Over load protection, Over voltage protection, Under voltage lock out
Cooling
Natural convection
Power requirements
PoE+(IEEE 802.3at), PoE(IEEE 802.3af)
Power consumption
Idle: 3W, 1/8(Pink Noise): 6W (PoE+(IEEE 802.3at)), 4.3W (PoE(IEEE 802.3af))
Finish
VXL1B-16P: Black painting (approximate value: Munsell N3.0), VXL1W-16P: White painting (approximate value: Munsell N9.0)
Magnetic shielding
No
Dust and water resistant
No
Accessories
Mounting bracket x2, Bracket base x2, Safety wire x1, Machine screws (M5x10) x2, Template x1, Owner's manual
Options
WMB-L1B (W), HCB-L1B, PA-L1B
Packaging
Packaged in 1 pc
Dimensions (W x H x D)
W54 x H1120 x D104 mm (Speaker only)
Weight
5.0kg (Speaker only)
