Specifications
Dimensions
Dimensions (WxHxD)
10.2x19.7x15.3” (260x500x389mm) *5
Weight
Net Weight
43lbs (19.5kg) *5
Electrical
Satellite Impedance
8Ω load per satellite output recommended *2
Audio
Speaker Type
Bass-reflex type Subwoofer
Sensitivity (1W; 1m on axis)
96dB SPL *3
Connectivity
I/O Connectors

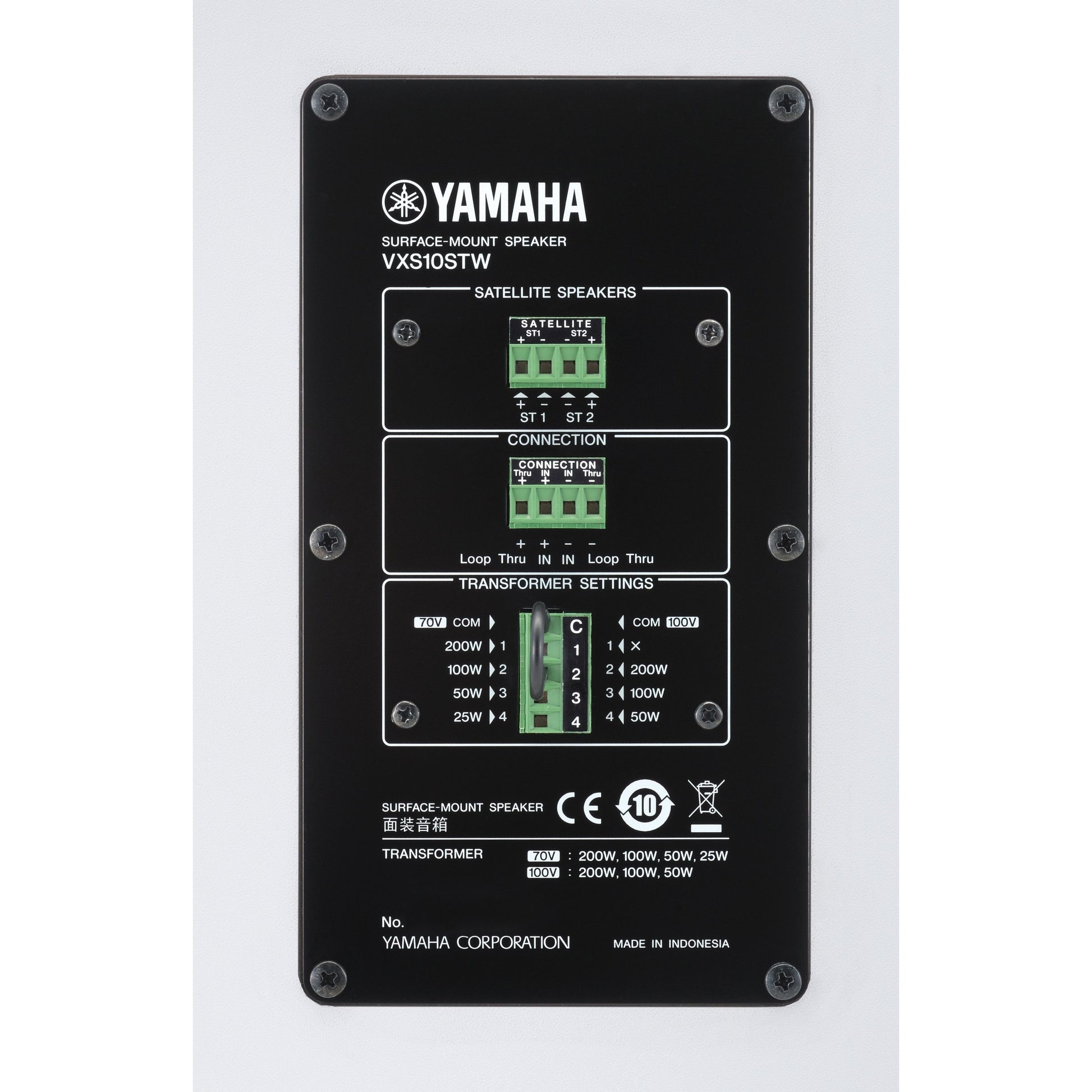

Input: 1x Euroblock (4P)(Input: + / -, Loop Thru: + / -), Satellite Output: 1x Euroblock (4P)(ST 1: + / -, ST 2: + / -)
Construction
Cabinet Material
MDF
Finish
VXS10S: Black (approximate value:Munsell N3), VXS10SW: White (approximate value:Munsell 3.5PB9.0/1)
Included Items
Components
LF: 10" Dual Voice Coil
Identifiers
Packaging
Packaged each
General
Frequency Range (-10dB)
45Hz - 250Hz
100V
200W (50Ω), 100W (100Ω), 50W (200Ω)
70V
200W (25Ω), 100W (50Ω), 50W (100Ω), 25W (200Ω)
Shape
Rectangular
Certificate
CE, EAC, RoHS
Protection Circuit (Load protection)
Full-range power limiting for protecting network and transducers
Options
UB-DXR8: U-Bracket
