Specifications
Dimensions
Dimensions (WxHxD)
6.9x11x6.4” (176x280x163mm)
Weight
Net Weight
3.6kg (7.9lbs)
Audio
Speaker Type
2-way, Bass-reflex
Crossover
3kHz
Sensitivity (1W; 1m on axis)
89dB SPL
Connectivity

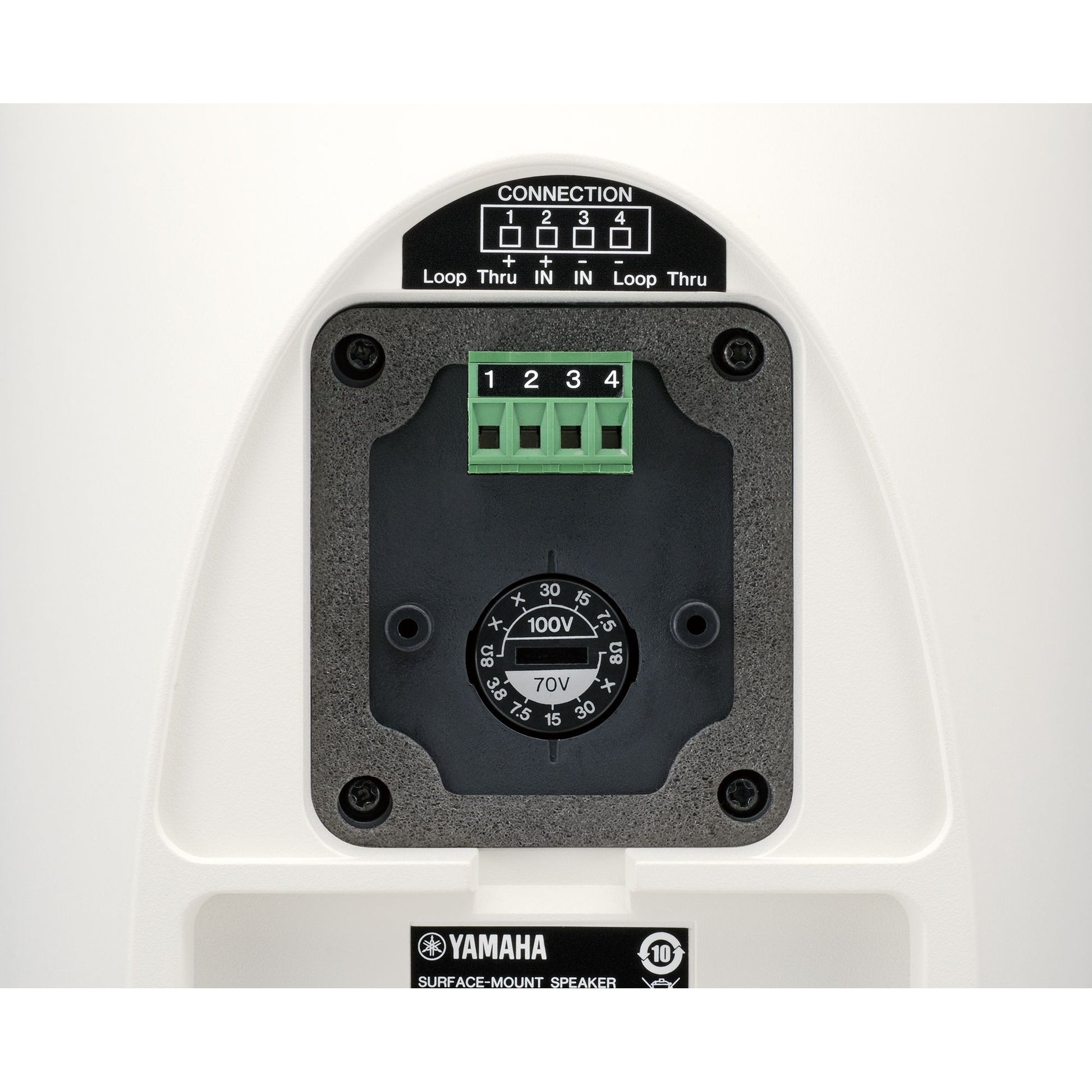

I/O Connectors
1x Euroblock (4P) (Input: + / -, Loop Thru: + / -)
Construction
Cabinet Material
ABS
Finish
VXS5:Black / VXS5W:White
General
Frequency Range (-10dB)
62Hz - 20kHz
H
120°
V
120°
LF
5.25" Cone
HF
0.75" Soft dome
NOISE
75W
PGM
150W
Nominal Impedance
8Ω
100V
30W (330Ω), 15W (670Ω), 7.5W (1.3kΩ)
70V
30W (170Ω), 15W (330Ω), 7.5W (670Ω), 3.8W (1.3kΩ)
Peak (Calculated)
114dB SPL
Shape
Rectangular
Waterproof
IP35
Certificate
UL1480, NFPA70, CE, EAC, RoHS
