Specifications
Audio
Speaker Type
2-way, Bass-reflex
Crossover
2.8kHz
Power Rating
Nominal impedance8Ω
General
Frequency Range (-10dB)
51Hz - 20kHz
H
100°
V
100°
LF
8" Cone
HF
1" Soft dome
NOISE
90W
PGM
180W
Transformer Taps 100V

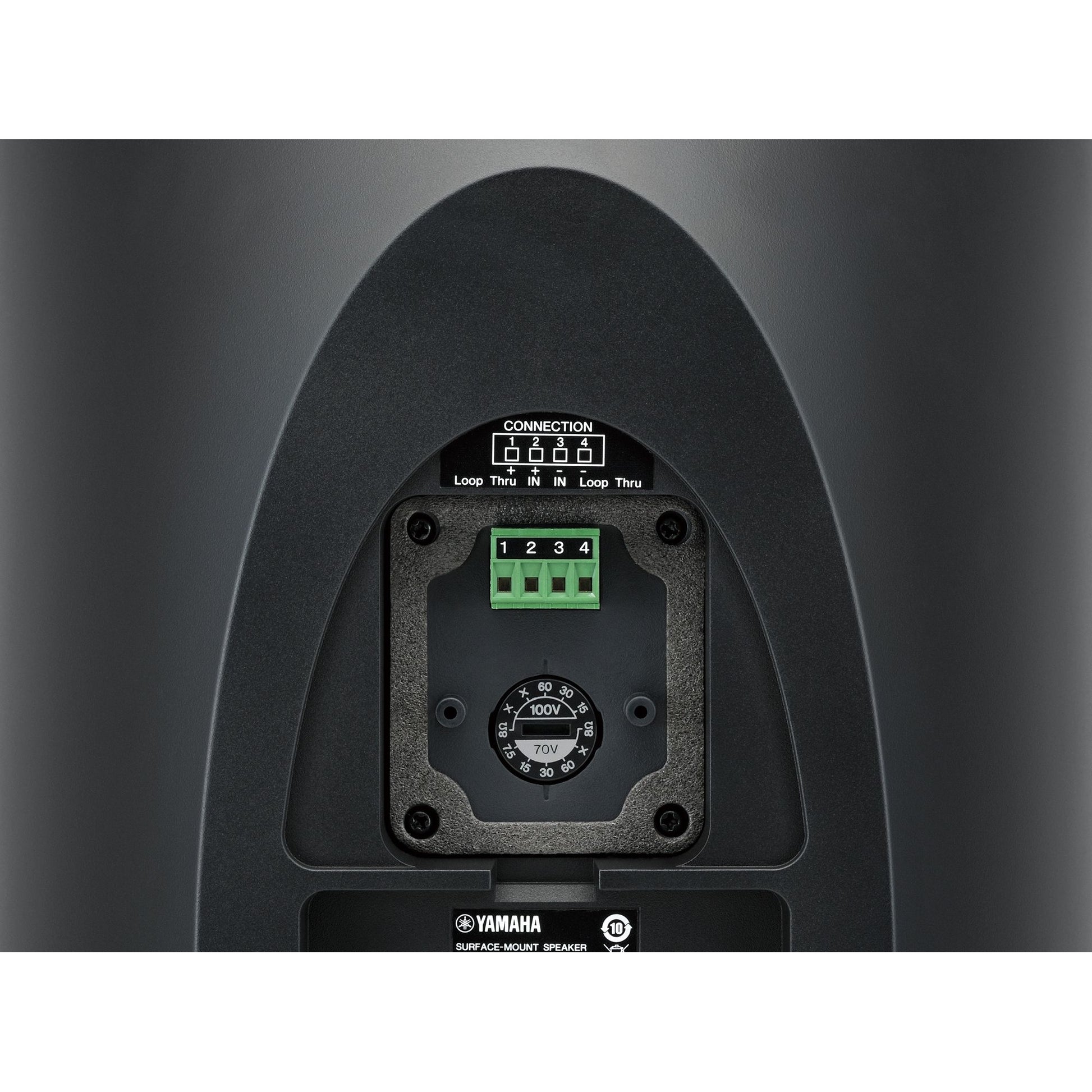

60W (170Ω), 30W (330Ω), 15W (670Ω)70V: 60W (83Ω), 30W (170Ω), 15W (330Ω), 7.5W (670Ω)SPL Sensitivity (1W; 1m on axis): 91dB SPLPeak (Calculated): 117dB SPLI/O connectors1x Euroblock (4P) (Input: + / -, Loop Thru: + / -)ShapeRectangularCabinet materialABSFinishVXS8:Black / VXS8W:WhiteWaterproofIP35Dimensions (WxHxD) 10.9x16.9x9.4” (278x430x239mm)Net weight8.2kg (18.1lbs)CertificateUL1480, NFPA70, CE, EAC, RoHS
