Yamaha XMS Series Power Amplifier 2U Class D With Hi-Z/Lo-Z | 8-Channel | Dante

Yamaha XMS Series Power Amplifier 2U Class D With Hi-Z/Lo-Z | 8-Channel | Dante

SoundPro Item: 207010 | Part Number: XMS12s8-D

$4,599.99
$5,366.00 $4,599.99
Your Price Sold out
MSRP: $5,366.00 | MAP: $4,599.99

Usually ships in 5-7 business days

  • Dynamic Power Sharing Allocates Total Output Across Active Channels For Efficient Multi-Zone Deployment
  • Integrated Matrix Router And Speaker Processing Eliminate External DSP Requirements In Simpler Installations
  • Per-Channel Hi-Z And Lo-Z Mode Selection Supports Mixed Load Configurations Within Single Chassis
  • ProVisionaire Design Software Enables Unified System Configuration And Monitoring Across Installation

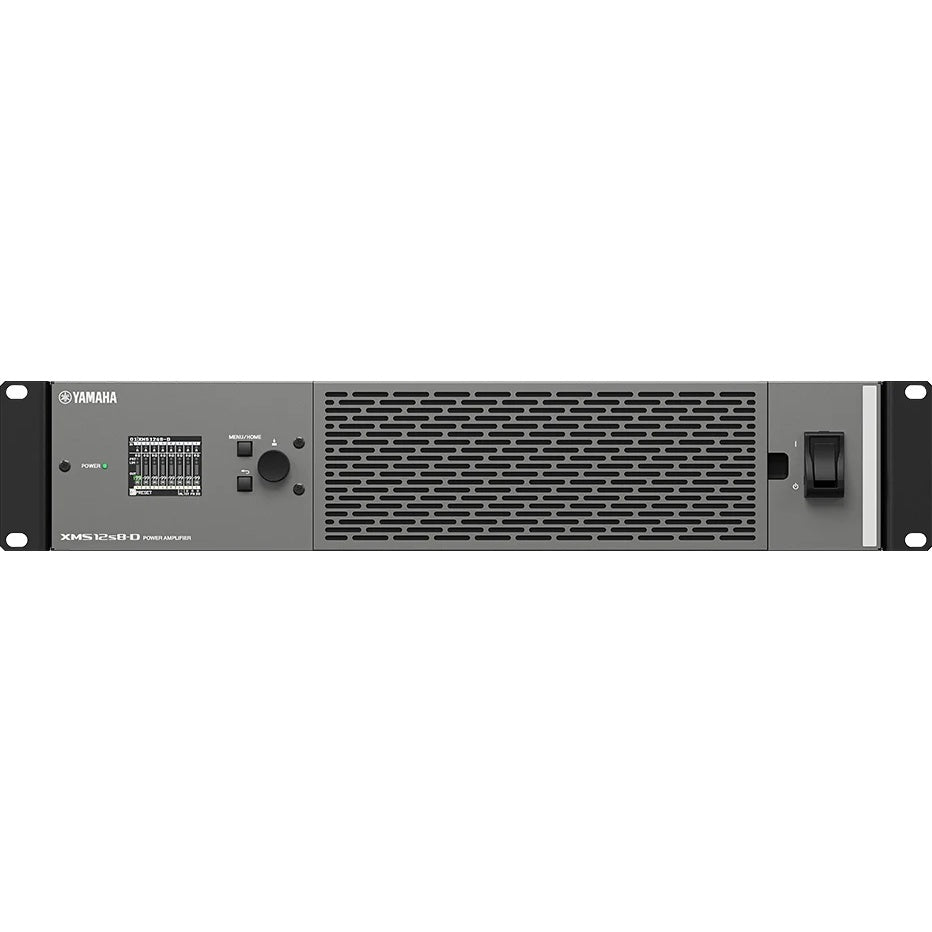

  • Front-Panel LCD And Controls Provide Direct Access To Gain Adjustment And Operational Status
  • Redundant Dante Network Topology With AES67 Compatibility Ensures Reliable Audio Transport
  • Factory Speaker Presets For Yamaha Passive Loudspeakers Accelerate System Commissioning
Log in or register for YOUR best price

The Yamaha XMS Series delivers intelligent amplification for installed sound systems where flexible channel distribution and onboard signal processing eliminate the need for external DSP in many commercial audio installations. Dynamic power sharing allocates the full 1200W pool across active channels, maximizing available headroom while reducing amplifier count in multi-zone designs. Part of Yamaha's Commercial Installation Solutions Ecosystem, XMS amplifiers integrate with DME Series processors for larger systems or operate standalone with the built-in 4×4 matrix router, 16-band parametric EQ, and comprehensive speaker processing.

Class D topology delivers consistent performance in both Lo-Z and Hi-Z modes with per-channel configuration, supporting 4Ω, 8Ω, 70V, and 100V distributed line applications within a single chassis. Front-panel LCD and control interface enable system monitoring and gain adjustment without software access. Dante connectivity supports redundant and daisy-chain topologies with AES67 compatibility, while ProVisionaire Design software provides unified configuration across the entire installation from a single interface. Suited for corporate boardrooms, hospitality venues, education facilities, and retail spaces requiring reliable amplification with intelligent routing capabilities.

View full details

Specifications

Audio
Total Output Power
ch1+ch2+ch3+ch4=600W, ch5+ch6+ch7+ch8=600W
Max Output Power Per Channel (4Ω Mode)
300W
Max Output Power Per Channel (8Ω Mode)
300W
Max Output Power Per Channel (100V Mode, 66.7Ω)
150W
Max Output Power Per Channel (70V Mode, 33.3Ω)
150W
Amplifier Class
Class D
Total Harmonic Distortion
≤0.1%
THD (4Ω/8Ω/100V/70V Mode)
≤0.2% (20-20kHz, 3dB below rated power, all channels driven)
Frequency Response (8Ω Mode, 20-20kHz)
±1.0 dB
Frequency Response (100V/70V Mode, 55-20kHz)
-0.5/+1.5 dB
Crosstalk (Half Power, 8Ω, 1kHz)
≤-60dB
S/N Ratio (A-weighted, 8Ω Mode)
≥100dB
Input Sensitivity
+4dBu
Voltage Gain (4Ω Mode, Volume Max)
29.0 dB
Voltage Gain (8Ω Mode, Volume Max)
32.0 dB
Voltage Gain (70V Mode, Volume Max)
35.2 dB
Voltage Gain (100V Mode, Volume Max)
38.2 dB
Maximum Input Voltage
+24dBu
Input Impedance
20kΩ (Balanced), 10kΩ (Unbalanced)
Signal Processing
A/D Converter
32-bit
D/A Converter
32-bit
Input Router
4×4
User EQ
8-band
User Delay
~1000ms
Speaker Processor
X-Over, 16-band PEQ, Delay, Peak Limiter, RMS Limiter
Latency (Analog Input to Speakers)
1.0ms
Latency (Dante to Speakers, 96kHz)
2.1ms
Latency (Dante to Speakers, 88.2kHz)
2.2ms
Latency (Dante to Speakers, 48kHz)
3.2ms
Latency (Dante to Speakers, 44.1kHz)
3.4ms
Speaker Preset
Yamaha passive speaker presets
Connectivity
Analog Input
Euroblock 3.5mm, 12-pin ×2
Dante
RJ45 ×2 (Redundant/Daisy Chain)
Network
RJ45 ×1
Fault Out/Remote Control
Euroblock 3.5mm, 6-pin (Mute/Sleep)
Speaker Output
Euroblock 7.62mm, 8-pin ×2
Dante Sampling Frequency
44.1kHz/48kHz/88.2kHz/96kHz
Electrical
Power Requirements
100V-240V 50Hz/60Hz
Dimensions
Width
18.9"
Height
3.5"
Depth
17.5"
Weight
Net Weight
22.9 lbs
Included Items
Accessories
Owner's Manual, AC cord (2.0m), Ferrite core, Euroblock 3.5mm 3-pin ×10, Euroblock 7.62mm 8-pin ×2, Cable tie ×11
