Yamaha XMS Series 8-Channel Power Amplifier 2U With DSP | Analog Only

Yamaha XMS Series 8-Channel Power Amplifier 2U With DSP | Analog Only

SoundPro Item: 207009 | Part Number: XMS24s8

$5,299.99
$6,182.00 $5,299.99
Your Price Sold out
MSRP: $6,182.00 | MAP: $5,299.99

Usually ships in 5-7 business days

  • Power Sharing Technology Dynamically Allocates Available Wattage Across Channels For Adaptive Headroom
  • Integrated Matrix Router And DSP Consolidate Processing Without External Hardware
  • Per-Channel Hi-Z And Lo-Z Selection Supports Mixed Speaker Loads In Single Chassis
  • ProVisionaire Design Software Unifies Configuration Across Yamaha CIS Ecosystem
  • Front-Panel LCD Provides Direct Status Monitoring And Parameter Adjustment
  • Redundant And Daisy-Chain Dante Topologies Support Fault-Tolerant Network Design
  • Class D Amplification Delivers High Efficiency In Compact 2U Form Factor
Log in or register for YOUR best price

The Yamaha XMS Series 8-channel power amplifier is engineered for commercial installation environments where flexible power allocation and processing are required in a single chassis. Power Sharing technology dynamically distributes 2400W total across channels based on real-time demand, enabling systems designers to reduce equipment count and rack space while maintaining headroom for transient events. The integrated matrix router and DSP engine eliminate the need for external processors in many scenarios, consolidating signal routing, EQ, delay, and limiting functions within the amplifier itself.

Built for integration with Yamaha's Commercial Installation Solutions ecosystem, the XMS Series supports both analog and Dante-enabled models, accommodating hybrid system architectures common in retrofit and phased deployment projects. Per-channel Hi-Z and Lo-Z configuration allows mixed-load topologies within the same amplifier, reducing complexity in facilities with both distributed ceiling speakers and low-impedance zones. ProVisionaire Design software provides unified control and monitoring across the CIS platform, streamlining commissioning and enabling remote diagnostics for integrators managing multiple sites.

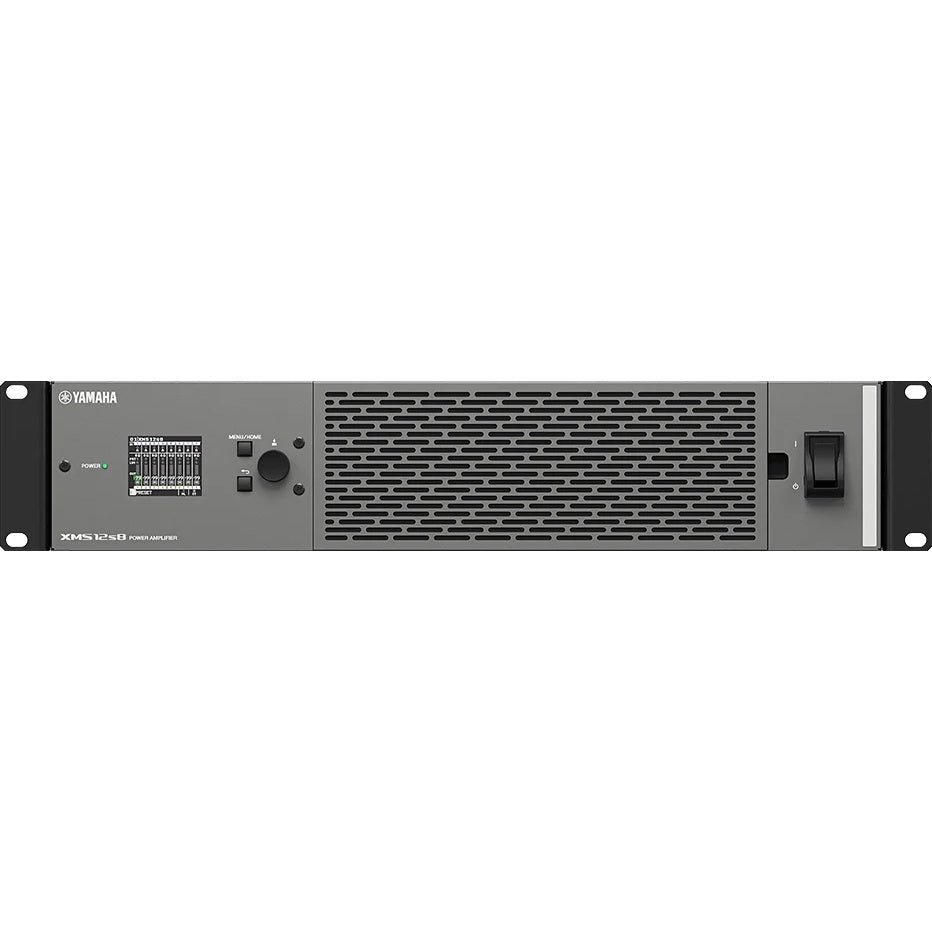

The front-panel LCD and control interface provide immediate access to amplifier status and parameters without requiring a connected computer, supporting rapid troubleshooting during installation and service calls. Class D topology, multi-speed cooling, and comprehensive protection circuits deliver reliable operation in demanding commercial and institutional applications including corporate facilities, hospitality venues, houses of worship, and educational campuses.

View full details

Specifications

Performance
Total Output Power
ch1+ch2+ch3+ch4=1200W, ch5+ch6+ch7+ch8=1200W
Max Output Power 4Ω Mode
600W/ch
Max Output Power 8Ω Mode
600W/ch
Max Output Power 100V Mode (RL 33.3Ω)
300W/ch
Max Output Power 70V Mode (RL 16.7Ω)
300W/ch
Amplifier Class
Class D
Total Harmonic Distortion
≦ 0.1%
THD 4Ω Mode
≦ 0.2% (20-20k Hz, 3dB below rated power, all channels driven)
Frequency Response 8Ω SE Mode
±1.0 dB (20-20k Hz)
Frequency Response 100V Mode
-0.5/+1.5 dB (55-20k Hz)
Frequency Response 70V Mode
-0.5/+1.5 dB (55-20k Hz)
Crosstalk
≦ -60dB (Half Power, 8Ω, 1kHz)
S/N Ratio
≧100dB (A-weighted, 8Ω MODE)
Input Sensitivity
+4dBu
Maximum Input Voltage
+24dBu
Voltage Gain 4Ω
32.0 dB
Voltage Gain 8Ω
35.0 dB
Voltage Gain Hi-Z 70V Mode
35.2 dB
Voltage Gain Hi-Z 100V Mode
38.2 dB
Audio
A/D Converter
32-bit
D/A Converter
32-bit
Signal Processing
4 x 4 Input Router, User EQ: 8 band, User Delay: ~1000msec, Speaker Processor: X-Over, PEQ(16 band), Delay, Peak Limiter, RMS Limiter
Latency Analog Input to Speakers
1.0msec
Speaker Preset
Speaker presets for Yamaha passive speakers

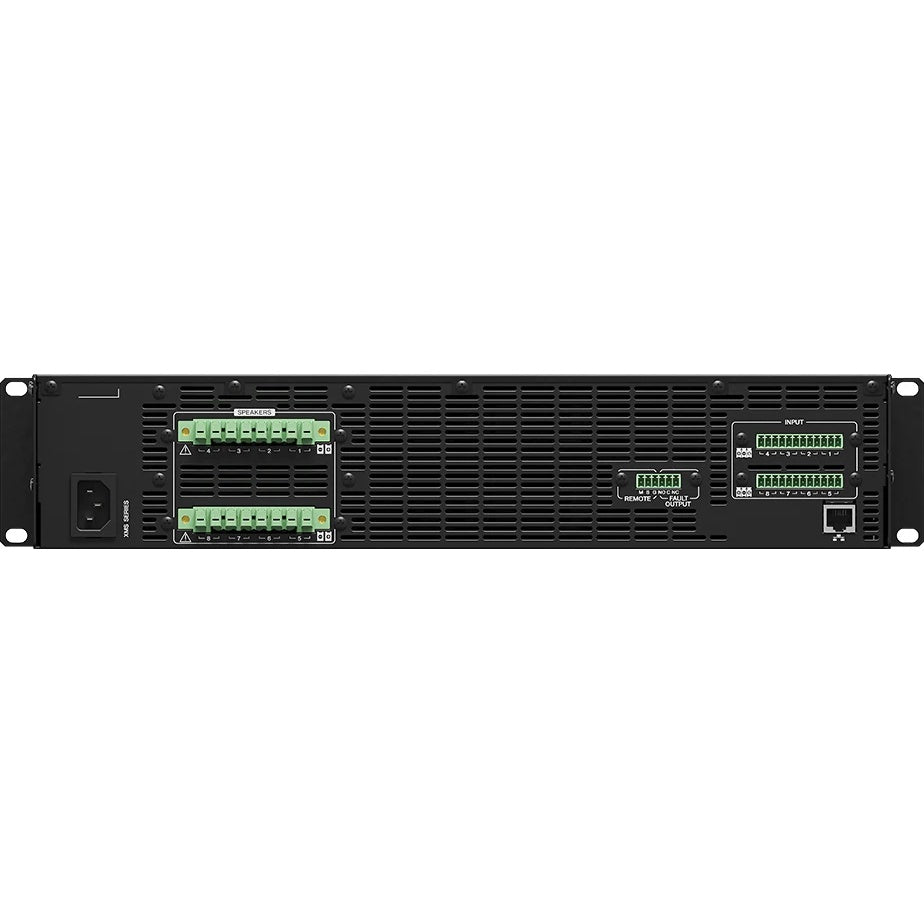

Connectivity
Analog Input
Euroblock 3.5mm, 12 PIN x2
Input Impedance
20kΩ (Balance), 10kΩ (Unbalance)
Network
RJ45 x1
Fault Out/Remote Control
Euroblock 3.5mm, 6 PIN (MUTE / SLEEP)
Speaker Output
Euroblock 7.62mm, 8 PIN x2
Construction
Cooling
4 step variable speed fan x 2, front to rear airflow
Load Protection
Output mute (POWER switch on/off), Power Supply shutdown (DC-fault)
Amplifier Protection Thermal
Output limiter (Restored automatically) → Output mute (Restored automatically)
Amplifier Protection Over Current
Output mute (Restored automatically)
Power Supply Protection Thermal
Output limiter (Restored automatically) → Power supply shutdown
Power Supply Protection Over Voltage
Power supply shutdown
Power Supply Protection Over Current
Power supply shutdown
Electrical
Power Requirements
100V-240V 50Hz/60Hz
Dimensions
Width
18.9"
Height
3.5"
Depth
17.5"
Weight
Net Weight
22.9 lbs
Shipping
Package Weight
22.9 lbs
Package Width
17.5"
Package Length
18.9"
Package Height
3.5"
Included Items
Accessories
Owner's Manual x 1, AC cord (2.0m) x 1, Ferrite core ×１, Euro block:3.5mm, 3pin ×10, Euro block:7.62mm, 8pin ×2, Cable tie ×11
