• Yamaha XMV8280 8-Channel Power Amplifier
1 1

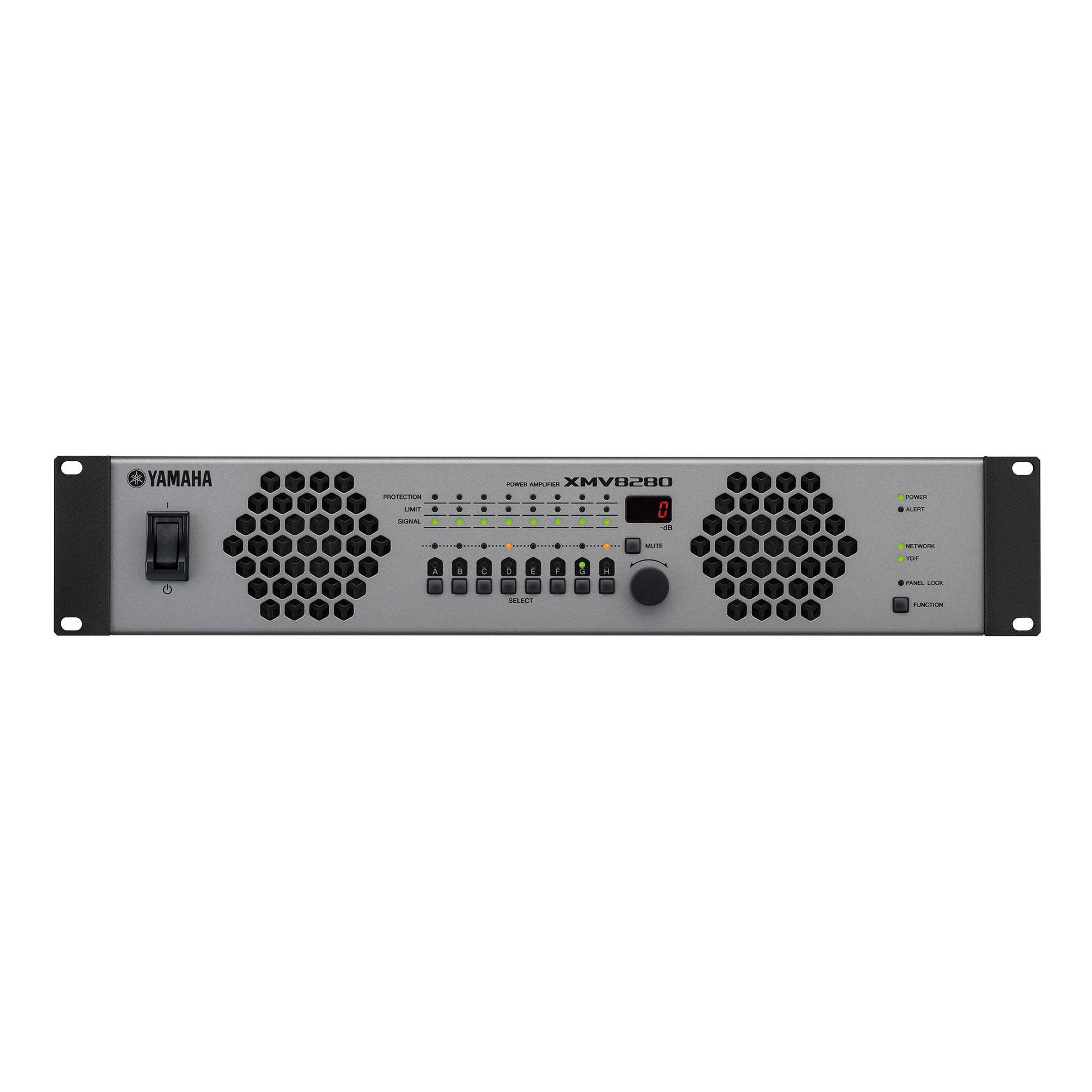

Yamaha XMV8280 8-Channel Power Amplifier

Yamaha XMV8280 8-Channel Power Amplifier

SoundPro Item: 67562 | Part Number: XMV8280

$4,965.99
$5,516.00 $4,965.99
Your Price Sold out
MSRP: $5,516.00 | MAP: $4,965.99

Usually ships in 5-7 business days

  • 8-channel amplifier designed specifically for commercial installation sound systems
  • A top choice for businesses looking to enhance their sound systems
  • Can operate simultaneously in high or low impedance mode so you don't need additional equipment
  • Works well with MTX Series processors
  • Protective functions for long product life and reliable operation
  • External control via Ethernet
  • Source Select function
  • Backup Mode and Override Mode for redundancy and protection
Log in or register for YOUR best price

Yamaha's XMV8280 is a powerhouse 8-channel amplifier designed specifically for commercial installation sound systems, offering unparalleled Class-D efficiency.

This amplifier is perfect for venues where high-quality audio is a must, providing crystal-clear sound and reliable performance.

With Yamaha's reputation for excellence in audio equipment, the XMV8280 is a top choice for businesses looking to enhance their sound systems.

View full details
  • Output Power
    • 1kHz (THD+N=1%: 4Ω): 280W x 8
    • 1kHz (THD+N=1%: 8Ω):280W x 8
    • 1kHz (THD+N=1%: 4Ω/Double Power Mode):560W x 4
    • 1kHz (THD+N=1%: 8Ω/Double Power Mode): 560W x 4
    • High impedance (100V line): 250W x 8/80Ω
    • High impedance (70V line):250W x 8/40Ω
  • Voltage Gain
    • RL=8Ω: 31.7dB
    • RL=8Ω/Double Power Mode: 34.7dB
    • 100V: 38.2dB
    • 70V:35.2dB
  • Power Consumption1/8 power (4 Ω pink noise):250W, Idle (4 Ω):73W, Standby:23
  • Total Harmonic Distortion≤ 0.2% (1kHz, half power)
  • Frequency Response0dB, ±1.0dB (RL=8Ω, 100V/70V, Po=1W, 20Hz - 20kHz)
  • S/N Ratio≥100dB(A-weighted)
  • Crosstalk≤-60dB
  • Input Sensitivity+4dBu
  • Input Impedance20kΩ (balanced), 10kΩ (unbalanced)
  • I/O Connectors
    • Analog I/O: Input: Euroblock x 2 (6P, balanced)
    • Digital I/O: RJ45 x 2 (Dante PRIMARY / SECONDARY)
    • Speaker Output: Barrier strip x 8 pairs
    • Control Ports: Remote, Fault Output : Euroblock (3P) x 1
    • Network: Shared with Dante ports
    • Others: AC Inlet x 1
  • Input Level+24dBu (Maximum)
  • Protection Circuit
    • Load Protection: POWER switch on/off: Output mute, DC-fault: Power supply shuts down, Clip limiting
    • Amplifier Protection:
      • Thermal: Output mute (heatsink temp ≥90°C) (Restored automatically), Overcurrent: Output mute (Restored automatically), Low load impedance: Output mute (Restored automatically)
    • Power Supply Protection:
      • Thermal: Amplifier shuts down automatically (heatsink temp ≥100°C) , Integrated power: Gain reduction (Restored automatically)
  • Cooling3-Speed fan x 2, front-to-back airflow
  • Power Requirements100V, 120V, 230V-240V; 50Hz/60Hz
  • Dimensions (WxHxD)18.9x3.5x16.6" (480x88x422mm)
  • Net Weight22.3 lbs (10.1 kg)
