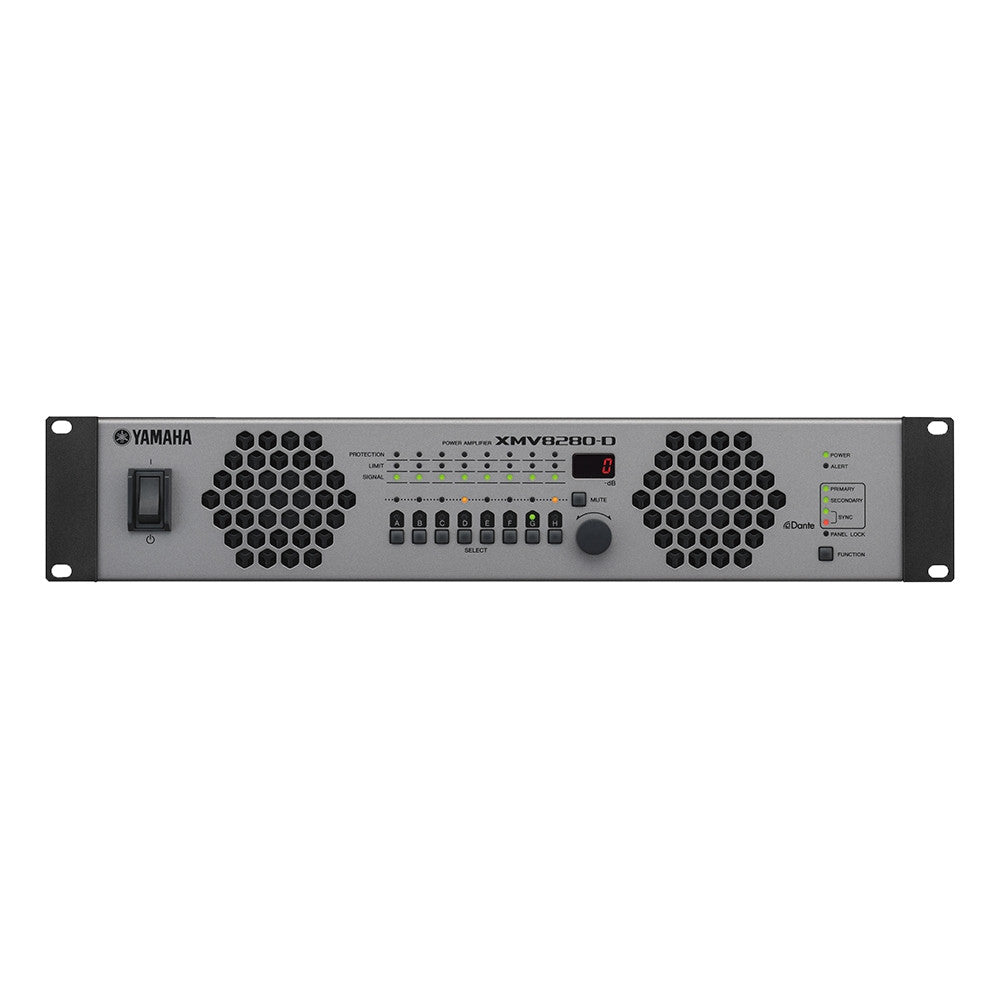

Yamaha XMV8280-D 8-Channel Dante Power Amplifier
Yamaha XMV8280-D 8-Channel Dante Power Amplifier
SoundPro Item: 67563 | Part Number: XMV8280-D
Usually ships in 5-7 business days
- 280W x 8 channel multichannel power amplifier
- Fully-optimized functionality for commercial use
- Dante equips the amp to work in larger venues
The XMV8280-D from Yamaha is a 280W, 8-channel power amplifier that boasts Class-D efficiency ideal for commercial installation sound systems. It comes with Dante to better equip the amp to work in larger venues where long-distance cabling is required.
- Output Power (1kHz, THD+N = 1% [20ms Burst])
- 100V Line: 250W x 8/40 Ohms
- 70V Line: 250W x 8/20 Ohms
- 8 Ohms: 280W x 8
- 4 Ohms: 280W x 8
- 4 Ohms: 560W x 4
- 8 Ohms: 560W x 4
- Total Harmonic Distortion≤0.2%
- Frequency Response0dB, ±1.0dB
- S/N Ratio100dB
- Crosstalk≤-60dB
- Voltage Gain
- RL=8 Ohms: 31.7dB
- RL=8 Ohms/Double Power Mode:34.7dB
- 100V:38.2dB
- 70V:35.2dB
- Input Sensitivity+4dBu (RL=8 Ohm)
- Maximum Input Voltage+24dBu
- Input Impedance20kOhms (balanced), 10kOhms (unbalanced)
- I/O Connectors
- LIne Input: Euroblock x 2 (6P, balanced)
- Digital I/O: RJ45 x 2 (Dante PRIMARY/SECONDARY)
- Speaker Output: Barrier strip x 8 pairs
- Remote, Fault Output: Euroblock (3P) x 1
- Network: Shared with Dante ports
- Protection Circuit
- Load Protection: POWER switch on/off: Output mute, DC-fault: Power supply shuts down, Clip limiting
- Amplifier Protection:
- Thermal: Output mute (heatsink temp ≥90°C) (Restored automatically)
- Overcurrent: Output mute (Restored automatically)
- Low load impedance: Output mute (Restored automatically)
- Power Supply Protection:
- Thermal: Amplifier shuts down automatically (heatsink temp ≥100°C)
- Integrated power: Gain reduction (restored automatically)
- Cooling3-Speed fan x 2, front-to-back airflow
- Power Requirements100V, 120V, 230V-240V; 50Hz/60Hz
- Power Consumption
- 1/8 Power (4 Ohm Pink Noise): 450W
- Idle (4 Ohm): 73W
- Standby: 23W
- Dimensions (WxHxD)18.9x3.5x16.6" (480x88x422 mm)
- Net Weight22.3 lbs (10.1 kg)
