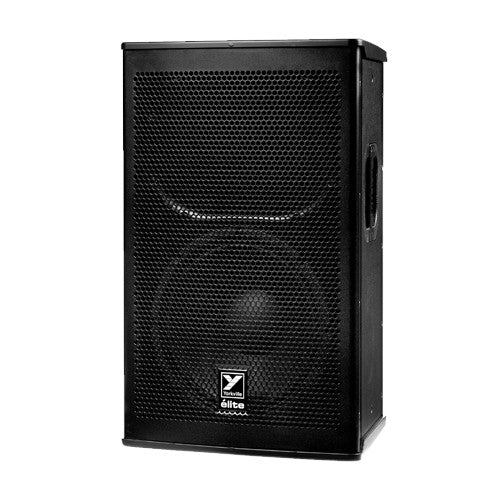

Yorkville EF12P 12-Inch 1200W Powered Speaker
Yorkville EF12P 12-Inch 1200W Powered Speaker
SoundPro Item: 129310 | Part Number: EF12P
Usually ships in 5-7 business days
- High Output, High Quality and extremely durable Dedicated Front of House box
- Completely Redesigned Next Generation Elite Cabinet
- ABS Coated Birch Plywood Cabinet Construction
- Multiband DSP Limiting with 4 Preset Playback Performance Modes
- 3-inch Titanium Diaphragm Compression Driver for Reduced Distortion at High SPL
- 12-inch Neodymium Woofer with 3-inch Voice coil
- iOS and Android App for Added Cabinet Control (Coming Soon)
- Made in Canada
The EF12P from Yorkville is a 12-Inch 1200W Powered Speaker. In the 1980's, Yorkville Sound changed the face of high-powered portable speakers with the launch of the élite series. Indestructible wood cabinets with high output drivers offered PA professionals & weekend warriors alike a new level of high SPL speakers in portable packages. 30 years later, and we are changing the rules again.
- System Type</span<>span> 2-Way
- Active or Passive</span<>span> Active
- Power Rating (Watts) </span<>span>1200 Watts (2400 Watts Peak)
- Max SPL (dB) </span<>span>131dB Peak (125dB Continuous)
- Frequency Response (Hz +/- 3dB) </span<>span>47 - 16k (Hz +/- 3dB)
- Crossover Frequency (Hz) </span<>span>1100
- Driver Configuration</span<>span> 12-inch, 3-inch Diaphragm
- HF Driver(s)</span<>span>3-inch Voice coil (Titanium Diaphragm)
- HF Dispersion (°H x °V) </span<>span>60x40
- LF Driver(s) </span<>span>12-inch Neo magnet w/3-inch Voice coil
- HF Power Amplifier (Watts)</span<>span> 300
- HF Amplifier Type </span<>span>3-Tier High Headroom
- LF Power Amplifier (Watts)</span<>span> 900
- LF Amplifier Type</span<>span> Class-D
- Power Cable </span<>span>25 ft (7.6m) Heavy Gauge Detachable IEC
- Current Draw</span<>span> 2A Typical, 3.2A Max

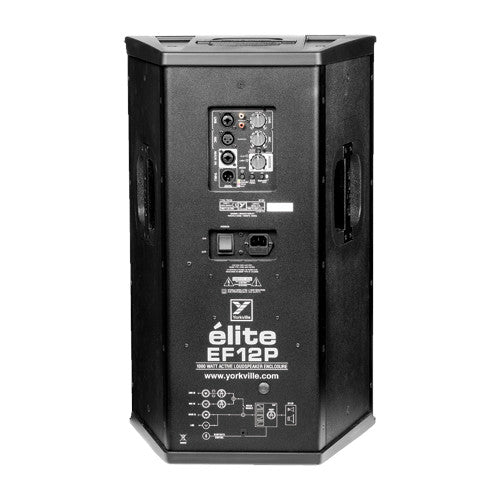

- In / Out Connections
- 1 x XLR & 1/4-inch Combi-jack, RCA Line Inputs
- 1 x XLR microphone Input
- 1 x XLR & 1/4-inch Combi-jack Main Input
- 1 x XLR-M Thruput
- Input Impedance (Bal/UnBal)</span<>span> 95KOhms / 90kOhms
- Input Sensitivity (Vrms Sine) </span<>span>+4dBv / 1.23V

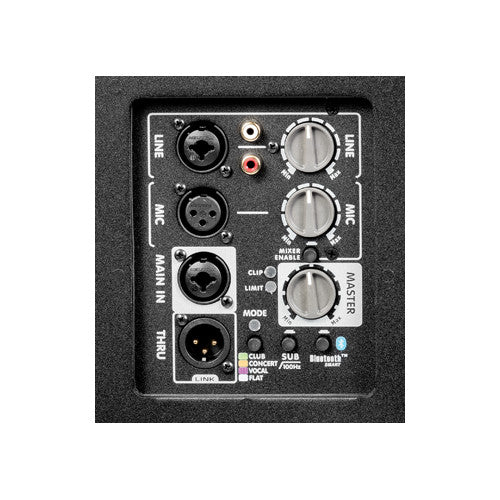

- Controls
- Mixer Enable
- Mic Input w/level
- Line Input w/level
- DSP Mode (Club, Concert, Vocal, Custom)
- Sub (100Hz HP Filter)
- Bluetooth Control Enable
- Master Level

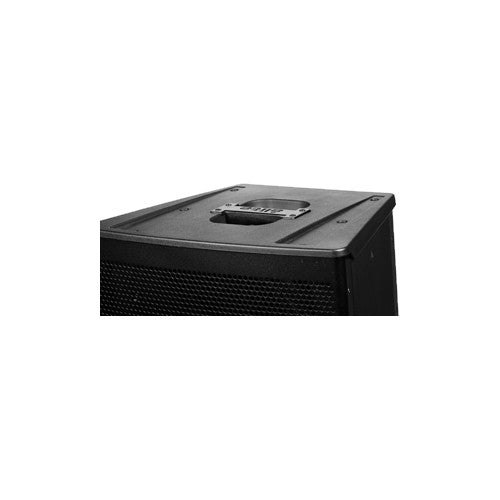

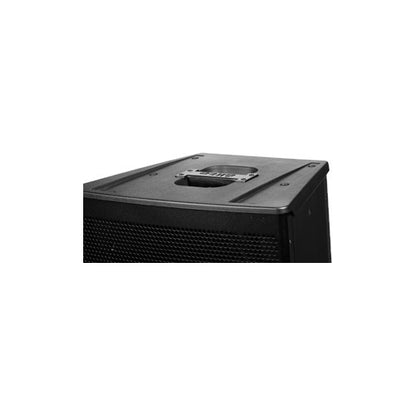

- Bar Handles</span<>span> 2 x Side / 1 x Top
- Flypoints</span<>span> 8 x ¼-20 (2 Top, 2 Bottom, 2 Each Side, 2 Pullback)
- Pole Mount Adapter (1 3/8"-3.5cm)</span<>span> 1 Bottom (1 3/8-inch / 3.5cm)
- Enclosure Materials</span<>span> ABS Coated Baltic Birch Plywood
- Dimensions (DWH xbackW, inches)</span<>span> 14.5 x 18.6 x 28.2 x 11.1
- Dimensions (DWH xbackW, cm) </span<>span>36.8 x 47.25 x 71.6 x 28.2
- Weight (lbs/kg)</span<>span>59 / 26.8
