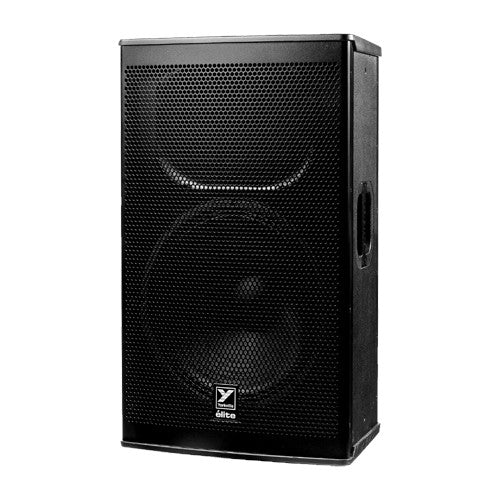

Yorkville EF15 15-Inch Passive Speaker

Yorkville EF15 15-Inch Passive Speaker

SoundPro Item: 129313 | Part Number: EF15

$1,389.00
$1,799.00 $1,389.00
Your Price Sold out
MSRP: $1,799.00 | MAP: $1,389.00

Usually ships in 5-7 business days

  • 15-inch Two-way Passive Loudspeaker
  • 1700 Watts (1400 Watts Peak / 450 Watts Continuous)
  • 1128.5dB Peak (125.5dB Continuous) Max SPL
  • 155 - 18k (Hz +/- 3dB)
  • 1Made In Canada
Log in or register for YOUR best price

The Yorkville EF15 is a 15-Inch Passive Speaker. Building on the market success and positive user reaction to the Elite powered cabinets, Yorkville Sound introduces three new elite passive speakers. Now available in 10, 12 and 15-inch configurations, the passive elites' provide the perfect solution for installations and venues with existing power amps.

View full details

Specifications

Dimensions
Dimensions (DWH Xbackw, inches)
14 x 18.5 x 30 x 12
Dimensions (DWH Xbackw, cm)
35.5 x 47 x 76 x 30.5
Weight
Weight (lbs/kg)
61 / 27.8
Electrical
Nominal Impedance (Ohms)
8
Audio
Sensitivity (dB @1Watt/1m)
97
Max SPL (dB)
128.5dB Peak (125.5dB Continuous)
Frequency Response (Hz +/- 3dB)
55 - 18k

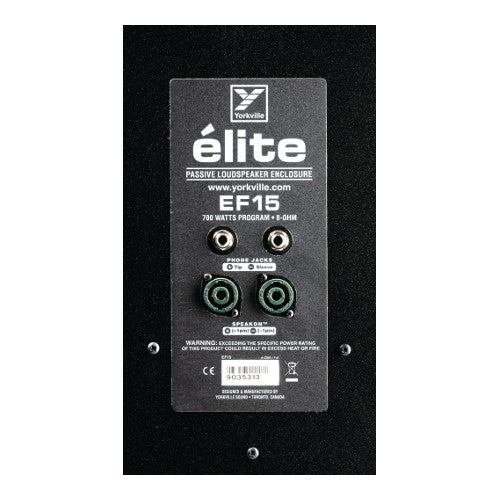

Connectivity
Inputs - 1/4" Jacks
2
Inputs - Speakon 4-pin
2
Construction
Pole Mount Adapter (1 3/8"-3.5cm)
Yes
Enclosure Materials
15mm (5/8inch) 11-ply Russian Birch
Grille
Perforated Metal
Covering / Finish
Black Ultrathane Paint
General
System Type
Two Way
Active Or Passive
Passive
Power Rating (Watts)
700 Watts (1400 Watts Peak / 450 Watts Continuous)
Biampable
No
Crossover Frequency (Hz)
1900
Driver Configuration
15-inch, 3-inch Diaphragm
HF Driver(s)
3-inch Voicecoil (Titanium Diaphragm)
HF Horn
ABS plastic custom Waveguide
HF Dispersion (°H X °V)
60x40
HF Protection
3xSK3 protection bulbs
LF Driver(s)
15-inch (3-inch voicecoil)
Bar Handles
2
Flypoints
8 x ¼-20 (2 Top, 2 Bottom, 2 Each Side, 2 Pullback)
