- System TypeRear Horn Loaded Subwoofer
- Active or Passive Active
- Power Rating (Watts) 1200 Watts (2400 Watts Peak)
- Max SPL (dB) 132dB Peak (126dB Continuous)
- Frequency Response (Hz +/- 3dB) 48Hz - 150Hz
- LF Driver(s) 12-inch Cast Frame Woofer w/4-inch Voicecoil, +/-15mm max travel
- LF Protection Thermal / Overcurrent (X-max) / Clip
- Power Consumption (typ/max) 120V (4.0A / 5.6), 230V (2.0A / 2.8)

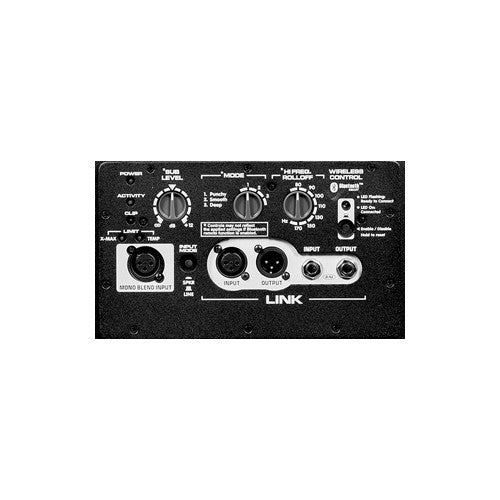

- Inputs - 1/4" Jacks 2 Link Input & Link Output
- Inputs - XLR 1 Mono blend line input, 2 Link Input & Link Output
- Level Controls Master - Sub Level
- Other Controls / Features
- Active Controls: Mode - 1 Punchy, 2 Smooth, 3 Deep
- High Frequency Rolloff - 10Hz Steps from 80Hz to 150 Hz
- Indicators - Power, Activity, Protection (Clip, X-Max, Temp) & Bluetooth
- Feet Rubber
- Wheels None
- Bar Handles 1 (Left Side), 1 (Right Side)
- Pole Mount Adapter (1 3/8"-3.5cm) 1 (Top)
- Enclosure Materials 15mm (5/8inch) 11-ply Russian Birch
- Grille Perforated Metal
- Covering / Finish Black Ultrathane Paint (LS801PB)
- Dimensions (DWH xbackW, inches) 17 x 17x 27
- Dimensions (DWH xbackW, cm) 43 x 43 x 68.6
- Weight (lbs/kg) 85 / 38.5
