Available in black (PSA2S), white (PSA2SW), or in a black flyable version (PSA2SF).

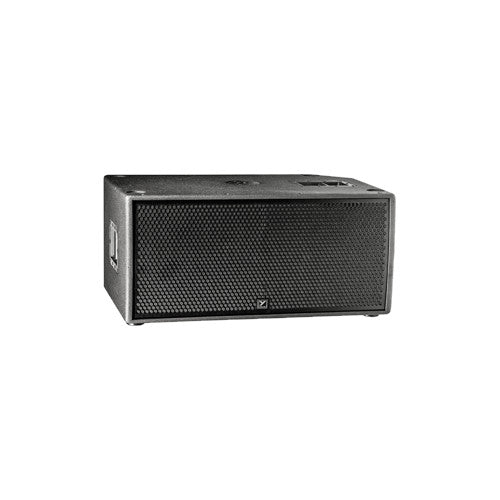

The 4800-watt (peak - 2400 watt program) dual 15-inch active PSA2S bass reflex subwoofer is the ideal companion sub for the PSA1 full range loudspeaker system. Solid 15mm birch plywood cabinet construction and an integrated all-metal pole-mount adaptor make the PSA2S the perfect platform for stacking PSA1 cabinets in a scalable array system.

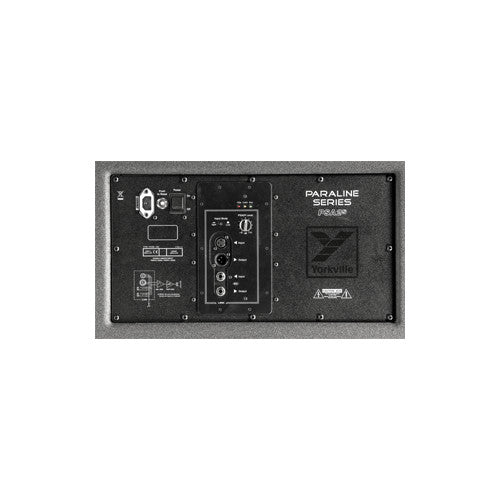

Efficient Class-D power amplifier design provides unmatched long-term reliability in the field. Cable of direct connection to any audio source (including speaker level input) the PSA2S can be easily integrated in to virtually any PA application, making it one of the most versatile active subwoofer solutions Yorkville Sound currently offers.
The PSA2S Subwoofer uses Yorkville Sound's new Heavy Duty Precision Stand Adaptor. In order to minimize top cabinet sway and provide an improved standmount platform for multiple PSA1 cabinets, the PSA2S subwoofer standmount adaptor uses an extremely thick walled cast aluminum stand receiver with a wider mounting plate than has been used on Yorkville subwoofers in the past.
Precision machining after casting allows the highest tolerances possible, this new improved stand adaptor provides a more stable, highly secure pole mount system for mobile Paraline systems when used in combination with the Yorkville SW-TUBEHD Heavy Duty all steel subwoofer tube.
LF Driver(s) 2x15-inch Ceramic with 3-inch Voice Coil
LF Impedance (Ohms) 2x8 Ohm Load
LF Power Amplifier (Watts) Class D 2400 Watts
Flyable Version PSA2SF (EYEBOLT3/8A x 4 Required)
Enclosure Materials 15mm Birch
Baffle Material 15mm Birch
Covering / Finish Black Ultrathane Paint
Dimensions (DWH xbackW, inches) 23.75 x18 x 38
Dimensions (DWH xbackW, cm) 60.3x45.7x96.5
Weight (lbs/kg) 156 / 70.76
