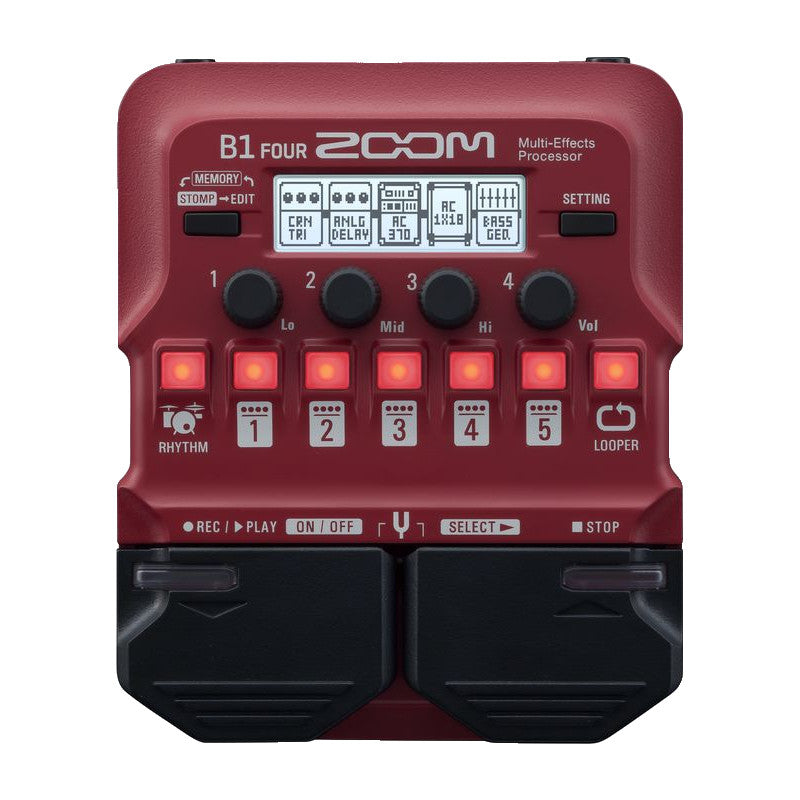

Zoom B1 Four Guitar MultiEffects Processor

Zoom B1 Four Guitar MultiEffects Processor

SoundPro Item: 58559 | Part Number: ZB1FOUR

$99.99
$99.99 $99.99
Your Price Sold out
MSRP: $99.99 | MAP: $99.99

Usually ships in 5-7 business days

  • Over 60 built-in effects
  • 9 amp models for simulating classic rigs
  • Up to 5 effects can be used simultaneously, chained together in any order
  • Looper for recording up to 30 seconds / 64 beats of CD-quality audio
  • ZOOM Guitar Lab software for creating, editing and managing effects and patches
  • 68 built-in rhythm patterns which can be used in conjunction with the Looper
  • 50 memory locations for storing user-created patches
  • Auto Save function for automatic saving of all patch parameters
  • PRESELECT function allows silent patch selection while the current patch remains operational
  • Onboard chromatic tuner
  • Input jack accepts standard mono bass guitar cable (both active and passive instruments supported)
  • Auxiliary input jack for connection of personal music players
  • Output jack for connection to amp or headphones
  • Lightweight and small enough to fit in your gig bag
  • Easily integrated into any existing pedal board
  • Runs on 4 AA batteries, with alkaline battery life of 18 hours; you can also use an optional Zoom AD-16 AC adapter (not included) or run your pedal via USB bus power
  • USB port for firmware updates, power and connection to ZOOM Guitar Lab
Log in or register for YOUR best price

The Zoom B1 FOUR takes your low-end to new heights with over 70 effects and amp models, looper and a built-in rhythm section. Plus, access ZOOM Guitar Lab’s additional library of downloadable effects that offers an endless world of patches, effects and more. Pick your pedal up off the floor for desktop use and easily dial in tones and settings to the exact levels you need.

View full details

Specifications

Dimensions
Dimensions: Height
156 mm (D) × 130 mm (W) × 42 mm (H) | Weight: 340 g (excluding batteries)
Electrical
Input Impedance (line)
470 kΩ
Audio
Output
Standard stereo phone jack (combined line/headphone), Headphones 17 mW + 17 mW (32Ω load)
Maximum Output Level
Line +2 dBu (10 kΩ or more output impedance)
Connectivity
Input
Standard mono phone jack |
Rated Input Level
-20 dB |
Connector
USB2.0 Micro-B Guitar Lab | Standard: USB 1.1 Full Speed
Supported Cable
USB2.0 Micro-B cable | Use cables for data transfer. | Power can also be supplied through the USB port. | When using a cable designed only for power, other USB functions cannot be used.
Input S/N
120 dB
General
Maximum Number of Simultaneous Effects
5
User Patches
50
Sampling Frequency
44.1 kHz
A/D Conversion
24-bit, 128× oversampling
D/A Conversion
24-bit, 128× oversampling
Signal Processing
32−bit
Aux in
Stereo mini jack |
Noise Floor (Residual Noise)
-97 dBu
Guitar Lab | Standard
USB 1.1 Full Speed
Indicators
Display
128x32 dot matrix LCD
Power
Power
AC adapter: 9V DC 500mA center negative (ZOOM AD-16) | 4 AA batteries (about 18 hours continuous operation time when using alkaline batteries with the LCD backlight off)
