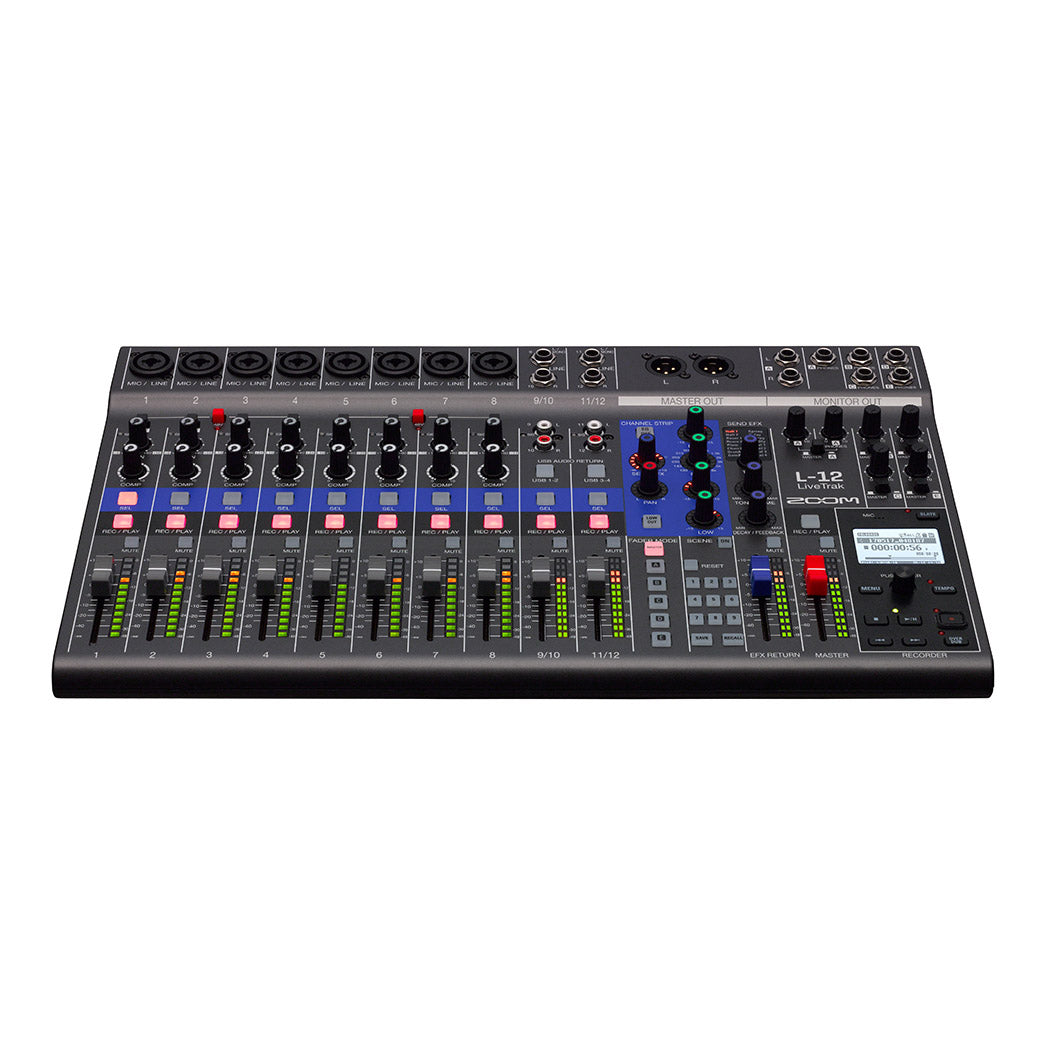

Zoom LiveTrak L-12 Digital Mixer

Zoom LiveTrak L-12 Digital Mixer

SoundPro Item: 52584 | Part Number: ZL12

$549.99
$549.99 $549.99
Your Price Sold out
MSRP: $549.99 | MAP: $549.99

Usually ships in 5-7 business days

  • 12 discrete channels (8 mono plus 2 stereo) with XLR or ¼-inch connectivity
  • 14-track simultaneous recording, 12-track playback
  • 14-in/4-out USB audio interface connectivity
  • 5 powered headphone outputs, each with a customizable and saveable mix
  • Add backing/click tracks from your computer to your live mix and recording
  • RCA and TRS line inputs
  • 48V phantom power (channels 1-4 and 5-8)
  • Hi-Z connectivity (channels 1 and 2)
  • 26 dB pad (channels 3-8)
  • Built-in compression control (Channels 1-8)
  • Digital level meters -48 dB to -0 dB
  • Master mute button
  • Low-cut control
  • Stereo panning
  • Master and Monitor Outputs A-E
  • Scene saving function, up to 9 scenes saved at a time
  • 16 built-in delay and reverb effects with adjustable parameters
  • Built-in slate mic
  • Class-compliant mode (for iOS compatibility)
  • SD card input
  • Built-in metronome
  • Automatic recording starting/stopping capability
  • Project protection
  • Import/export projects with USB 2.0 host port
  • Latency adjustment for A-to-D conversion
  • Compatible functions for ZOOM FS01 footswitch
Log in or register for YOUR best price

With the Zoom LiveTrak L-12 Digital Mixer, you can finally mix, record, and monitor with a single piece of gear. It's the only digital console that lets you mix your live performance and record up to 12 discrete channels - all while providing five individual custom headphone mixes.

LiveTrak's 12 discrete channels (eight mono plus two stereo) have a 3-band mid-parametric EQ and 16 built-in send effects. Its eight mono channels also have a dedicated compressor. With all these controls plus its 12-segment LED metering, the L-12 offers just what you need for intuitive mixing.

View full details
  • Number of Input Channels
    • Mono (Mic/Line): 8
    • Stereo (Line): 2
  • Number of Output Channels
    • Master Out: 1
    • Monitor Out: 5
  • Inputs
    • Mono (Mic/Line)
      • Type: XLR/TRS combo jacks (XLR: 2 HOT, TRS: TIP HOT))
      • Input Gain: PAD OFF: +16 – +60 dB PAD ON: −10 – +34 dB Hi-Z ON: +6 – +50 dB
      • Input Impedance: XLR: 3 kΩ TRS: 10 kΩ/1 MΩ (when Hi-Z ON)
      • Max. Input Level: PAD OFF: 0 dBu (at 0 dBFS) PAD ON: +26 dBu (at 0 dBFS)
      • Phantom Power: +48V
    • Stereo (Line)
      • Type TRS phone/RCA pin (unbalanced) jacks
      • Max. input level +16 dBu
  • Outputs
    • Master Out
      • Type XLR jacks (balanced)
      • Max. output level +14.5 dBu
      • Output impedance 100 Ω
    • Monitor Out (A - TRS)
      • Type TRS phone jacks (balanced)
      • Max. output level +14.5 dBu
      • Output impedance 100 Ω
    • Monitor Out A-E (Phones)
      • Type standard stereo phone jacks
      • Max. output level 42 mW + 42 mW at 60 Ω
      • Output impedance 100 Ω
  • Buses
    • Master: 1
    • Monitor: 5
    • Send EFX: 1
  • Channel Strip
    • Comp
      • Low Cut: 75Hz, 12 dB/OCT
      • EQ: HIGH: 10 kHz, ±15 dB, shelving MID: 100 Hz–8 kHz, ±15 dB, peaking LOW: 100 Hz, ±15 dB, shelving
    • Level Meters: 12 segments
    • Send Effects: 16 types
  • Recorder
    • Max. Simultaneous Recording Tracks: 14 at 44.1/48 kHz 12 at 96 kHz
    • Max. Simultaneous Playback Tracks: 12
    • Recording Format: WAV 44.1/48/96 kHz, 16/24-bit, mono/stereo WAV format
    • Recording Media: 16MB–2GB SD cards, 4GB–32GB SDHC cards, 64GB– 512GB SDXC cards
  • Audio Interface
    • 44.1/48kHz
      • Recording: 14 channels
      • Playback: 4 channels
    • Bit Depth: 24-bit
    • Interface: USB 2.0
  • Card Reader Classmass storage USB 2.0 High Speed
  • USB Host ClassUSB 2.0 High Speed
  • Sampling Rate44.1/48/96 kHz
  • Frequency Characteristics
    • 44.1kHz -1dB: 20Hz - 20kHz
    • 96kHz -3dB: 20Hz - 40kHz
  • EIN (actual measurements)128dB EIN (IHF-A) with +60dB/150Ω input
  • DisplayLCD with backlight (128x64 resolution)
  • Power SupplyAC adapter DC12V/2A (included Zoom AD-19)
  • Dimensions (WxDxH)17.52" x 11.1" x 2.78"
  • Weight5.58 pounds
