The EXTC Stereo allows you to connect guitar effects pedals to the inputs and outputs of pro audio equipment such as recording interfaces and mixing consoles, so you can incorporate stereo pedals into your recordings and explore new creative possibilities.
The EXTC-Stereo gives you the ability to connect stereo effects pedals such as reverbs and delays to the line-level inputs and outputs of your console or recording interface. Use it to send drum overheads to a multi-tap delay, or breathe new life into a stale keyboard patch with a flanger or chorus pedal. Try it on vocals, strings, or any prerecorded track to add a new creative element to your mixes and revitalize your old pedal collection.
Radial EXTC-Stereo Features
- Connect stereo guitar pedals to balanced recording gear
- Front panel 1/4" inputs and outputs for pedals
- Send & Receive controls to optimize gain staging
- Utilize your pedal collection in new & unique ways
- EXTC-Stereo Guitar Effects Interface & Reamper1
- Three Year Warranty1
- Audio circuit type Proprietary Active Circuit with Class-A buffers
- Number of channels 2
- Frequency response 20Hz to 20kHz (-0.5dB/+0.5dB)
- Dynamic range >+130dBu
- Total harmonic distortion 0.007% @ 0dBu, 1kHz
- Intermodulation Distortion 0.002% @ 0dBu, 1kHz
- Common Mode Rejection Ratio 34dBu @ 60Hz, 42dBu @ 3kHz
- Noise Floor -105dBu
- Maximum Input +11dBu
- Features

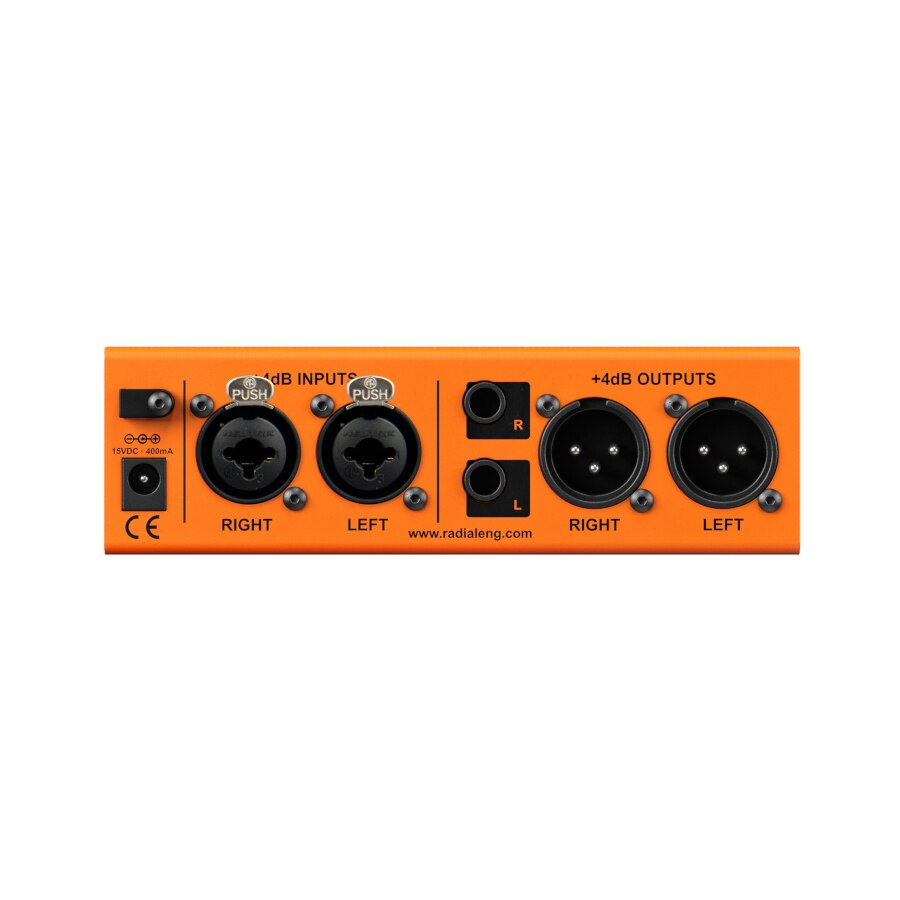

- Input Connectors: 1/4” TRS/XLR Combo Jacks, 1/4” TS Insert Recv
- Output Connectors: 1/4” TRS, XLR, 1/4” TS Insert Send
- Extras: SA series rack mount available
- Construction 14-gauge Steel Chassis
- Finish Durable Powder Coat
- Power 15VDC 400mA
- Conditions For use in dry locations only between 5°C and 40°C
