Radial LX2 Line-Level Splitter & Attenuator

The LX-2™ is a passive balanced line-level audio splitter that allows you to easily send an audio signal to two different destinations at once without noise, while also providing the ability to attenuate the signal when needed.

The LX-2 performs the dual functions of splitting a line level audio signal and providing level attenuation where necessary. A premium Jensen transformer inside provides exceptional frequency response and phase coherency to ensure that the highest audio quality is maintained, while isolating the two outputs from each other to eliminate hum and buzz from ground loops. For situations where a level adjustment is required, the trim control on the LX-2 allows you to attenuate overly hot signals. This gives you the ability to drive your mic preamps hard to achieve coloration, while trimming the level at the LX-2 to avoid clipping the inputs of your recording interface. This trim control is activated by a recessed ‘set & forget’ switch; if attenuation is not needed, simply disengage this switch to prevent accidental and unwanted level adjustments.

Radial LX2 Features

• Split one audio signal to two destinations simultaneously
• Jensen® transformer equipped for exceptional audio quality
• Eliminates hum and buzz caused by ground loops
• Variable trim control can be engaged for easy level adjustment

• LX2 Line-Level Splitter & Attenuator1
• Three Year Warranty (transferable)1

• Audio circuit type Passive, transformer based
• Transformer Jensen JT-11-FLPCH
• Number of channels 1 input, 1 iso output, 1 direct output
• Frequency response 20Hz - 20kHz +/-0.5dB
• Dynamic range 140dB
• Gain -1.5dBu
• Total harmonic distortion <0.001% @ 1kHz
• Phase Deviation +0.3° @ 20Hz
• Input Impedance 716Ω
• Output Impedance 116Ω
• Common Mode Rejection Ratio 94dB @ 60Hz, 83dB @3kHz
• Noise Floor -119dBu
• Maximum Input +21dBu
• Features
  • Ground lift, Level Control

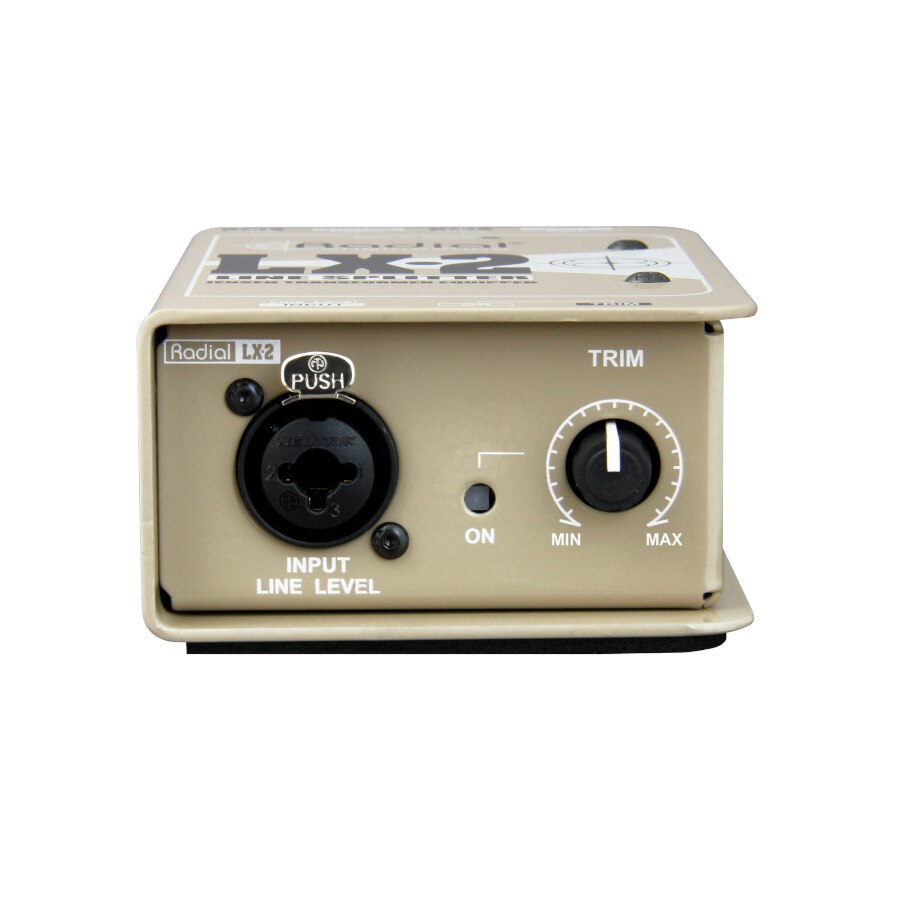

  • Input Connectors: Combo XLR / 1/4"
  • Output Connectors: isolated XLR, direct XLR
• Construction 14-gauge steel
• Size (LxWxD) 84x127x48mm (3.3x5x2")
• Weight 0.7kg (1.5lbs)
• Shipping size (LxWxD) 102x76x165mm (4x3x6.5")
• Shipping weight 0.87 kg (1.92 lbs)
• Power Passive, no power required
• Conditions For use in dry locations only between 5°C and 40°C
