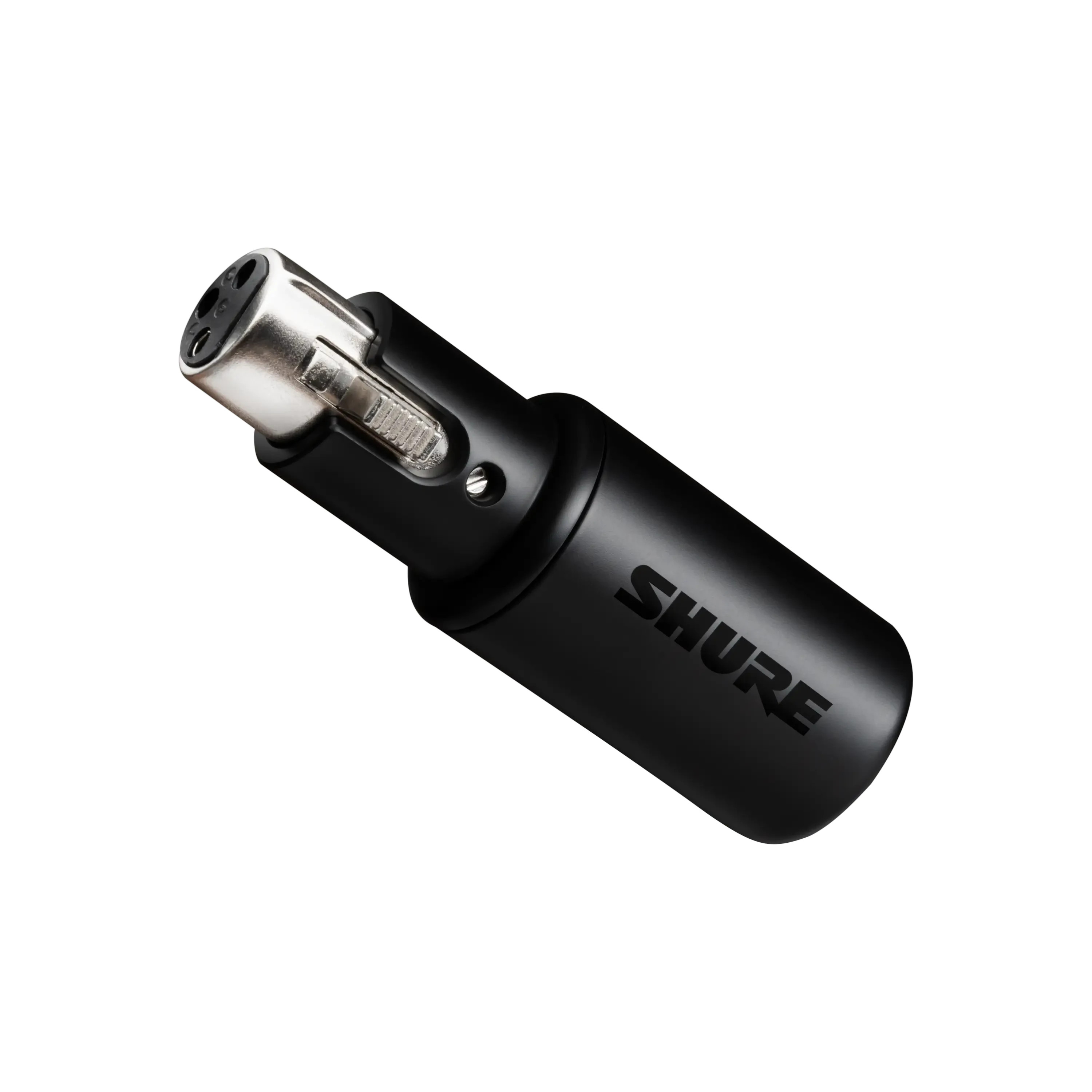

Shure MVX2U Digital Audio Interface

MVX2U is a powerful single-channel Digital Audio Interface that enables you to record or stream directly to a computer with your XLR microphone of choice. Upgrade your sound with configurable DSP features via the free ShurePlus MOTIV App. Providing up to 60dB of gain, the MVX2U has enough power to bring your SM7B to life and achieve that crisp, warm broadcast tone. The XLR to USB interface comes with Auto Level Mode and phantom power turned on by default, making it out-of-the-box optimized for consistent recording or livestreaming with any dynamic or condenser XLR microphone.

Shure MVX2U Features

• XLR to USB adapter for recording and streaming directly to a computer with an XLR microphone
• Intelligent DSP with Auto Level mode that automatically adjusts mic gain for consistent audio output
• Access to the full features of ShurePlus MOTIV Desktop App, including a customizable sound signature with both Auto Level Mode or Manual Mode, as well as updatable firmware
• Configurable DSP features via Manual Mode: Adjust gain, Limiter, Compressor, EQ, or use your saved presets
• Supplies phantom power up to 48v for condenser mics
• Up to +60dB gain to amplify signals for microphones such as the SM7B
• Built-in 3.5mm headphone jack for zero-latency monitoring and playback
• Sleek and portable rugged build for plugging into an XLR microphone, or use in-line with XLR cables
• Compatible with both Mac and Windows USB connectivity, with a USB-C to USB-C cable included in the box

• MVX2U Digital Audio Interface1
• 1m USB-C to USB-C Cable1

• InputXLR
• Input Impedance5.8kΩ
• Bit Depth16-bit/24-bit
• Sampling Rate48kHz
• Frequency Response20Hz to 20,000Hz
• Adjustable Gain Range0 to +60dB
• Maximum Input Level7dBV
• Power RequirementsPowered through USB-C
• Phantom Power+48VDC
• Digital Noise Floor (20 Hz to 20 kHz, A-weighted)-117dBFS
• LED Indicator (Tricolor)Green = Ready
  Amber = Error
  Red = Mute
• HousingAll Metal
• Net Weight100 g (3.5 Oz.)
• Dimension44x140x158mm HxWxD
• Headphone Output3.5 mm (1/8 inch) 20 mW @ 32Ω
• Cable1M USB-C to USB-C cable

More about Shure's MOTIV Series

From microphones to video kits, this series of portable digital solutions from Shure is specifically designed for integration with ShurePlus™ MOTIV™ apps. Effective in both field and studio, ideal uses range from voiceovers to vlogs, personal interviews to podcasts, and music festival recordings to video conferencing. Designed for versatility and portability, whatever your application, every component of MOTIV-compatible gear ensures you can find whatever tools you need to get exceptional performance.

More about Shure’s MOTIV App

The free ShurePlus MOTIV™ audio app effortlessly opens up tons of additional onscreen controls and exclusive features. Fast and simple to use, the MOTIV delivers the ability to record studio-caliber audio no matter where the opportunity—or inspiration—strikes. Personalize your mic gain, monitor mix, EQ, limiter, compressor, and more. Trim and share in multiple formats with a few quick taps.
