Shure SLXD14/153T Wireless Headworn Microphone System

SoundPro Item: 46560

MPN: SLXD14/153T-G58

Description
Specifications
Documentation
Questions & Answers

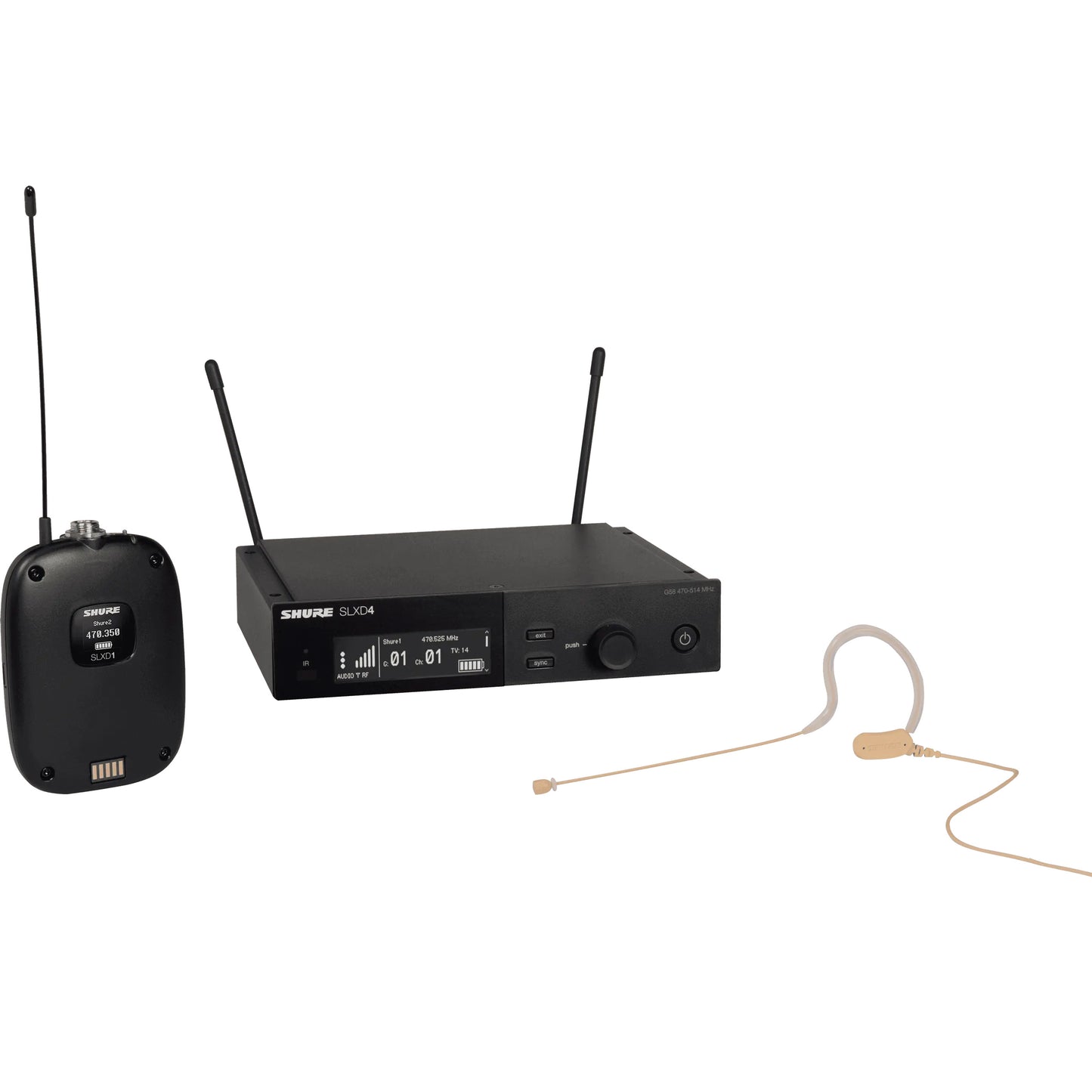

The Shure SLXD14/153T Wireless Headworn Microphone System includes an SLXD4 dual-channel receiver, an SLXD1 bodypack transmitter, and accessories.

Your performance should never be in question. Whether presenting, educating, praising or entertaining, your relationship with your audience is singular. With SLX-D Digital Wireless you can stand confidently on a strong foundation and build the wireless installation to match ongoing demands, from day-long conference to nighttime performances.

Shure SLXD14/153T Features

Extended 20 Hz to 20 kHz frequency range (microphone dependent)
120 dB dynamic range
Digital predictive switching diversity
44 MHz tuning bandwidth (region dependent)
32 available channels per frequency band (region dependent)
Up to 10 compatible systems per 6MHz TV band; 12 systems per 8 MHz band
Easy pairing of transmitters and receivers over IR scan and sync
Up to 8 hours from 2 AA batteries or optional Shure SB903 rechargeable battery

SLXD4 dual-channel receiver1
SLXD1 bodypack transmitter1
MX153T Omnidirectional Earset Headworn Microphone1
Protective pouch1
Windscreens3
Collar clip1
Antenna1
Set of rackmount accessories1
AA batteries2

System
- RF Carrier Frequency Range: 470–937.5 MHz, varies by region (See Frequency Range and Output Power table)
- Working Range: 100 m ( 328 ft)
- RF Tuning Step Size: 25 kHz, varies by region
- Image Rejection: >70 dB, typical
- RF Sensitivity: −97 dBm (at 10 BER)
Audio
- Latency: 3.2 ms
- Audio Frequency Response: 20 Hz– 20 kHz (+1, 2 dB)
- Audio Dynamic Range: 118 dB (at 1% THD, A-weighted, typical
- Total Harmonic Distortion: <0.02%
- System Audio Polarity: Positive pressure on microphone diaphragm produces positive voltage on pin 2 (with respect to pin 3 of XLR output) and the tip of the 6.35 mm (with respect to the ring of the 6.35 mm output) output.
- Mic Offset Range: 0 to 21 dB (in 3 dB steps)
Temperature Range
- Operating Temperature Range: -18°C (0°F) to 50°C (122°F)
- Storage Temperature Range: -29°C (-20°F) to 74°C (165°F)
SLXD1
- Battery Type: Rechargeable Li-Ion or 1.5V AA batteries
- Dimensions (HxWxD): 3.86x2.68x1" (98x68x25.5mm)
- Weight: 89 g
- Housing: PC/ABS
- Audio Input
- RF Output
SLXD4
- Dimensions (HxWxD): 42x197x152mm (1.65x7.76x5.98")
- Weight: 816g, without antennas
- Housing: Galvanized Steel
- Power Requirements: 15V DC @ 600 mA, supplied by external power supply (tip positive)
- RF Input
  - 1/4" (6.35 mm): Yes
  - XLR: Yes
- Audio Output
  - 1/4" (6.35 mm): Balanced (Tip = audio +, Ring = audio -, Sleeve = ground )
  - XLR: Balanced (1=ground, 2=audio +, 3=audio −)
  - 1/4" (6.35 mm): 1.3 kΩ (670 ΩUnbalanced)
  - XLR (line): 400 Ω (200 ΩUnbalanced)
  - XLR (mic): 150 Ω
  - 1/4" (6.35 mm): +15 dBV differentially (+9 dBV single)
  - XLR: LINE setting= +15 dBV, MIC setting= 15 dBV
- Mic/Line Switch: 30 dB pad
- Networking

SLXD1 Digital Wireless Bodypack Transmitter

Be confident with your sound, whether you’re presenting in a lecture hall or performing live on-stage. Featuring industry-leading digital wireless technology and design, the SLXD1 Digital Wireless Bodypack Transmitter from Shure easily syncs with a wireless receiver. Choose from an instrument cable or lavalier, headworn, or instrument microphone to complete your setup.

MX153T Earset Headworn Microphone

The MX153 is an earset mic with an omnidirectional pickup pattern for achieving pristine speech clarity. It features enhanced plosive protection with no proximity effect, as well as improved gain before feedback. Its integrated CommShield® Technology stops RF interference from cellular devices and digital bodypack transmitters. Other features include direct TA4F connectivity to Shure bodypacks.

SLXD4 Digital Wireless Receiver

Experience the freedom of wireless performance with the SLXD4 Digital Wireless Receiver from Shure. From lecture-hall presentations to worship services to musical concerts, the SLXD4 is the perfect choice for confident, reliable wireless audio, syncing easily to your choice of wireless transmitters. This receiver boasts a rugged, all-metal construction that makes it a durable choice for day-long presentations or all-night performances. Its half-rack size makes it easy to integrate into any preexisting sound setup.

More about the SLXD Series from Shure

Achieve clear, reliable wireless audio with the SLX Digital series from Shure. This install-friendly line of wireless audio gear is ideal for a wide range of applications, from lecture halls to houses of worship to performance venues of all shapes and sizes. Boasting compatibility with Shure’s UHF wireless antenna distribution and remote antenna accessories, as well as offering a wide selection of single half-rack and dual full-rack receiver options, handheld and bodypack transmitters, and your choice of vocal, lavalier, headset, and instrument microphone system configuration—SLXD offers the versatility and functionality you need, no matter what your project.

SLXD maintains stable signals with high efficiency, letting you achieve transparent, 24-bit digital audio and rock-solid, reliable RF performance. This series delivers crystal-clear digital audio quality with >120 dB dynamic range. Enjoy up to 8 hours of continuous operation using two AA batteries (included) or the optional Shure SB903 Li-ion rechargeable batteries and charging accessories (sold separately). The rack hardware necessary for permanent installation in your setup is also included.

With RF scan and IR sync or the receivers’ integrated frequency setup tool, this wireless system is easy to get started at the push of a button. You can link multiple systems locally via Ethernet to manage setup, group frequency scans, and firmware updates. SLXD also is compatible with Wireless Workbench® software and the ShurePlus™ Channels mobile app, giving you the tool for critical oversight and real-time production control.
