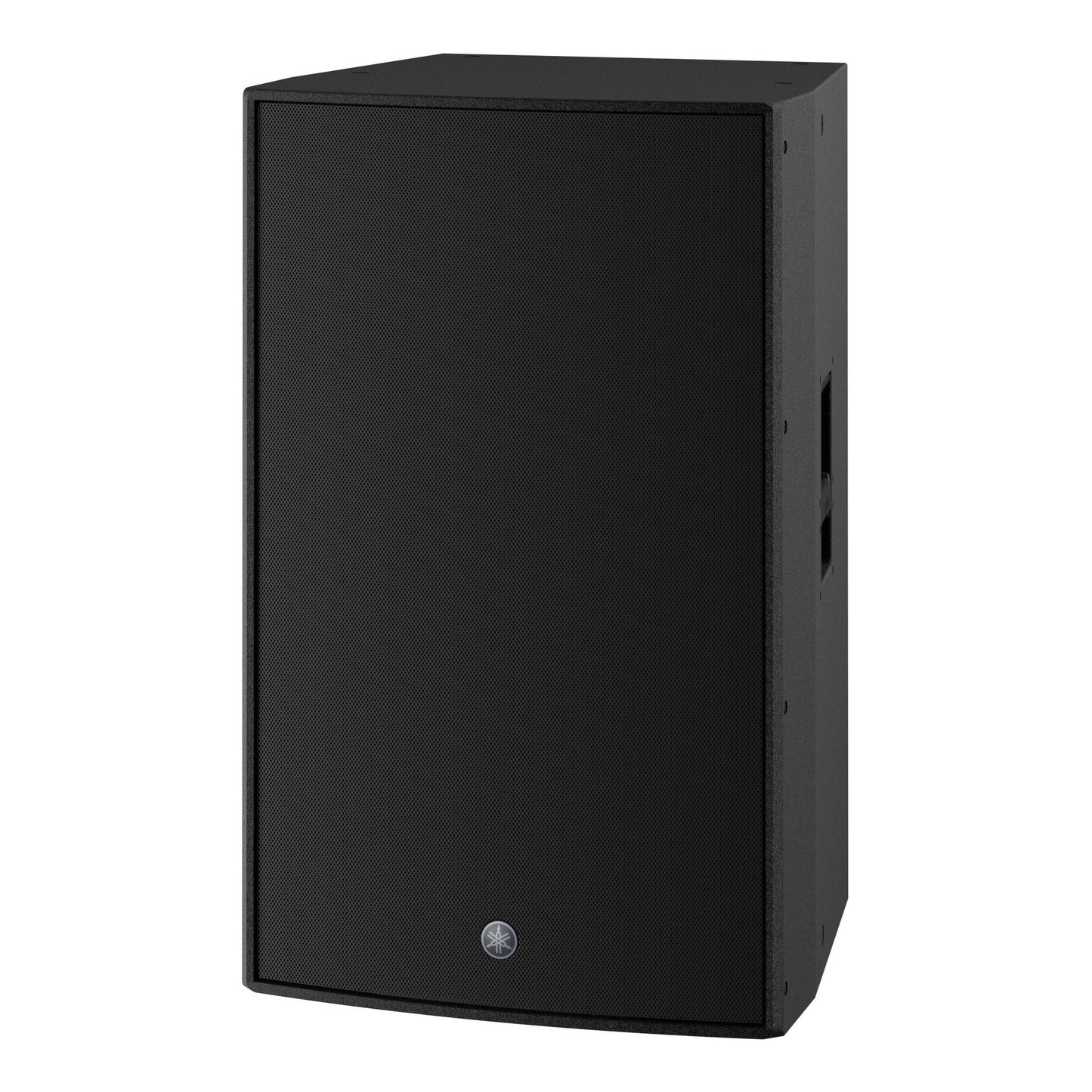

Yamaha DZR315-D 15-Inch 3-Way Powered Speaker with Dante

The most powerful model in Yamaha’s DZR Series the DZR315-D is a 15”, 3-way bi-amped powered loudspeaker ideal for use in a Front-of-House (FOH) main PA.

Dante integration allows you to seamlessly incorporate this speaker in your audio network.

This speaker can produce up to 143dB SPL with supreme clarity.

Also included with the DZR315-D 15-Inch 3-Way Powered Speaker with Dante are integrated M10 rigging points for suspended applications.

Yamaha DZR315-D Features

• 15" 3-way bi-amped powered loudspeaker for FOH main PA
• Dante integration allows you to seamlessly incorporate this speaker in your audio network
• Can produce up to 143dB SPL with supreme clarity
• Advanced FIR-X Tuning
• D-Contour
• DSP protection functions for maximum output and component longevity
• Dante-equipped professional SR loudspeakers
• Power in flexibility with rotatable coverage angle
• Integrated M10 rigging points allow for vertical or horizontal mounting in suspended applications

• DZR315-D 15" 3-way powered Dante speaker1

• Speaker Type3-way, bi-amped powered speaker, bass-reflex
• Frequency Range (-10dB)31Hz - 20,000Hz
• Coverage Area (HxV)75° x 50°
• Components
  • LF: 15" cone, 3" voice coil, neodymium magnet
  • MF: 8" cone, 1.5" voice coil, ferrite magnet
  • HF: 2" voice coil, 1" throat compression driver, titanium diaphragm, neodymium magnet
• Crossover700Hz (FIR-X), 2.5kHz (passive)
• Sampling Frequency Rate (internal)96kHz and FIR Filter
• A/D D/A Converters96kHz AD/DA
• Max. Output Level (1m; on axis)143 dB SPL
• Power Rating
  • Dynamic: 2000W (LF: 1000W, MF/HF: 1000W)
  • Burst (20ms): 1100W (LF: 1000W, MF/HF: 100W)
  • Continuous: 950W (LF: 850W, MF/HF: 100W)
• I/O Connectors
  • Analog I/O: Analog IN: Combo x2, Line level (Maximum +24dBu), Input impedance 20kΩ, Analog OUT: XLR3-32 x2, CH1: THRU (fix), CH2: THRU or DSP OUT
  • Digital I/O: Dante: etherCON CAT5e x2 (Daisy Chain), 2 IN / 2 OUT (Fs: 44.1k, 48k, 88.2k, 96k) and Remote Control, 1000BASE-T
  • Others: USB2.0 Host 5V 500mA for USB memory DATA storage/load
  • AC: IEC AC inlet x1 (V-Lock)
• Amplifier ClassClass-D
• Coolingfan cooling, variable speeds
• Power Consumption45W (idle), 150W (1/8)
• Handlealuminum die-cast, side x2
• RiggingM10 x 16
• Dimensions (WxHxD)21.6x35.3x20.5"
• Weight91.7 lbs

More about Yamaha’s DZR Powered Speakers

Experience the culmination of Yamaha’s expertise in sound reinforcement, acoustics, and signal processing technology. The DZR Series of powered loudspeakers is a family of fully-integrated, smart, and editable powered loudspeakers that feature enhanced SPL performance, superb DSP processing, excellent low-frequency bass sound production, and a truly professional sound—all packed into a compact, lightweight design perfect for applications where you need flexibility as well as power.

DZR Powered Speaker Series offers a wide range of models to choose from, ensuring you can find the best fit for your specific application. Compact enough to be ideal for portable performances, they also come in a choice of black or white finish to better blend into permanent installation environments. And with the Dante-enabled models, you have even more opportunity to streamline your sound setup.
