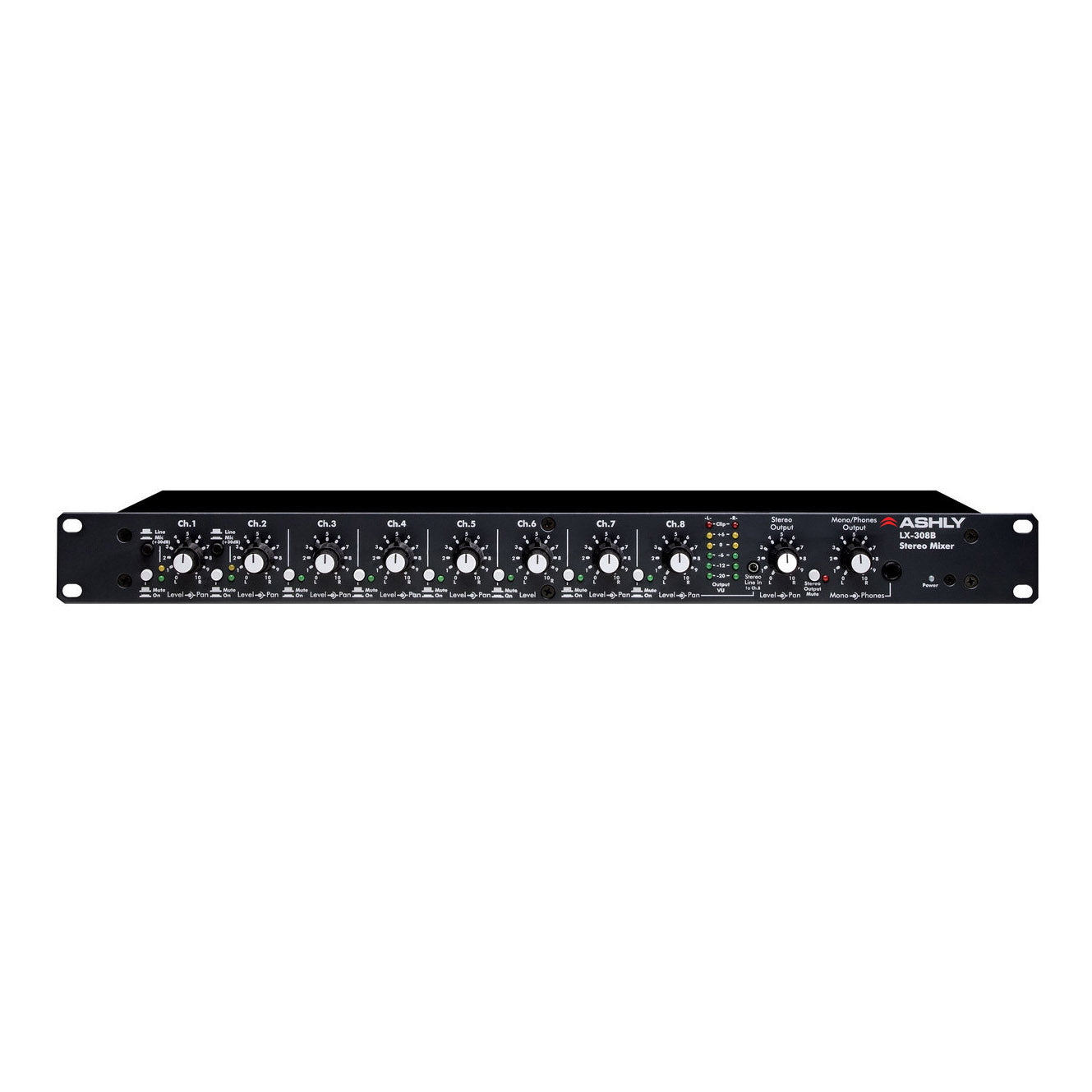

Ashly LX-308B 8 Input Stereo Line Mixer

Ashly LX-308B eight channel stereo line level mixer. Each channel has on/off switches and peak signal detection. Other features include eight balanced stereo inputs for line level sources, the first two inputs with switchable 30dB gain for low impedance dynamic microphones. An additional 3.5mm front panel input jack is provided on channel 8 for a walk-up portable audio player input. A concentric level and pan control for each input adjusts channel volume and stereo position. Submaster inputs and outputs are provided for cascading two or more mixers. Ultra low-noise summing amplifiers combine the channel signals for the main outputs. A pair of 6-segment LED meter arrays monitor the main output levels. Separate level controls are provided for stereo, mono, and headphone outputs.

Ashly LX-308B Mixer Features

• Eight channel stereo line level mixer
• Each channel has on/off switches and peak signal detection
• Eight balanced stereo inputs for line level sources
• A concentric level and pan control for each input adjusts channel volume and stereo position
• Submaster inputs and outputs are provided for cascading two or more mixers
• Ultra low-noise summing amplifiers combine the channel signals for the main outputs
• A pair of 6-segment LED meter arrays monitor the main output levels
• Separate level controls are provided for stereo, mono, and headphone outputs

• LX-308B 8 Input Stereo Line Mixer1

• DISTORTION
  • THD at +20 dBu, 20Hz-20KHz: <0.02%
  • IMD (SMPTE) at +20dBu: <0.01%
• HUM & NOISE (20Hz-20KHz)
  • residual output noise, all levels at minimum: <-100dBu
  • MASTER OUT, MASTER LEVEL and one
  • INPUT LEVEL at nominal (unity gain): <-90dBu
• FREQUENCY RESPONSE20Hz-20KHz: ±0.2dB
• VOLTAGE GAIN (dB±1)
  • INPUTS or SUB INPUTS to MASTER OUTPUTS (levels at nominal): 0dB
  • INPUT to MASTER OUTPUT (levels at max): 30dB
  • Ch.1 or Ch.2 INPUT in MIC position to
  • MASTER OUTPUTS: 61dB
  • SUB INPUTS to MASTER OUTPUTS (master level at max): 15dB
• CROSSTALK
  • adjacent inputs or input to output at 1KHz: <-80dB
  • adjacent inputs or input to output at 20KHz: <-60dB
• VU METERSTwo 5-segment LED meters: 0VU=+4dBu
• PEAK INDICATORSactivated when internal signal is 3dB below clipping
• SHIPPING WEIGHT9 lbs. (4.1kg)
• DIMENSIONS19x1.75x9.4" (483x44x239mm)
• POWER REQUIREMENTS100-240 VAC, 50-60 Hz, 30 watts
• NOTES*unless otherwise stated, specification conditions are: 150Ω source, all levels set at nominal, outputs into 2.7KΩ or greater.
