The Complete AVL Equipment Checklist for Live Events: Audio, Video & Lighting Essentials

One missing cable. One underpowered PA. One lighting console nobody remembered to bring. Any one of those can unravel an event that took months to plan and the performers, the client, and the audience won't remember the 99 things that went right. AVL stands for Audio, Video, and Lighting the three technical pillars of every live event, from a 200-person corporate gala to a 10,000-seat arena concert. Getting your AVL right isn't just a production checkbox. It's the difference between an event people talk about and one they'd rather forget.

After helping live production teams across the country source and spec equipment for events of every scale, SoundPro's Account Managers put together this definitive AVL equipment checklist broken down by category, with guidance on what to prioritize at every budget and venue size. Use it before every show.

Audio Equipment Essentials

Audio is the backbone of any live event. Audiences will forgive a lot a slightly dim stage, a projector that doesn't quite fill the screen but they will not forgive bad sound. Distorted vocals, feedback that shrieks through the room, or a PA that can't reach the back third of a venue ends the night early in the minds of everyone there. Here's what a complete live audio rig looks like.

PA / Speaker Systems Mains, Subs, and Monitors

Your PA system is the entire delivery mechanism for everything the audience hears. For most live events, a full-range system means powered main speakers (or passive mains with an amplifier), subwoofers for low-frequency reinforcement, and front-fills or delay speakers if the venue has coverage gaps. Line array systems are the industry standard for larger events they're designed to throw sound evenly across long distances without the volume drop-off that single-point sources suffer. For smaller events in intimate rooms, a pair of powered full-range speakers plus a sub handles most needs cleanly. Don't under spec your sub that's the element audiences feel as much as hear, and it's often the thing that makes a system feel professional.

Stage monitors or wedges let performers hear themselves and each other onstage. They're a separate audio chain from the main PA, mixed independently, and they're non-negotiable for any performance with live musicians or multiple vocalists. No monitor mix means no way for your performers to stay in tune or in time.

Featured Gear PA Speaker

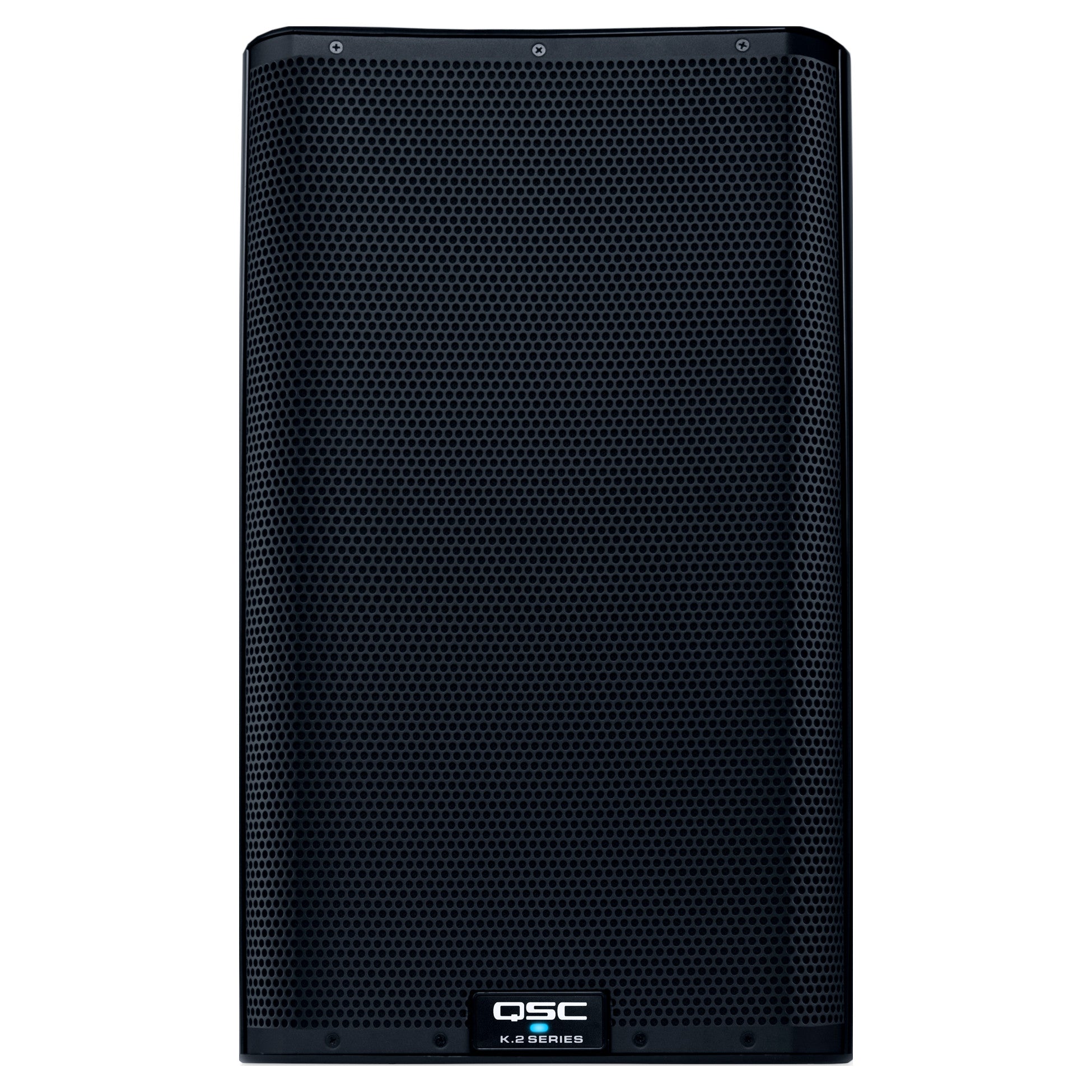

QSC K12.2 12-Inch 2000W Powered Speaker

The QSC K12.2 runs on a 2000-watt power module with Directivity Matched Transition and Intrinsic Correction DSP which means accurate, even coverage across the audience area without fighting the room. Factory-preset EQ contours for Live, Monitor, and Dance modes get you close instantly, and user-saveable Scenes mean your FOH operator can recall a known-good starting point for every event. Equally at home as a main PA in a small venue or as a stage monitor on a touring rig.

Shop at SoundPro →

Digital Mixing Consoles

The mixing console is mission control for your entire audio system. For live production, digital consoles have completely replaced analog as the professional standard they recall scenes, store snapshots, process signals internally, and allow remote control via iPad or tablet. If you're doing theatrical productions, corporate events, or any show where you're recalling previous configurations, digital is not optional. The right console size depends on your channel count: a smaller 32-channel board handles most mid-size events, while larger touring productions need 64 channels or more, plus the ability to handle complex monitor mixing from a separate position.

Featured Gear Mixing Console

Yamaha TF5 32-Channel Digital Mixing Console

33 motor faders, 48 input mixing channels, and Yamaha's TouchFlow Operation interface the TF5 is one of the most accessible professional digital consoles in live production, and its depth rewards experienced operators who want it. Scene recall, iPad remote control via StageMix, and a comprehensive built-in effects library make it the right call for mid-size touring, corporate events, and installed venue applications where the operator roster includes both seasoned professionals and capable volunteers.

Shop at SoundPro →

Microphones Wired, Wireless, Lapel, and Headset

Microphone selection is one of the most event-specific decisions in your entire audio rig. A corporate keynote with a single presenter needs a discreet lapel (lavalier) or a headset mic for hands-free delivery. A panel discussion needs podium mics and gooseneck boundary mics on the table. A concert needs instrument mics, kick drum mics, overhead condensers for cymbals, and handheld dynamics for vocalists. A DJ needs nothing at all except possibly an MC mic for crowd interaction. Know the event format before you finalize your mic list, and always bring spares of your most critical mic positions.

Featured Gear Wireless Microphone

Shure ULXD2/SM58 Digital Wireless Handheld Transmitter

The ULXD2/SM58 pairs the most proven vocal mic in live sound history with Shure's ULX-D digital wireless platform delivering 24-bit audio, AES-256 encryption, and proprietary Gain Ranging that optimizes dynamic range automatically so your operator isn't riding transmitter gain all night. All-metal construction, external charging contacts for docked recharging, and support for up to 60 compatible systems in a single frequency band makes this the go-to handheld wireless for mid-to-large live events.

Shop at SoundPro →

DI Boxes, Cables, and Signal Processors

DI boxes convert instrument-level signals (guitar, keyboard, bass) to mic-level balanced signals that run cleanly over long cable runs to your console without picking up hum, buzz, or interference along the way. A show with live musicians needs a DI box at every instrument position that isn't going through a mic'd amplifier. Cables are the unglamorous backbone of every audio system: always bring more than you think you'll need, always have spares of your most critical runs, and always use quality cables a $4 cable that fails at the wrong moment has cost more than any premium cable ever will. Signal processors compressors, EQs, crossovers, delay units are increasingly handled inside modern digital consoles, but outboard gear still matters for specific applications and as a failsafe for analog signal chains.

In-Ear Monitor (IEM) Systems for Performers

IEM systems have largely replaced traditional stage monitors for professional touring applications, and they're increasingly standard in corporate and theatrical live production as well. Performers receive their personal monitor mix wirelessly through in-ear buds, which dramatically reduces stage volume, improves sound isolation, and gives each performer independent control over their mix. The result is a quieter stage, a cleaner front-of-house mix, and performers who can actually hear themselves accurately. If your production involves musicians who want a personal stereo mix, IEM is the right solution. Browse SoundPro's full IEM system catalog →

Video & Visual Equipment Essentials

Video production at live events has gone from optional enhancement to expected baseline. Audiences at anything larger than a small club show expect to see IMAG (Image Magnification) live camera feeds on screens so people in the back of the room can see the stage. Corporate events expect clean presentations and seamless source switching. Multi-camera streaming has become standard for any event that's also broadcast online. Here's the full video equipment picture.

LED Video Walls and Display Screens

LED video walls have become the display standard for mid-to-large live events. They're brighter than projectors, visible in ambient and outdoor light, modular so they can be configured in any size or shape, and they don't require a clear throw path between a projector and the screen. For concerts and festivals, large-format LED walls behind the stage anchor the entire visual design. For corporate events, narrower LED panels flank the stage as content displays. Pixel pitch the distance between LED pixels determines the minimum viewing distance: finer pitch panels (P2, P3) are for close-up viewing in conference environments; coarser pitch (P6, P8) is fine for audiences 30+ feet away.

Projectors and Projection Screens

Projectors remain the right tool for events where a large image is needed in a controlled-light environment general session ballrooms, breakout conference rooms, theatrical backdrops. High-lumen laser projectors (10,000+ lumens) have made projection viable in moderately lit spaces and eliminated the lamp replacement cost and color drift that plagued older projector technology. Rear-projection setups look cleaner on camera and in IMAG scenarios. Always calculate throw ratio carefully for your venue the distance from projector to screen must match the lens to fill the screen at the right size.

Video Switchers and Signal Processors

The video switcher does for your visual content what the mixing console does for audio: it takes multiple sources cameras, playback computers, presentation laptops, graphics, pre-recorded video and lets your operator transition between them in real time. For live event video production, a capable switcher with enough inputs to handle all your sources, built-in scalers to normalize different resolutions, and downstream keyer capability for graphics is the baseline. Blackmagic Design's ATEM series remains a dominant choice across production scales, from the ATEM Mini Extreme for smaller productions to the ATEM Constellation 8K for broadcast-grade multi-camera events.

Cameras for Live Streaming and IMAG

Camera selection for live events depends on the application. IMAG cameras the ones whose feeds appear on screens in the venue need to deliver a clean, broadcast-quality image in variable and often challenging lighting conditions. PTZ cameras handle wide and medium locked shots from fixed positions, while operated handheld or shoulder-mount cameras handle dynamic close-ups and moving coverage. For events that are also streaming to remote audiences, the camera quality standard goes up: viewers watching on screens at home in a quiet room will notice color accuracy, low-light noise, and compression artifacts in ways that an in-person audience at 50 feet won't. Explore SoundPro's full video camera and switcher catalog →

Cables, Converters, and Signal Distribution

The invisible infrastructure that connects every piece of video equipment. SDI (Serial Digital Interface) is the professional standard for long-distance video signal runs on event sites it runs reliably over hundreds of feet of coaxial cable without signal degradation that would plague HDMI at the same distances. HDMI is fine for short runs at the rack or on the table. Fiber optic video transport handles truly long distances across a large venue or between buildings on a campus. Signal distribution amplifiers split a single source to multiple destinations (one camera feed to both the switcher and a recording device). Converters bridge format differences between equipment. These aren't glamorous items, but a show can go dark waiting for the right converter that nobody remembered to include.

Lighting Equipment Essentials

Lighting is the most underappreciated element of live event production right up until it's wrong. When the lighting design is excellent, audiences feel it without consciously noticing it. When it's wrong, everyone notices immediately: washed-out faces on stage, the wrong color for the mood, fixtures that buzz or flicker, dark spots where speakers stand. Here's what a complete live event lighting rig requires.

Stage Wash Fixtures LED PAR Cans and Moving Heads

LED PAR cans are the workhorses of stage wash lighting. They're affordable, efficient, color-tunable, and can be deployed in large quantities to create even, saturated stage coverage. RGBW and RGBA LED engines give you a wide gamut of color mixing, including warm whites that work better for skin tones than older RGB fixtures. Moving head fixtures beam lights and spot/wash hybrids add dynamic capability: programmable movement, gobos, iris control, and zoom that static fixtures simply can't match. For concerts, moving heads create the energy and motion that define modern production lighting. For corporate events, a mix of static wash and moving heads gives your LD the flexibility to shift the room from conference mode to dinner mode without a single light change.

Featured Gear Moving Head Wash

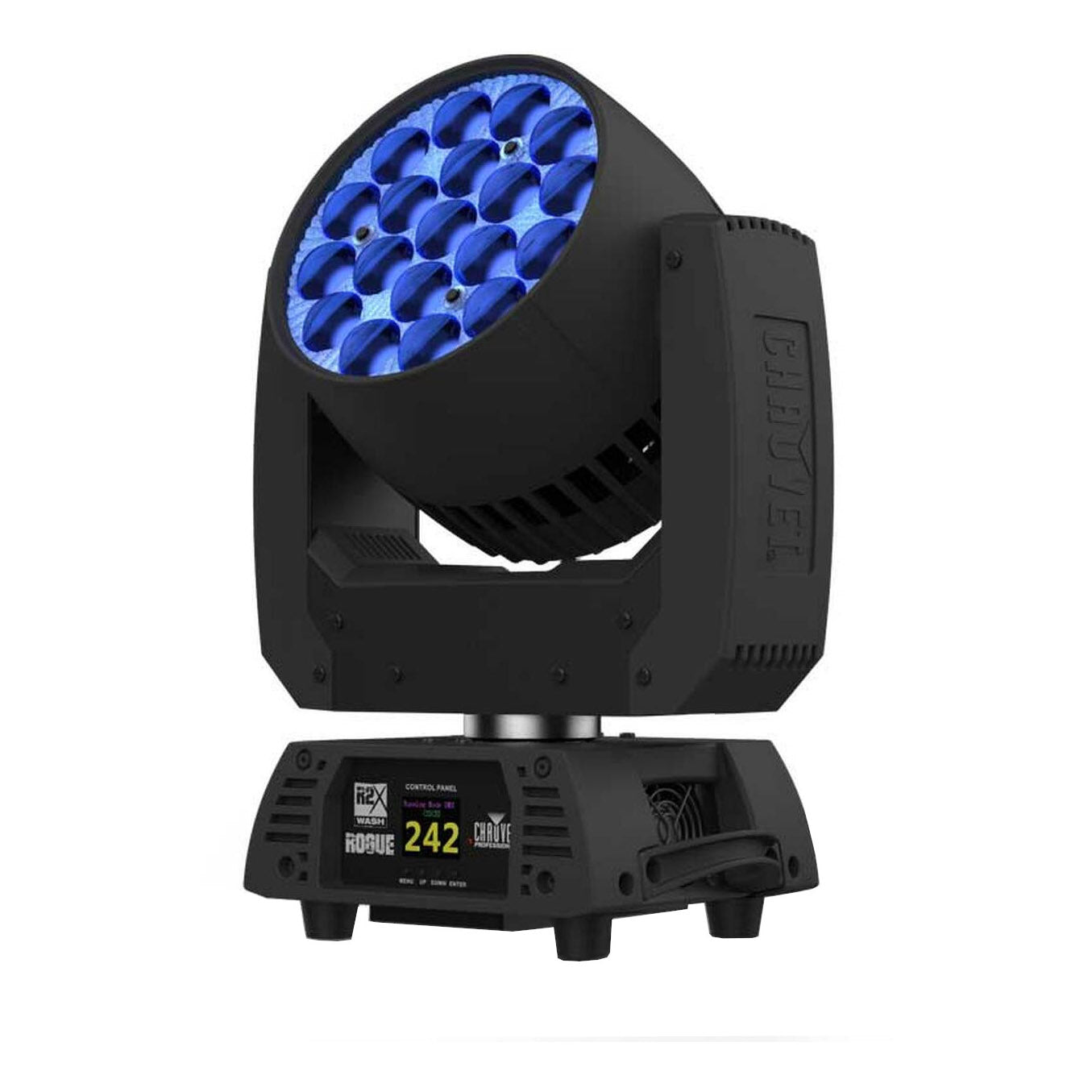

Chauvet Pro Rogue R2X Wash RGBW LED Moving Head

19 RGBW quad-LEDs at 25W each, five independently controllable LED zones for pixel mapping effects, and a zoom range of 12° to 49° the Rogue R2X Wash is one of the most specified moving wash fixtures in mid-market touring and event production for good reason. Smooth color mixing, 16-bit dimming on master and individual colors, and powerCON in/out make it as practical to rig and run as it is capable. A fixture that earns its place on every event regardless of scale.

Shop at SoundPro →

Spotlights and Followspots

For any event with featured speakers, performers, or award recipients who move across a stage, a follow spot a manually operated long-throw spotlight is essential. The operator tracks the subject across the stage, keeps them lit cleanly against whatever the stage wash is doing, and provides the visual separation that makes key moments pop on camera and to the live audience. Ellipsoidal spotlights (often called lekos or profiles) are the precision instrument of stage lighting design: hard-edged, shuttered, focusable, and ideal for creating clean isolation lighting on podiums, lecterns, or defined stage zones.

Truss Systems and Rigging

Getting fixtures in the air is not an afterthought it's a structural and safety decision that needs to be part of your production planning from day one. Ground-support truss systems allow you to build overhead lighting positions without venue rigging points. Venue rigging chain motors attached to house rigging points is faster and cleaner when available and permitted. Either way, all rigging should be designed, loaded, and signed off by a qualified rigger. Weight ratings, pick point spacing, and safety backup cables are non-negotiable. A lighting rig that falls injures people and ends careers. Treat rigging with the seriousness it deserves.

Lighting Control Consoles and DMX Controllers

Every fixture in your lighting rig is controlled via DMX a digital control protocol that carries lighting commands from the console to every fixture in the system. The console is where your LD programs all the looks, cues, and sequences that make up the lighting design. For complex shows, full-featured consoles from manufacturers like ETC, grandMA, or Chauvet's ChamSys line handle the full scope of modern production lighting design. For simpler events corporate dinners, small concerts, branded activations a capable mid-range console or a reliable software-based solution on a dedicated laptop gives your operator the control they need without the overhead of a full touring console.

Haze and Fog Machines

This is the element that separates a lighting rig that looks good from one that looks spectacular. Atmospheric haze a fine, even mist that hangs in the air rather than dissipating quickly makes beam effects visible, adds depth to wash lighting, and gives the room a production quality that audiences immediately register as "professional." Haze is not the same as fog: fog machines produce a dense, low-lying ground effect. Haze machines produce a fine atmospheric mist that's nearly invisible until a light beam passes through it. Most live production environments use haze, not fog. Always check venue policy before deploying any atmospheric effect, and always use professional, water-based fluid in your machines. Browse SoundPro's full lighting catalog →

The Full AVL Equipment Checklist

Use this as your pre-event production checklist run through it at load-in, during tech rehearsal, and again before doors open. Print it, save it, make it part of your standard advance document. Nothing ships the day of show.

How to Choose the Right AVL Equipment for Your Event

The checklist above tells you what categories to cover. These decision frameworks tell you how to spec the right equipment within those categories based on your specific event.

Small Venue vs. Large Venue

Venue size determines system scale across every AVL category. A 200-capacity club room needs a fundamentally different system from a 2,000-seat theatre not just "more of the same." PA coverage patterns and SPL requirements are calculated based on room volume and audience distance. Screen sizes are determined by the furthest viewing distance (a common rule of thumb: screen height should be at minimum 1/8 the distance to the back row). Lighting positions and fixture counts are driven by the area of the stage and the ceiling height available for rig positions. Spec for the actual room, not a generic "small" or "large" category.

Indoor vs. Outdoor Events

Outdoor events introduce variables that completely change your equipment decisions. Sound dispersion outdoors has no walls to reflect from you need more SPL than you'd think to maintain consistent levels across the audience area, and cardioid or directional sub configurations become essential to avoid bleeding sound into neighboring areas. Video displays need significantly more brightness outdoors an LED wall that looks stunning indoors may wash out in full daylight. Lighting outdoors needs to overcome ambient light or wait for darkness to be effective, and all fixtures need to be IP-rated or protected from weather. Power infrastructure and generator backup is non-negotiable outdoors. Plan for it, don't improvise it day-of.

Corporate Event vs. Concert vs. Conference

Event format shapes your entire AVL approach. A corporate general session prioritizes clean, intelligible speech reinforcement, flawless presentation integration, and a professional, polished visual environment typically warmer, more neutral lighting rather than saturated theatrical colors. A concert or festival prioritizes energy, impact, and the emotional experience of the room loud, dynamic audio, intense lighting, and IMAG that makes the stage accessible to everyone in the crowd. A conference may run multiple simultaneous rooms with breakout audio, distributed video, and simple but reliable reinforcement in each space. The same equipment doesn't serve all three needs equally always spec from the event's purpose outward.

Why Work With a Professional AVL Distributor

A parts list is not a system. Anyone can assemble a list of products that look right on paper. What separates a system that performs flawlessly on show day from one that causes problems at the worst possible moment is the expertise behind the spec knowing which products work together, which combinations create integration headaches, and which piece of gear you absolutely cannot cheap out on for a given application.

SoundPro's Certified Account Managers spec live production systems for a living. They've seen what works and what doesn't across hundreds of event types, venue categories, and production scales. When you call SoundPro before a project, you're not talking to an order-taker you're talking to someone who will ask the right questions, flag the compatibility issues before they become day-of problems, and make sure every component in your system is the right tool for your specific application.

• 500+ professional brands SoundPro carries the full depth of the professional market: QSC, Yamaha, Shure, Sennheiser, Chauvet Professional, ETC Lighting, Blackmagic Design, Allen & Heath, Meyer Sound, L-Acoustics, grandMA, and hundreds more. You don't have to source from five different vendors and hope everything arrives in time.
• Same-day shipping on in-stock items Orders placed before 4:00 PM CST ship the same day. For production schedules that don't have margin for error, that reliability matters.
• Custom quotes for any project size Whether you're building a road case for a 200-seat corporate event or speccing a full touring system, SoundPro can put together a personalized quote that matches your actual requirements not a generic package.
• Expert support before, during, and after the show SoundPro's Account Managers are available to answer questions as your production unfolds. If something changes on-site and you need to swap a component, that's a phone call, not a crisis.
• Financing available Large productions involve large equipment investments. SoundPro offers financing options through our partners talk to your Account Manager for details.

FAQ: AVL Equipment for Live Events
