NEXO ID14-T 4-Inch Super Compact Passive Speaker

Thanks to their fully symmetric design, there are there are no left or right versions of the ID14, so all speakers in the inventory can be the same. To ensure maximum versatility, the ID14 can be specified with either 100° x 100° or 90° x 140° HF dispersion.

130mm wide, 130mm high and 120mm front to back, the ID14 is a super-compact full range speaker employing a custom-designed coaxial driver with a 1.3″ voice coil for the 4″ LF component and a 1.4″ diaphragm for the HF motor, delivering smooth, clean sound and impressive power. The Touring version is available in black, white or custom RAL colors and features a Magnelis steel grille and Speakon connectivity.

NEXO ID14-T Features

• Compact, high-powered sound reinforcement speaker
• 116 dB peak SPL
• Measures just 130mm W x 130mm H x 120mm D
• Available in 100° x 100° and 90° x 140° HF dispersion versions
• Touring version with Magnelis steel grille and Speakon connectivity
• Black, white and custom RAL colors (only black pictured)

• ID14-T 4-Inch Super Compact Passive Speaker1

• Frequency Response @-6 dB 120 Hz to 20 kHz
• Sensitivity 1W@1m 95 dB
• Peak SPL@1m 116 dB
• Available Crossover Frequencies 120, 150 Hz
• HF Dispersion (upon ordering) 100° x 100° or 90° x 140°
• Nominal Impedance 16 Ohms
• Recommended Power 110 to 180 Watts / 16 Ohms (requires a 220 to 360 Watts / 8 Ohms amplifier)
• Number of ways 2 ways passive
• Components 1 x Coaxial Neodymium LF 4” long excursion & HF 1.4” diaphragm

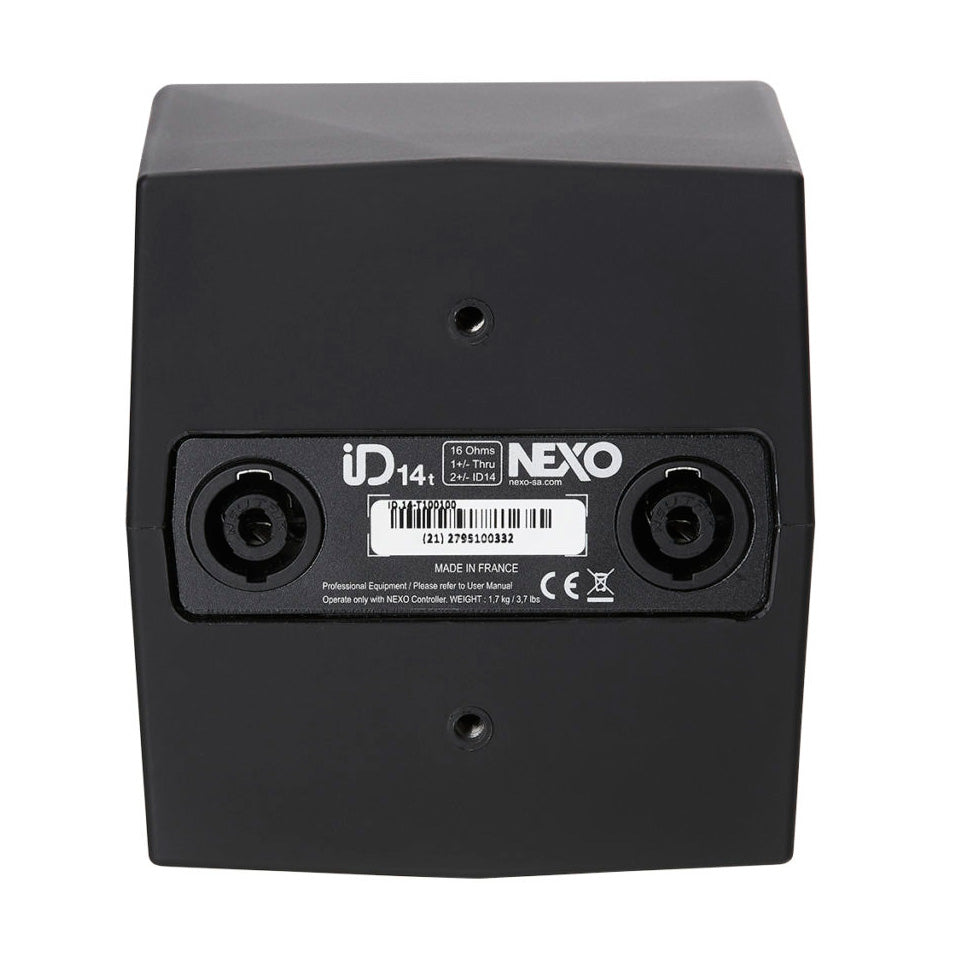

• Connectors 2 x NL4, 4 poles connectors (1+/1- Through / 2+/2- ID14)
• Rigging points 1 x M10 on each side for dedicated U bracket + 2 x M6 / 73 mm pitch at the back
• Construction Polyurethane
• Finish Black: Raw sandblasted polyurethane / White: Structural paint
• Front Finish Magnelis® front grill with back mesh
• Operating temperature range 0°C - 40 °C (32°F - 104°F)
• Storage temperature range -20°C - 60°C (-4°F - 140°F)
• Height x Width x Depth 130x130x120 mm (5.1x5.1x4.7”)
• Net Weight 1.7 kg (3.7 lbs)
• System Operation
  • Recommended powering solution: DTDcontroller + DTDAMP4x0.7: up to 4 x ID14 per channel
  • Optional powering solution
    • DTDcontroller + DTDAMP4x1.3: up to 4 x ID14 per channel
    • NXAMP4x1mk2 Powered TDcontroller: up to 8 x ID14 per channel
    • NXAMP4x2mk2 Powered TDcontroller: up to 8 x ID14 per channel NXAMP4x4mk2 Powered TDcontroller: up to 8 x ID14 per channel
