Pliant Technologies CHB-8C-02 CrewCom 8-Port Copper Hub

The CrewCom Hub is an eight port, 1RU, half-rack Copper Hub that provides routing and expansion capabilities to a CrewNet infrastructure via eight RJ-45 and a single duplex LC Fiber port. Power is received over a CrewNet copper connection or via a 48VDC power supply.

Pliant Technologies CHB-8C-02 Features

• Eight copper CrewNet ports with one shared port that is either duplex LC Single Mode Fiber or copper
• Supplies distributed network power over CrewNet to up to 7 supported ports (copper only)

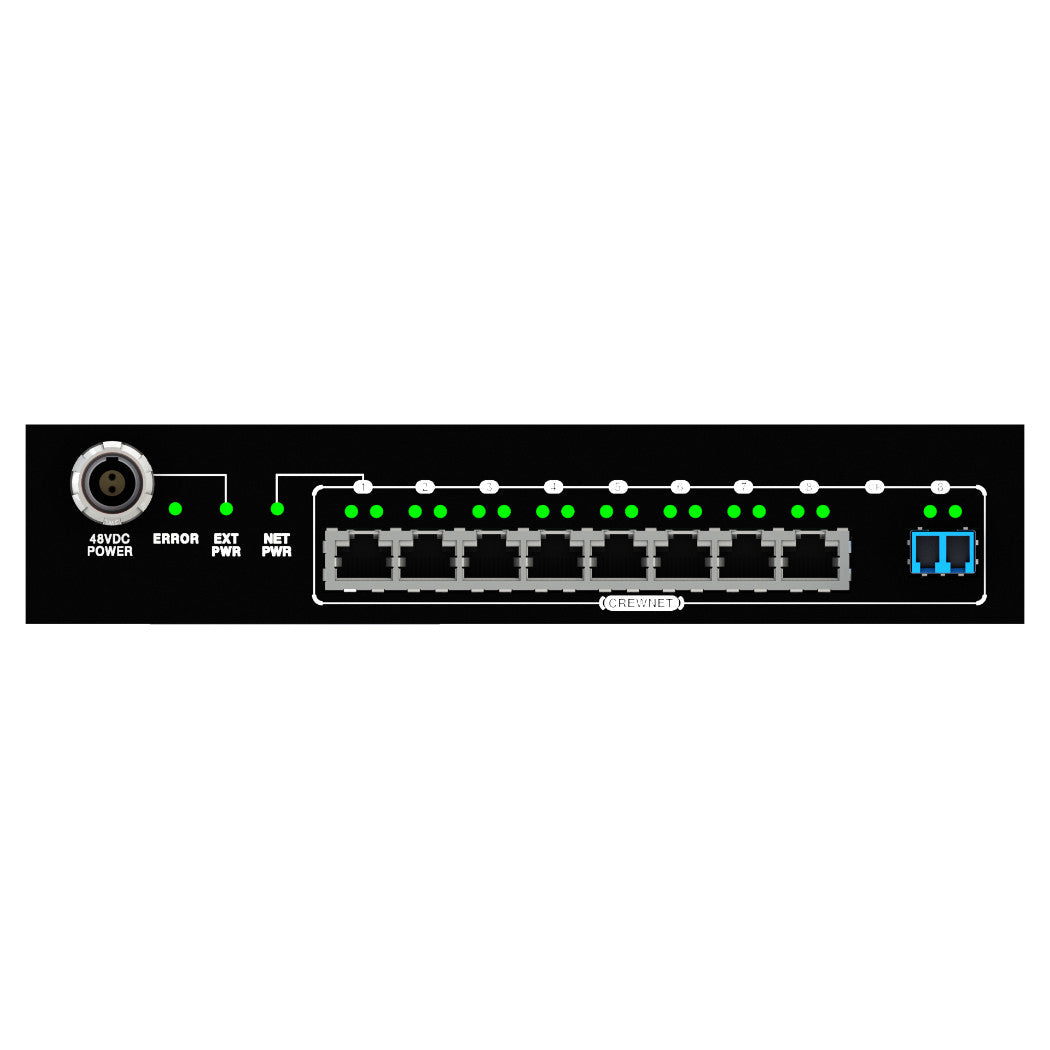

• Front and rear panel LED status indications
• Micro USB connection for firmware updates (firmware updates also available through CrewNet)
• Dual powering options with either network power or supplied external power supply (48VDC included with Hub)
• Fits a standard 1RU rack in a half-rack configuration (optional rack kit sold separately)

• CHB-8C-02 CrewCom 8-Port Copper Hub1
• 00003402 USB A to Micro B cable1
• PC-CAT5-6BL Cat 5e cable, 1.8 m (6 ft.) 1
• 00002620 Rubber Feet4
• PPS-48V-02* 48VDC External Power Supply1
• D0000288 Product Overview Guide1
• D0000219 Warranty Extension Registration Card1

• CrewNet Ports (8 total connections)(7) RJ-45 for copper; (1) RJ-45 for copper or duplex LC for Single Mode Fiber
• Maximum CrewNet Line Length Copper 100 m (330 ft.); Fiber 10,000 m (32,800 ft.)
• External Power In 48VDC Power Supply
• Power-over-CrewNet (PoC) In Port 1 (RJ-45)
• Power-over-CrewNet (PoC) Out Sourced by PoC: Ports 2–8
• Sourced by external power: Ports 2–8
• Dimensions (LxWxH) 21.9×4.4×22 cm (8.62×1.73×8.68 in.)
• Weight 794 g (1.75 lbs)
• Operating Environment -20° to 50° C (-4° to 122° F); 10% to 90% Humidity.
• Maximum Altitude 2,000 m (6,562 ft.)
• RoHS Yes
• Compliance Model Number HB2520
