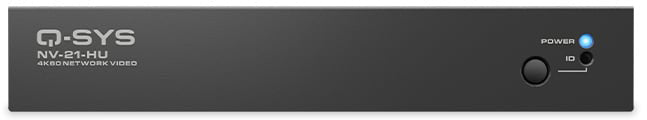

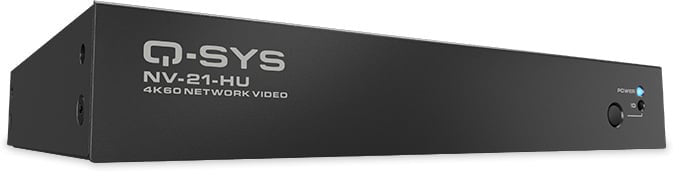

Q-SYS NV-21-HU 4K60 4:4:4 Network Video Endpoint for Q-SYSEcosystem

Q-SYS NV-21-HU 4K60 4:4:4 Network Video Endpoint for Q-SYSEcosystem

SoundPro Item: 139568 | Part Number: NV-21-HU

Pricing available upon request

Pricing available upon request

Your Price Sold out

In stock and ready to ship

  • The Q-SYS NV-21-HU simplifies the user experience and intuitively supports a wide range of devices. A single USB-C connection to the NV-21-HU enables a user's device to distribute video formats up to 4K60 4:4:4 via Q-SYS Shift™ video codec, integrate Q-SYS video camera and audio feeds into a supported collaboration application and charge their device simultaneously.
  • The NV-21-HU is software-configurable as an encoder or decoder in Q-SYS Designer Software and offers the ability to operate in either HDMI or USB-C mode, supporting a broader range of user devices without adapters or converters. In addition, the NV-21-HU can be leveraged as an AV bridging endpoint when needed.
  • In HDMI mode, the NV-21-HU enables video distribution from the HDMI input and uses the USB-C connection to offer AV bridging and device charging.
  • In USB-C mode, the NV-21-HU enables video distribution, AV bridging and device charging via the USB-C connection.
  • Enables both the HDMI in and USB-C to encode separate video streams to the network (1080p maximum resolution). Supported in Q-SYS Designer Software v9.10 and above.
  • The NV-21-HU provides designers with a more compact endpoint within the NV Series. The smaller design and reduced I/O (compared to the Q-SYS NV-32-H) enable simple and scalable designs across various applications, including meeting rooms, learning spaces, hospitality, and entertainment installations.
  • Q-SYS NV Series Network Video endpoints are native to Q-SYS, which is powered by the Q-SYS OS; this software foundation manages NV Series endpoints and all other Q-SYS Products from a single application. The Q-SYS Platform's modern IT architecture and development tools enable an entire ecosystem of third-party integrations developed by approved Q-SYS Partners and a worldwide community of developers using the available tools found in Q-SYS Open.

The Q-SYS NV Series NV-21-HU is the next evolution for native video distribution on the Q-SYS Platform. The NV-21-HU is a software configurable endpoint offering a comprehensive single-cable solution for audio and video distribution, AV bridging and device charging via USB-C. The NV-21-HU's compact size and reduced I/O make it ideal for supporting meeting rooms, learning spaces, hospitality and entertainment installations. The NV-21-HU can be used alongside other Q-SYS NV Series video endpoints, providing system design flexibility. Like all Q-SYS products, the NV-21-HU offers native integration and control, simplifying configuration and operation.

View full details

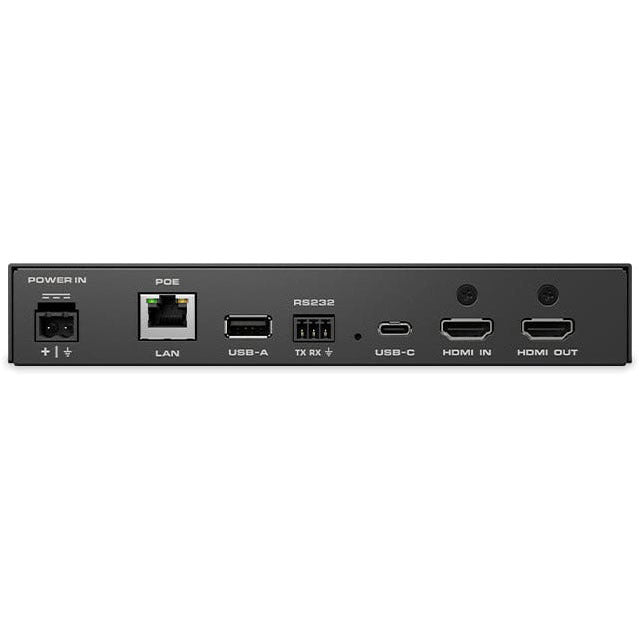

  • HDMI 2.0 inputs1x HDMI 2.0, capable of receiving input video formats up to 4K60 4:4:4
  • USB-C Input1x USB 3.2 Gen 1x1 (5Gbps) Type-C Device Port
    - Supporting DisplayPort Alt-Mode (DP 1.4 Sink)
    - capable of receiving input video formats up to 4K60 4:4:4
  • HDMI 2.0 Output1x HDMI capable of scaling and outputting video formats up to 4K60 4:4:4
  • ScalerHDMI output features a robust 4K60 4:4:4 scaler that can accommodate the most challenging resolution and frame rate conversions.
  • HDMI inputs8-channel PCM audio, Q-SYS routable
  • USB Type C input8-channel PCM audio, 1x1 speakerphone, 2x2 soundcard, Q-SYS routable
  • HDMI outputs8-channel PCM audio, Q-SYS routable
  • Dimensions7.3 x 5.2 x 1.2 in
  • Weight1.75 lbs (794 g)
  • Mounting optionsFlexible surface mounting hardware included
  • USB Type C inputUSB 3.2 Gen 1x1 (5Gbps) Type-C Device Port
    - Supporting DisplayPort Alt-Mode (DP 1.4 Sink)
    - USB Power Delivery up to 65W3
  • USB Type A inputUSB HID Routing
    - 5 V DC 900 mA
  • LAN1000BASE-T, 2.5GBASE-T compliant
  • Power Over EthernetPoE Type 3, Class 5 (40W at PD, 45W at PSE)2
  • Auxiliary Power Supply12V DC 9 A Power Supply. NV-21-PSU sold separately.3
  • Ambient operating temperature range0° to 40° C
  • Humidity5 to 90 RH % non-condensing
  • Storage temperature-20° to 70° C
