- Frequency RangeUSA + CAN 470 - 608 MHz (INT’L 470 - 698 MHz)

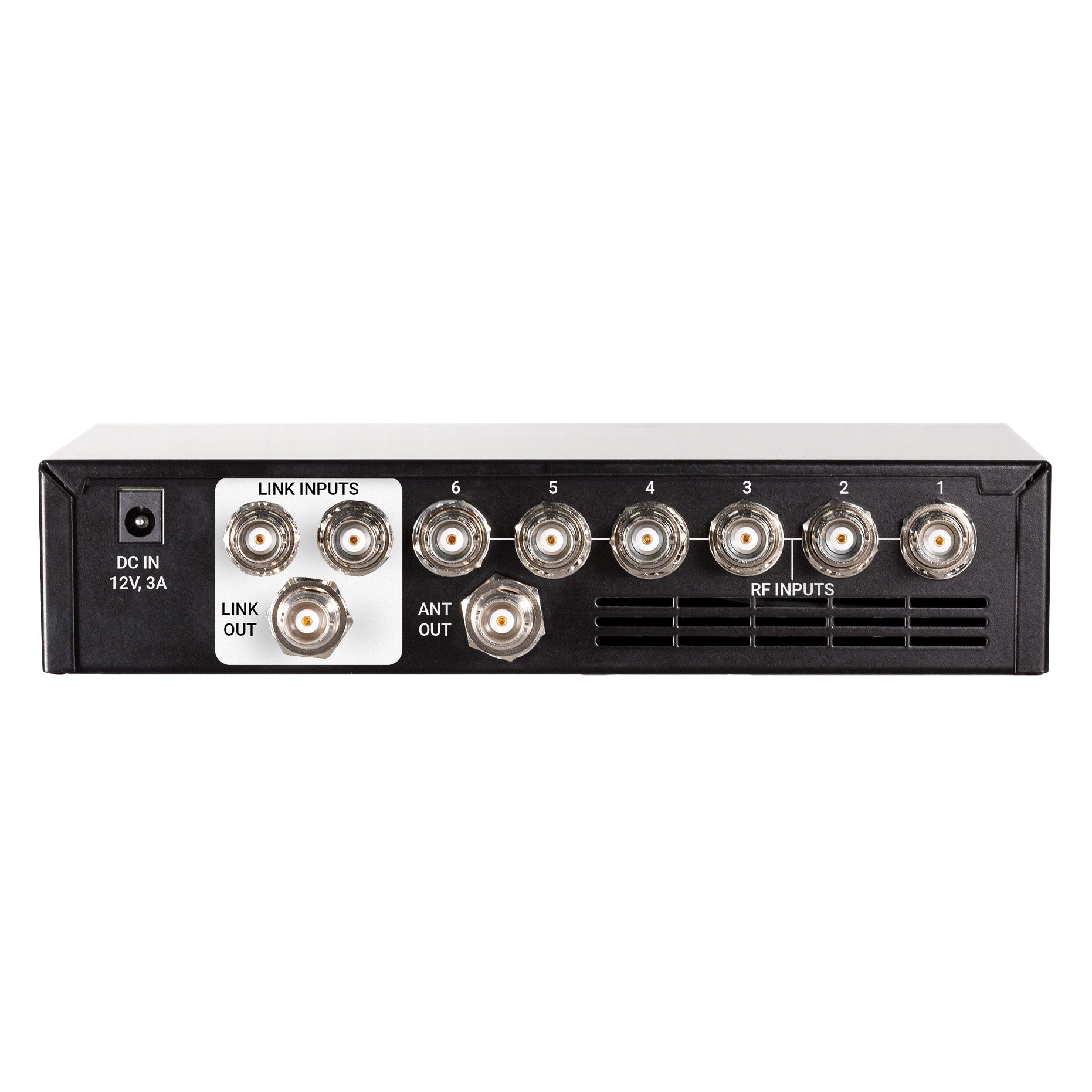

- RF Inputs 6 BNC inputs
- Maximum Input Power 60 mW (+18 dBm) per port
- Input Port Isolation 50 dB, typical
- Signal Overload Threshold 17 dBm, typical
- Passive Circuit Loss 4 dB, typical
- DC Power Supply External, 100 - 240 VAC, 50/60 Hz, 1A
- DC Power In +12V, 3A
- Dimensions (DxWxH)8.8x8.25x1.75" (223.5x210x44.5mm)
- Weight 3.56 lbs (1.6kg)
