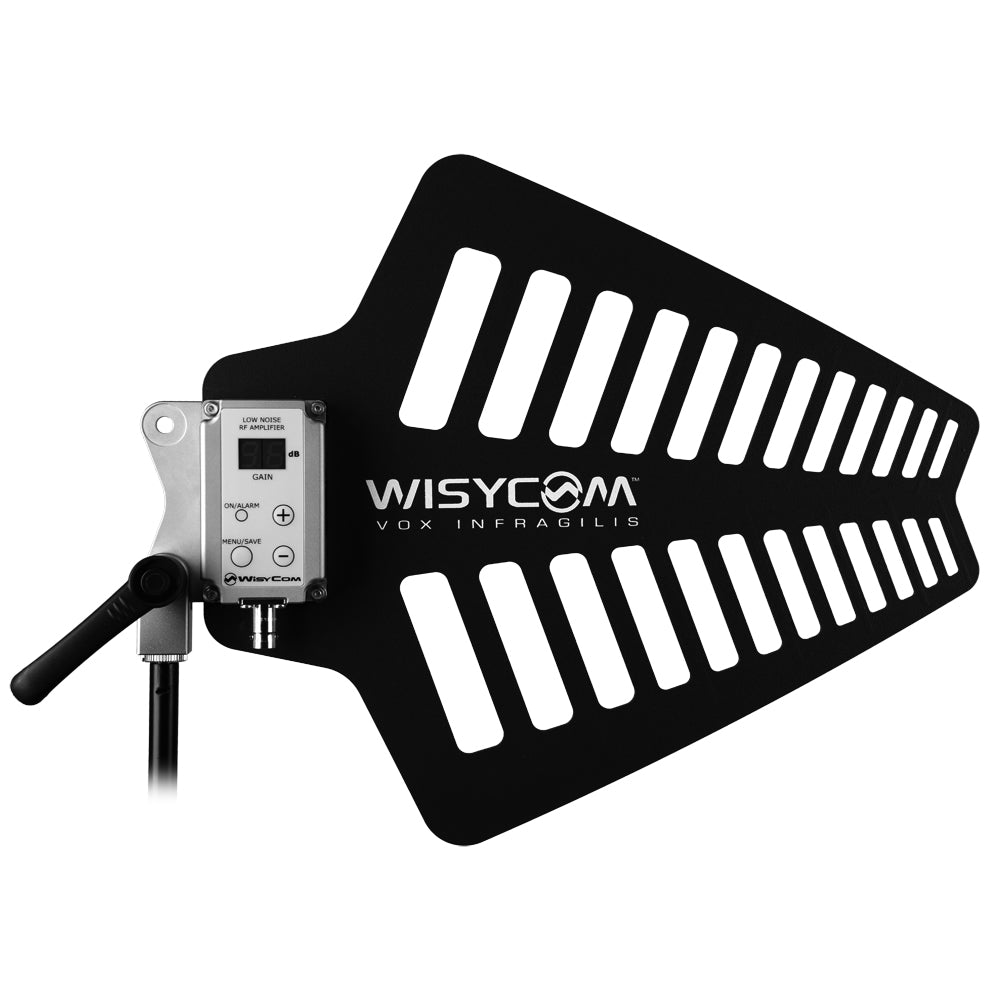

Wisycom LBNA2 Directional Wideband Active Antenna with Integrated Booster

Wisycom LBNA2 Directional Wideband Active Antenna with Integrated Booster

SoundPro Item: 150842 | Part Number: LBNA2

$640.00
$711.00 $640.00
Your Price Sold out
MSRP: $711.00 | MAP: $640.00

Usually ships in 5-7 business days

  • AGILE: working bandwidth of 470-870 MHz
  • EASY & QUICK TO USE: LED display & function buttons
  • RUGGEDIZED: sturdy metal body construction and epoxy protection on cable joints
  • HIGH-PERFORMANCES: optimized 6dB gain with a typical beam-width of 90 degrees
  • INTEGRATED BOOSTER: very high linear booster (OIP3 40 dBm) with 15 dB gain settable in one step dB step
Log in or register for YOUR best price

The Wisycom LBNA2 is a directional antenna with booster for UHF receive applications. The LBNA2 offers up to 15 dB gain in 1dB steps for microphone receive applications. The LBNA2 requires +12V 100mA for full operation. Featuring a BNC connector for easy connection.

View full details
  • Frequency ranges470 - 870 MHz (420 - 1300 MHz bypassed)
  • SWR< 1:1.5; typ. = 1:1.4
  • PolarizationVertical
  • OIP3+43 dBm (Output 3° order Intercept Point) typical
  • RadiationDirectional
  • ConnectorBNC-F
  • Impedance50 Ω
  • Booster Gain0 - 15 dB (typical), selectable in step of 1 dB (+/- button)
  • Booster Steps± 1 dB, in the whole working window
  • Power supply+12 V, 100mA
  • Materialepoxy fiberglass (copper - clad)
  • Finishingblack matte
  • Mounting5/8" with worth or 3/8" with adapter
  • Dimensions276 x 336 x 61 mm (HxWxD)
  • Weight560 g
