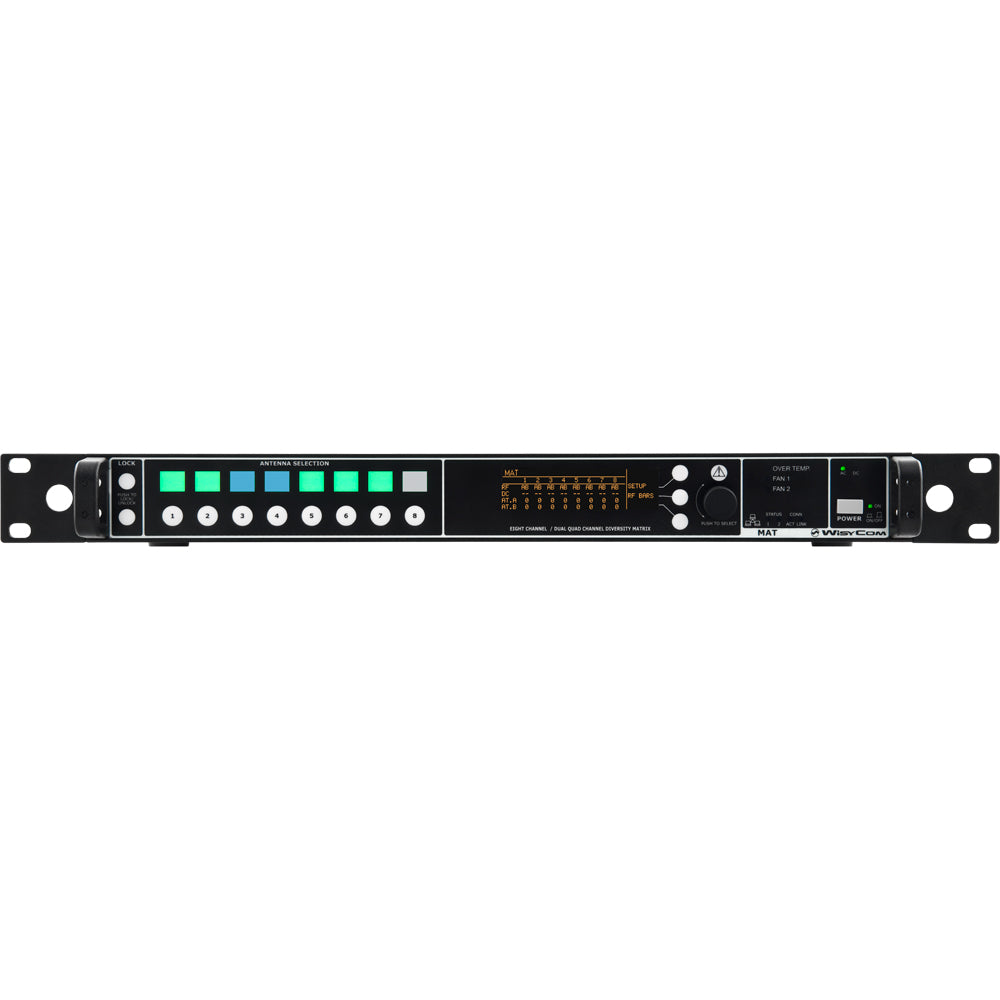

Wisycom MAT244-X1 Wideband Diversity Programmable 4:1 Matrix Combiner | Configuration: Standard

Wisycom MAT244-X1 Wideband Diversity Programmable 4:1 Matrix Combiner | Configuration: Standard

SoundPro Item: 150846 | Part Number: MAT244-X1

$3,875.00
$4,305.00 $3,875.00
Your Price Sold out
MSRP: $4,305.00 | MAP: $3,875.00

Usually ships in 5-7 business days

  • Combiner mode: diversity 4:2 / non-diversity 8:1 or 8:4 (SW configurable)
  • Wide bandwidth 150-1160 MHz operation
  • Remote management and monitor of alarms thru Ethernet 10/100 base TX
  • Antenna booster supply toggled on each input independently
  • Voltage and current monitoring on each booster supply with alarm
  • Programmable attenuators on each inputs
  • Remote boost control (for gain/bandwidth) with a bidirectional data link thru coax (input BNCs)
  • light window where the user can enter their own text to identify the 8 areas
Log in or register for YOUR best price

The Wisycom MAT244 is a Wideband programmable diversity antenna matrix combiner for receive applications from 150MHz to 1160MHz. The MAT244 is used for expanding the receive coverage of microphones. The MAT244 allows for up to 4 zones of diversity coverage. Using the network connection, monitor and control the MAT244 from Wisycom Manager for PC. The MAT244 provides individual gain control for every input. The MAT244 can provide the 12V bias required for Wisycom active antennas. Utilize the full control of Wisycom smart antennas, such as the LFA, ADFA, and BFA. Connect via coaxial and manage the gain and filters of the antennas from hundreds of feet away on the panel of the MAT244, or through Wisycom Manager for PC. The MAT244-DC additionally offers 12VDC power input for redundancy.

View full details

Specifications

Dimensions
Dimensions
44 x 483 x 398 mm (HxWxD)
Audio
Input/Output Gain
7 dB (Combiner 8:1)0 dB (Combiner 8:4)7 dB (Combiner 4:2)
Impedance
50 Ω
Connectivity
Connector
input: 8 BNC-Foutput: 4 BNC-F
Construction
Material
aluminum
Environmental
Temperature Range
-25 - +55 °C
Shipping
Weight
3,7 Kg
General
Frequency Ranges
150 - 1160 MHz (MAT244X1)
OIP3
30 dBm typ. (Combiner 8:1)24 dBm typ. (Combiner 8:4)30 dBm typ. (Combiner 4:2)
Noise Figure
5.5 dB (each channel)
Amplifier Linearity
Amplifier linearity
Power Supply
AC connector 90-264Vac /47-63Hz, (fuse protected) T2A-50W max
Finishing
black varnish
Managing Interface
10/100 Base TX Ethernet port and thru frontal tactile buttons
Antenna Booster Powering
+12Vcc / 800mA MAX for ports 1A, 1B [2x4:2 conf] or for port 1,5 [other configuration]+12Vcc / 230mA MAX (other ports)
Indicators
Display
64 x 256 OLED (yellow)
