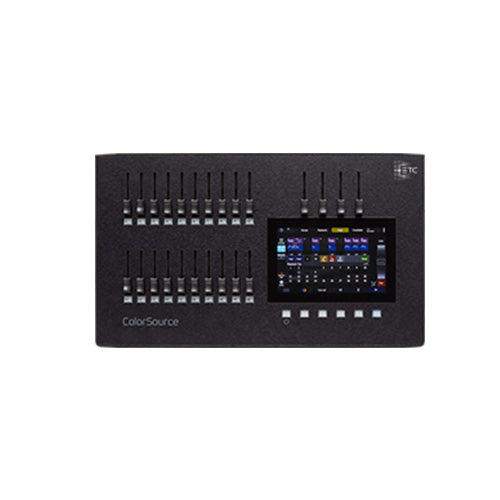

ETC CS20 ColorSource 20 Lighting Console
ETC CS20 ColorSource 20 Lighting Console
SoundPro Item: 46000 | Part Number: 7225A1000-US
Usually ships in 5-7 business days
- Plug-and-play portable lighting console
- Recognizes intelligent lights in the rig via RDM and auto-populates them in patch
- On-board touchscreen allows fixtures to be dragged into place on a customizable stage map for quick selection and programming
- Faders and touchscreen can be used to control moving lights, mix LED colors, play stored looks and effects
- Play sound and visual media via AV consoles
- 80 channels / multi-parameter devices
- 20 Channel / Playback faders with color indication
- One DMX/RDM port
- One USB port
- 2 GB onboard storage for show files
With the ETC CS20 ColorSource 20 Lighting Console provides affordable, comprehensive control with an approachable, streamlined interface.
From patching to performance, ColorSource consoles enable you to navigate and program quickly. The multi-function onboard touchscreen provides not only a customizable stage map but also color and parameter controls, a full palette system, effects manipulation, and the Playback Toy live busking controls.
The onboard faders can be used as direct channel controls or as playback faders. For preprogrammed shows, ColorSource consoles include comprehensive cue stack functionality. Assign additional faders as submasters, group masters, or a grandmaster.
- Mechanical
- One home and five configurable softkey buttons
- Four configurable function faders
- 7” color multi-touch touchscreen
- Playback Controls
- One cue list with 999 cues
- 10 pages of 20 or 40 playbacks (Static memories or sequences)
- Playback Toy for filtered and timed execution of playbacks
- Mulitple bump modes (Flash, Solo, Solo Change, Move/Go)
- Full-history rubberbanding for playbacks
- On-board help system
- Extensive library for controlling moving lights
- Audio Input Type
- 3.5 mm (1/8”) TRS, Stereo, unbalanced
- Line in -10 dBV (316 mV RMS)
- Input Impedance: 29k ohms
- Audio Output Type
- 3.5 mm (1/8”) TRS, Stereo, unbalanced
- Line out -10 dBV (316 mV RMS) at 10k ohms “Line Level”
- Load Impedance : 10k - 200k ohms
- Supported Media File Formats
- Audio: mp3, aac and wav files (44.1 kHz sample rate, 4 GB maximum file size)
- Image: jpg, png, tiff, and bmp files (1280 x 720 maximum resolution)
- Please note: visual output is limited to still images and effects from the VideoToy feature of the ColorSource AV console. Movie files are not supported
- Regulatory and Compliance
- cETLus Listed
- CE Compliant
- Programming Tools
- Color and white pickers
- Reference based Position, Color and Beam palettes
- Innovative touch-based parameter controls
- Auto fixture selection on fader moves
- Virtual Level/Rate wheel
- Customizable Channel display using Stage Map
- Effects (intensity, color, shape, and parameter)
- Fixture Tags for Quick Selects
- 27 Quick Select groupings
- Two independent channels
- Virtual keypad for level entry
- Dimensions (LxWxH)11x18.3x2.36" (279x668x60mm)
- Weight6.9 lbs (4.33kg)
- Shipping weight13.55 lbs (6.15kg)
