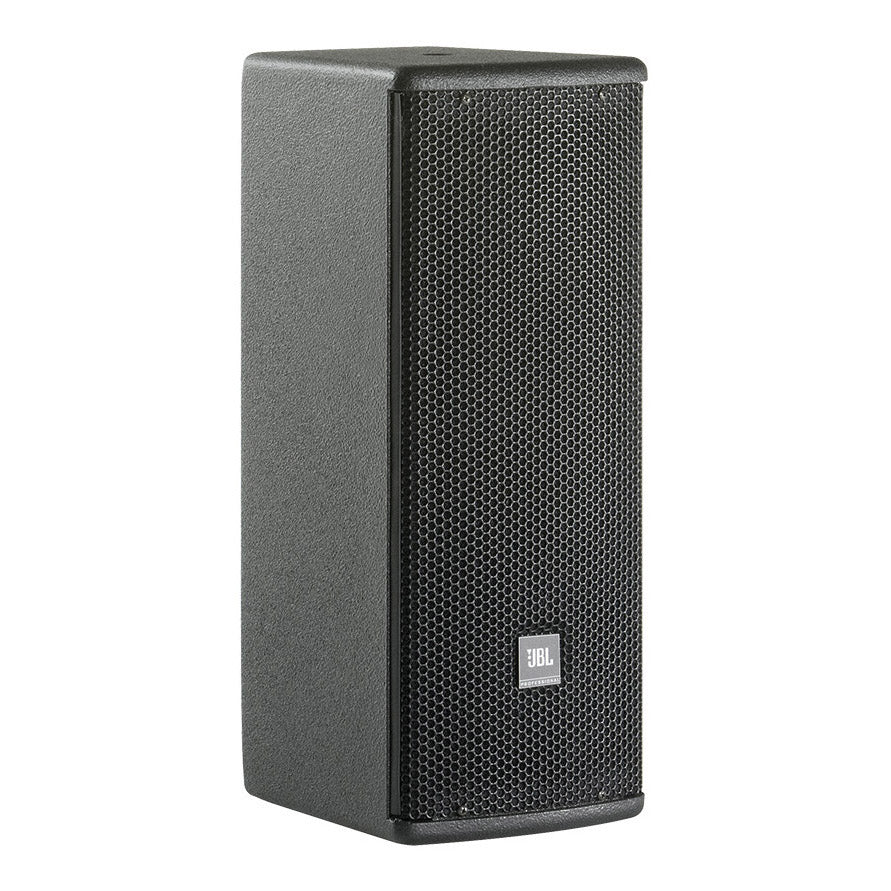

• JBL AC25 5.25" 2-Way Ultra Compact Speaker
1 1

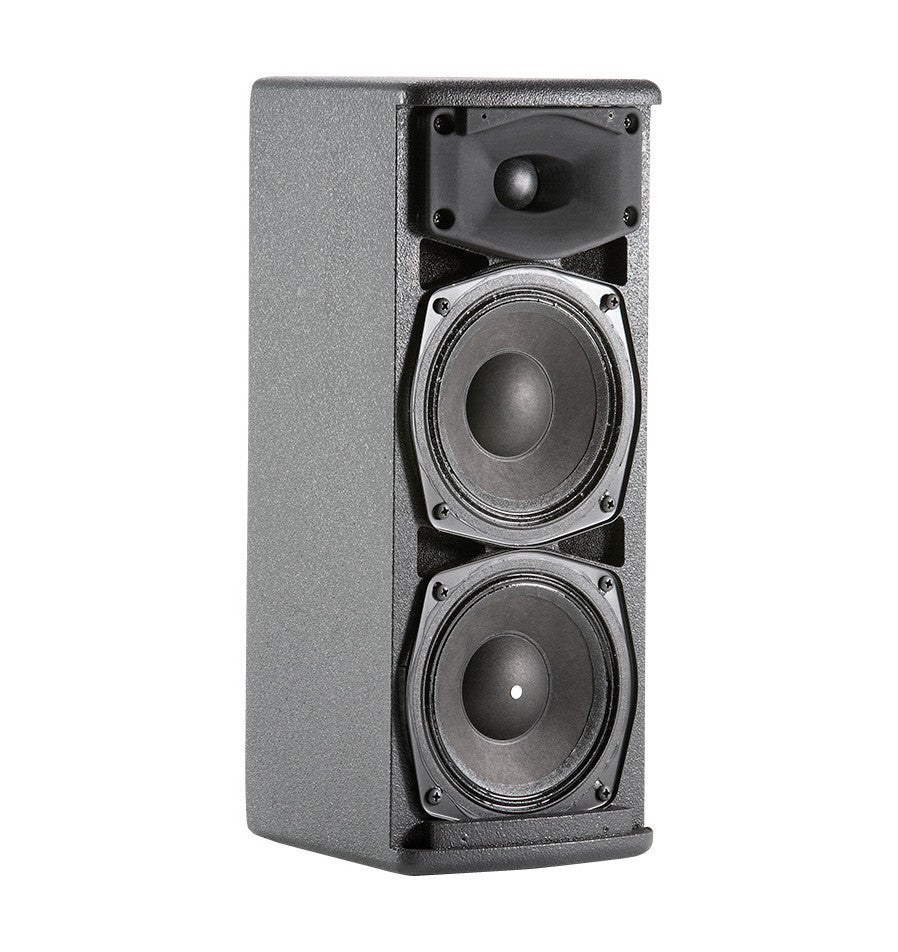

JBL AC25 5.25-Inch Surface Mount Install Speaker | Color: White

JBL AC25 5.25-Inch Surface Mount Install Speaker | Color: White

SoundPro Item: 50169 | Part Number: AC25-WH

$1,080.00
$1,080.00 $1,080.00
Your Price Sold out
MSRP: $1,080.00 | MAP: $1,080.00

Usually ships in 5-7 business days

  • Ultra compact enclosure
  • Dual 135 mm (5.25 in) LF transducers
  • 90° x 90° waveguide with 25 mm, (1 in) dome tweeter
  • Dual Neutrik NL4 connectors plus screw terminals
  • Multiple Attachment Points for Ultimate Flexibility
Log in or register for YOUR best price

The AC25 is an ultra-compact full-range loudspeaker system designed to provide maximum bandwidth and SPL in a single system package and yet be visually unobtrusive. The enclosure design allows for installation very close to walls and ceilings making it an ideal choice for under balcony, column, or wall mounting. The high frequency device is a 1" dome tweeter integrated into a newly designed 90° x 90° waveguide providing even coverage throughout the intended usage area. The combination exhibits smooth power response resulting in extremely natural voicing. The AC25 utilizes dual 5.25" Symmetrical Field Geometry (SFG™) LF Transducers each with a copper-clad aluminum edge wound 1.5" voice coil and a copper-capped pole piece that improves performance by reducing voice coil inductance and distortion. In addition Filtered Array Technology (FAT™) is utilized to independently control the dual woofers for magnitude and phase response resulting in smoother power response and constant coverage.

View full details
  • Frequency Range (-10dB)80 Hz -20 kHz
  • Frequency Response (±3 dB)90 Hz -18 kHz
  • System Power Rating
    • 300 W (AES rated)
    • 225 W / 450 W / 900 W (Continuous/Program/Peak) (IEC rated)
  • Impedance 16 ohms
  • Coverage Pattern 90° x 90°
  • Dimensions (H x W x D) 377.8 x 150.3 x 177.8mm (14.9 x 5.9 x 7.0in)
  • Net Weight (each) 7.5 kg (16.5 lb)
  • Crossover Modes Passive
  • Maximum SPL (1m) 115 dB
  • System Sensitivity (1w @ 1m) 91 dB SPL
  • LF Driver 2 x JBL 225H, 135 mm (5.25 in) SFG™ driver with 38 mm (1.5 in) edge wound voice coil
  • Nominal LF Driver Impedance 16 Ohms
  • HF Driver 1 x JBL 201J, 25mm (1 in) voice coil dome tweeter
  • Enclosure 12 mm exterior grade multi-ply hardwood plywood
  • Suspension Attachment 4 x M8 points; 1 top, 1 bottom, 2 rear. 4 x M6 rear for MultiMount® MM-022-BT, MM-024-BT, or MM-020-CM.
  • Environmental Mil-Std 810; IPx3 per IEC529.
