Ace Backstage Isolated Back Box for Stage Pockets | Double Wide

Ace Backstage Isolated Back Box for Stage Pockets | Double Wide

SoundPro Item: 57157 | Part Number: ISO104BBX

$412.52
$412.52 $412.52
Your Price Sold out
MSRP: $412.52 | MAP: $412.52

Usually ships in 5-7 business days

  • Compatible Exclusively With Double Wide Stage Pockets For Secure Indexed Installation
  • AC Isolation Divider Support Separates Low And High Voltage Panels Within The Same Pocket
  • Combination Knockouts On All Sides Accept Multiple Standard Conduit Trade Sizes
  • Tool-And-Die Fabricated For Modular Conformity Across Large Multi-Pocket Installations
  • ASTM Electrodeposited Clear Zinc Finish Provides Military-Standard Corrosion Protection
  • UL Listed Construction Meets Nationally Recognized Electrical Safety Standards
  • Temporary Protective Cover Shields Interior During Construction Phase Until Final Install
Log in or register for YOUR best price

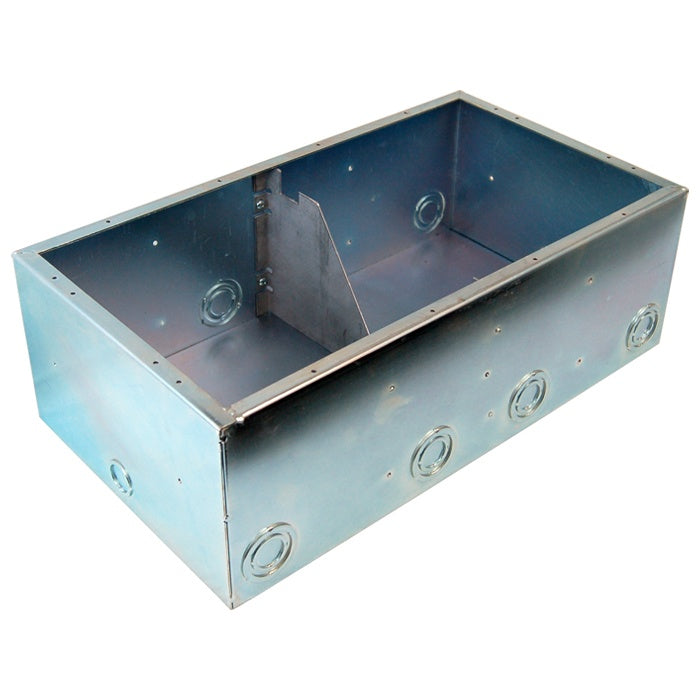

The Ace Backstage ISO104BBX is a heavy-duty rough-in back box designed for permanent installation in theatrical stages, performance venues, and installed production environments where Double Wide Stage Pockets are specified. Built for integrators and production facility contractors who require code-compliant, structurally sound sub-floor infrastructure, this back box provides the below-floor foundation that the pocket assembly indexes into and locks against for a secure, repeatable installation.

The box is engineered to support AC isolation between low-voltage connector panels and high-voltage duplex electrical panels, a critical requirement in live production environments where signal integrity and electrical safety must coexist in the same floor pocket. Combination conduit knockouts on all four sides accommodate standard trade sizes, giving electricians full flexibility when routing EMT or rigid conduit from any direction. An internal predrilled mounting flange allows the above-floor pocket bezel and below-floor rough-in box to be clamped together without additional hardware fabrication on site.

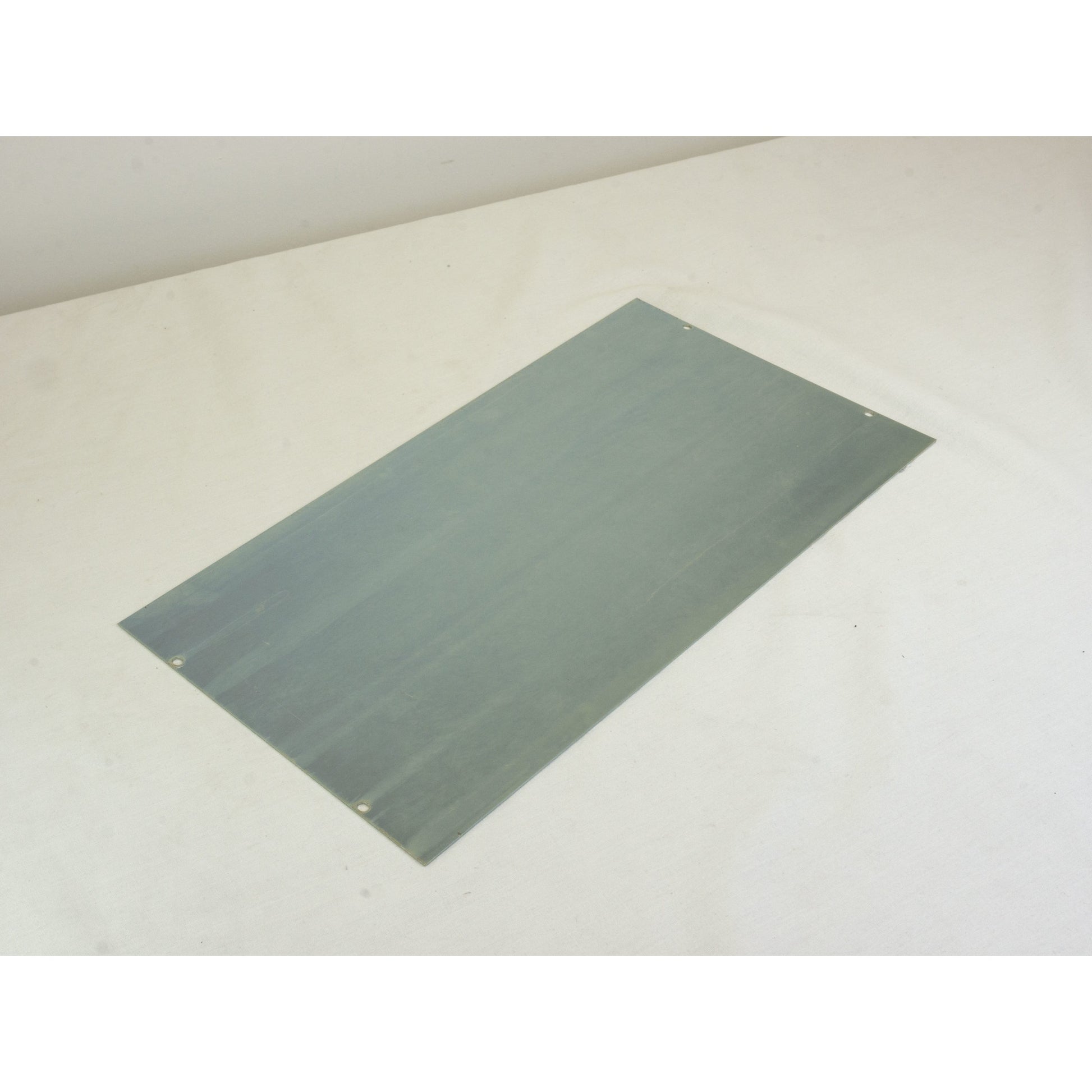

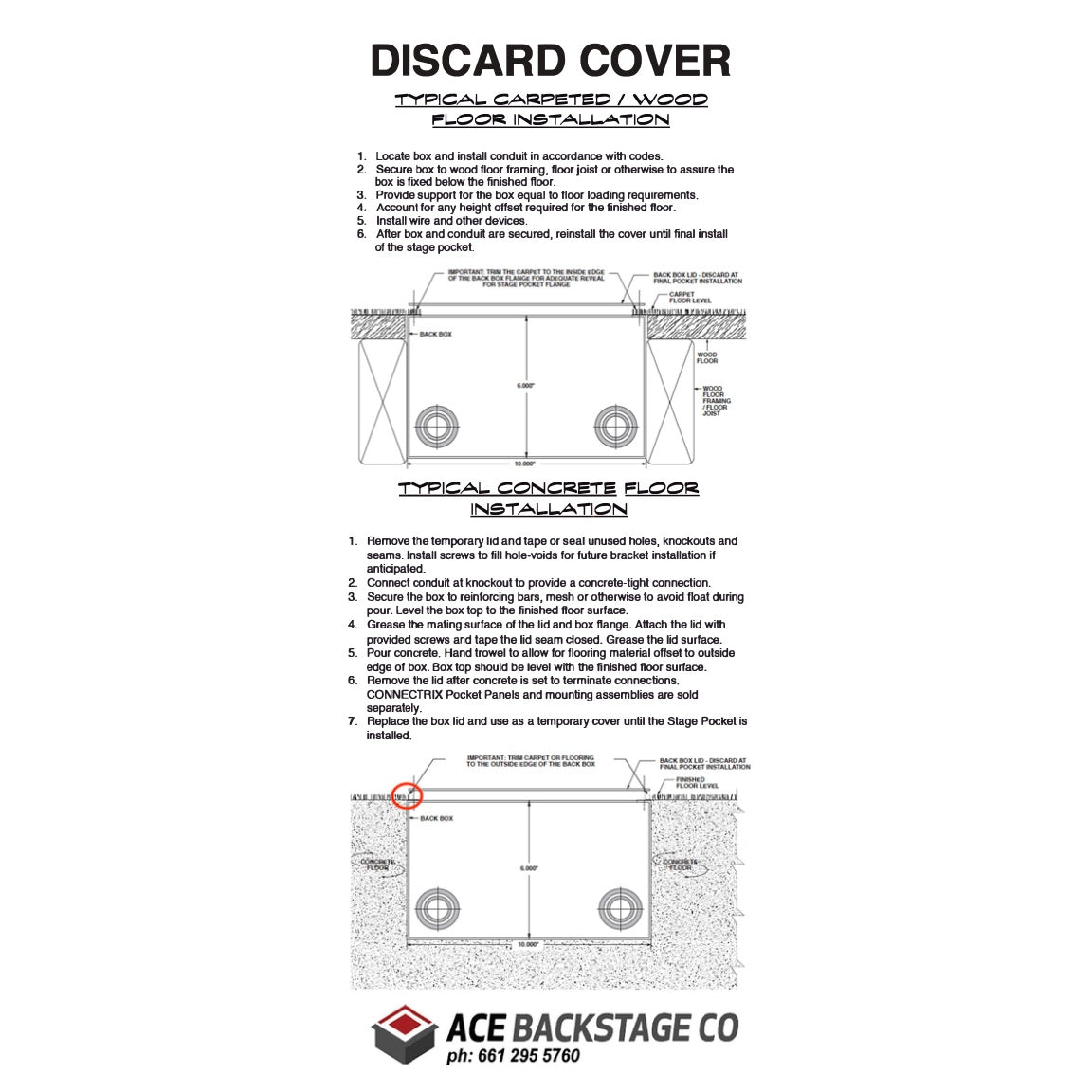

Consistency across large-scale installs is ensured through tool-and-die fabrication, which delivers modular conformity across every unit. The electrodeposited clear zinc finish meets ASTM standards for corrosion protection to military specifications, making this back box appropriate for environments where sub-floor moisture exposure is a concern. A temporary protective cover ships with each unit and is discarded at final pocket installation, protecting the interior during the construction phase.

Downloads

View full details

Specifications

Certifications
UL Listed
Yes
Corrosion Protection Standard
ASTM Electrodeposited Clear Zinc (Military Standard)
Dimensions
Floor Cut Out
10" x 18"
Under Floor Depth
6"
Work Clearance Below Pocket
1.5"
Construction
Shell Material
14 ga Welded Steel
Isolation Bracket Material
16 ga Galvanneal (Impregnated Steel)
Fabrication Method
Tool and Die
Connectivity
Knockout Positions (Opposing Sides)
4 (Combination: 1/2", 3/4", 1", 1-1/4")
Knockout Positions (Remaining Sides)
Single Position (1/2", 3/4")
