QSC AD-P6T AcousticDesign 6.5-Inch Pendant Speaker | Color: White

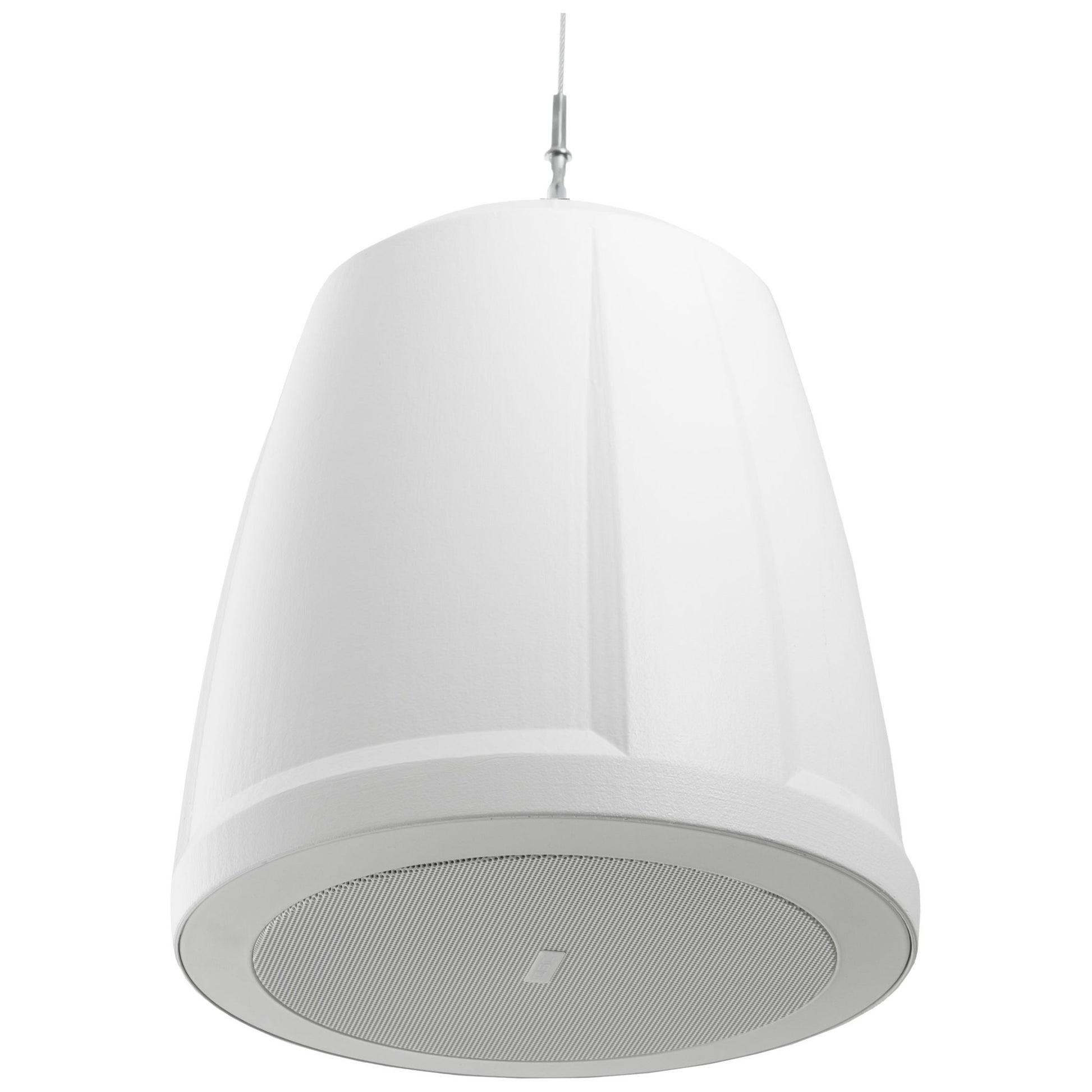

The AD-P6T from QSC’s AcousticDesign series is a two-way pendant-mount loudspeaker. It’s ideal in foreground and background sound reinforcement situations utilizing 70/100V or 16Ω bypass configurations. The AD-P6T features a high-quality 6.5" weather-treated paper cone woofer with a 1" voice coil and a .75" aluminum dome tweeter. Among its many features, Intrinsic Correction™ voicings can be deployed to optimize installation and performance.

Achieve coherent transition between transducers with Directivity Matched Transition™ (DMT), QSC’s design philosophy where the high-frequency waveguide is matched to the natural conical behavior of the woofer at the crossover point. DMT’s improved off-axis power response results in consistent 150° conical coverage.

Maintain an accurate frequency response even in 70/100V applications. The AD-P6T’s low-loss, low-saturation 30-watt transformer offers selectable taps (including 16Ω bypass) and incorporates a rotary selector under the magnetic snap-fit steel grille. The speaker’s locking 4-pole Euro-block connector accepts up to four 18AWG pairs, eliminating the hassles of star topology wiring designs, while a sealable input cover protects connections from moisture.

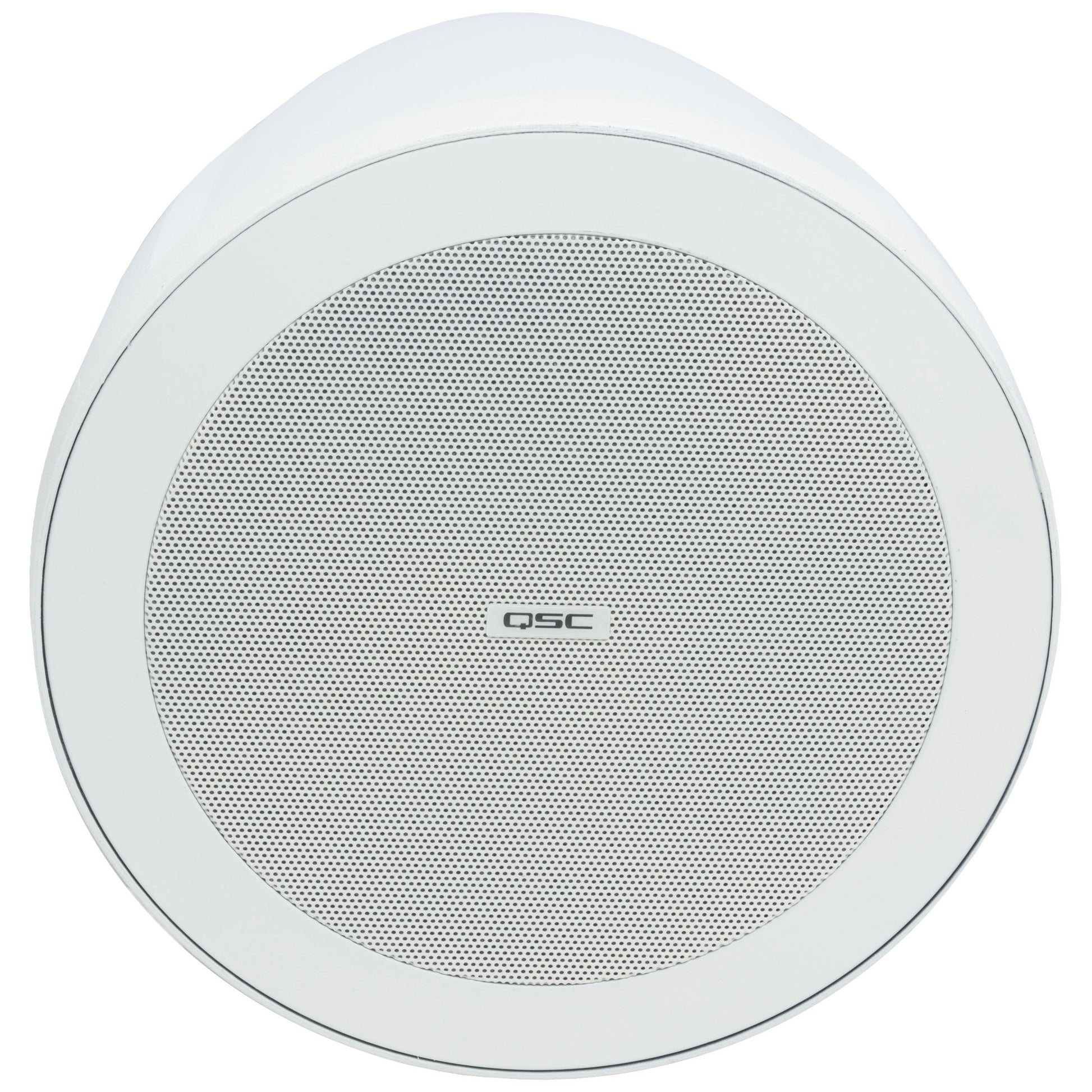

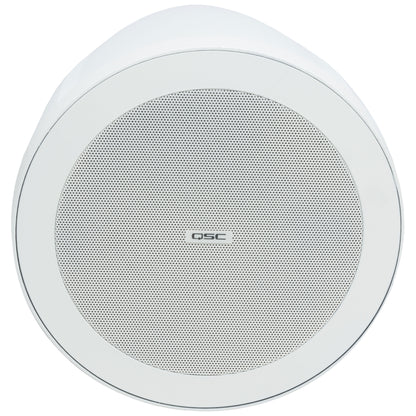

In addition to its durable powder-coated steel back can, the AD-P6T boasts a rugged ABS baffle that uses UV inhibitors to prevent discoloration. The magnetic grille has a removable logo ideal for non-branded installations. Two quick-link cable assemblies and slip-lock fasteners are included to streamline setup.

AcousticDesign speakers are free of obtrusive branding. They’re available in black or white, as well as paintable to match any décor.

More about QSC’s AcousticDesign Series

Easy installation, flexible mounting options, and rugged, high-weather resistance are just three of the features that set QSC’s AcousticDesign™ series apart. These premium loudspeakers are designed to give contractors and integrators versatile, reliable solutions for permanent sound installations. Unified by premium audio quality and consistent tonal characteristics this series is comprised of ceiling, surface, and pendant alternatives ideal for environments where you need the perfect combination of performance, coverage, and aesthetic appeal.
