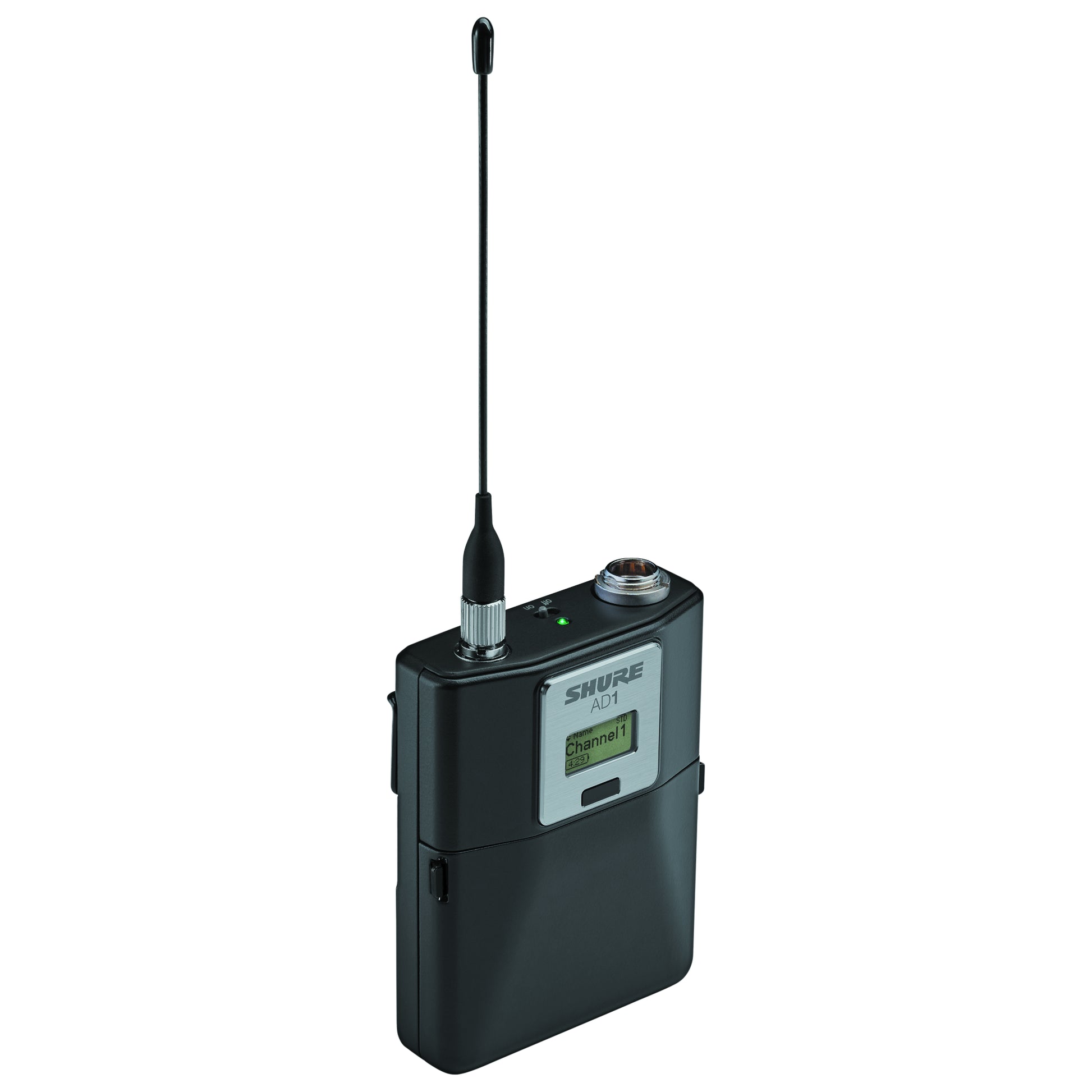

• Shure AD1 Bodypack Transmitter Front
1 1

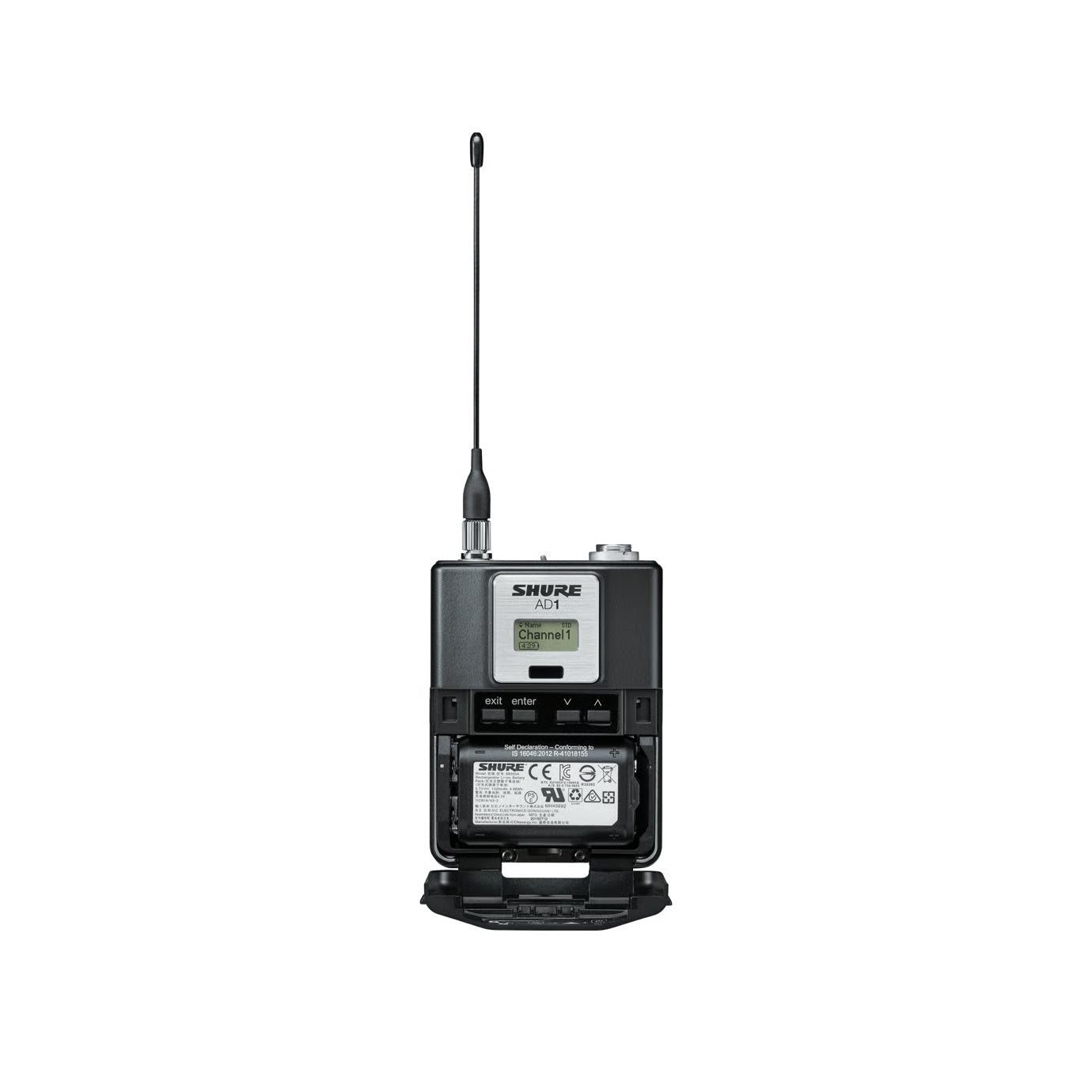

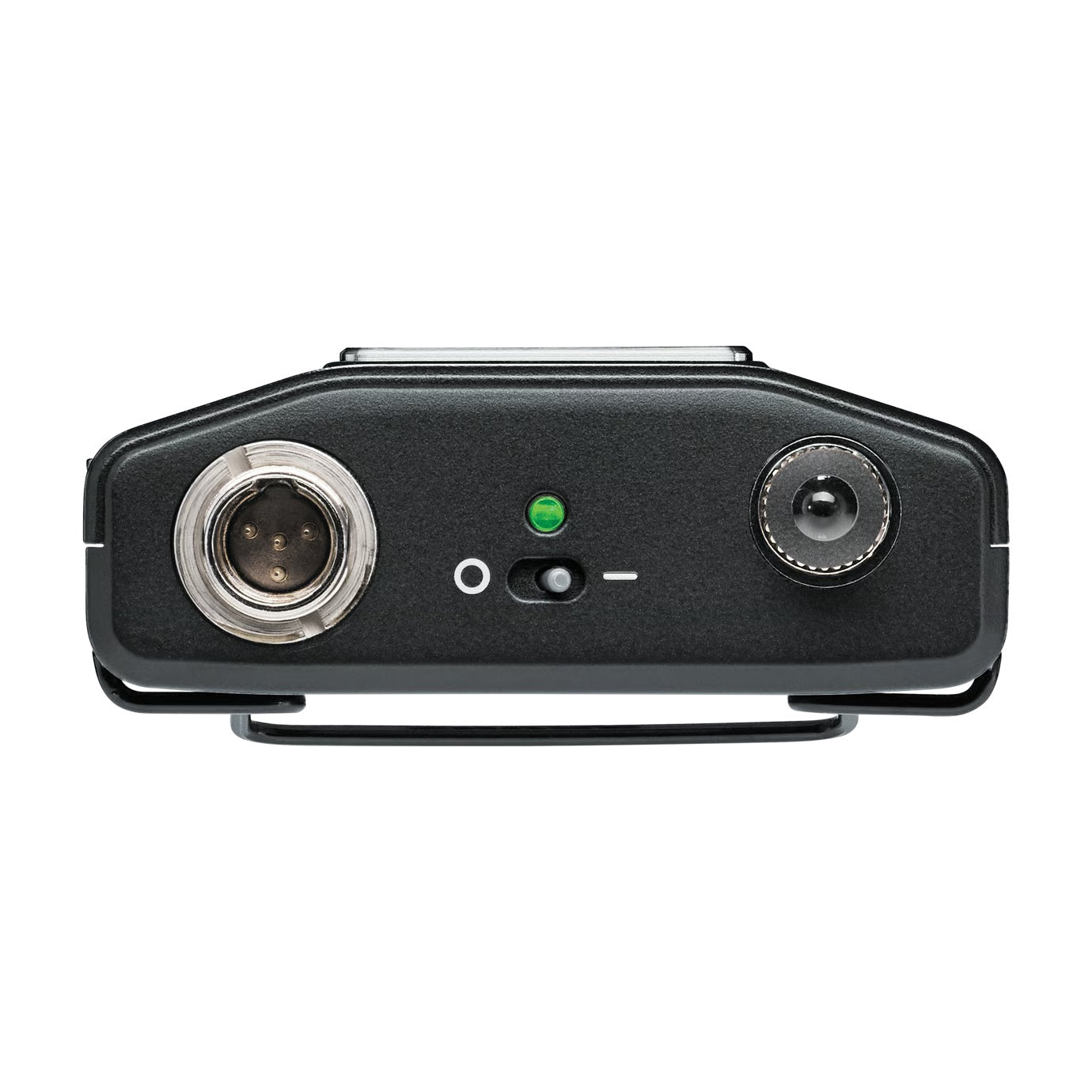

Shure AD1 Axient Digital Wireless Bodypack Transmitter | Frequency: X55 (941-960 MHz)

Shure AD1 Axient Digital Wireless Bodypack Transmitter | Frequency: X55 (941-960 MHz)

SoundPro Item: 63874 | Part Number: AD1=-X55

$978.00
$1,222.00 $978.00
Your Price Sold out
MSRP: $1,222.00 | MAP: $978.00

Usually ships in 5-7 business days

  • 20 Hz to 20 kHz range with flat frequency response
  • Automatic input staging optimizes gain setting
  • AES 256-bit encryption-enabled for secure transmission
  • >120 dB dynamic range
  • 100m (300 feet) line-of-sight operating range
  • Selectable modulation modes optimize performance for spectral efficiency: standard (optimal coverage, low latency), high density (dramatic increase in max system channel count)
  • Built-in tone generator and RF markers to facilitate walk-testing
  • Switchable Power Levels = 2/10/35 mW (region dependent)
  • Frequency Diversity selection using two bodypacks
  • TA4 or LEMO3 audio connector option
  • Backlit LCD with easy to navigate menu and controls
  • Rugged metal construction
  • Flexible ¼ wave antenna
  • Menu and power lockout
  • Over 8 hours continuous use with 2 x AA alkaline batteries
  • Lithium-ion rechargeable battery provides extended battery life, precision metering, and zero memory effect
  • External charging contacts for docked charging
Log in or register for YOUR best price

A member of the Shure Axient Digital Wireless Systems line, the AD1 Bodypack Transmitter equips you with professional-caliber audio, no matter what your application. Its rugged metal construction allows it to take the punishment of the most demanding stages. The AD1 bodypack incorporates a TA4 connector (another available option, the AD1LEMO3, is sold separately).

Achieve stellar audio quality and breakthrough RF performance in this feature-packed wireless digital transmitter. Choose between two transmission modes: Standard Mode optimizes wireless coverage, while High Density Mode intensifies the coverage and maxes out the system’s channel count. The AD1’s other features include wide tuning up to 184 MHz, an included detachable ¼-wave antenna, and secure transmission via its encryption enabling. The AD1 also offers convenient power options. Use the included pair of AA batteries, or opt for the compatible SB900B lithium-ion rechargeable batteries (sold separately). The bodypack includes external contacts for charging the entire unit in a dock (sold separately).

Also included with the AD1 Bodypack Transmitter are a threaded TAF4 adapter, belt clip, and bag for transport and storage.

Note: When purchasing separate wireless components, please match their frequency bands to ensure proper system operation.

View full details
  • Mic Offset Range-12 to 21 dB (in 1 dB steps)
  • Battery TypeShure SB900B Rechargeable Li-Ion or LR6 AA batteries 1.5 V
  • Battery Runtime @ 10 mW
    • Shure SB900B: up to 8 hours
    • Alkaline: up to 8 hours
  • Dimensions (HxWxD)3.4x2.6x0.9"
  • Weight155g (5oz), without batteries
  • HousingCast Metal
  • Operating Temperature Range-18°C (0°F) to 50°C (122°F)
  • Storage Temperature Range-29°C (-20°F) to 74°C (165°F)
  • Audio Input
    • Connector: 4-Pin male mini connector (TA4M) or Lemo Connector
    • Configuration: Unbalanced
    • Impedance
      • 4-Pin male mini connector (TA4M): 910 kΩ
      • Lemo Connector: 8.2 kΩ
    • Maximum Input Level: 1 kHz at 1% THD
      • Pad Off: 8.5 dBV (7.5 Vpp)
      • Pad On: 20.5 dBV (30 Vpp)
    • Preamplifier Equivalent Input Noise (EIN)
      • System Gain Setting ≥ +20
      • -120 dBV, A-weighted, typical
  • RF Output
    • Connector: SMA
    • Antenna Type: 1/4 wave
    • Impedance: 50 Ω
    • Occupied Bandwidth: <200 kHz
    • Channel-to-Channel Spacing
      • Standard Mode: 350 kHz
      • High Density Mode: 125 kHz
    • Modulation Type: Shure Axient Digital Proprietary
    • Power: 2 mW, 10 mW, 35 mW
    • Specific Absorption Rate (SAR): < 0.20 W/kg
