- Control
- Operating Modes: 3
- Operating Modes: built-in timer, manual, or DMX control
- DMX Channel Modes: 3 (1,2 & 6)
- DMX Channels: 1 Ch, 2 Ch, or 6 Ch

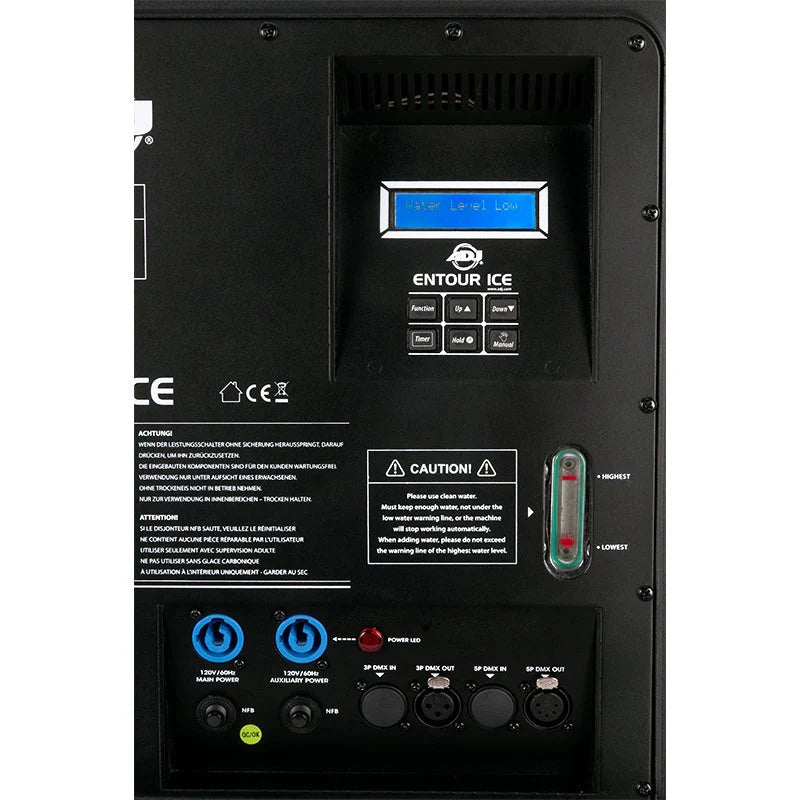

- Connections
- DMX Input/Output: 3- pin & 5-pin
- Power Inputs: 2x powerCON
- Thermal
- Max Ambient Temperature: 104° | 40°
- Max Surface Temperature: 140° | 60°
- Max Water Temperature: 80., 75., 70., 65.
- Initial heat time: 90 min @ 120V/ 45 min @ 230V
- Electrical
- Power Voltage: 120V~230VAC / 50/60Hz (non-switchable)
- Dual Element Heating System: 2x 1450 Watts @ 120V/ 2x 3000 Watts @230V
- Power Consumption: (full) 3000 Watts @120V/ 6000 Watts @ 230V
- Physical
- Dimensions without case + wheels: 21.4 x 18.1 x 24.3" (543 x 460 x 617 mm)

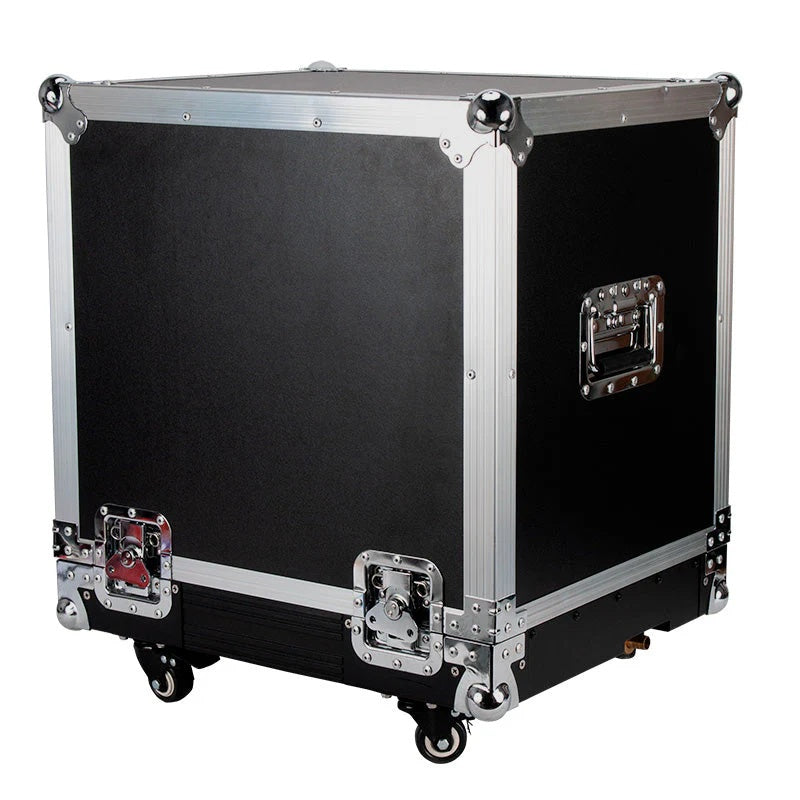

- Dimensions with flight case + wheels: 21.4 x 18.1 x 24.8" (543 x 460 x 629 mm)
- Weight: (with wheels no case cover): 72.8 lbs (33 kg)
- Weight: (with case cover + wheels): 93.7 lbs (42.5 kg)
- Water Tank Capacity: 8.5 gal (32 Liters)

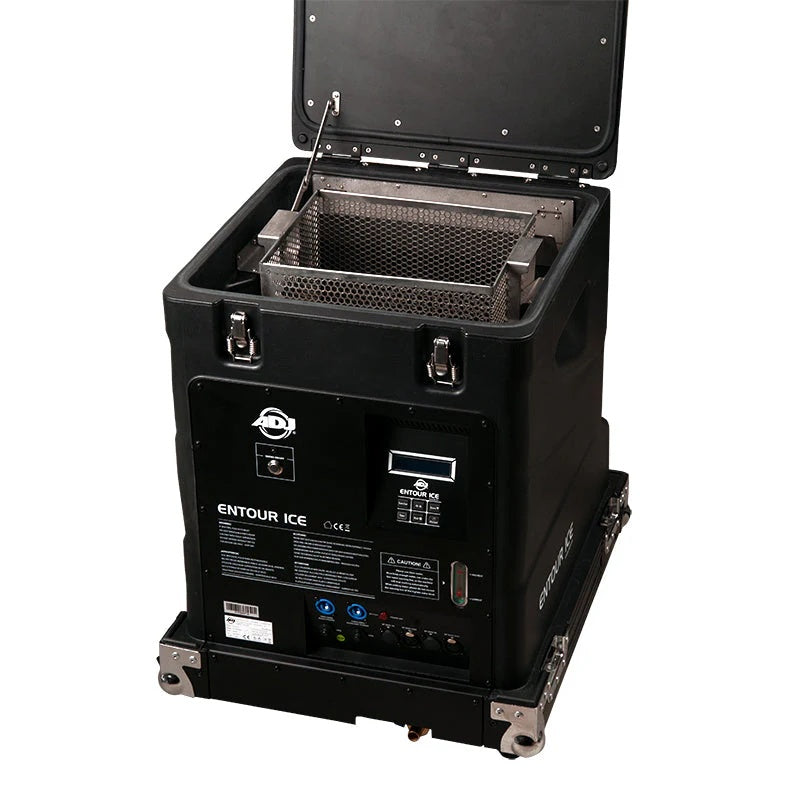

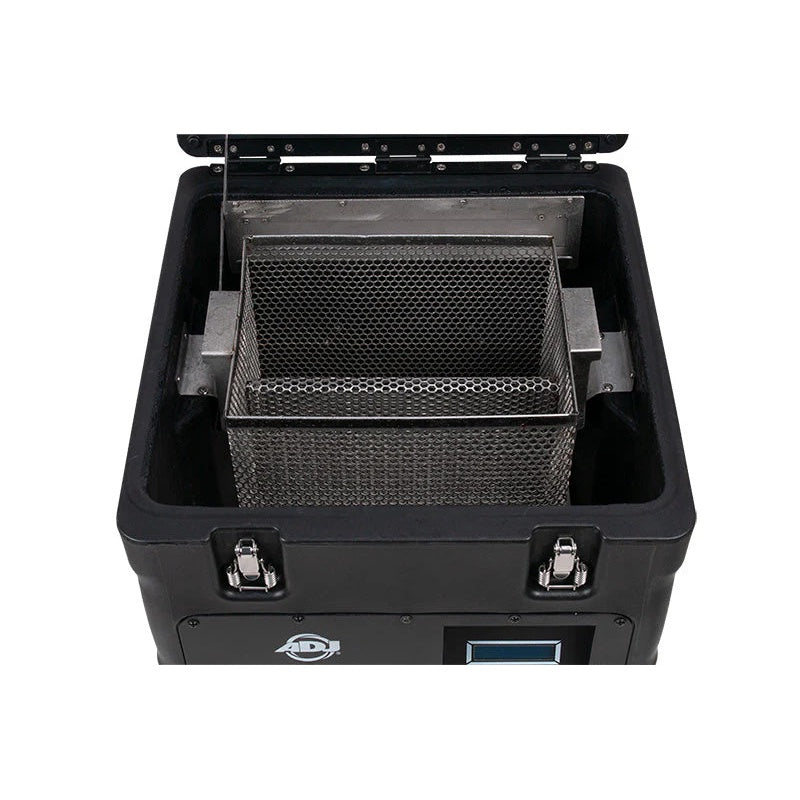

- Dry Ice Basket Capacity: 26.5 lbs (12 kg)
