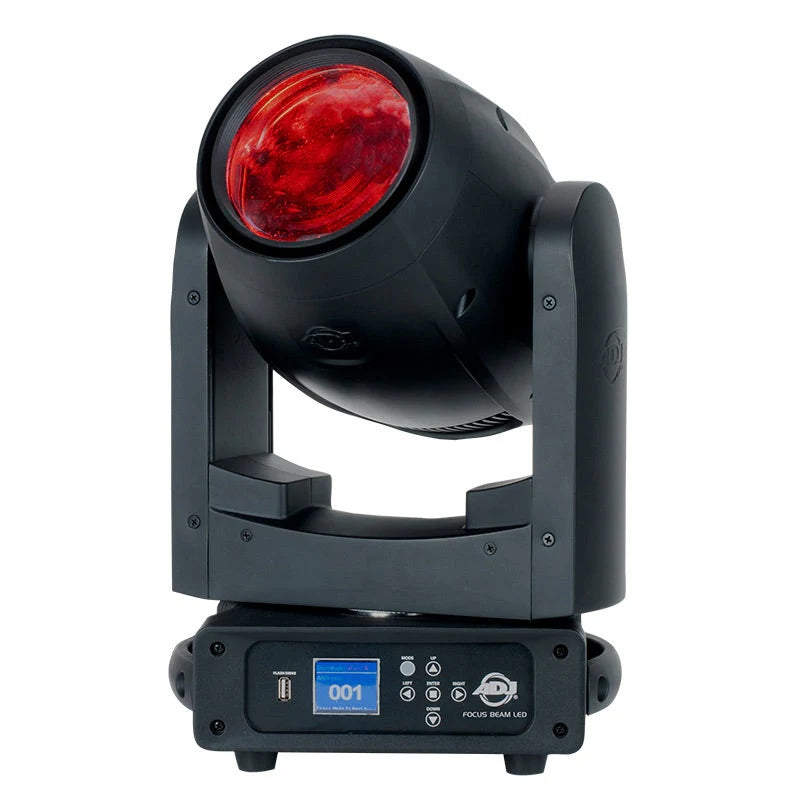

• ADJ Focus Beam LED Moving Head red
1 1

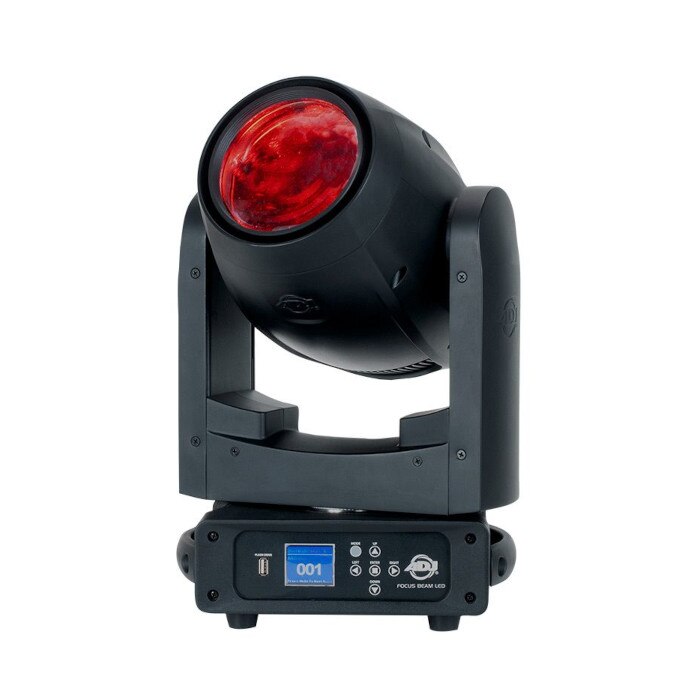

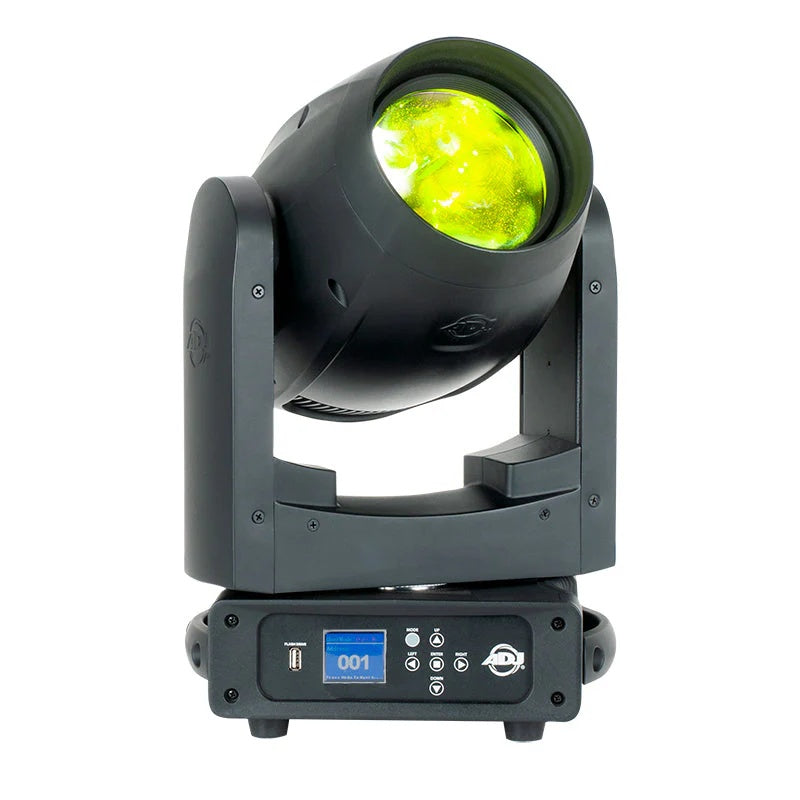

ADJ Focus Beam LED Moving Head

ADJ Focus Beam LED Moving Head

SoundPro Item: 42568 | Part Number: FOCUS BEAM LED

$1,719.99
$2,399.95 $1,719.99
Your Price Sold out
MSRP: $2,399.95 | MAP: $1,719.99

Usually ships in 5-7 business days

  • 80W LED
  • 2.5° beam
  • Motorized focus
  • Two prism wheels
  • Built-in frost filter for wash effects
  • Strobe and pulse control
  • USB firmware update port
  • Touch display with 5-button touch menu
  • With Wired Digital Communication Network
Log in or register for YOUR best price

The ADJ Focus Beam LED features motorized focus, two prism effects (rotatable 8-facet Circular and 6-facet Linear), and a built-in frost filter for wash effects.

The Focus Beam LED, a complimentary fixture to the other Focus Series moving heads, uses a powerful 80W LED engine to produce a powerful, 7400K, 2.5-degree beam from an advanced optical system.

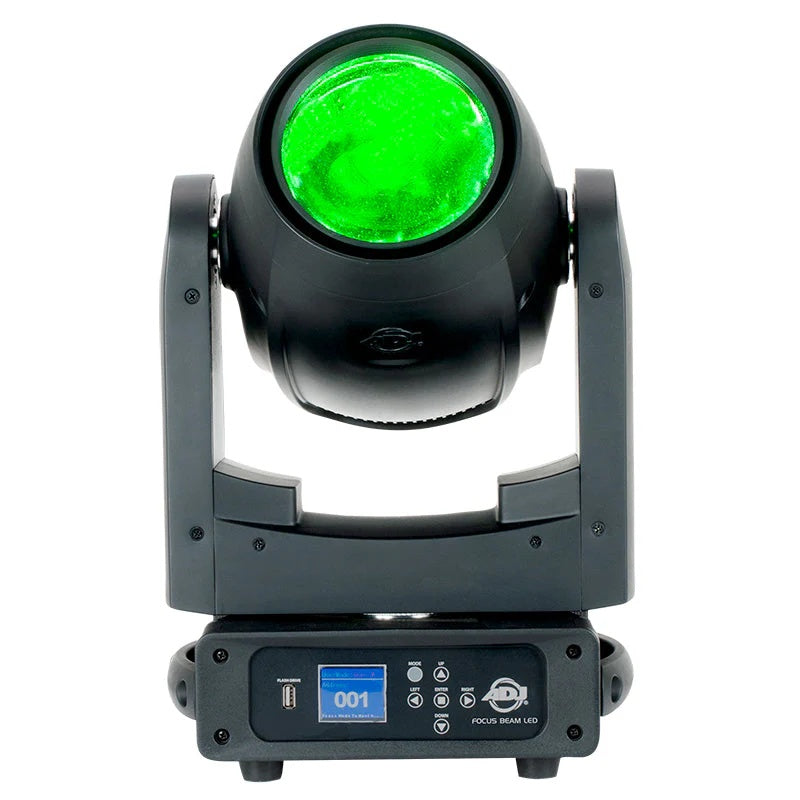

There are a variety of control options on the Focus Beam LED such as: DMX & RDM protocol, a variety of dimming modes, fine pan and fine tilt options, and adjustable gamma and LED refresh rate settings. There is an on-board function display with 5 touch buttons making it easy to dial in custom settings.

The Focus Beam LED offers 13 dichroic colors plus white, and has 15 fixed GOBOs plus open and a GOBO shake effect.

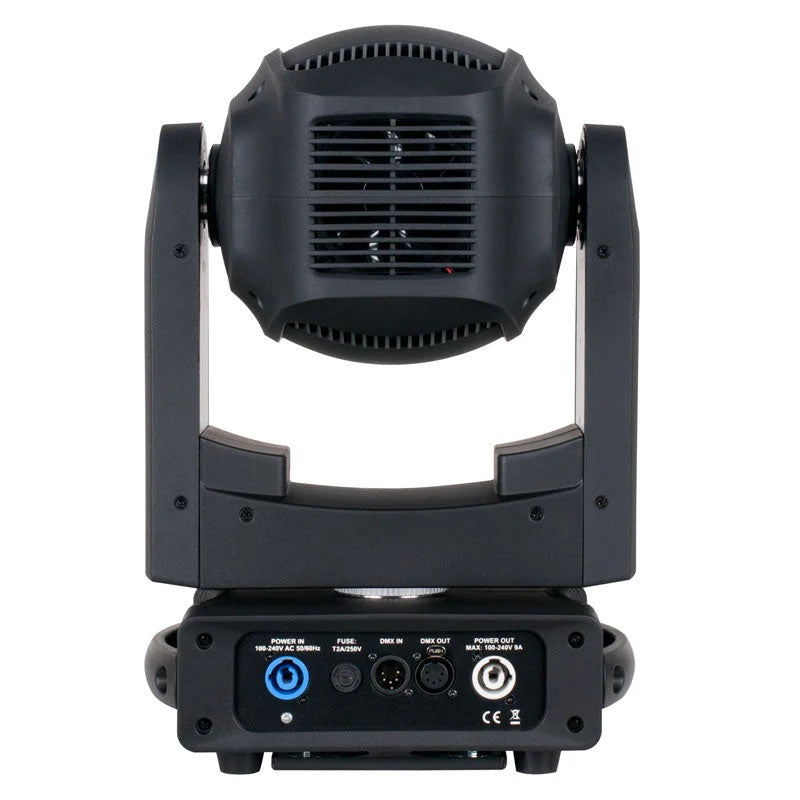

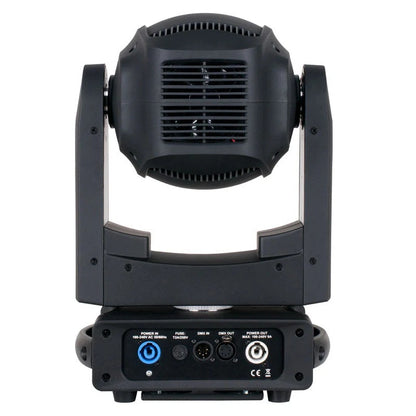

There is a convenient USB port on the rear panel used to update firmware. The fixture has locking Seetronic In/Out connections to daisy chain power, and 5-pin DMX In/Out to link data. The fixture is compact and lightweight suitable for fixed installations or temporary, mobile event applications.

View full details
  • Light Source
    • 1 x 80W cool white LED engine
    • Beam Angle: 2.5°
    • Color Temperature: 7400K
    • Average LED Life: 50,000 hours
  • Control ProtocolDMX & RDM (Remote Device Management)
  • DMX Modes2 (16 & 18)
  • Dim Modes6 Presets (Standard, Stage, TV, Architectural, Theatre & Stage 2)
  • Dim Speed Control0.1~10 seconds
  • Dimming0-100%
  • 2 Prisms6 & 8 Facet, Indexable and Rotatable
  • Adjustable LED Refresh Rates900~25kHz
  • Adjustable Gamma Settings1.0-2.8

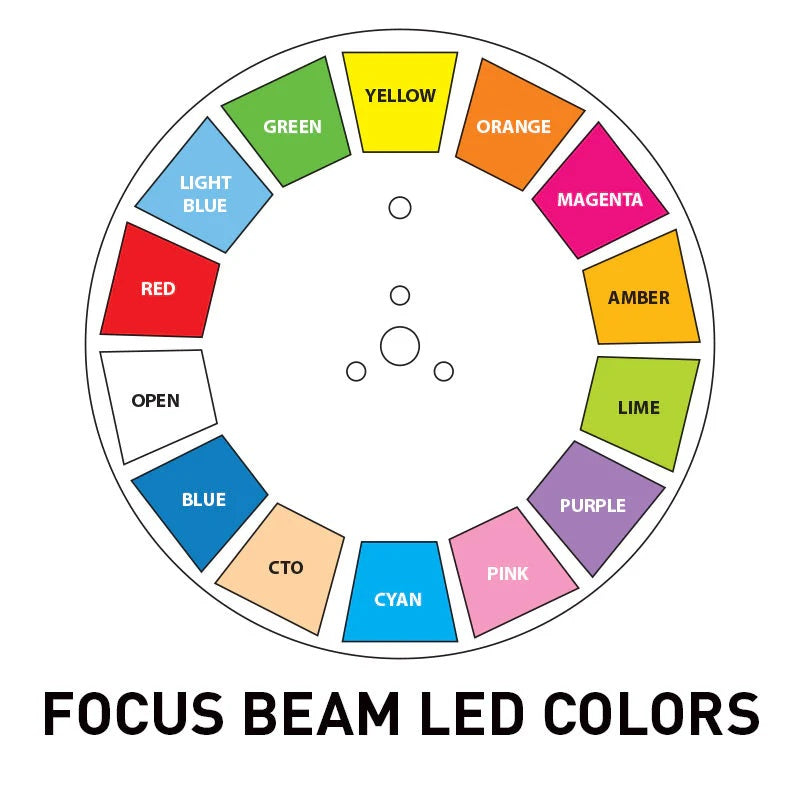

  • Color Wheel13 dichroic colors + white
  • GOBO Wheel

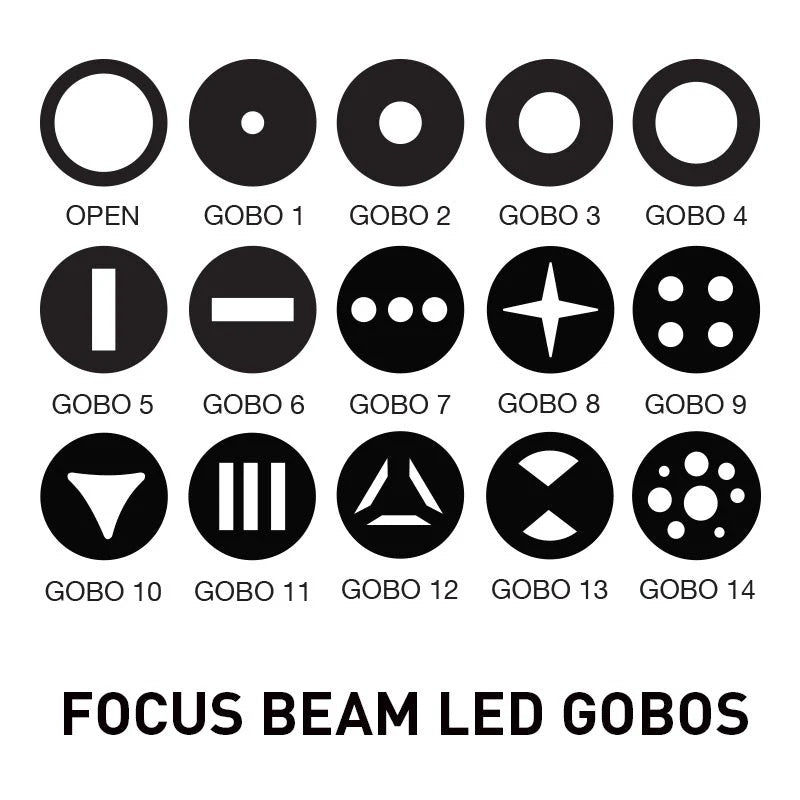

    • Metal wheel with 15 fixed GOBOs + Open
    • GOBO shake effect
  • Prism Wheel
    • Prism Wheel 1: Rotatable 8-facet Circular
    • Prism Wheel 2: Rotatable 6-facet Linear
    • Prism Indexing with overlay feature
  • Control
    • Control Modes: DMX512, RDM (Remote Device Management) & Stand Alone Internal Programs
    • 2 DMX Channel Modes: 16 & 18 channels
    • 16-Bit Pan, Tilt & Dimmer control
  • Connections
    • DMX Connections: 5-pin Locking XLR In & Out
    • Power Connections: Seetronic Locking Power In & Out
  • Pan / Tilt
    • Pan & Pan Fine: 630 degrees
    • Tilt & Tilt Fine: 270 degrees
  • Electrical
    • Multi-voltage operation: AC 100-240V, 50-60Hz (Auto Sensing)
    • Maximum Power Consumption: 136W @ 120V
    • Daisy chain: 15 units @ 120V; 30 units @ 230V
  • Weight27 pounds
  • Dimensions (LxWxH)10.96" x 7.55" x 17.61"
