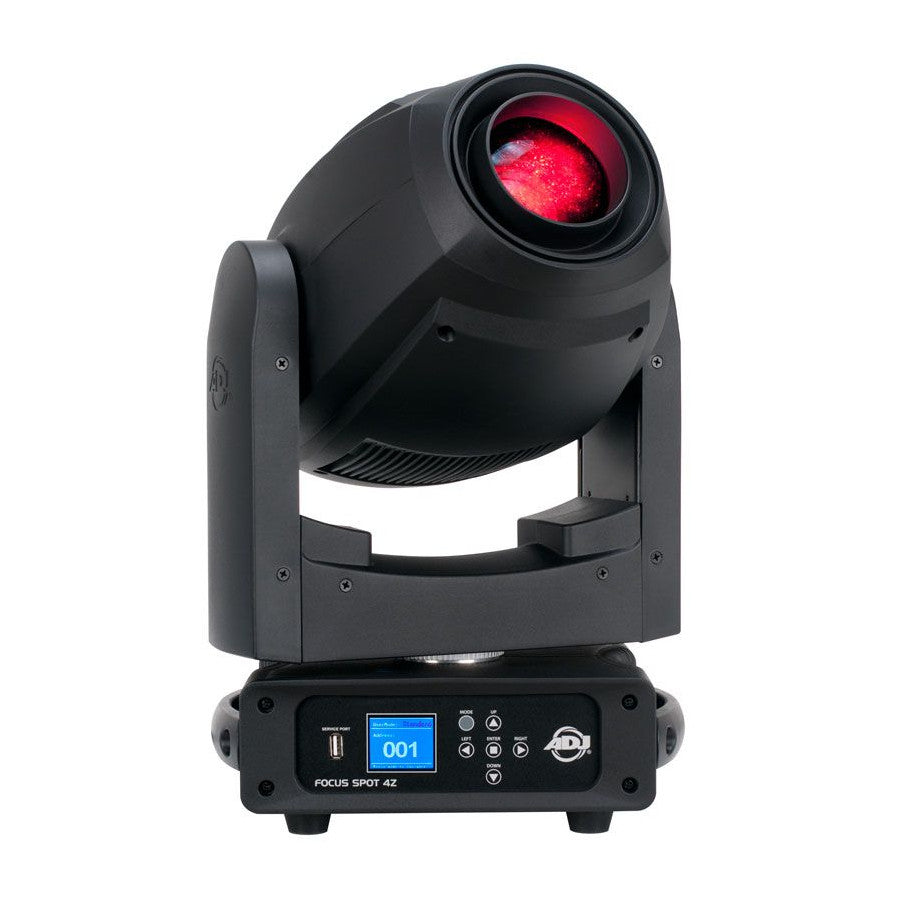

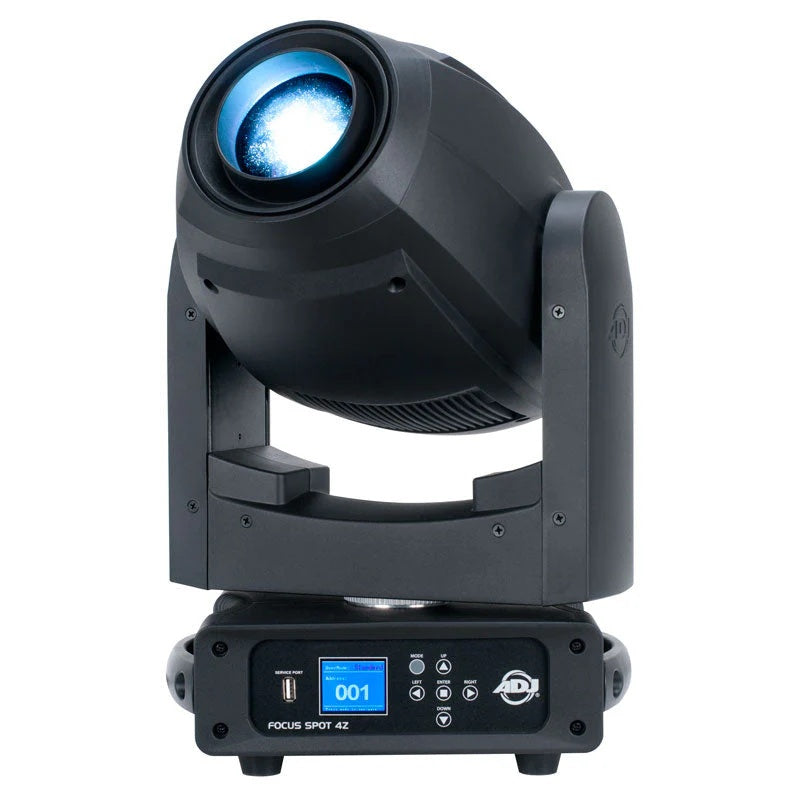

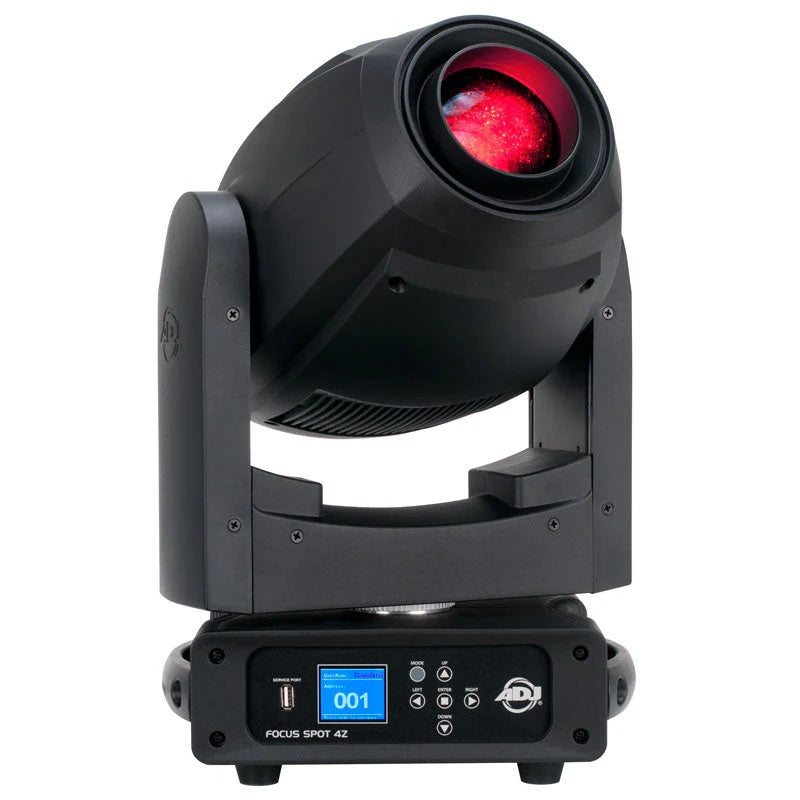

ADJ Focus Spot 4Z LED Moving Head
ADJ Focus Spot 4Z LED Moving Head
SoundPro Item: 38472 | Part Number: FOCUS SPOT 4Z
Usually ships in 5-7 business days
- 200W cool white LED engine
- Motorized focus
- 11 to 22 degree zoom
- One GOBO wheel with 6 rotating/replaceable GOBOS
- 8 vibrant colors plus white
- 2 prism wheels: one 5-facet linear, one 6-facet circular
- Daisy chainable
- DMX compatible
- USB firmware update port
- 6 dimming options

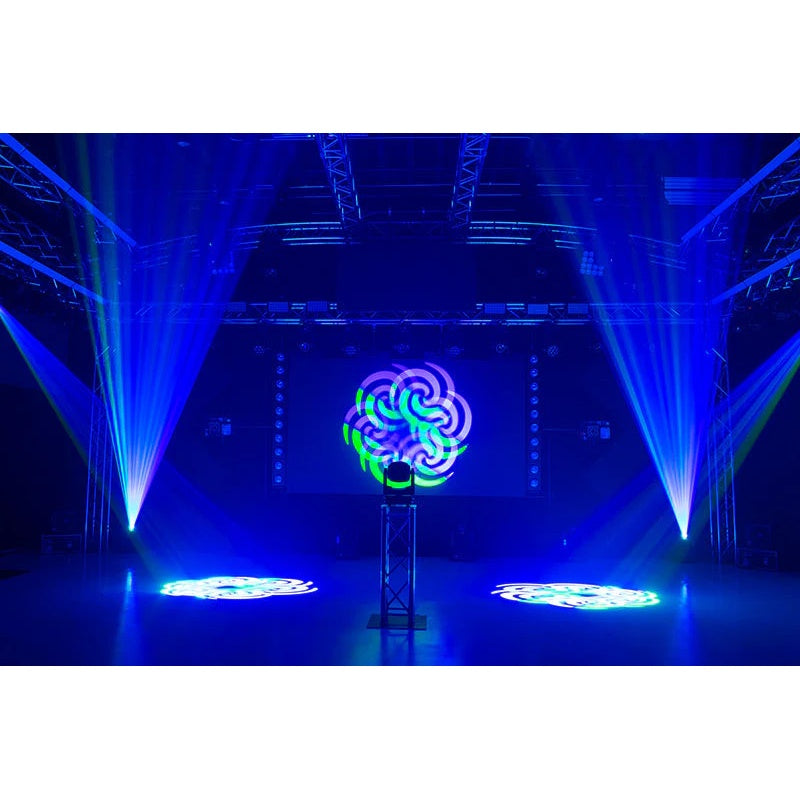

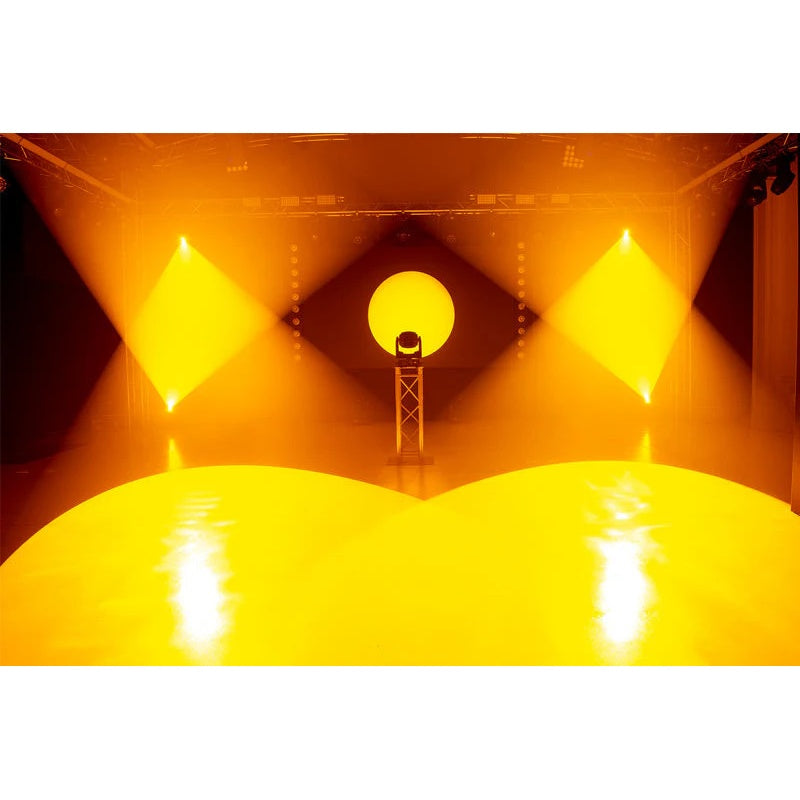

- Ideal for temporary live events and fixed installations such as nightclubs, stages, and churches
The Focus Spot 4Z is powered by a brilliant 200W cool white LED engine and is equipped with motorized focus and zoom (11 ~ 22-degree zoom). It's designed for temporary live events and fixed installations in nightclub, stages or churches. It is professionally fit with one GOBO wheel with 6 rotating/replaceable GOBOS, 8 vibrant colors plus white, and 2 prism wheels (one 5-facet linear and one 6-facet circular).

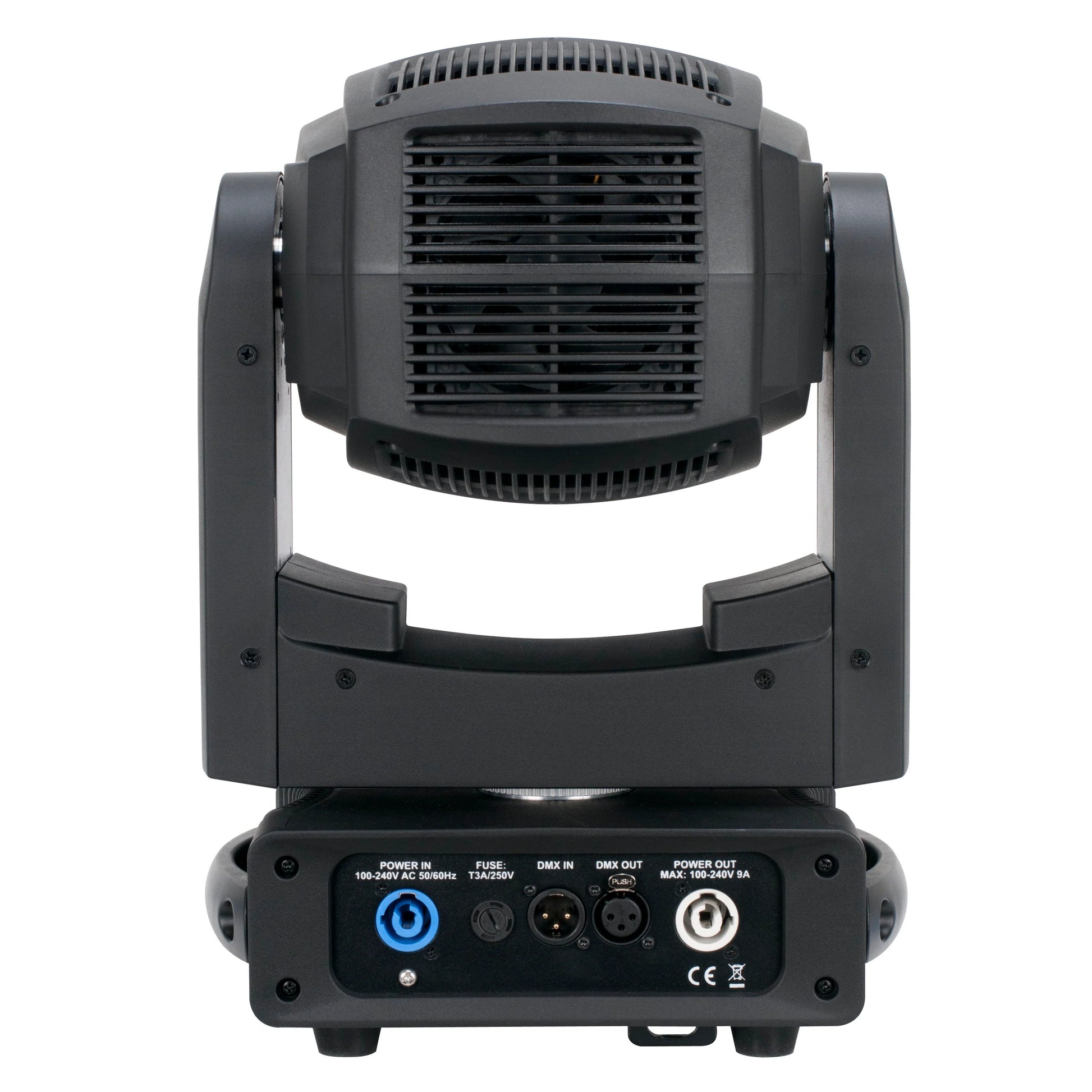

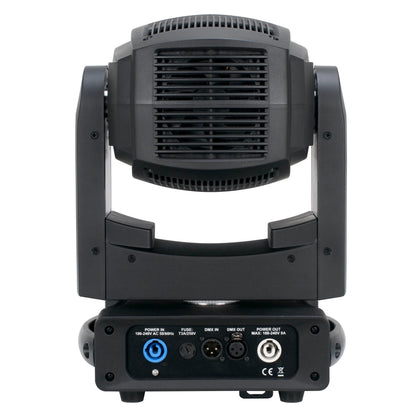

The Focus Spot 4Z has locking power In/Out connections to daisy chain the power, as well as 5-pin DMX In/Out to transmit a DMX signal from one fixture to the next. There is a USB firmware update port built-in plus advanced control options such as: 16-bit fin pan and tilt, multiple DMX control modes, and 6 different dimming options. The Focus Spot 4Z offers a robust light output in a light weight, compact foot print (18-inch high and one 23 pounds).
- Light Source200W cool white LED engine (50,000 hour)

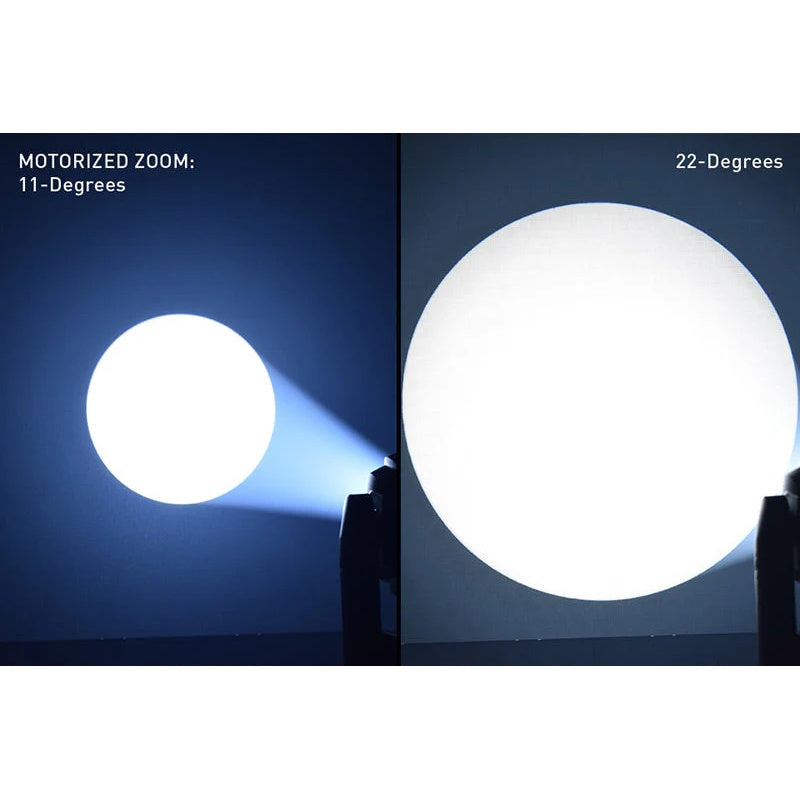

- Motorized Zoom11-22 degrees plus 16-bit Fine Zoom
- 2-Prism FXrotating 5-facet linear and rotating 6-facet circular
- Cooling Fans2

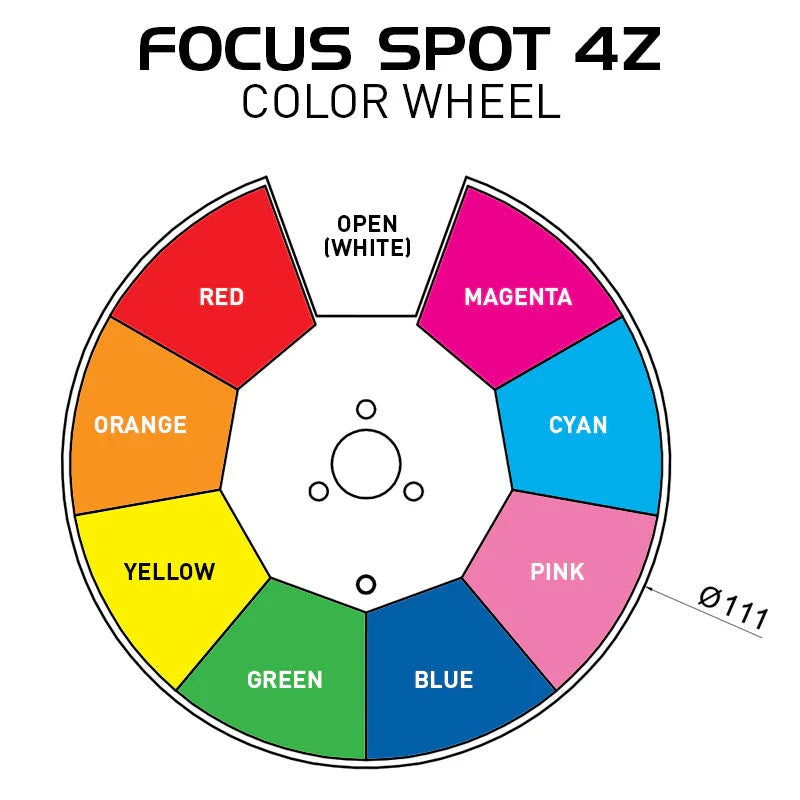

- Color Wheel8 dichroic colors + white

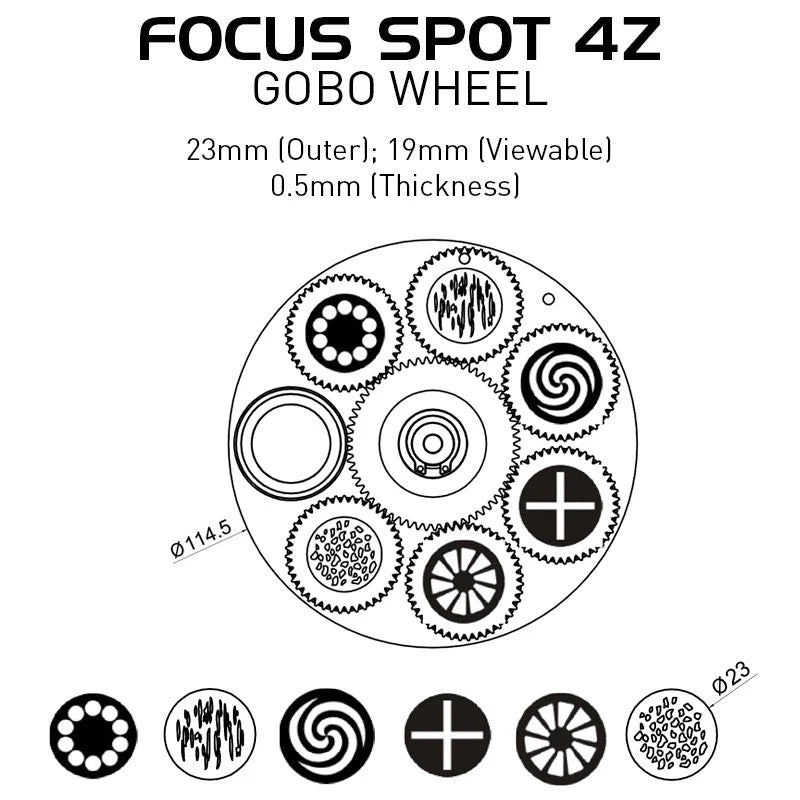

- GOBO Wheel
- 6 aluminum GOBOs + open
- All GOBOs are removable and rotatable
- GOBO Shake Effect
- GOBO Size
- Outer: 22.5mm
- Viewable: 19mm
- Thickness: 0.5-2mm
- Prism Wheel
- Prism Wheel 1: rotatable 5-facet linear
- Prism Wheel 2: rotatable 6-facet circular
- Prism Indexing
- Control
- 3 DMX Channel Modes: 16/18/22 channels
- Color LCD Display with 6-button function menu
- Data In/Out: 5-pin DMX
- Power In/Out: locking power In/Out connections (Daisy chain 4 units @ 120V; 10 units @ 240V)
- Control Mode: DMX512 or internal programs
- 6 Dimming Curve Modes: Standard, Stage, TV, Architectural, Theatre, Stage 2
- Dimming: 0-100% smooth dimming
- Various strobe speeds
- USB firmware update port
- With Wired Digital Communication Network
- RDM (Remote Device Management)
- Pan / Tilt
- Pan: 540 and 630 degrees
- Tilt: 270 degrees
- Dimensions (LxWxH)7.15" x 10.97" x 18"
- Weight23 pounds
