ADJ JOL698 Jolt Panel FXIP

ADJ JOL698 Jolt Panel FXIP

SoundPro Item: 142574 | Part Number: Jolt Panel FXIP

$1,399.99
$1,959.95 $1,399.99
Your Price Sold out
MSRP: $1,959.95 | MAP: $1,399.99

Usually ships in 5-7 business days

  • Color LED Source: 800x 0.5-Watt RGB SMD LEDs
  • Field Angle: 111°
  • LED Zones: 40 RGB/6 White
  • Outdoor Rating: IP65
  • White LED Source: 48x 5-Watt Cool White SMD LEDs
Log in or register for YOUR best price

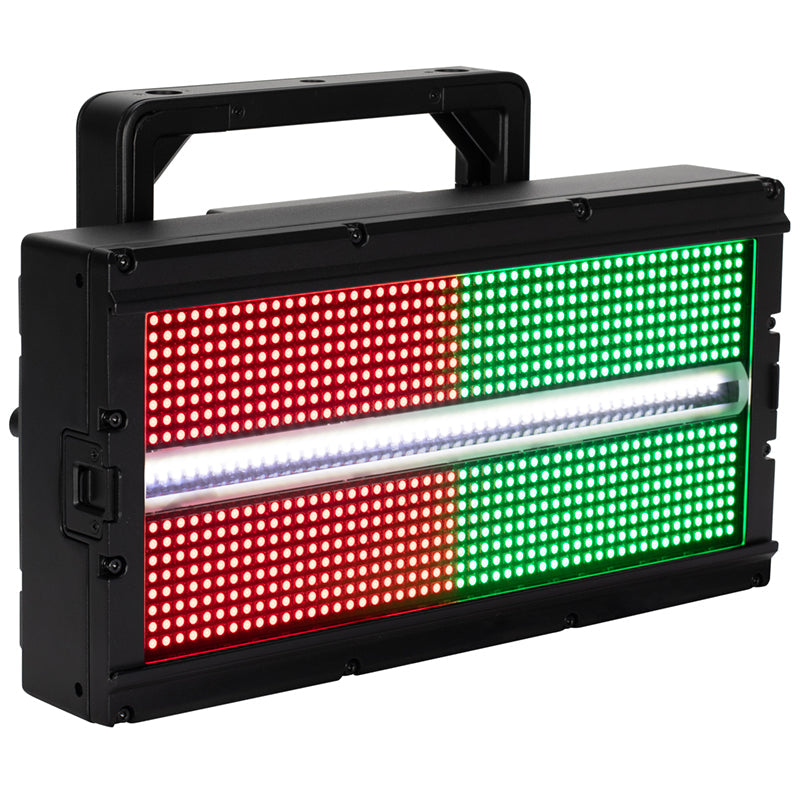

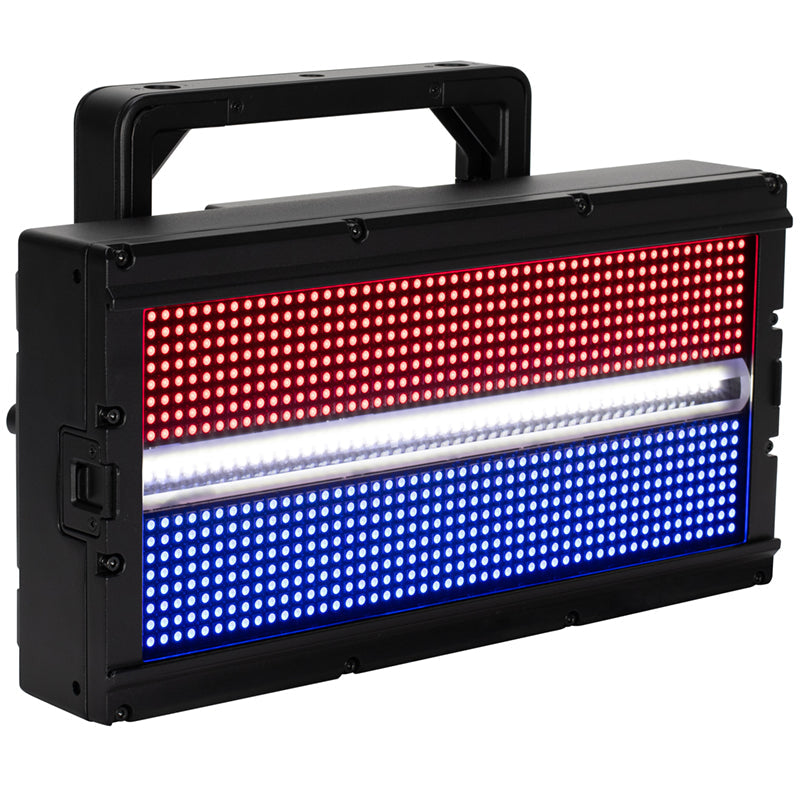

The IP65-Rated Jolt Panel FXIP is an extremely bright and versatile fixture ideal for concert tours, one-off event production and permanent nightclub installations. It features a central strip of 48 x 5-Watt cool white SMD LEDs, surrounded on both sides by a total of 800 x 0.5-Watt RGB SMD LEDs. The Jolt Panel FXIP provides lighting designers with the creative potential of generating strikingly bright white strobe flashes, vibrant color washes, and animated ‘eye candy' chase effects from the same compact fixture which can be used inside or outdoors in any weather.

View full details

Specifications

Dimensions
Width
110” (280mm)
Height
8.4” (213mm)
Electrical
Max Power Consumption
214W @120V; 208W @230V
Optics
Beam Angle
73°
Field Angle
111°
Controls
Control Protocol
DMX, Aria X2 and RDM
14 DMX Modes
6, 9, 13, 18, 20, 36, 41, 43, 51, 81, 83, 126, 141 and 144 channel modes
Dim Modes
6 Presets (Standard, Stage, TV, Architectural, Theatre amp; Stage 2)
Dim Curves
4 Presets (Linear, Square Law, Inv Square Law and S Curve)
Strobe
Ramp Up / Down, Lighting and Random
Max Strobe Rate 20Hz. Min Strobe Rate
1Hz.
Shipping
Weight
20.1 lbs. (9.1kg)
Identifiers
Length
16.4" (417mm)
General
RGB LED Specs
Red: 620-630nm; Green: 515-530nm; Blue: 460-470nm
White LEDs CCT
Typical 7400K (Min 6900 - Max 8000), 472nm
CRI
69.4
Selectable LED Refresh Rate
900Hz - 25kHz
Data
IP65 Locking 5-pin DMX In/Out
Max Power Link
6pcs @120V; 12pcs @230V
Fuse Protected
T5A/250V Glass Fuse (5*20MM)
LED Life
50,000 Hour Average
LED Program Macros
25 built-in RGB, 9 built-in Cool White
Management Suite
Integrated Aria X2
Filter
Includes Frost Lens
Smooth Dimming
0-100%
Indicators
Display
OLED display with 4-button touch menu
LEDs
800 x 0.5-Watt RGB SMD LEDs + 48 x 5-Watt Cool White SMD
Power
Power
IP65 Locking Power In/Out
