ADJ Saber Spot DTW Pinspot
ADJ Saber Spot DTW Pinspot
SoundPro Item: 18935 | Part Number: SABER SPOT DTW
Usually ships in 5-7 business days

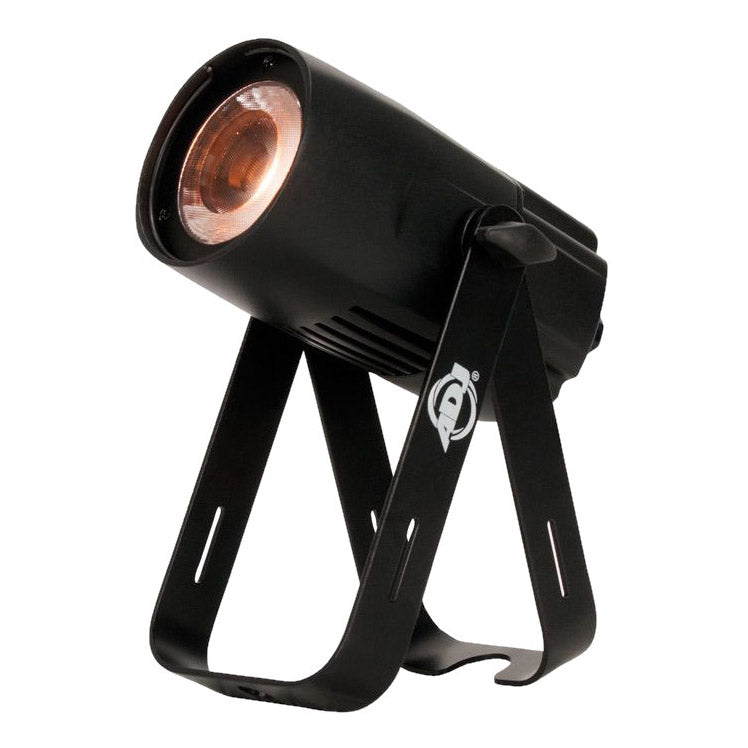

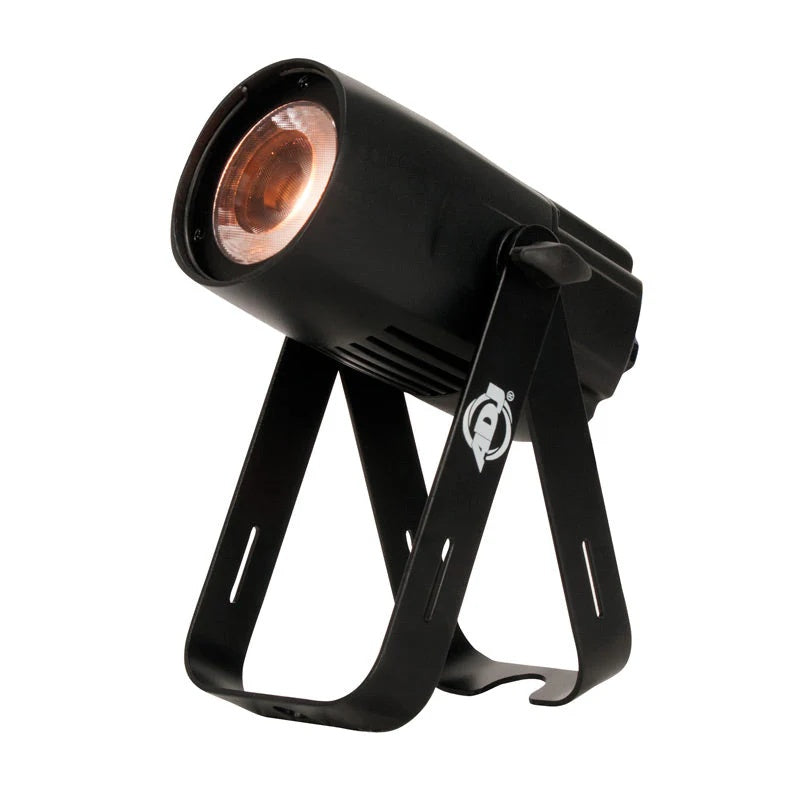

- Compact spot fixture with a 15-Watt warm white LED
- DMX-512, flicker-free operation, strobing, electronic dimming
- 4-Button LED display system on the rear panel
- Built-in ACL lens produces a 20-degree beam angle
- Dim to warm effect replicates a halogen-like dimming profile.
- Scissor bracket system that allows the fixture to be hung or set on the ground
- Ideal for performance stages, installations, table spotting, lighting retail stores
The Saber Spot DTW is a compact spot fixture with a 15-Watt warm white LED. Features DMX-512, flicker-free operation, strobing, electronic dimming and has a 4-Button LED display system on the rear panel. Its built-in ACL lens produces a 20-degree beam angle. It features a dim to warm effect that replicates a halogen-like dimming profile.
The Saber Spot DTW has a scissor bracket system that allows the fixture to be hung or set on the ground, and is ideal for performance stages, installations, table spotting, lighting retail stores.
- Optical
- Light Source: 15-Watt Warm White LED
- LED Life Expectancy: 10,000 Hrs
- Beam Angle: 20-degrees

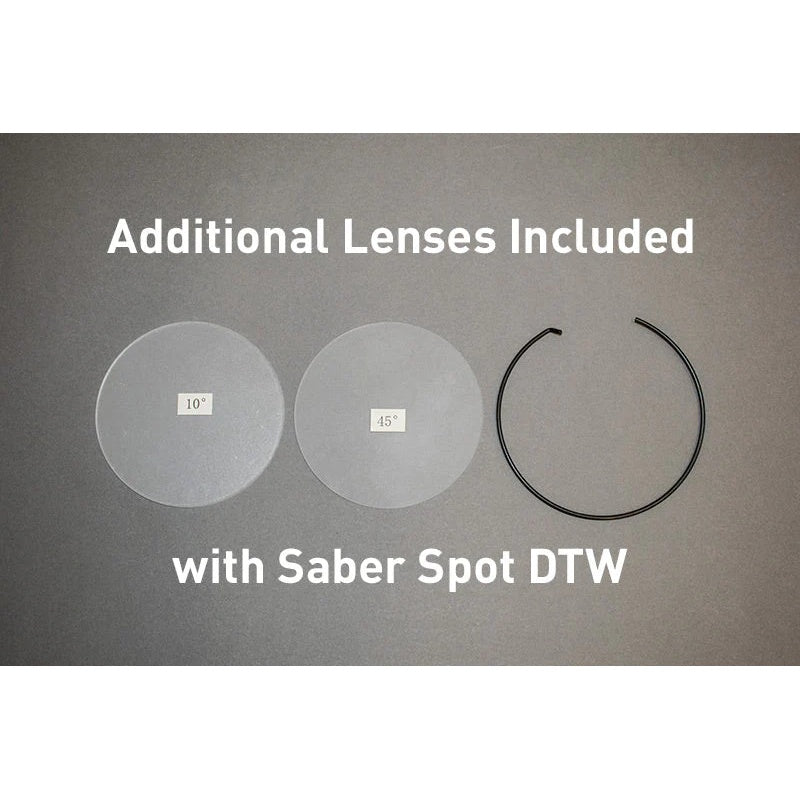

- Includes 2 interchangeable frost filter lens (10-degree & 45-degree)
- Color Temperature (Full on): 3100K (Warm White); 1900K (Amber)
- LUX: 726 @ 3M
- CRI (Full on): 92
- Control
- 3 DMX Channel Modes: 1, 2 or 4
- 4-button Digital Display for easy navigation
- Electronic Dimming 0 - 100%
- 5 Dimming Curve modes
- Dim to warm effect with Amber LED
- Flicker Free (Refresh Rate: 3.6KHz)
- Variable Strobe: 1-20Hz
- Connections

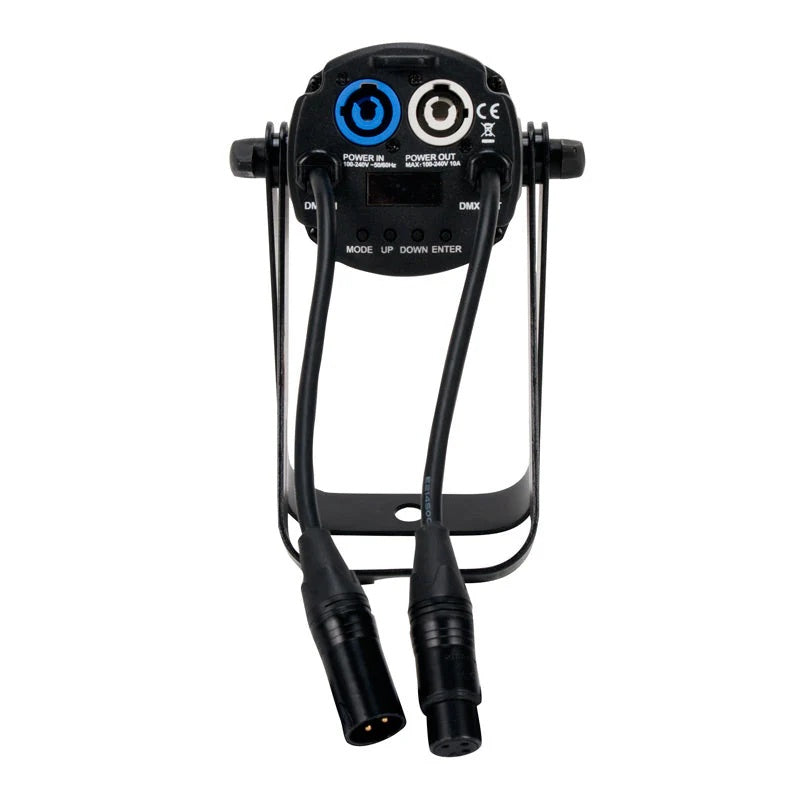

- Power Input: powerCON
- Power Pass through: powerCON
- Daisy chain quantity: 33 fixtures (@120V); 71 fixtures (@230V)
- Control: 3-pin DMX In/Out pigtails
- With Wired Digital Communication Network
- Electrical
- Input Voltage: 100-240V 50Hz/60Hz (Auto Sensing)
- Power draw 120V 60Hz: 15W, 0.13 Amps
- Power draw 220V 50Hz: 15W, 0.07 Amps
- Power Consumption: 24W
- Physical
- Dimensions (LxWxH): 3.5" x 6.75" x 3.5" / 88 x 170 x 87mm
- Weight: 2.6 lbs / 1.2 kg.
- Metal Black Housing
- Certifications
- ETL Pending, UL, CE
- IP 20: Dry area, No liquids
