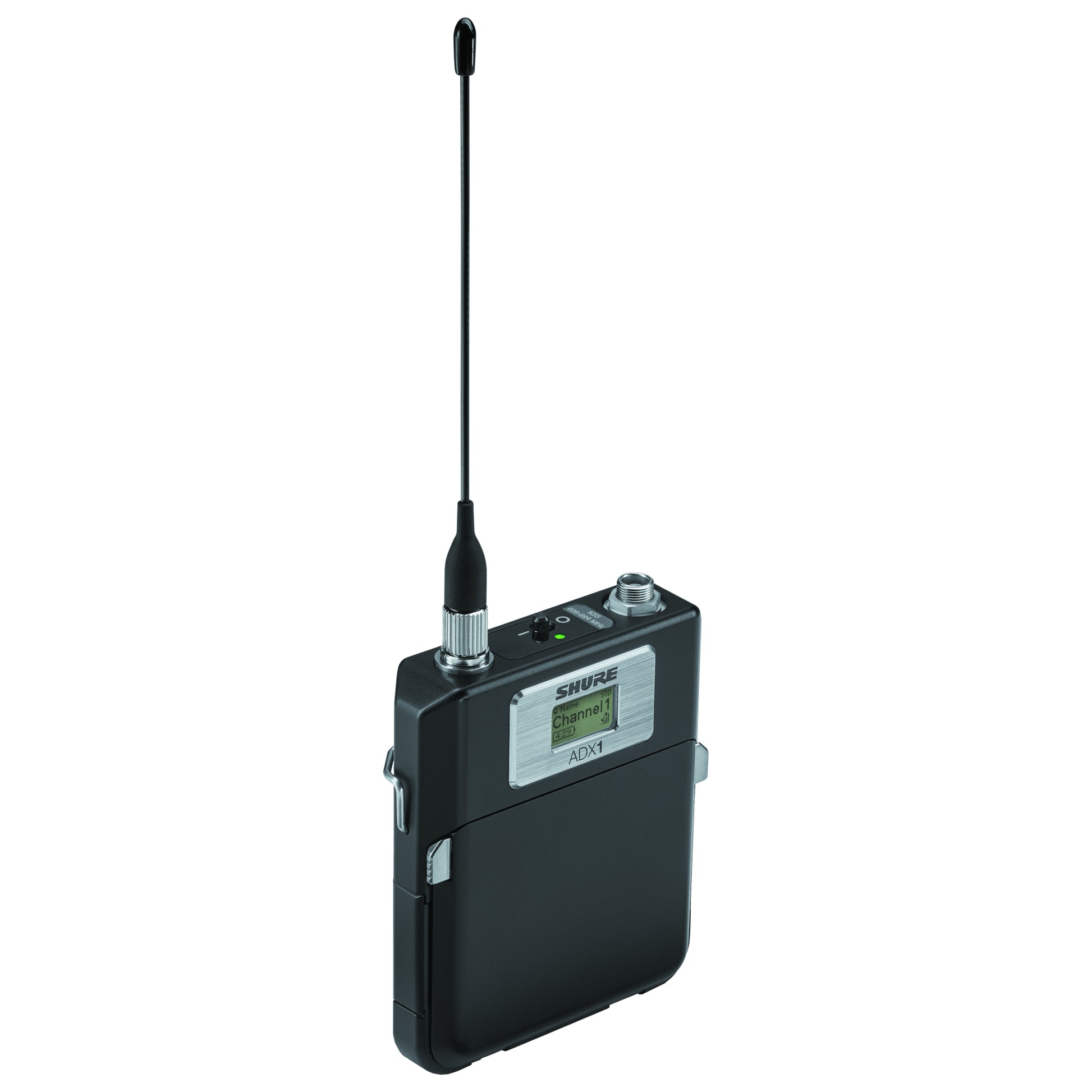

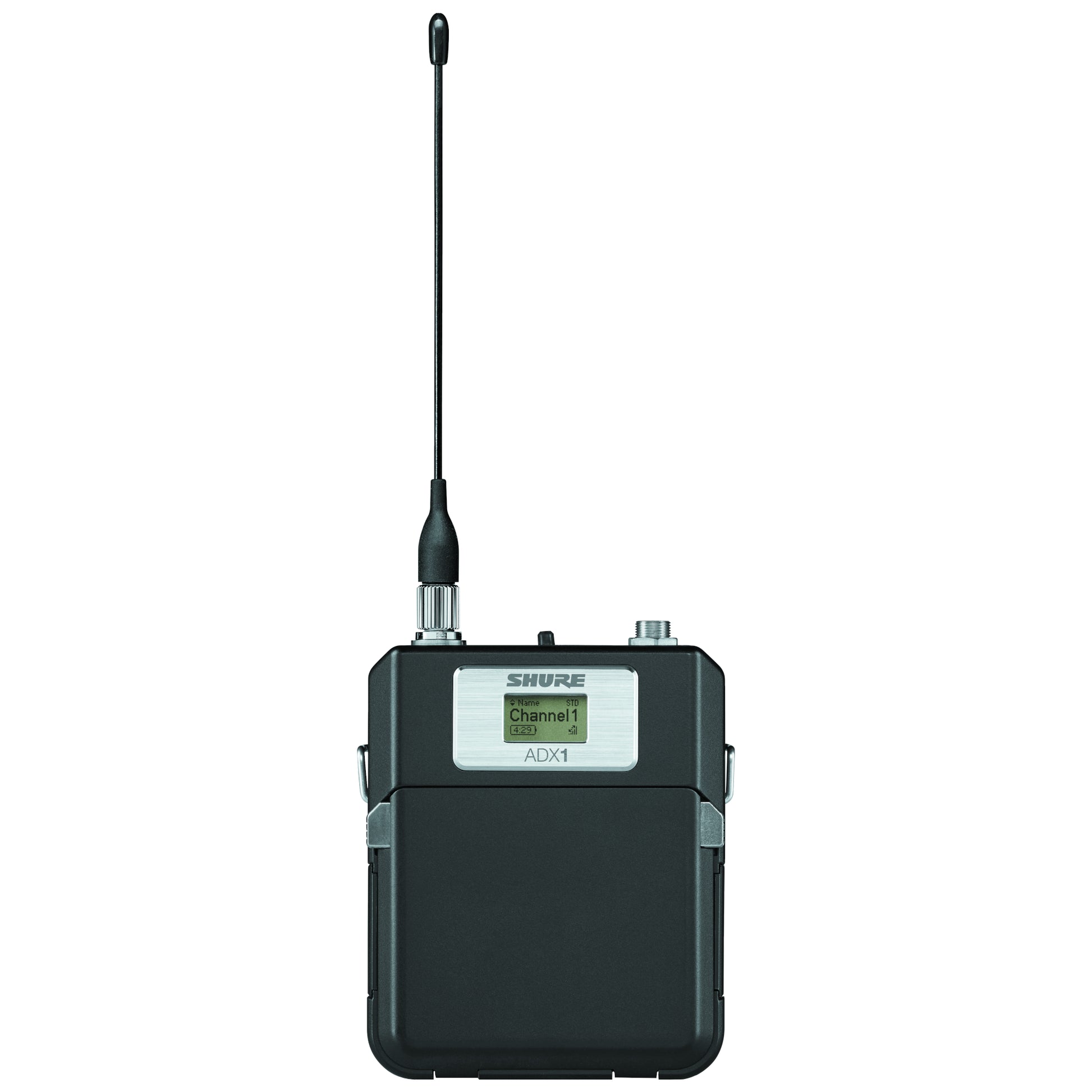

Shure ADX1LEMO3 Axient Digital Wireless Bodypack Transmitter | Frequency: X55 (941-960 MHz)

Shure ADX1LEMO3 Axient Digital Wireless Bodypack Transmitter | Frequency: X55 (941-960 MHz)

SoundPro Item: 27200 | Part Number: ADX1LEMO3=-X55

Regular price $1,958.00
Regular price $2,448.00 Sale price $1,958.00
Your Price Sold out
MSRP: $2,448.00 | MAP: $1,958.00

Usually ships in 5-7 business days

  • Diversity ShowLink enabled for remote transmitter control and automatic interference avoidance
  • Removable antenna and fully concealed buttons and switch
  • Advanced control menu with powerful features
  • Durable, moisture-resistant, lightweight metal case
  • Up to 10 hours of runtime with SB910 rechargeable battery
  • External contacts for docked charging
  • Two transmission modes: Standard for optimal coverage and new High Density for maximum system channel count and robust coverage
  • Encryption-enabled, secure transmission

Set your sound up for success with the ADX1LEMO3 Axient Digital Wireless Bodypack Transmitter. Boasting advanced controls, enhanced features, and up to 10 hours of runtime using its included rechargeable batteries, the ADX1LEMO3 is further set apart with its integrated Diversity ShowLink remote control that enables real-time settings adjustments and automatic interference avoidance.

Achieve stellar audio quality and breakthrough RF performance in this feature-packed wireless digital transmitter. Choose between two transmission modes: Standard Mode optimizes wireless coverage, while High Density Mode intensifies the coverage and maxes out the system’s channel count. The ADX1LEMO3’s other features include wide tuning up to 184 MHz  and secure transmission via its encryption enabling.

Advanced rechargeability is another key characteristic of the ADX1LEMO3. The bodypack comes with two SB910 rechargeable batteries, while the housing incorporates external contacts for charging the entire unit in a dock (sold separately).

Moisture-resistant and durable, the ADX1 bodypack’s metal build helps it endure the wear and tear of demanding applications, while its lightweight design makes it comfortable to wear. It incorporates a LEMO3 connector (another available option, the ADX1, features a TA4 connector and is sold separately).

Also included with the ADX1LEMO3 Bodypack Transmitter are a belt clip and a bag for transport and storage.

Note: When purchasing separate wireless components, please match their frequency bands to ensure proper system operation.

View full details
  • Mic Offset Range-12 to 21 dB (in 1 dB steps)
  • Battery TypeShure SB910 Rechargeable Li-Ion
  • Battery Runtime (@ 10 mW) up to 10 hours
  • Dimensions (HxWxD)(3.6x2.7x0.8" (91x68x19mm)
  • Weight (without battery)5 oz (142 g)
  • HousingAluminum
  • Operating Temperature Range-18°C (0°F) to 45°C (113°F)
  • Storage Temperature Range-29°C (-20°F) to 74°C (165°F)
  • Audio Input
    • Connector: 4-Pin male mini connector (TA4M) or Lemo Connector
    • Configuration: Unbalanced
    • Impedance
      • 4-Pin male mini connector (TA4M): 910 kΩ
      • Lemo Connector: 8.2 kΩ
    • Maximum Input Level (1 kHz at 1% THD)
      • Pad Off: 8.5 dBV (7.5 Vpp)
      • Pad On: 20.5 dBV (30 Vpp)
    • Preamplifier Equivalent Input Noise (EIN)
      • System Gain Setting ≥ +20
      • -120 dBV, A-weighted, typical
  • RF Output
    • Antenna Type
    • UHF 1/4 wave
  • Connector TypeSMA
  • Impedance50 Ω
  • Occupied Bandwidth<200 kHz
  • Channel-to-Channel Spacing
    • Standard Mode: 350 kHz
    • High Density Mode: 125 kHz
    • Modulation Type: Shure Axient Digital Proprietary
    • Power: 2 mW, 10 mW, 40 mW
    • Specific Absorption Rate (SAR): < 0.20 W/kg
  • ShowLink
    • Network Type: IEEE 802.15.4
    • Antenna Type: Zigbee Dual Conformal
    • Frequency Range: 2.4 to 2.4835 GHz (24 Channels)
  • RF Output Power0 dBm (ERP)
