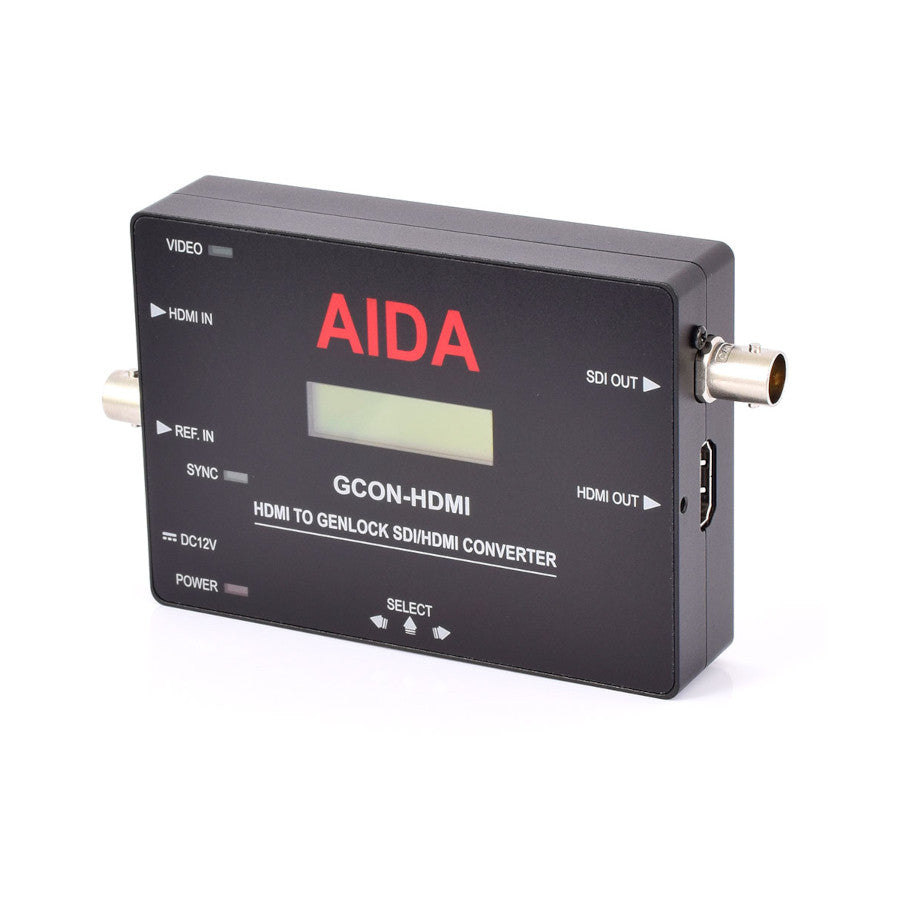

AIDA GCON-HDMI HDMI to Genlock SDI/HDMI Converter

AIDA GCON-HDMI HDMI to Genlock SDI/HDMI Converter

SoundPro Item: 106229 | Part Number: GCON-HDMI

$565.00
$565.00 $565.00
Your Price Sold out
MSRP: $565.00 | MAP: $565.00

Usually ships in 5-7 business days

  • HDMI up to 1080p60 full HD Resolution Input
  • Simultaneous SDI and HDMI Loop Output
  • Highly compatible with Tri Level reference input SMPTE 292M & 424M Compliant and multi-video format including 59.94Hz
  • SMPTE 352M Ancillary Data supported
  • Embedded audio pass through via SDI & HDMI
  • Adjustable V-sync & H-sync phases
  • Divisional picture comparison
  • Built in Pattern Generator
  • Built in LCD menu screen
  • Built in menu control button
  • Versatile, compact, and rugged design
Log in or register for YOUR best price

The GCON-HDMI supports 1080p resolution up to 60 fps, converting HDMI sources to Genlock SDI/3G-SDI and HDMI with zero latency. While keeping the integrity of the original source feed intact, the featured Genlock Tri-Level Sync makes synchronization with other system components possible for seamless vertical interval switching between sources. The GCON-HDMI supports ancillary data in SMPTE 352 payload ID and audio and relays it through its SDI output as well. Its rugged and portable design makes GCON-SDI a perfect camera sidekick to where it’s needed most.

View full details
  • Video
    • Video Input: 3G-SDI / HD-SDI
    • Resolution Rate
      • 1080 60p/59.94p/50p/30p/29.97p/ 25p
      • 1080 60i/59.94i/50i
      • 720 60p/59.94p/50p/30p/25p
    • Color Space: 4:2:2 (YCbCr) 10bit
    • Output Gen-locked
      • HD-SDI/3G-SDI
      • Gen-locked HDMI 1.3a
  • Function
    • Gen-lock Control
      • ON/OFF
      • H Sync & V Sync Adjustment
    • Audio Control Audio Bits (16, 20, 24 Bits)
    • Payload ID: ON/OFF
    • Payload Generate: Thirteen Patterns
  • Audio Input16 Channels Embedded SDI Audio
  • Standard SMPTE 292M, SMPTE 424M
  • Synchronization Gen-lock External Tri-Level Input
  • Physical
    • Control: OSD Button & Text LCD
    • Operation Temperature: 32°F - 104°F
    • Dimension: 5.11 x 2.95 x 0.94 inches (130 x 75 x 24mm)
    • Weight: 0.38 lbs (173g)
    • Power: 6W at 12VDC (+9 - +15VDC)
