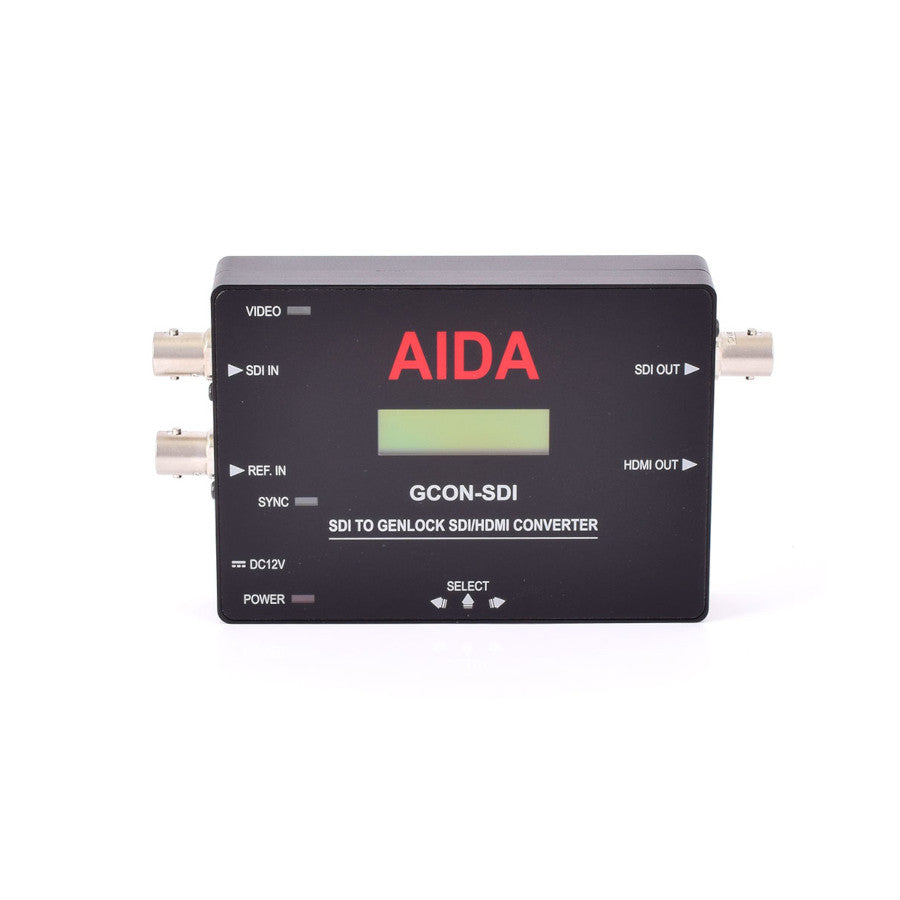

AIDA GCON-SDI SDI to Genlock SDI/HDMI Converter

AIDA GCON-SDI SDI to Genlock SDI/HDMI Converter

SoundPro Item: 106228 | Part Number: GCON-SDI

Regular price $495.00
Regular price $495.00 Sale price $495.00
Your Price Sold out
MSRP: $495.00 | MAP: $495.00

Usually ships in 5-7 business days

  • 3G-SDI up to 1080p60 full HD Resolution Input
  • Simultaneous HDMI and SDI Loop Output
  • Highly compatible with Tri Level reference input SMPTE 292M & 424M Compliant and multi-video format including 59.94Hz
  • SMPTE 352M Ancillary Data supported
  • Embedded audio pass through via SDI & HDMI
  • Adjustable V-sync & H-sync phases
  • Divisional picture comparison
  • Built in Pattern Generator
  • Built in LCD menu screen
  • Built in menu control button
  • Versatile, compact, and rugged design

The GCON-SDI supports 1080p resolution up to 60 fps, converting SDI/3G-SDI sources to Genlock SDI/3G-SDI and HDMI with zero latency. While keeping the integrity of the original source feed intact, the featured Genlock Tri-Level Sync makes synchronization with other system components possible for seamless vertical interval switching between sources. The GCON-SDI also supports ancillary data in both SMPTE 352 payload ID and audio and relays it through its SDI output. Its rugged and portable design makes GCON-SDI a perfect camera sidekick to where it’s needed most.

View full details
  • Synchronization
    • Input: 3G-SDI / HD-SDI
    • Resolution|Rate: 1080p : 60 / 59.94 / 50 / 30 / 29.97 / 25 p 1080i : 60 / 59.94 / 50i 720p : 60 / 59.94 /30p/ 25p
    • Color Space: 4:2:2 (YCbCr) 10bit
    • Output: Genlocked HD-SDI/3G-SDI Genlocked HDMI 1.3a
  • Function
    • Genlock
      • ON/OFF
      • H Sync & V Sync Adjustment
    • Audio Control: Audio Bits (16, 20, 24 Bits)
    • Payload ID: ON/OFF
    • Pattern Generate: Thirteen Patterns
  • Audio
    • Input: 16 Channels Embedded SDI Audio
  • Standard
    • SMPTE: SMPTE 292M, SMPTE 424M
  • Physical
    • Camera Control: OSD Button & Text LCD
    • Operation Temp: 32° F – 104° F
    • Dimension: 5.11 x 2.95 x 0.94 inches (130mm x 75m x 24mm)
    • Weight: 0.38 lbs (173g)
    • Power: 6W at 12VDC (+9 – +15VDC)
