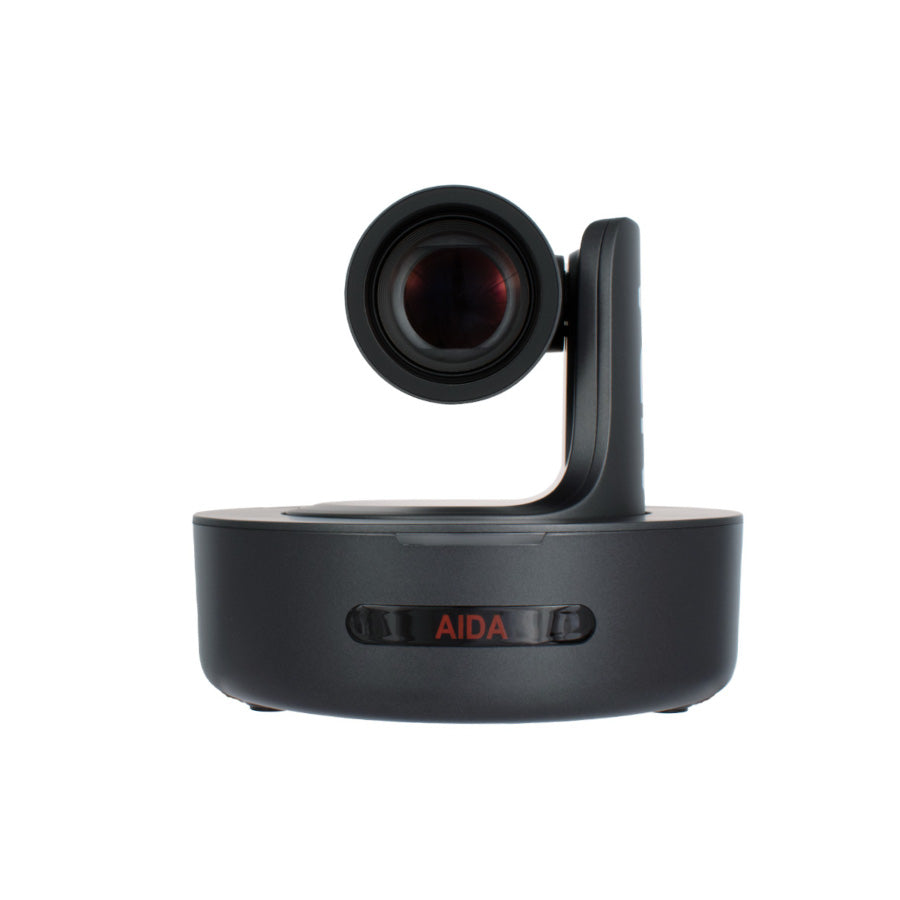

AIDA PTZ-X12-IP Full HD IP Broadcast PTZ Camera
AIDA PTZ-X12-IP Full HD IP Broadcast PTZ Camera
SoundPro Item: 48854 | Part Number: PTZ-X12-IP
Usually ships in 5-7 business days
- Full HD Progressive Scan sensor captures sharp and vivid color under different light conditions
- Advanced digital image processor provides vivid and detailed images with full access feature sets
- Motion-compensated temporal noise reduction filter leads to effective noise reduction for motion video without blur
- 3G/HD-SDI, HDMI, RJ-45, USB 3.0, and USB 2.0 for versatility and seamless video performance
- Power Optical Zoom capability up to 12X
- Compatible with other industry leading products, conforming with SMPTE 424M/292M standard
- Auto White Balance and shutter speed provides the optimized performance in a variety of situations
- Built-in OSD controls for customizable image settings
- Versatile and compact
- TRS Stereo Audio Input for embedded audio over HDMI, SDI, and IP
The PTZ-X12-IP is one of AIDA’s most well-rounded Full HD cameras yet. The camera features IP streaming technology by H.264 or the newer H.265 High Efficiency Video Coding (HEVC). With integrated RS232 and VISCA over IP camera control, this camera is compatible with most IP based controllers, simplifying existing workflows with better cable management. The camera features traditional multi video format outputs such as 3G-SDI, HDMI, USB 3.0, as well as online video outputs RTSP/RTMP. Our camera’s cost effective approach makes professional grade PTZ cameras, at the fraction of the price.
- Video
- Image Sensor: 1/2.5″ Progressive CMOS
- Effective Pixels: Horizontal: 1920, Vertical: 1080
- Pixel Size: 2.13 µm x 2.13 µm
- Resolution: 1080p & 1080i: 1920 x 1080
- Resolution | Rate
- 108060p/59.94p/50p/30p/29.97p/25p/24p/23.98p
- 1080 60i/59.94i/50i
- 720 60p/59.94p/50p/30p/29.97p/25p
- IP Rate
- 1920 x 1080 @ 1~60
- 1280 x 720 @ 1~60
- 1024 x 576 @ 1~60
- 620 x 360 @ 1~60
- Output
- HD-SDI/3G-SDI
- HDMI RJ45
- USB 3.0 & 2.0
- Color Space: 4:2:2 (YCbCr) 10bit
- Min. Illumination: 0.1Lux
- Function
- White Balance: Auto, Manual, Auto Tracking, One Push, Indoor, Outdoor
- Focus: Auto, Manual
- Shutter Speed: 1 to 1/10,000 Sec.
- Lens12X HD Optical Zoom, F1.5 ~ F3.0
- PTZ
- Pan, Tilt :Range
- Pan: 340°,
- Tilt: +90 to -30°
- Pan, Tilt :Speed
- Pan: 0° to +120°/s
- Tilt: 0° to +80°/s
- Presets: 128 Positions
- Field of View: 72.5°
- Pan, Tilt :Range
- Standard
- SMPTE: SMPTE 292M, SMPTE 424M
- IP Protocol: TCP|IP, RTSP|RTMP
- Audio
- Input: 3.5mm TRS Stereo Audio Port
- Sample Rate: 16/24/32 Bits
- Physical
- Camera Control: Protocol: VISCA Interface: RS-232C IN & OUT, RJ-45 Remote Controller
- Operation Temp: 32° F – 104° F
- Dimension: 6.1 x 6.92 x 6.69 inches (155mm x 160m x 170mm)
- Weight: 2.97 lbs (1.35kg)
- Power: 12VDC (+9 – +15VDC) PoE+ (IEEE802.3at Standard Required)
