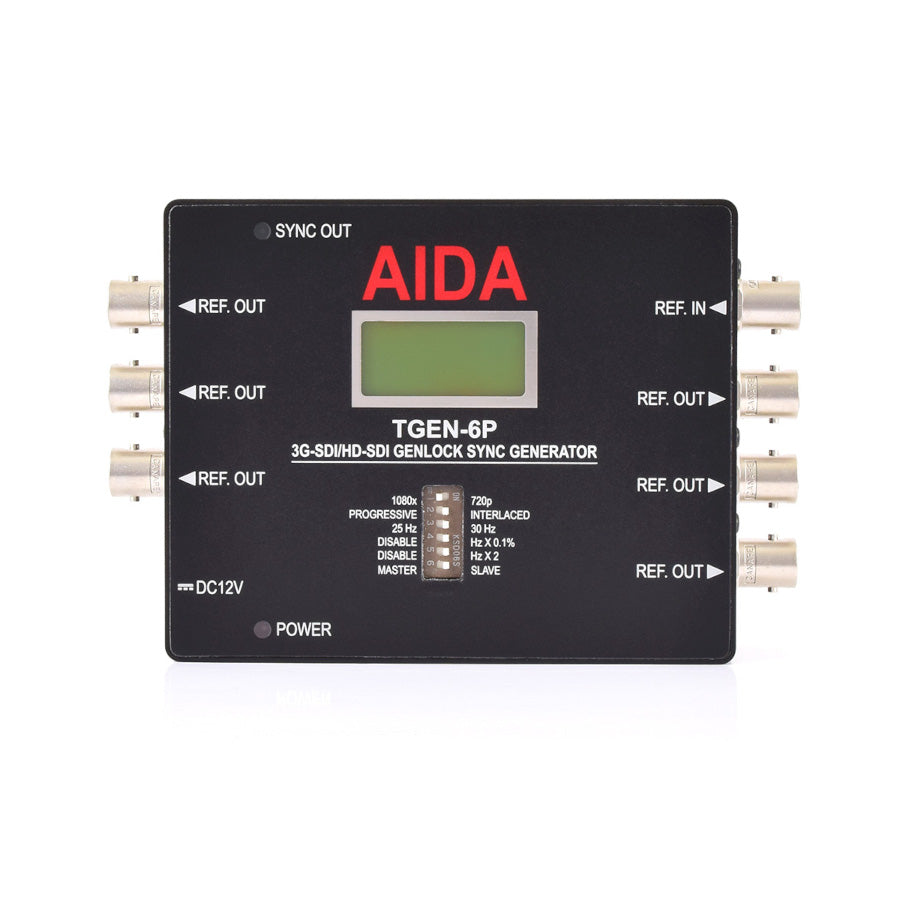

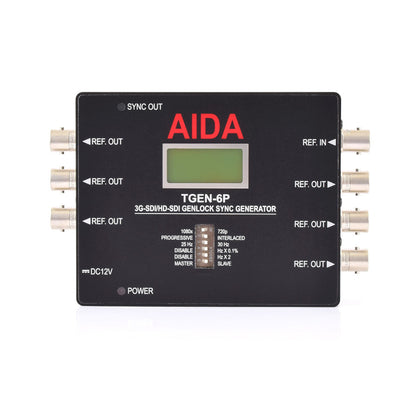

AIDA TGEN-6P Genlock Reference Sync Generator

AIDA TGEN-6P Genlock Reference Sync Generator

SoundPro Item: 106230 | Part Number: AIDA-TGEN-6P

$1,100.00
$1,100.00 $1,100.00
Your Price Sold out
MSRP: $1,100.00 | MAP: $1,100.00

Usually ships in 5-7 business days

  • Multi format HD Tri Level Sync up to 1080p60
  • Both V Sync and H Sync generation for more accurate timing
  • Up to 6 synchronized reference output per device
  • Slave mode for cascading
  • Built in LCD screen
  • Built in setting dipswitches
  • Versatile, compact, and rugged design
Log in or register for YOUR best price

The TGEN-6P generates 3G-SDI and HD-SDI Genlock Sync reference, while giving you the ability to sync all your video sources into one master sync signal. It supports 15 different formats ranging from 720p 25Hz up to 1080p 59.94/60Hz and can be operated in Slave mode, distributing external reference sync signals. TGEN-6P has a built-in LCD screen and dipswitches for convenient setting and status checking. Its compact and solid design helps users create and maintain a more streamlined workflow.

Downloads

View full details
  • Synchronization
    • Reference Out: Tri-Level HD
    • Format: 1080p 60/59.94/50/30/29.97/25Hz 1080i 60/59.94/50Hz 720p 60/59.94/50/30/25Hz
    • Accuracy: H2ppm
    • Reference In: Tri-Level HD & Bi-Level SD
  • Standard
    • SMPTE: SMPTE 274M, SMPTE 296M
  • Physical
    • Camera Control: Dipswitches & Text LCD
    • Operation Temp: 32° F – 104° F
    • Dimension: 5.07 x 3.38 x 1.1 inches (129mm x 86m x 29mm)
    • Weight: 0.61 lbs (278g)
    • Power: 12VDC (+9 – +15VDC)
