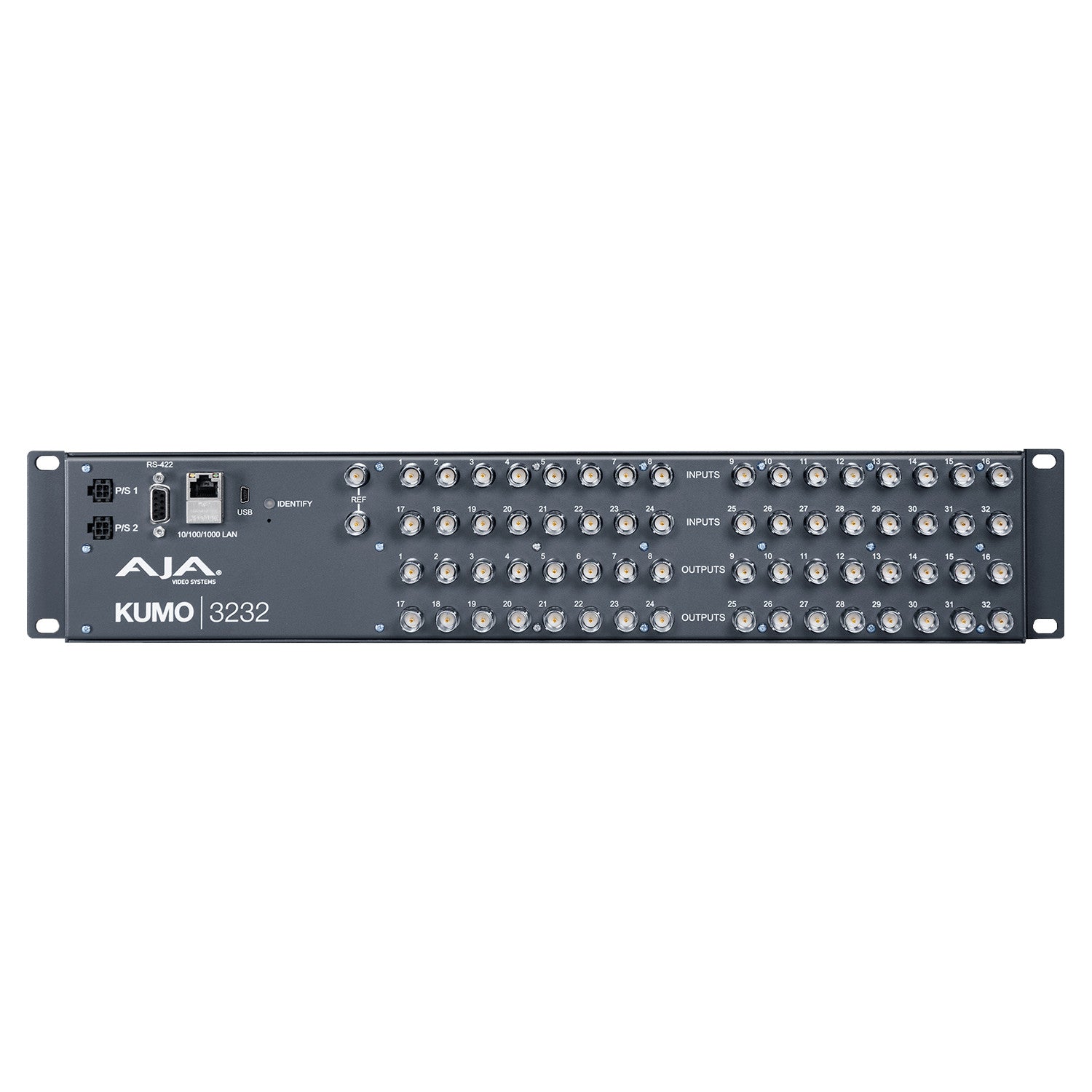

AJA KUMO 3232 Compact 32x32 3G-SDI Router

AJA KUMO 3232 Compact 32x32 3G-SDI Router

SoundPro Item: 129792 | Part Number: KUMO-3232-R2

$4,575.00
$4,575.00 $4,575.00
Your Price Sold out
MSRP: $4,575.00 | MAP: $4,575.00

Usually ships in 5-7 business days

  • 32x 3G-SDI inputs and outputs Small, portable form factor
  • Supports ganged dual and quad port routing for resolutions up to 4K/UltraHD
  • Redundant power supply (option)
  • Eight salvos per router
  • Embedded web server for remote control
  • Configure IP Address via USB port and supplied AJA eMini-Setup software for PC/Mac
Log in or register for YOUR best price

KUMO 3232 offers increased capacity for medium sized configurations while maintaining a compact 2RU profile with support for 3G-SDI/1.5G-SDI with 32x 3G-SDI inputs and 32x 3G-SDI outputs. Supports ganged dual and quad port routing control, allowing users to group together multiple inputs and outputs for Dual Link and Quad Link 4K/UltraHD workflows.

KUMO 3G-SDI routers support single link 1080p/HD/SD, high frame rate (HFR) and deep color formats. The routers offer network-based and/or physical control using KUMO CP and CP2 and offer a USB port for configuring IP addresses via AJA’s eMini-Setup software.

Built to the same quality standards as all AJA KUMO products, KUMO 3232 is the ideal choice for any situation where a balance of size, performance, and capacity are critical such as post facilities and mobile trucks.

View full details
  • Video Format
    • 270 Mbps, 1.5 Gbps, 3 Gbps SDI
    • 270 Mbps DVB-ASI
  • Video Input Digital
    • 3G-SDI Inputs
    • 32x BNC, SMPTE-259/292/424
  • Video Output Digital
    • 3G-SDI Outputs
    • 32x BNC, SMPTE-259/292/424
    • Noninverting
  • Ancillary DataPasses all SDI embedded ancillary data including audio
  • SalvoUp to 8 Salvos can be configured and saved in each KUMO router
  • Cable Equalization
    • (Belden 1694A)
    • 3 Gbps, up to 140m
    • 1.5 Gbps, up to 200m
    • 270 Mbps, up to 400m
    • Automatic operation
  • Reclocking270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.966 Gbps, 2.970 Gbps - Auto Select
  • Switching Modes
    • Single/Normal, Dual, and Quad Link modes
    • Switches in vertical blanking per SMPTE RP-168
  • Control Panel Compatibility
    • AJA KUMO CP – 1RU X-Y Ethernet control panel
    • AJA KUMO CP2 – 2RU X-Y Ethernet control panel
  • Reference Input
    • External, 2x BNC
    • Looping, nonterminating
    • Blackburst or tri-level sync
  • Network Interface
    • 1x RJ-45, 10/100/1000 Ethernet
    • Supports AJA KUMO Ethernet control panels, direct connect or networked
    • Basic support for Grass Valley Native Protocol
    • Embedded web server for remote control
  • USB Interface1x Mini-USB for IP configuration using AJA eMini-Setup
  • Machine Interface
    • 1x DB-9 Female, RS-422
    • Basic support for Grass Valley Native Protocol
    • 9-pin D-connector pinout is as follows
      • 1: GND
      • 2: TX-
      • 3: RX+
      • 4: GND
      • 5: No Connection
      • 6: GND
      • 7: TX+
      • 8: RX-
      • 9: GND
      • Shell: GND
  • Size (WxDxH)2RU - 17.4x1.54x3.5" (441.96x39.12x88.9 mm)
  • Weight4.6 lbs (2.1 kg)
  • Power
    • External power supply required
    • Enclosure: Dual, redundant, 10-14VDC regulated, 4-pin Molex, 24W typical, 25.2W max.
    • AC adapter, included: 100-240VAC, 50/60 Hz, universal input, 60W
    • Optional redundant AC adapter sold separately, KUMO-PWR
  • Environment
    • Safe Operating Temperature: 0 to 40 C (32 to 104 F)
    • Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
    • Operating Relative Humidity: 10-90% noncondensing
    • Operating Altitude: <3,000 meters (<10,000 feet)
