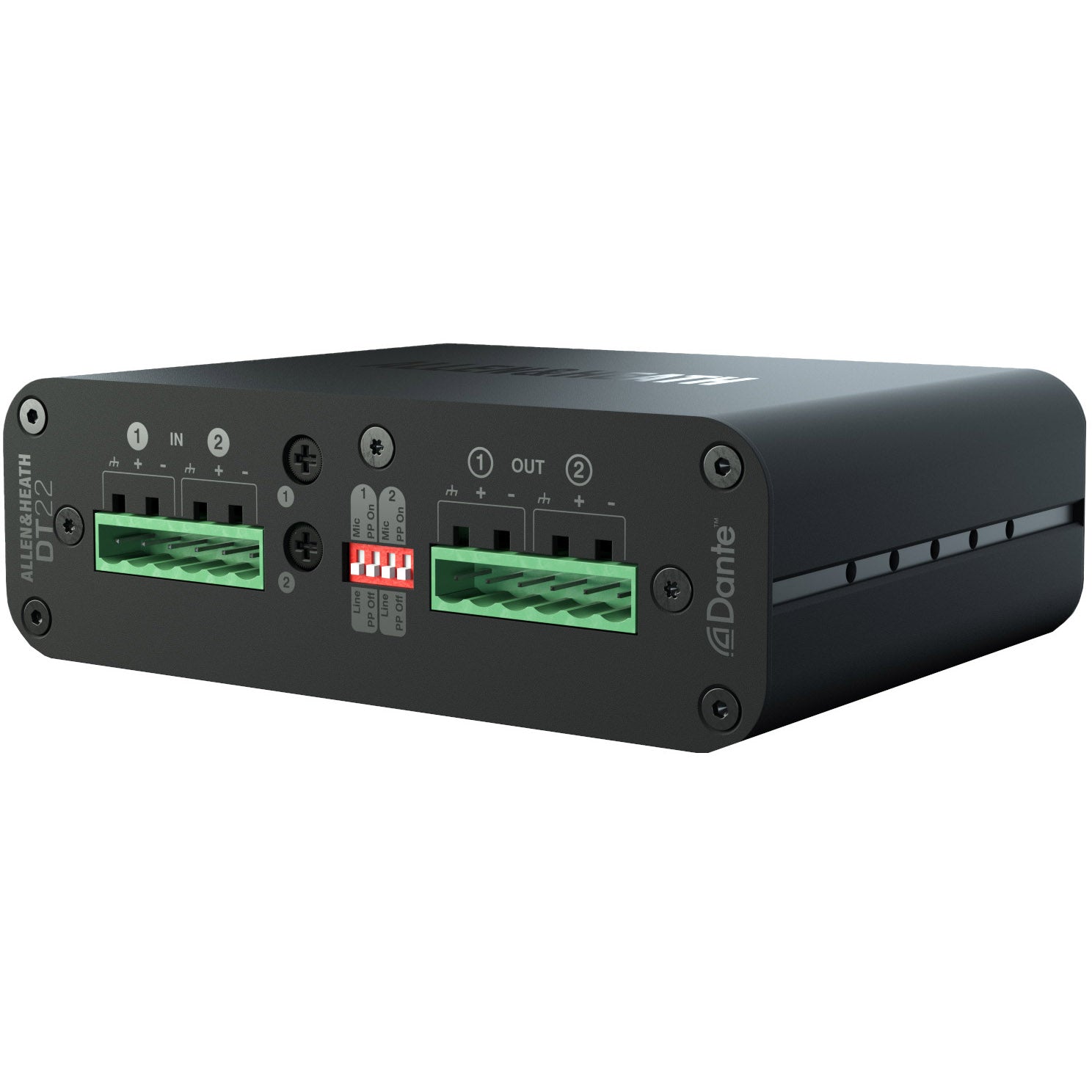

Allen & Heath DT22 Dante I/O Interface
Allen & Heath DT22 Dante I/O Interface
SoundPro Item: 117742 | Part Number: AH-DT-22-M
Usually ships in 5-7 business days
- Dante 2×2 interface, 48kHz/96kHz
- Phoenix euroblock connectors
- Local gain control and mic/line switch
- 48V phantom power
- PoE powered or DC 12V
- Rugged aluminium box
- Includes ears for surface mounting
- Optional rack mounting kit DT-RK19
- AES67 compatible
- Dante Domain Manager ready
DT22 is a 48kHz/96kHz Dante interface enabling convenient placement of 2 mic/line IN and 2 line OUT where you need to get analog in and out of a Dante network.
DT22 is a compact 48kHz/96kHz Dante interface enabling convenient placement of 2 mic/line inputs and 2 line outputs wherever you need to get analog audio in and out of a Dante network. Equipped with standard Phoenix / euroblock connectors, DT22 is designed for fixed installation and can be easily mounted under a meeting table, for example in a breakout room or huddle space, under a podium for local mic/PC and speaker connection, or rack-mounted to interface with analog equipment such as an AV switcher.
It can be used with any Dante-equipped Allen & Heath mixer or AHM system, as well as in third party Dante systems. The unit can be PoE powered or powered via a DC 12V supply.
- Mic/Line InputsBalanced Phoenix, +48V PP
- Analog Gain 0 to +55dB
- Line Inputs -20dB PAD
- Maximum Input Level +30dBu (line in)
- Input Impedance >4kΩ (mic), >10kΩ (line)
- Line Outputs Balanced Phoenix
- Output Impedance <75Ω
- Nominal Output +4dBu = 0dB meter reading
- Maximum Output +22dBu
- Dante 48kHz/96kHz
- Power and Temperature
- DC Input +12V DC 1.25A
- Power Consumption 10W max
- Operating Temperature Range 0°C to 40°C (32°F to 104°F)
- PoE Requirements 802.3af 15W
- Dimensions (WxDxH)5.1x3.9x1.7” (130x100x42mm)
- Weight 1lbs (0.5kg)
